7^th Gen. IGBT 62mm STD-type Module

Discover our Power Modules

Advantages

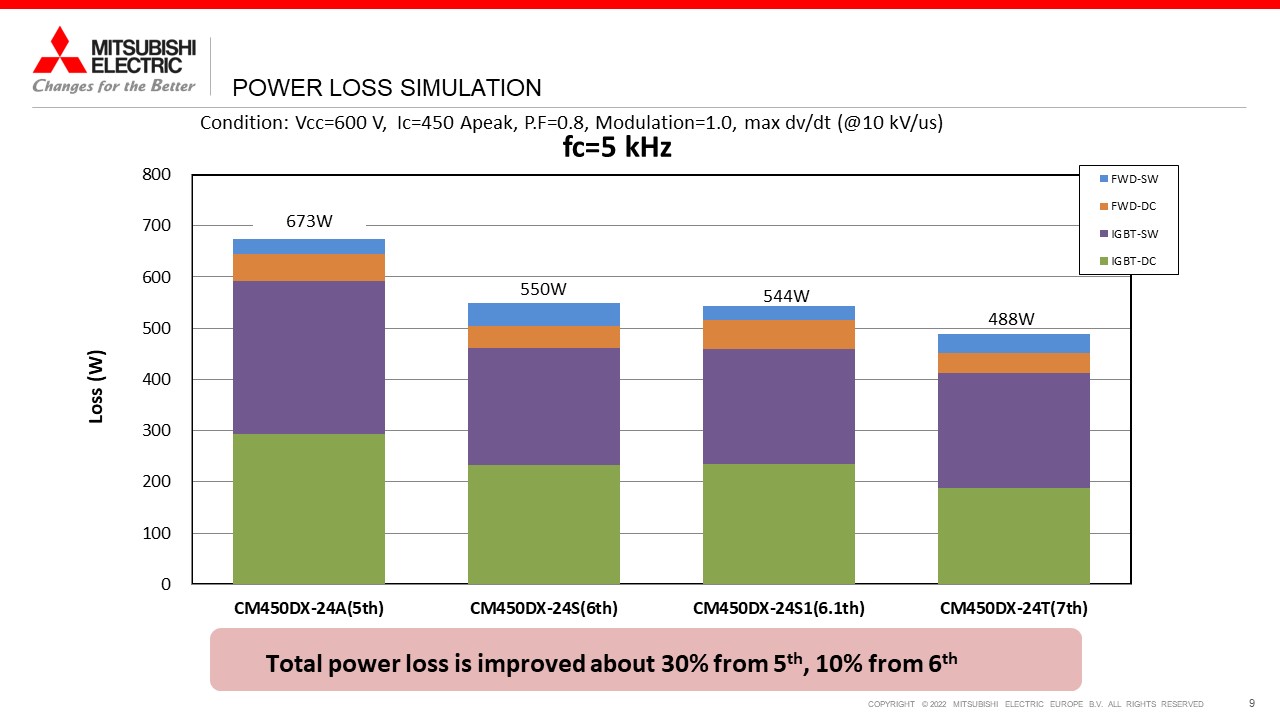

High efficiency by latest 7th Gen. IGBT Technology

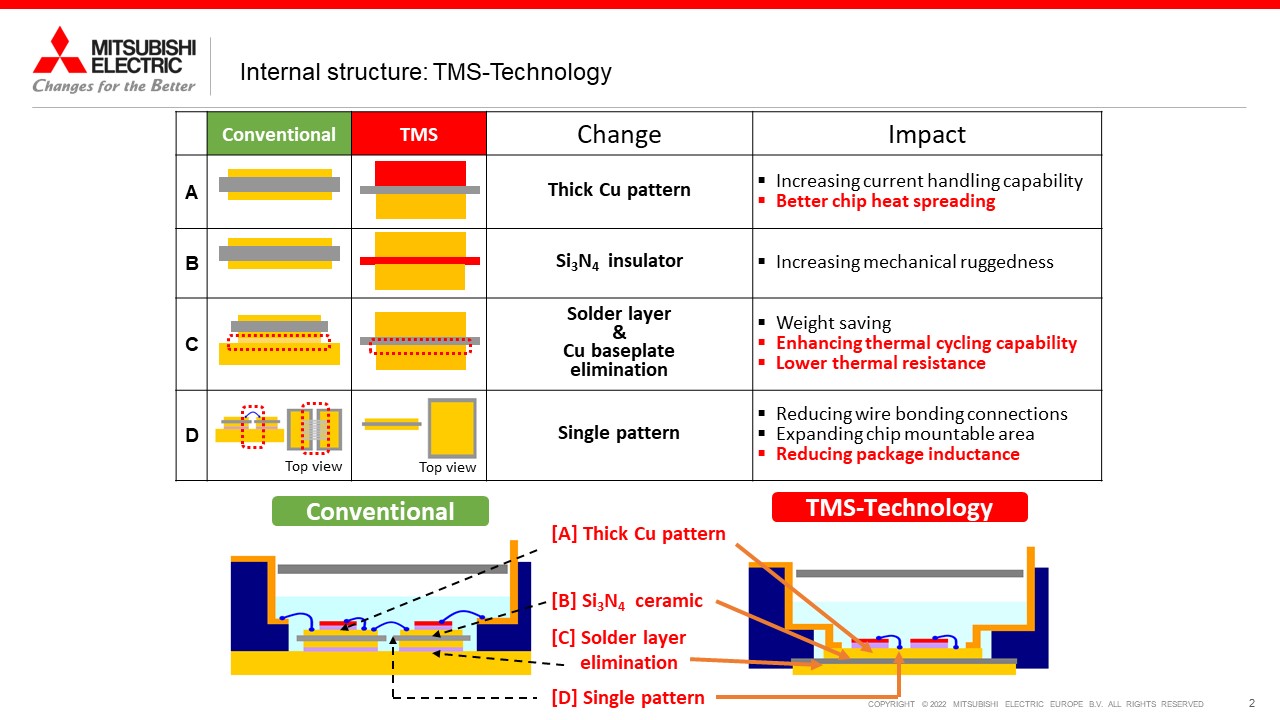

High Reliability by improved thermal cycle capability with TMS-Technology
High power density by high thermal performance realised with Silicon Nitrite substrate
Pre applied PC-TIM available

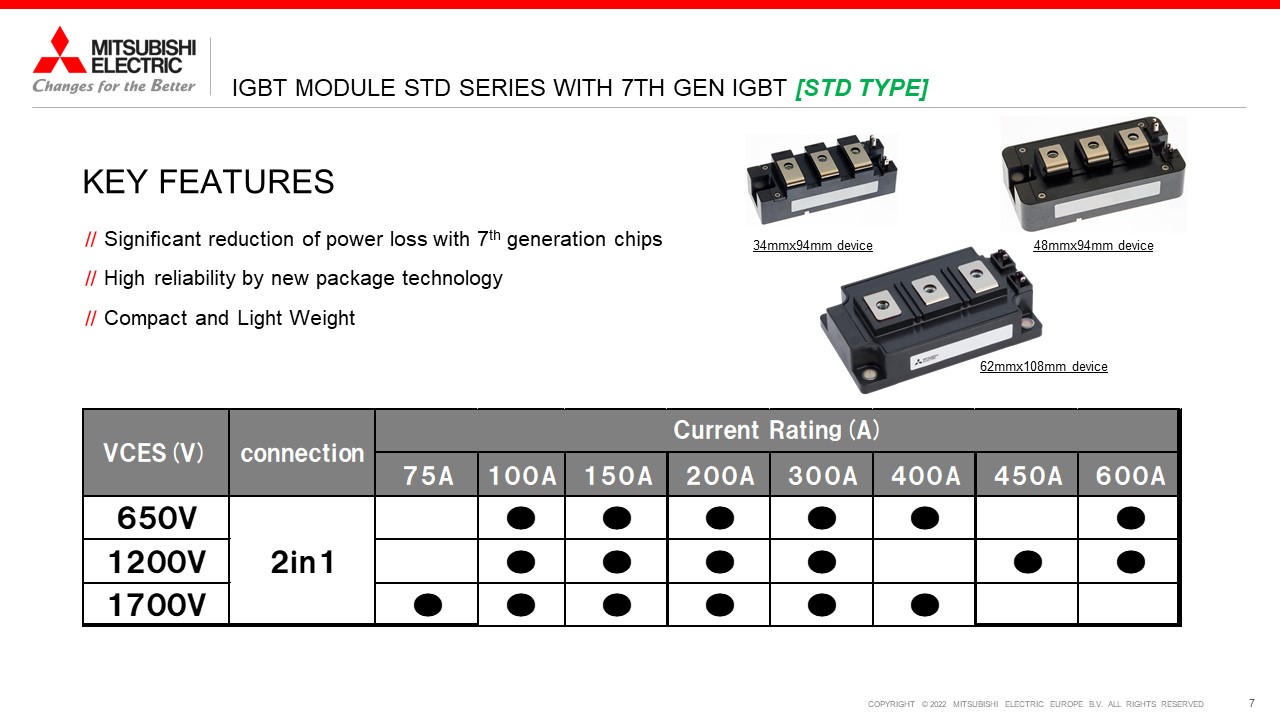

Attributes

Ratings:

650 V : 600 A
1200 V: 450 A, 600 A
1700 V: 300 A, 400 A
2000 V : 400 A

Dimensions [mm]:

62 x 108 x 30

Downloads

Articles
- Highest Power Density by 7th Gen. IGBT Std-Type Module with New TMS-Technology
Datasheets
Flyer
- T-Series IGBT Modules – Standard-Type
Application Notes
- Cosmic Ray LTDS for IGBT Modules
- IGBT Modules T/T1 Series
Press Releases
- No press releases available for this product.

3D-Model

Presentations

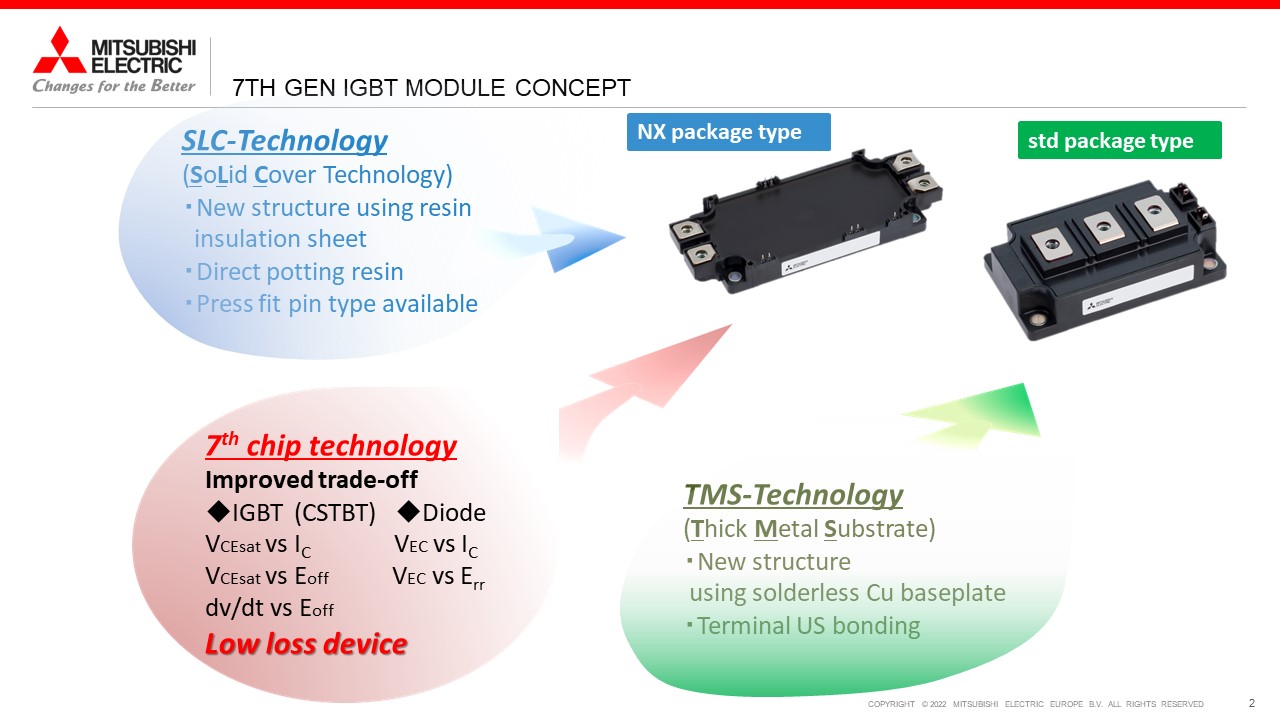

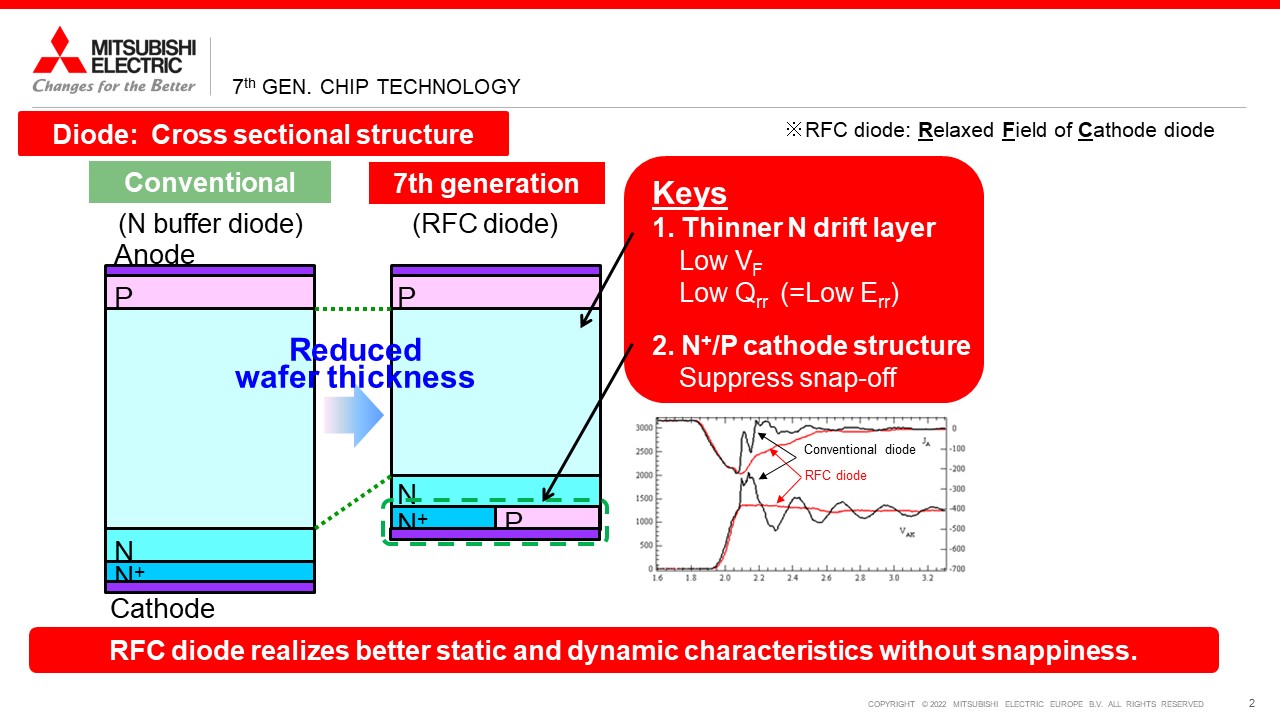

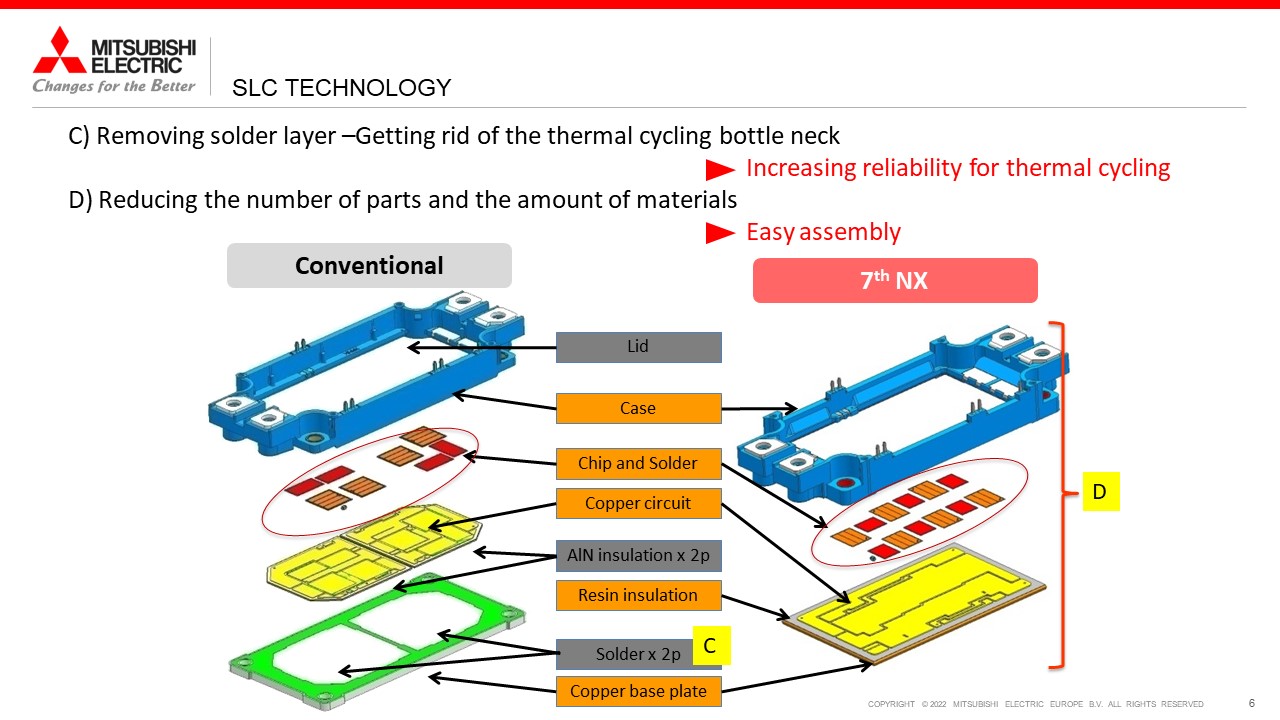

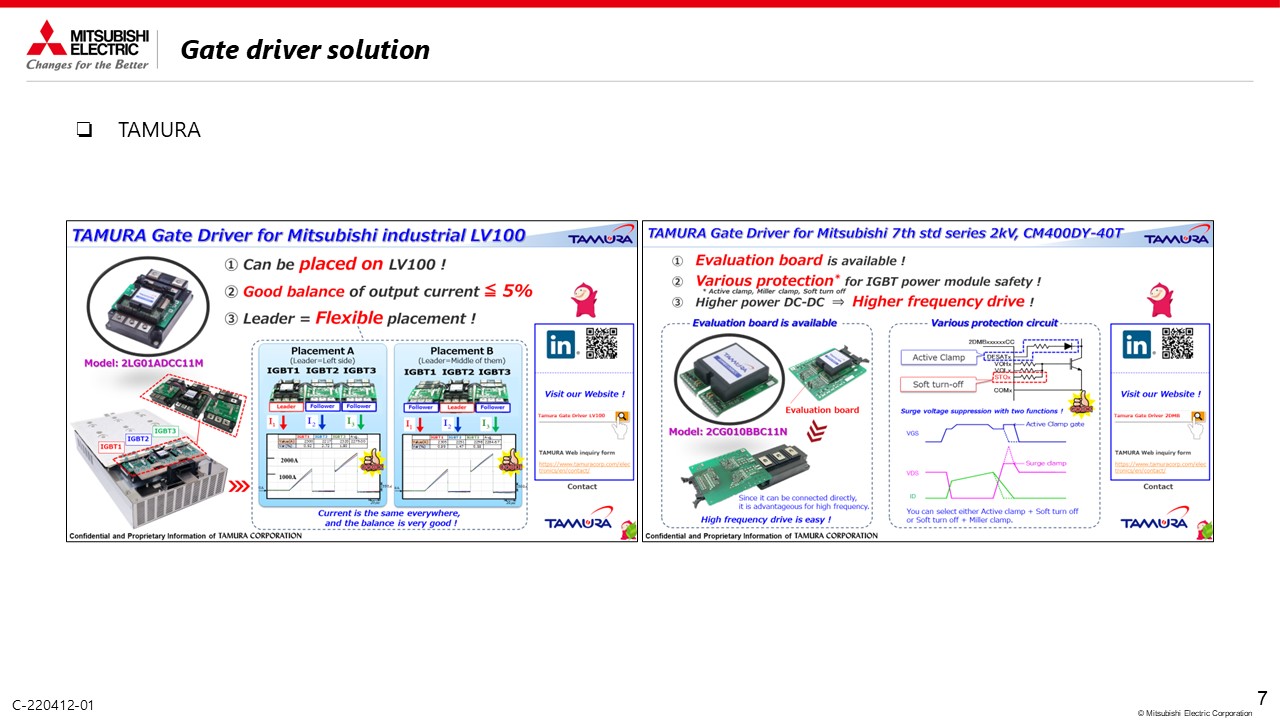

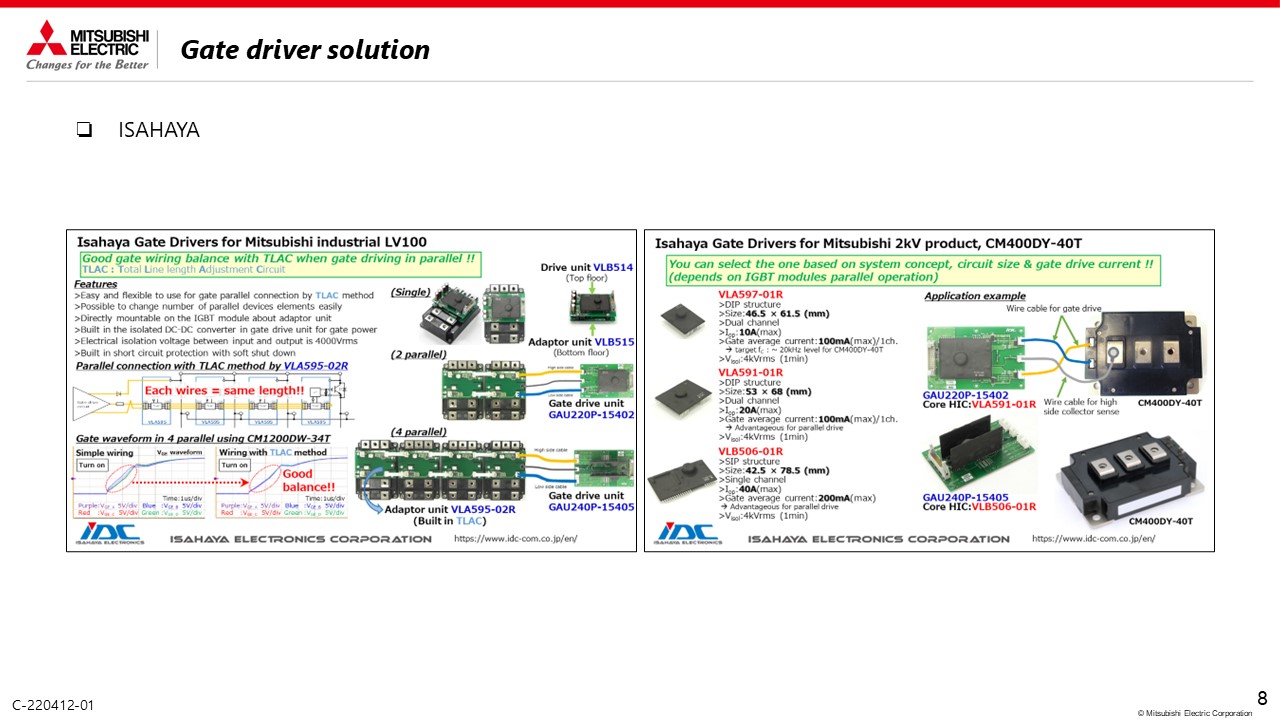

Line-up Chip Technology Internal Structure A solution for industrial applications IGBT module for Renewable Energy Application

Videos

We need your consent to load the Youtube service!

We use a third party service to embed video content that may collect data about your activity.
Please review the details and accept the service to watch this video.

7th Generation IGBT Modules STD-Type

7th Generation IGBT Modules STD-Type 7th gen NX- and std-type IGBT modules: A solution for industrial applications
