7th gen NX-type IGBT
for Industrial applications

  • Low-loss 7th Gen. CSTBT™
  • Unique SLC package technology
  • Tj,max of 175oC for overload operation
  • High power density
  • Superior thermal cycling capability
  • Integrated Thermistor
  • Easy assembly by optional Press-Fit pins and pre-applied TIM

Contact us

Mitsubishi Electric Europe B.V.
Semiconductor European Business Group
Mitsubishi-Electric-Platz 1
D – 40882 Ratingen

Phone: +49 (0) 2102 / 486 – 0
Fax: +49 (0) 2102 / 486 – 4140

E-Mail: semis.info@meg.mee.com
Internet: www.meu-semiconductor.eu

I am looking for ...

    IGBT for Industrial

    • 2-in-1

      LV100 for Industrial

      Ratings

      1700 V: 800 A, 1200 A
      1200 V: 800 A,1200 A
      2000 V: 1200 A

      Dimensions [mm]

      100 x 144 x 40

    • 2-in-1

      7th Gen. IGBT NX-M pkg.

      Ratings

      650 V: 300 A, 450 A, 600 A
      1200 V: 225 A, 300 A, 450 A, 600 A, 800 A
      1700 V: 225 A, 300 A, 450 A, 600 A

      Dimensions [mm]

      62 x 152 x 17

    • 2-in-1

      7th Gen. IGBT NX-L pkg.

      Ratings

      1200 V : 1000 A

      Dimensions [mm]

      110 x 137 x 17

    • 6-in-1

      7th Gen. IGBT NX-M pkg.

      Ratings

      650 V : 100 A, 150 A, 200 A
      1200 V: 100 A, 150 A, 200 A
      1700 V: 100 A, 150 A

      Dimensions [mm]

      62 x 122 x 17

    • 7-in-1

      7th Gen. IGBT NX-M pkg.

      Ratings

      650 V : 150 A, 200 A
      1200 V: 100 A, 150 A

      Dimensions [mm]

      62 x 137 x 17

    • CIB

      7th Gen. IGBT NX-M pkg.

      Ratings

      650 V : 100 A, 150 A
      1200 V: 75 A, 100 A, 150 A

      Dimensions [mm]

      62 x 122 x 17

    • CIB

      7th Gen. IGBT NX-S pkg.

      Ratings

      650 V: 50 A, 75 A, 100 A
      1200 V: 35 A, 50 A, 75 A

      Dimensions [mm]

      54 x 107.5 x 17

    • 2-in-1

      7th Gen. IGBT 62mm

      Ratings

      650 V : 600 A
      1200 V: 450 A, 600 A
      1700 V: 300 A, 400 A
      2000 V : 400 A

      Dimensions [mm]

      62 x 108 x 30

    • 2-in-1

      7th Gen. 48mm

      Ratings

      650 V : 300 A, 400 A
      1200 V: 200 A, 300 A
      1700 V: 150 A, 200 A

      Dimensions [mm]

      48 x 94 x 30

    • 2-in-1

      7th Gen 34mm

      Ratings

      650 V : 100 A, 150 A, 200 A
      1200 V: 100 A, 150 A
      1700 V: 75 A, 100 A

      Dimensions [mm]

      34 x 94 x 30

    High Speed IGBT for Industrial

    • 2-in-1

      7th Gen. IGBT TH-series 80mm

      Ratings

      1200 V: 400 A, 600 A

      Dimensions [mm]

      80 x 110 x 31

    • 2-in-1

      7th Gen. IGBT TH-series 62mm

      Ratings

      1200 V: 400 A

      Dimensions [mm]

      62 x 108 x 30

    • 2-in-1

      7th Gen. IGBT TH-series 48mm

      Ratings

      Ratings to be added

      Dimensions [mm]

      48 x 94 x 30

    IPM for Industrial

    • 6-in-1 and 7-in-1

      G1-Series IPM C-pkg.

      Ratings

      650 V : 200 A, 300 A, 450 A
      1200 V: 100 A, 150 A, 200 A

      Dimensions [mm]

      85 x 120 x 24

    • 6-in-1 and 7-in-1

      G1-Series IPM B-pkg.

      Ratings

      650 V : 50 A, 75 A, 100 A, 150 A, 200 A
      1200 V: 25 A, 35 A, 50 A, 75 A, 100 A

      Dimensions [mm]

      55 x 120 x 22

    • 6-in-1 and 7-in-1

      G1-Series IPM A-pkg.

      Ratings

      650 V : 50 A, 75 A, 100 A
      1200 V: 25 A, 35 A, 50 A

      Dimensions [mm]

      90 x 50 x 17

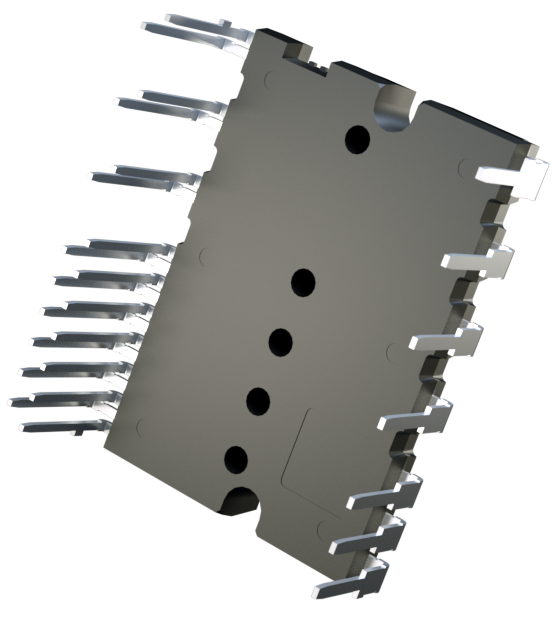

    DIPIPM for Industrial

    • 6-in-1

      SLIMDIP™

      Ratings

      600 V : 5 A, 10 A, 15 A, 20 A

      Dimensions [mm]

      18.8 x 32.8 x 3.6

    • 6-in-1

      Super Mini DIPIPM™

      Ratings

      600 V : 5 A, 10 A, 15 A, 20 A, 30 A, 35 A, 40 A

      Dimensions [mm]

      24 x 38 x 3.5

    • 6-in-1

      Mini DIPIPM™

      Ratings

      600 V : 5 A, 10 A, 15 A, 20 A, 30 A, 50 A
      1200 V : 5 A , 10 A

      Dimensions [mm]

      31 x 52.5 x 5.6

    • 6-in-1

      Large DIPIPM™

      Ratings

      600 V : 50 A, 75 A
      1200 V : 5 A, 10 A, 15 A, 25 A, 35 A, 50 A, 75 A

      Dimensions [mm]

      31 x 79 x 8

    • CIB / CI

      DIPIPM+

      Ratings

      1200 V : 5 A, 10 A, 15 A, 25 A, 35 A
      600 V : 50 A

      Dimensions [mm]

      34 x 85 x 5.7

    SOPIPM for Industrial

    • 6-in-1

      SOPIPM™

      Ratings

      600 V : 2 A

      Dimensions [mm]

      15.2 x 27.4 x 3.3

    Full SiC for Industrial

    • Module

      Full SiC 62mm

      Ratings

      1200 V: 400 A

      Dimensions [mm]

      62 x 108 x 30

    • 2-in-1 / 4-in-1

      Full SiC NX

      Ratings

      1200 V : 400 A, 800 A

      Dimensions [mm]

      92 x 122 x 17

    • 2-in-1

      Full SiC NX-L pkg with RTC

      Ratings

      1200 V : 1200 A

      Dimensions [mm]

      122 x 152 x 23.3

    • 2-in-1

      Full SiC NX pkg. with RTC

      Ratings

      1200 V : 600 A, 800 A
      1700 V : 300 A

      Dimensions [mm]

      79.6 x 122 x 30.1

    • Module

      Full SiC NX-pkg. with RTC

      Ratings

      1200 V : 300 A, 400 A

      Dimensions [mm]

      79.6 x 122 x 30.1

    • TO247-4

      SiC MOSFET Discrete

      Ratings

      1200 V : 22, 40, 80 mOhm

      Dimensions [mm]

      15.9 x 21 x 5

    • 1-in-1

      SiC Diode Discrete

      Ratings

      600 V : 20 A

      Dimensions [mm]

      10 x 15 x 4.4

    • 6-in-1

      Full SiC Super Mini DIPIPM

      Ratings

      600 V : 15 A, 25 A

      Dimensions [mm]

      24 x 38 x 3.5

    • PFC

      SiC Super Mini DIPPFC™

      Ratings

      600 V : 20 A

      Dimensions [mm]

      24 x 38 x 3.5

    Hybrid SiC for Industrial

    • 2-in-1

      SiC Hybrid NFH-series NX

      Ratings

      1200 V : 300 A

      Dimensions [mm]

      62 x 152 x 17

    • 2-in-1

      SiC Hybrid NFH-series 80mm

      Ratings

      1200 V : 400 A, 600 A

      Dimensions [mm]

      80 x 110 x 29

    • 2-in-1

      SiC Hybrid NFH-series 48mm

      Ratings

      1200 V : 200 A, 300 A

      Dimensions [mm]

      48 x 94 x 29

    • 2-in-1

      SiC Hybrid NFH-series 62mm

      Ratings

      1200 V : 200 A, 300 A

      Dimensions [mm]

      62 x 108 x 29.5

    HVIC Drivers for Industrial

    • halfbridge / single

      HVIC Drivers

      Ratings

      600 V → IOUT: 0.2 A/-0.35 A, 0.5 A, 1.0 A, 2.5 A, 3.25 A
      1200 V → IOUT: 1.0 A, 2.0 A

      Dimensions [mm]

      5.3 x 7.8 x 2.1
