Advantages

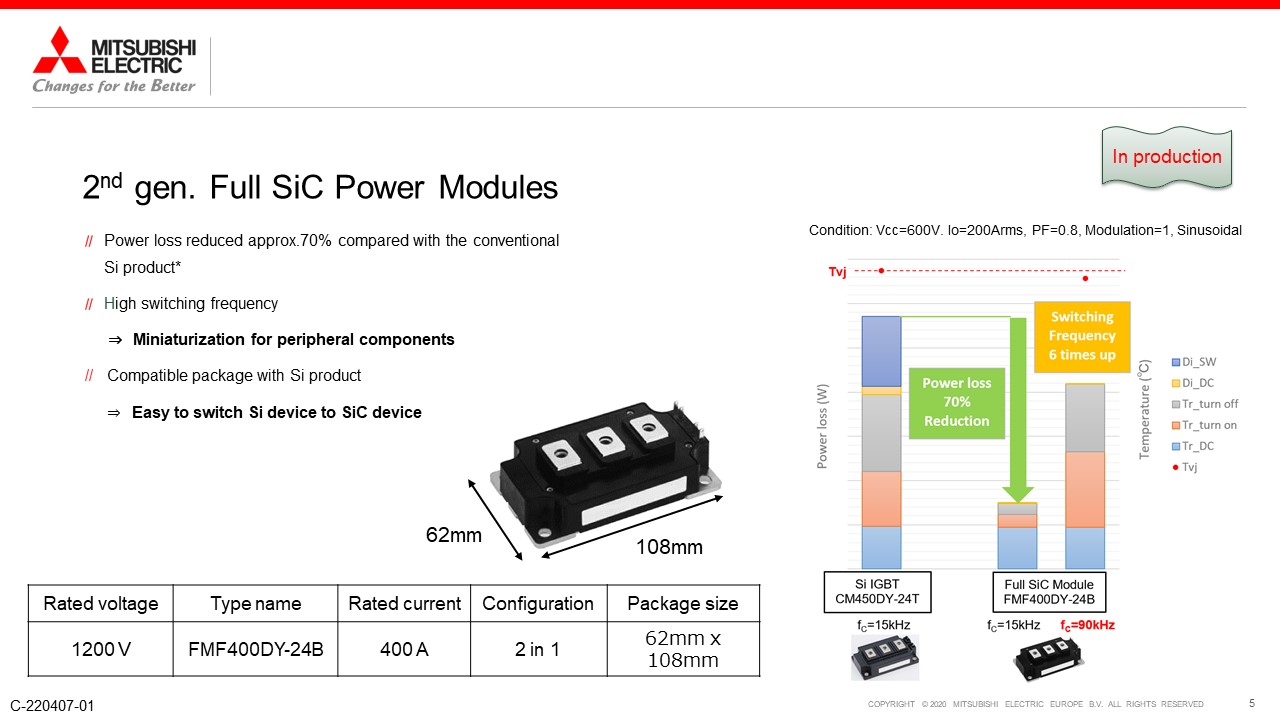

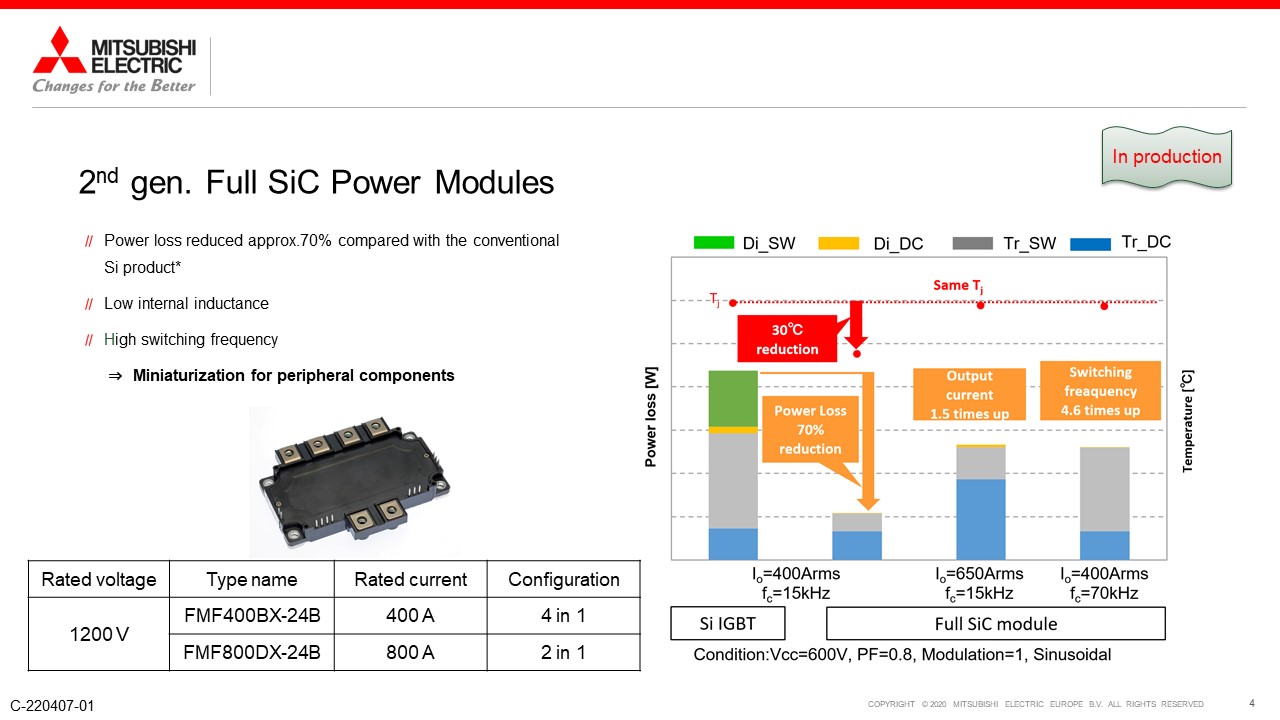

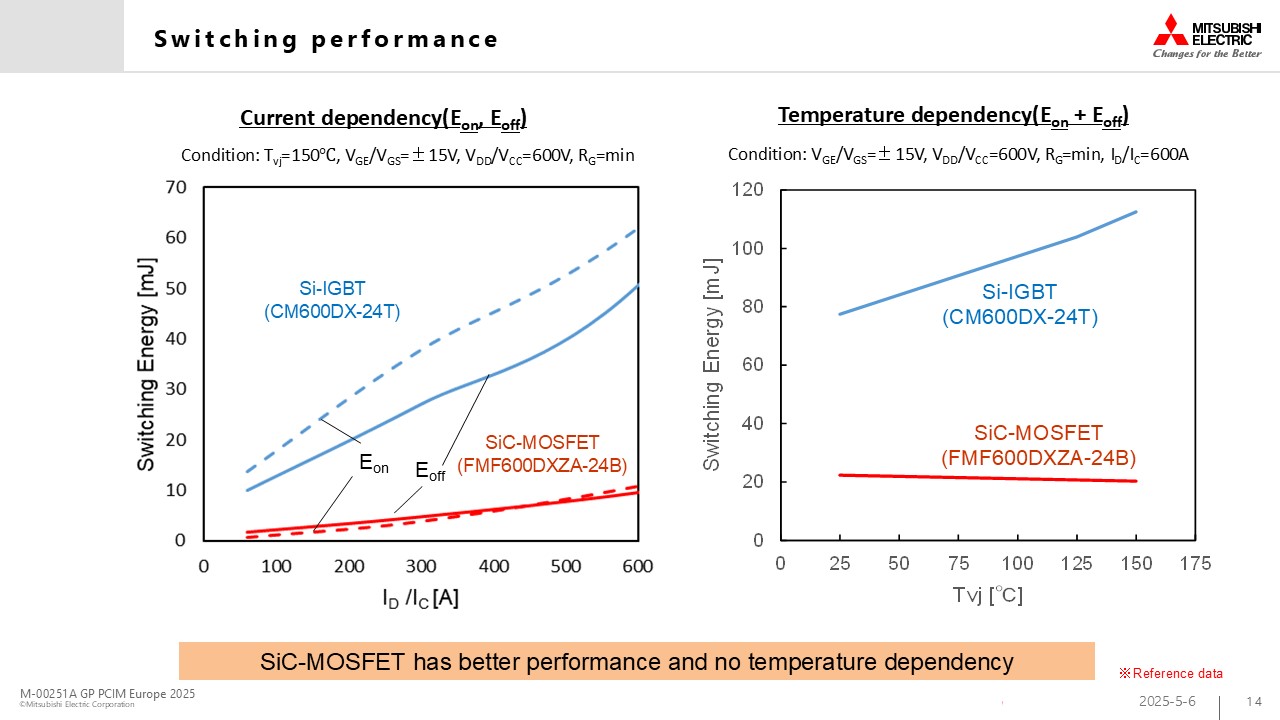

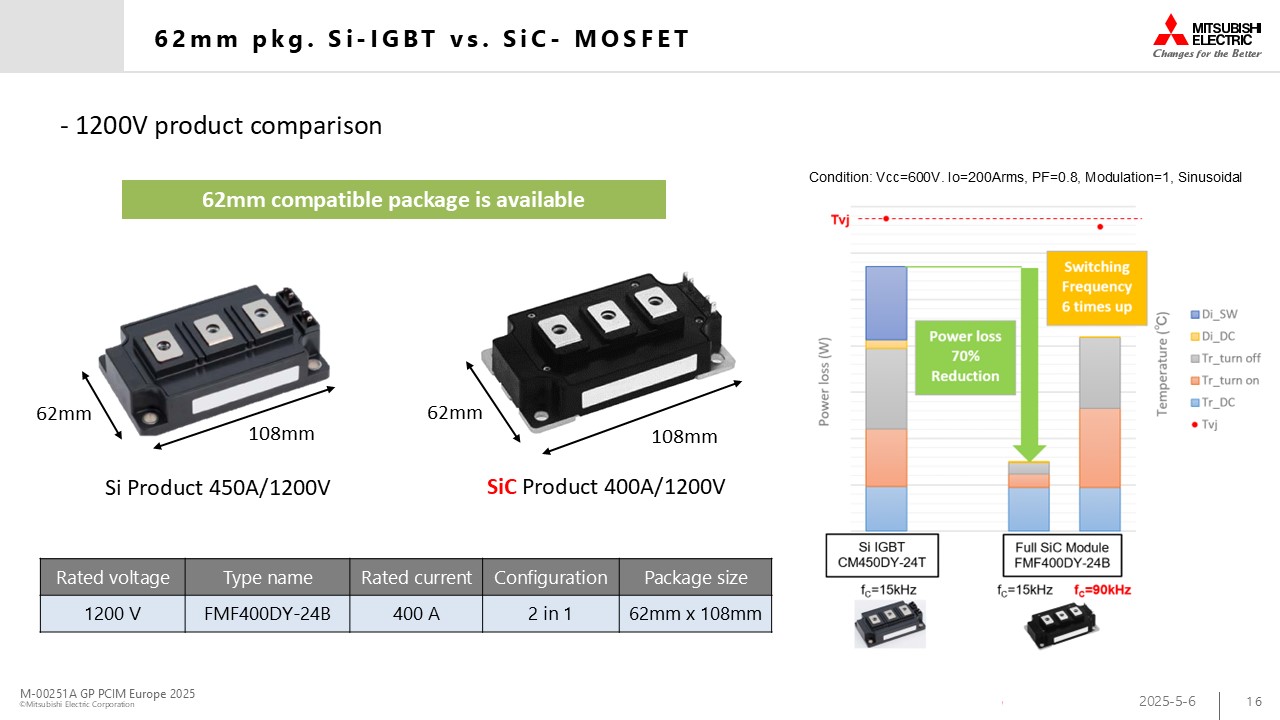

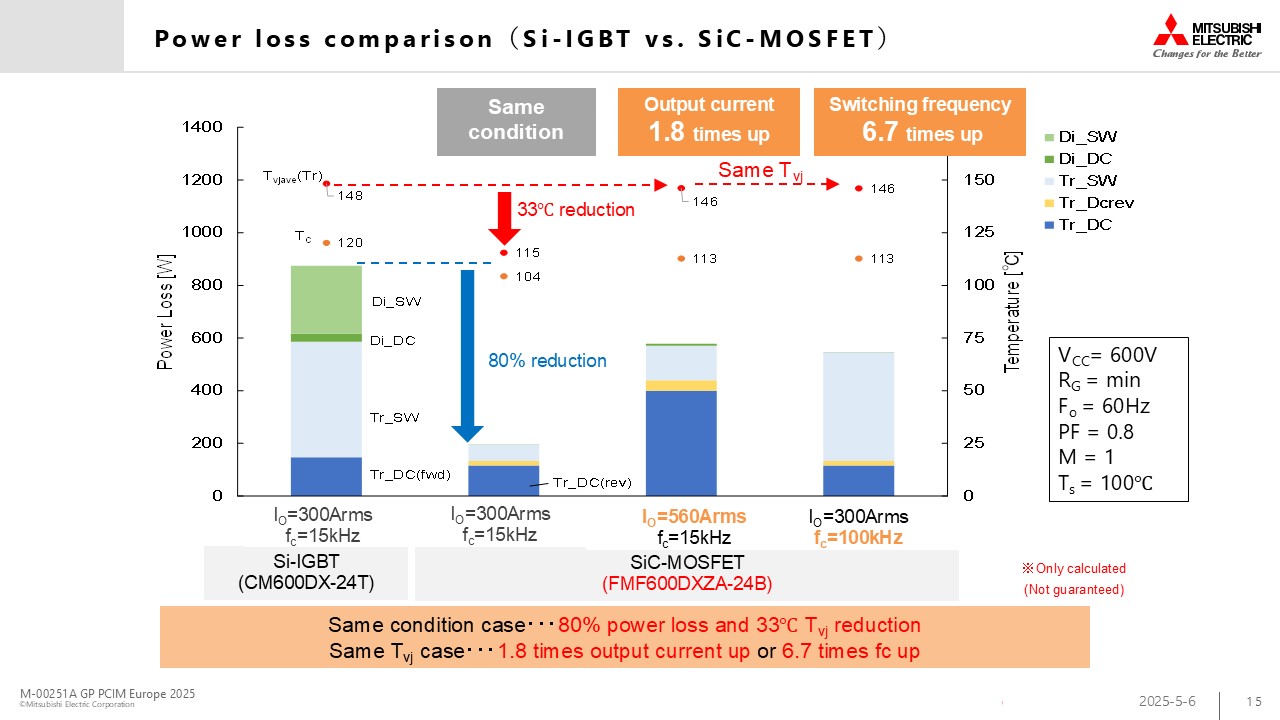

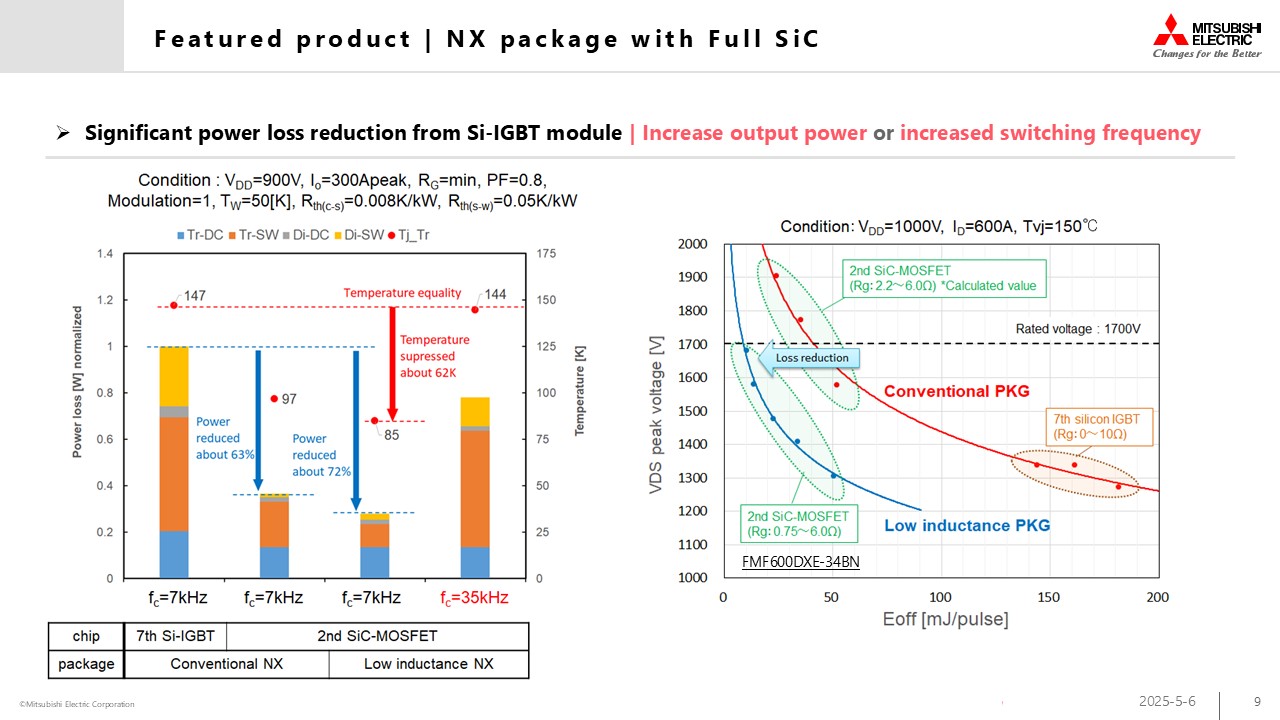

  • Power loss reduced approx. 70% compared to the conventional Si IGBT product

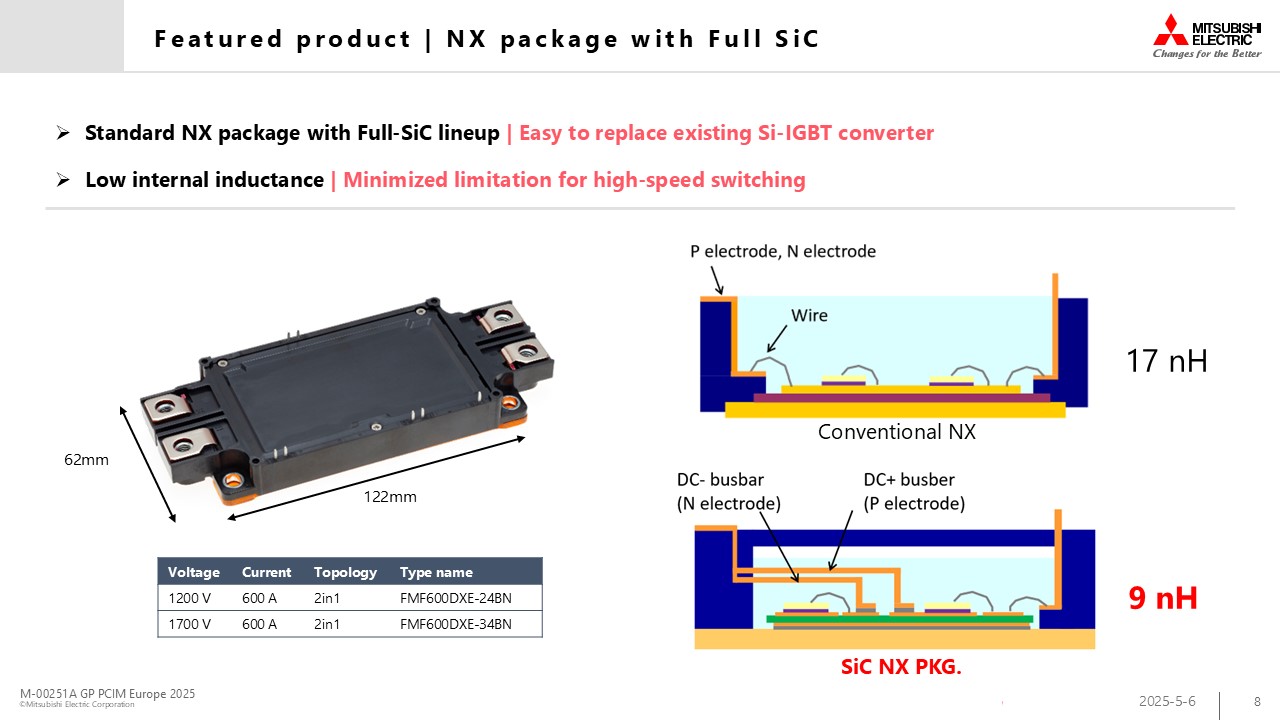

  • Low-inductance package adopted to deliver full SiC performance
  • Contributes to increasing the output current and downsizing peripheral components by low power loss characteristics of SiC

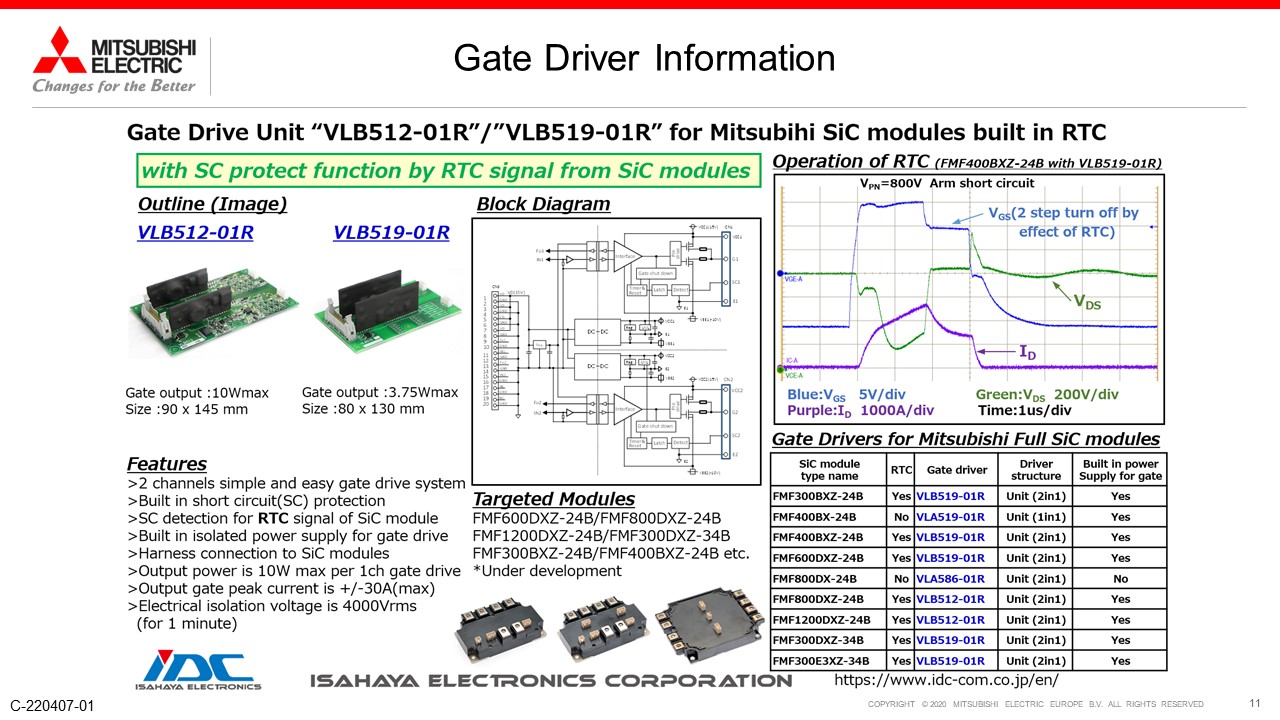

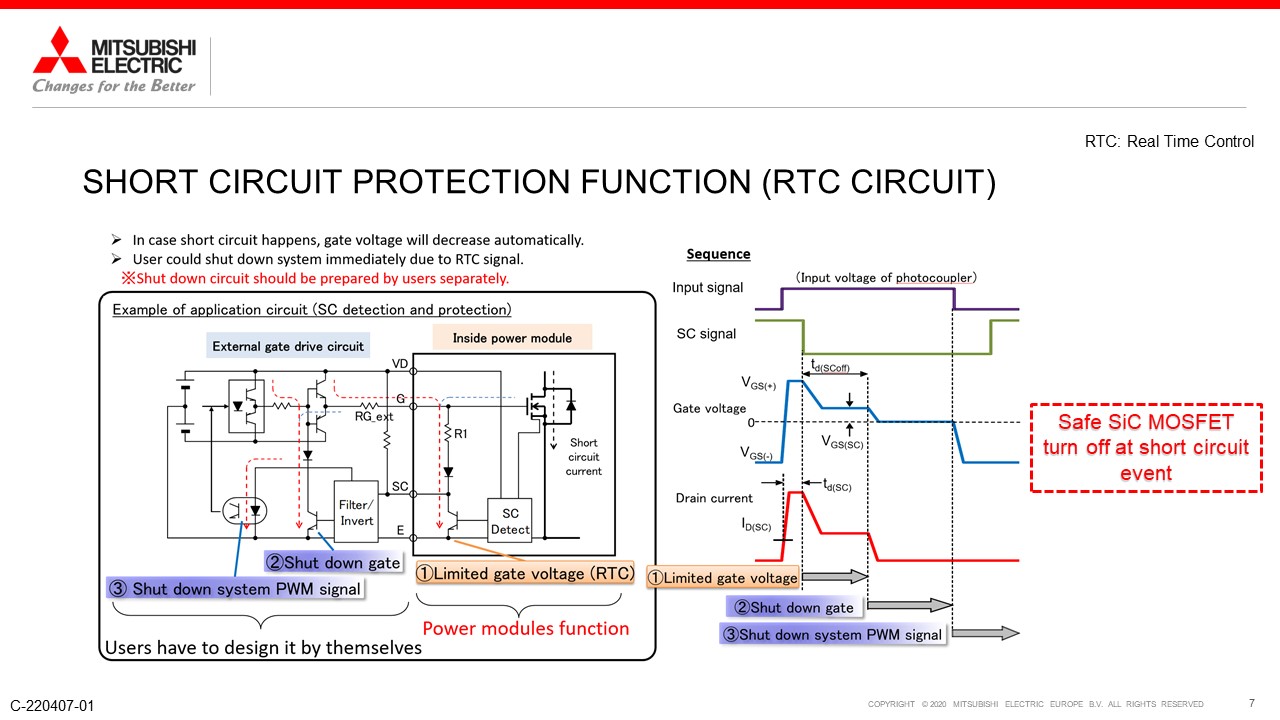

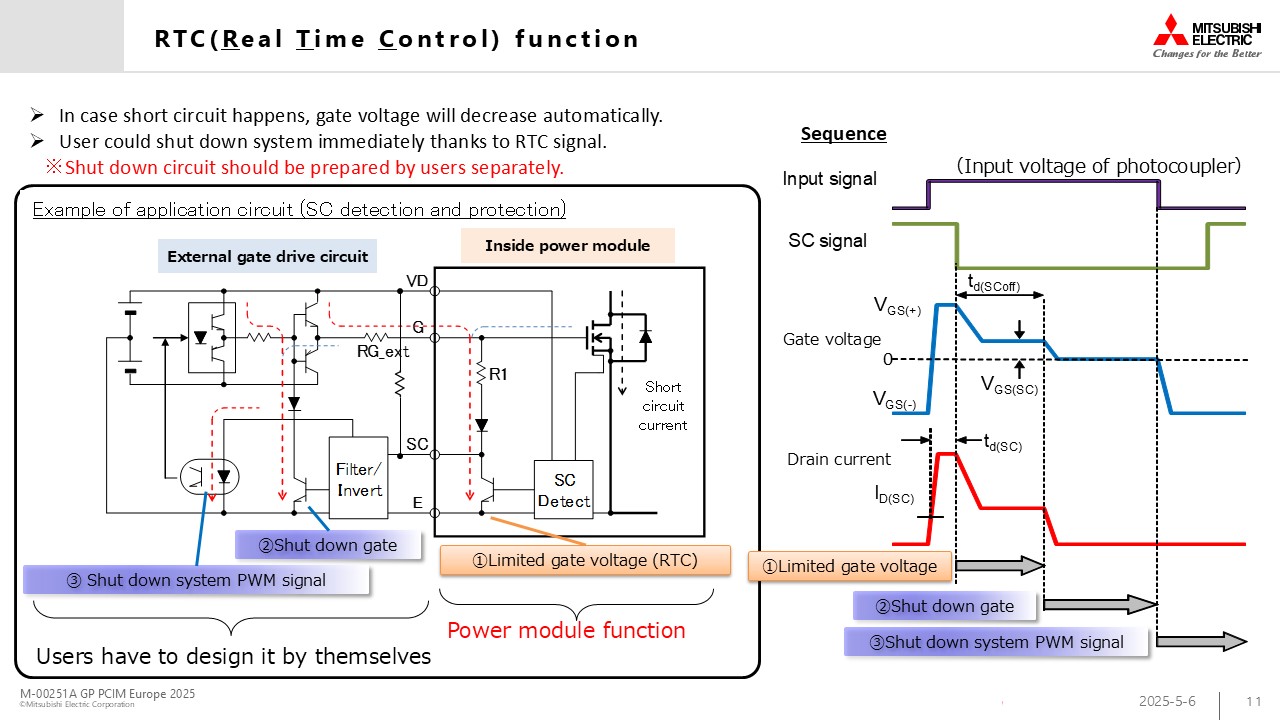

  • By using short circuit monitoring circuit in the module it is possible to transfer a short circuit detection signal to the system side

Attributes

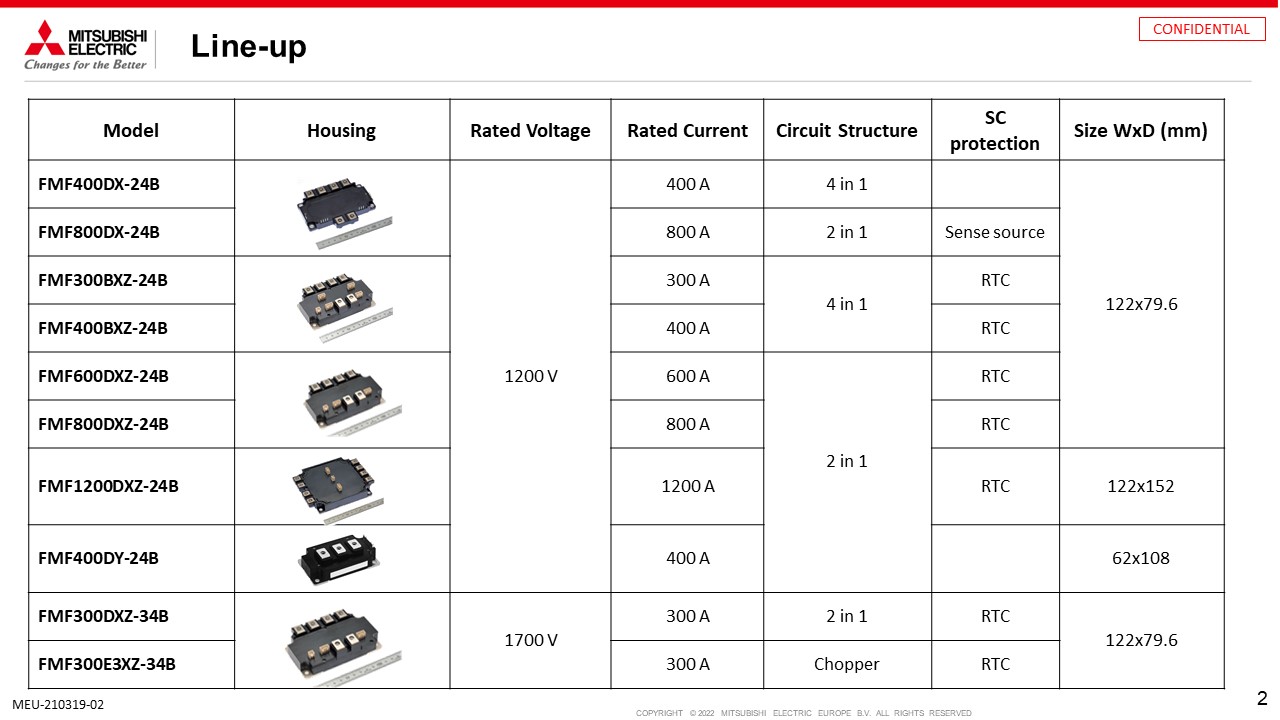

Ratings:

1200 V : 300 A, 400 A

Dimensions [mm]:

79.6 x 122 x 30.1

3D-Model
