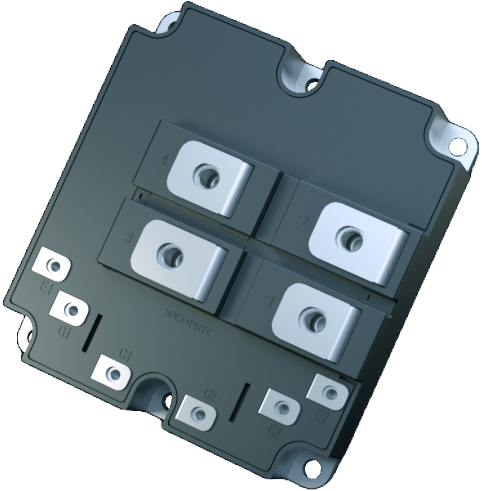

Standard Package

  • Power loss reduced by incorporating 7th-generation IGBT and RFC diode
  • Current rating increased by 50 % compared to conventional package
  • Latest package technology enhances power cycle lifetime
  •  Package compatible to previous H and R series for simplified design and easy replacement
  • High robustness and 150 °C maximal operation temperature



Product Advantages LV100 / HV100 Package

  • Availability of future-proof SiC technology
  • Power loss reduced by incorporating 7th-generation IGBT and RFC diode
  • Contributing to high energy efficiency and high power density by improving package technology fr low parasitic inductance and thermal resistance
  • LV100 and HV100 modules have a common package foot print
  • Simple, standard connections allow for optimal system design and a range of current ratings



Contact us

Mitsubishi Electric Europe B.V.
Semiconductor European Business Group
Mitsubishi-Electric-Platz 1
D – 40882 Ratingen

Phone: +49 (0) 2102 / 486 – 0
Fax: +49 (0) 2102 / 486 – 4140

E-Mail: semis.info@meg.mee.com
Internet: www.meu-semiconductor.eu

I am looking for ...

    IGBT for Railway and Power Transmission

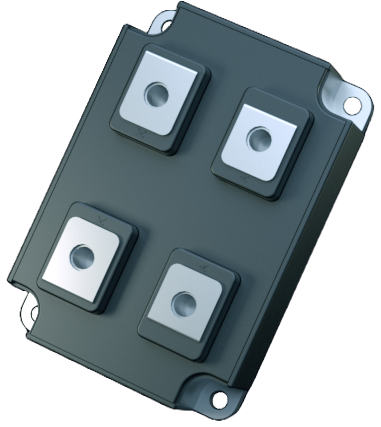

    • 1-in-1

      x-series-10kviso-1-in-1-73-x-140-mm

      Ratings

      3300 V: 400 A

      Dimensions [mm]

      73 x 140 x 48

    • 1-in-1

      X-Series 10kViso 1-in-1

      Ratings

      3300 V: 1800 A
      4500 V: 1350 A, 1500 A
      6500 V: 900 A, 1000 A

      Dimensions [mm]

      190 x 140 x 40

    • 2-in-1

      X-Series HV100 2-in-1

      Ratings

      3300 V: 450 A, 600 A
      4500 V: 450 A

      Dimensions [mm]

      100 x 144 x 40

    • 1-in-1

      X-Series 6kViso 1-in-1

      Ratings

      1700 V: 2400 A
      3300 V: 1200 A, 1800 A
      4500 V: 1350 A, 1500 A

      Dimensions [mm]

      190 x 140 x 38

    • 2-in-1

      X-Series LV100 2-in-1

      Ratings

      1700 V: 1200 A
      3300 V: 450 A, 600 A

      Dimensions [mm]

      100 x 144 x 40

    • 1-in-1

      X-Series 6kViso 1-in-1 130mm x 140mm

      Ratings

      1700 V: 2400 A
      3300 V: 1200 A
      4500 V: 900 A

      Dimensions [mm]

      130 x 140 x 38

    • 1-in-1

      X-Series 10kViso 1-in-1 130mm x 140mm

      Ratings

      4500 V: 900 A, 1000 A
      6500 V: 600 A

      Dimensions [mm]

      130 x 140 x 40

    Full SiC for Railway and Power Transmission

    • 2-in-1

      unifull-sic-3300v

      Ratings

      3300 V: 800 A, 400A, 200A

      Dimensions [mm]

      100 x 144 x 39

    SiC for Railway and Power Transmission

    • 2-in-1

      SiC LV100

      Ratings

      SBD-embedded Full-SiC:
      3300 V: 800 A

      Full-SiC
      3300 V: 185 A, 375 A, 750 A

      Hybrid-SiC
      3300 V : 600 A

      Dimensions [mm]

      100 x 144 x 40
