Advantages

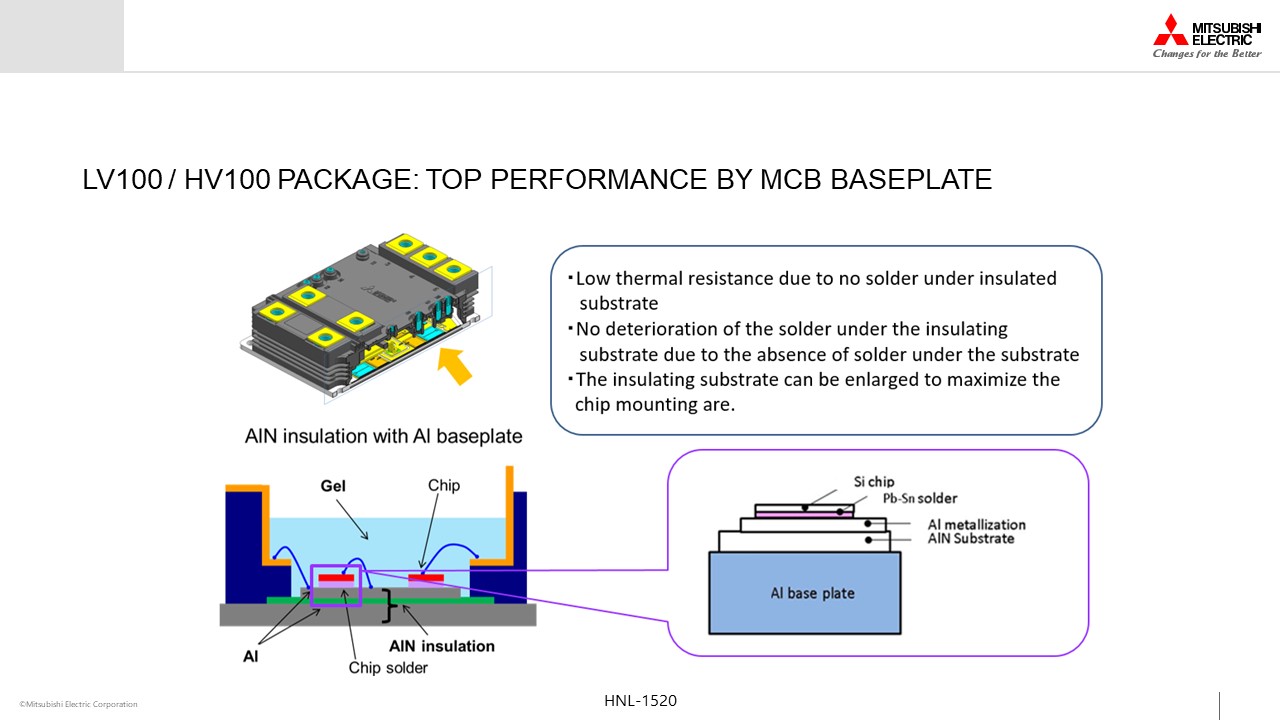

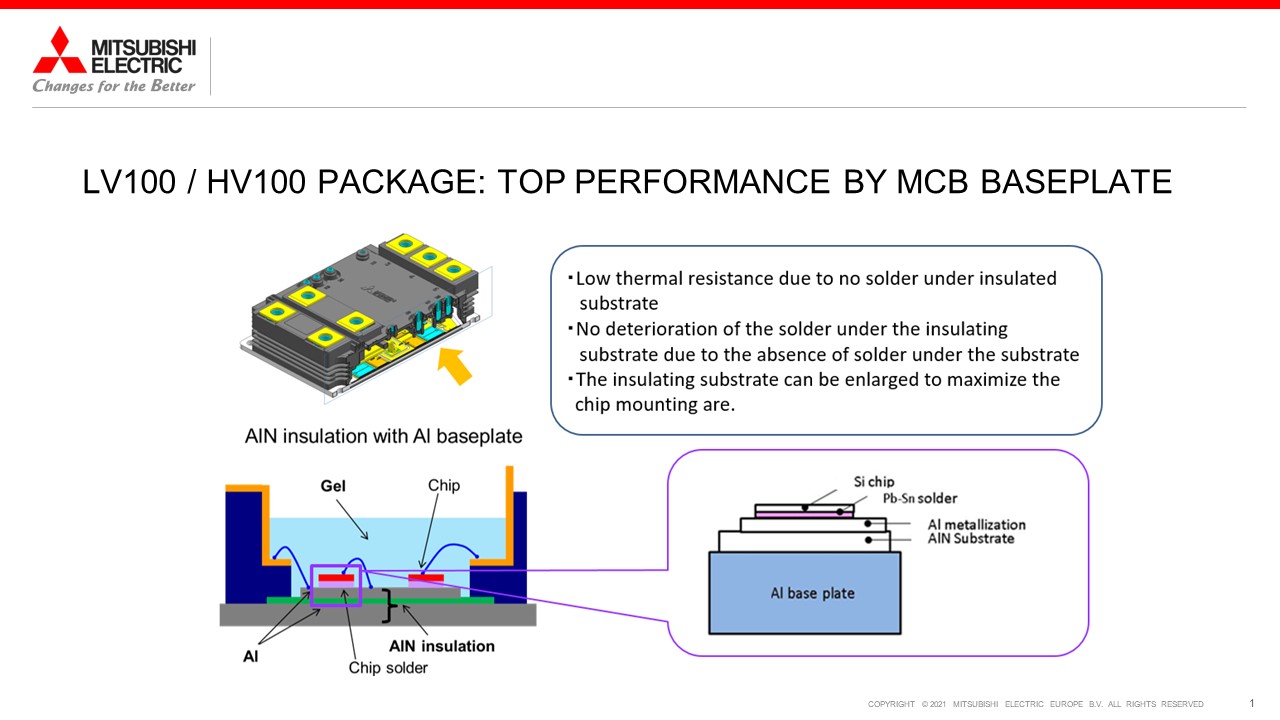

  • Cutting edge MCB baseplate for high reliability and high power density
  • Increased humidity robustness

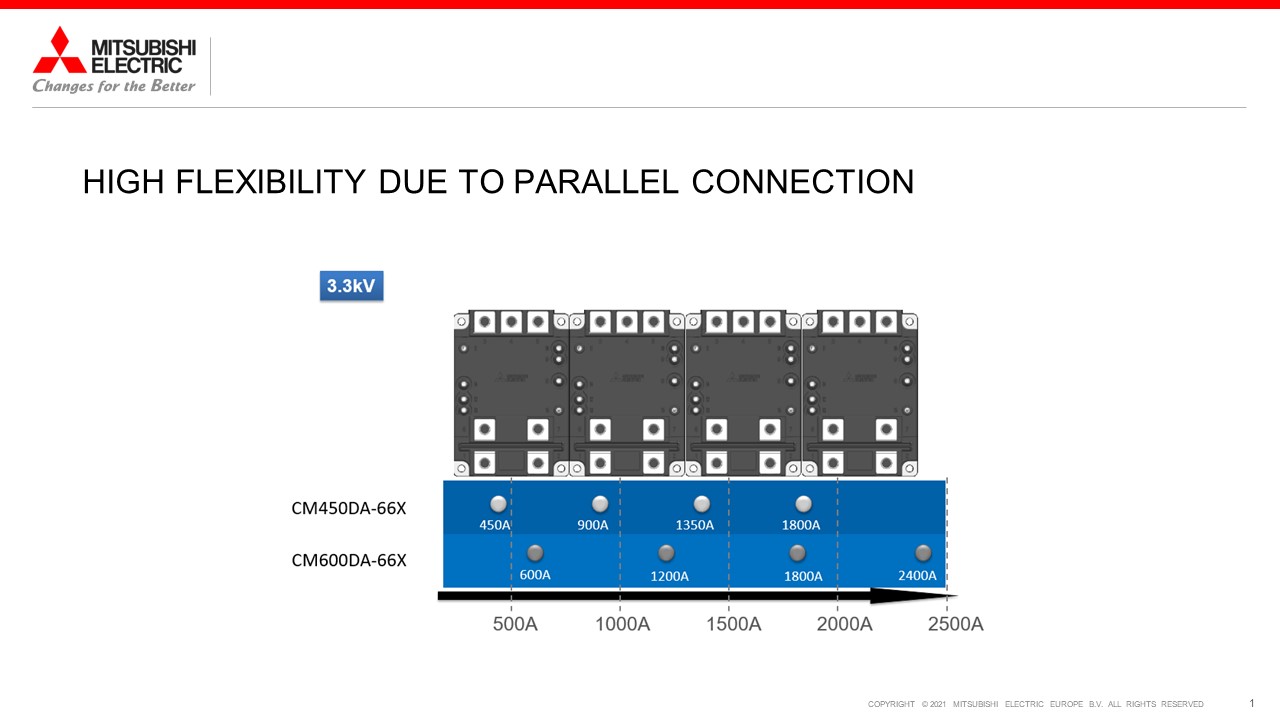

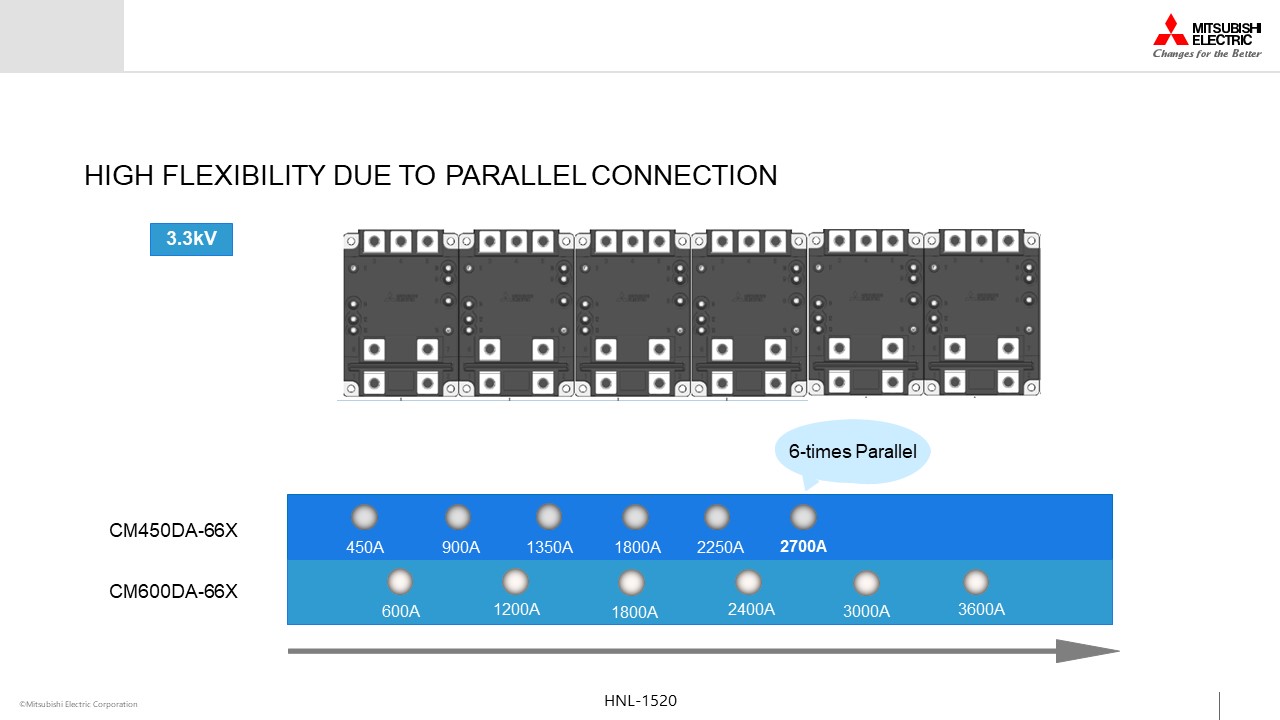

  • High flexibility by easy parallel connection
  • Three AC terminals for high current capability
  • Maximum gate-driver design space with clean auxiliary terminal placement
  • Future prove design and Ready-for-SiC

Attributes

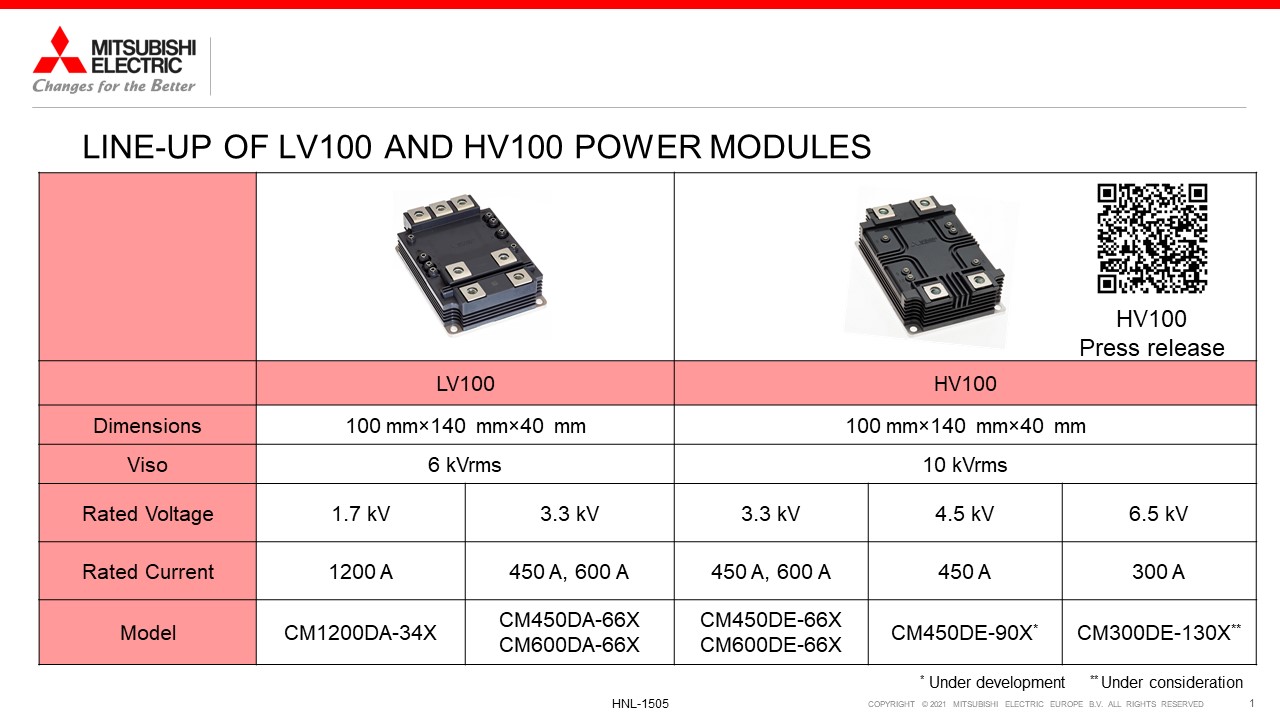

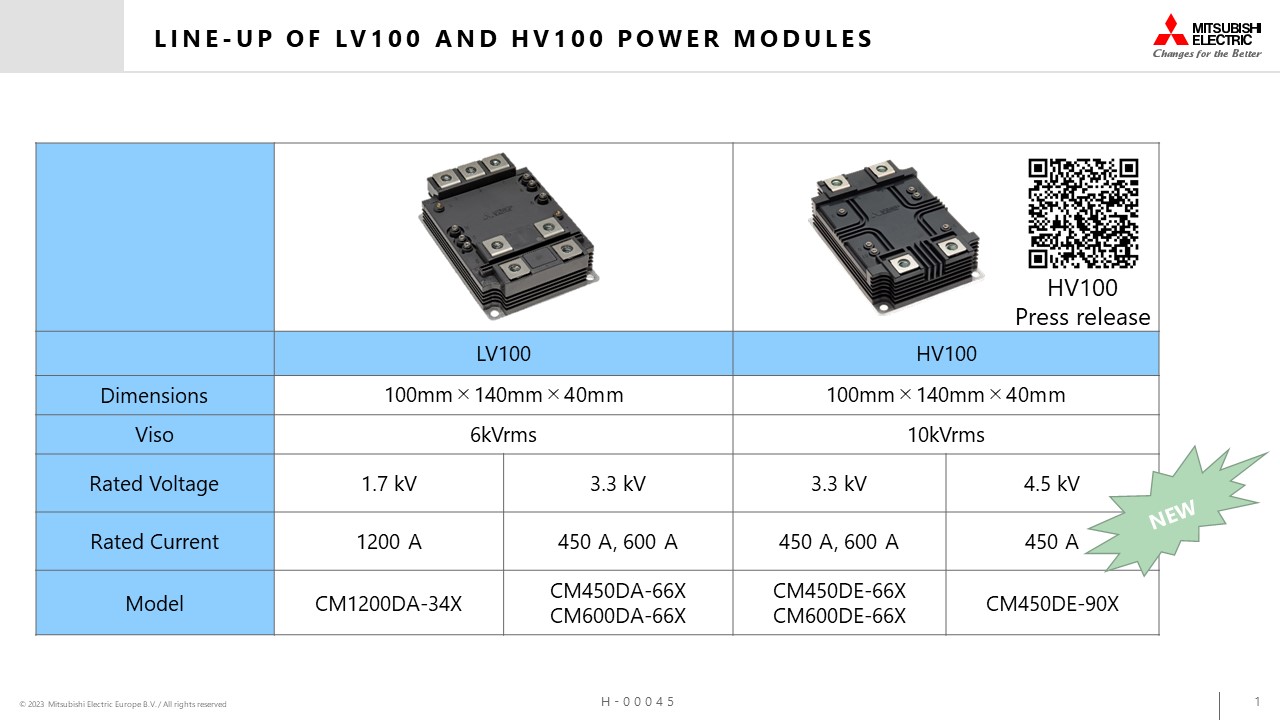

Ratings:

1700 V: 1200 A
3300 V: 450 A, 600 A

Dimensions [mm]:

100 x 144 x 40

3D-Model

Videos

YouTube Logo

We need your consent to load the Youtube service!

We use a third party service to embed video content that may collect data about your activity.
Please review the details and accept the service to watch this video.

This content is not permitted to load due to trackers that are not disclosed to the visitor.
The website owner needs to setup the site with their CMP to add this content to the list of technologies used.

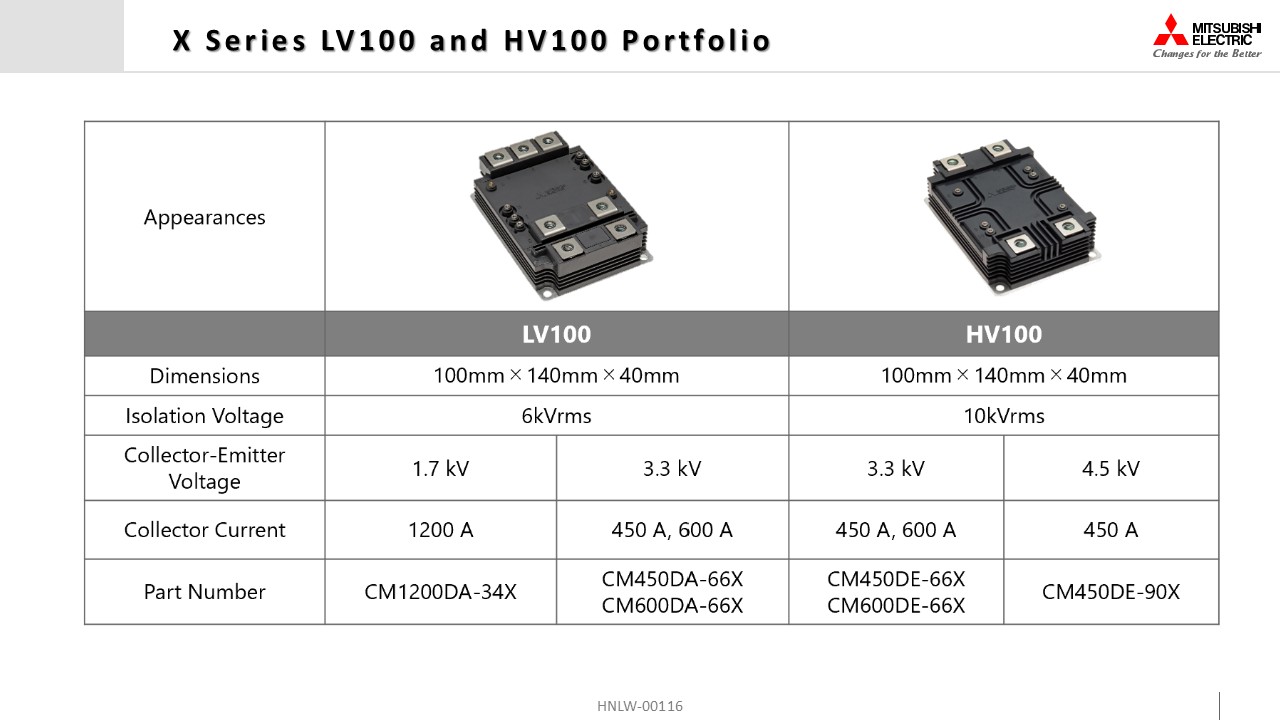

Low inductive, future-proof high-voltage LV100 and HV100 dual modules for great flexibility
