Advantages

  • Cutting edge SiC performance up to 3,300 V

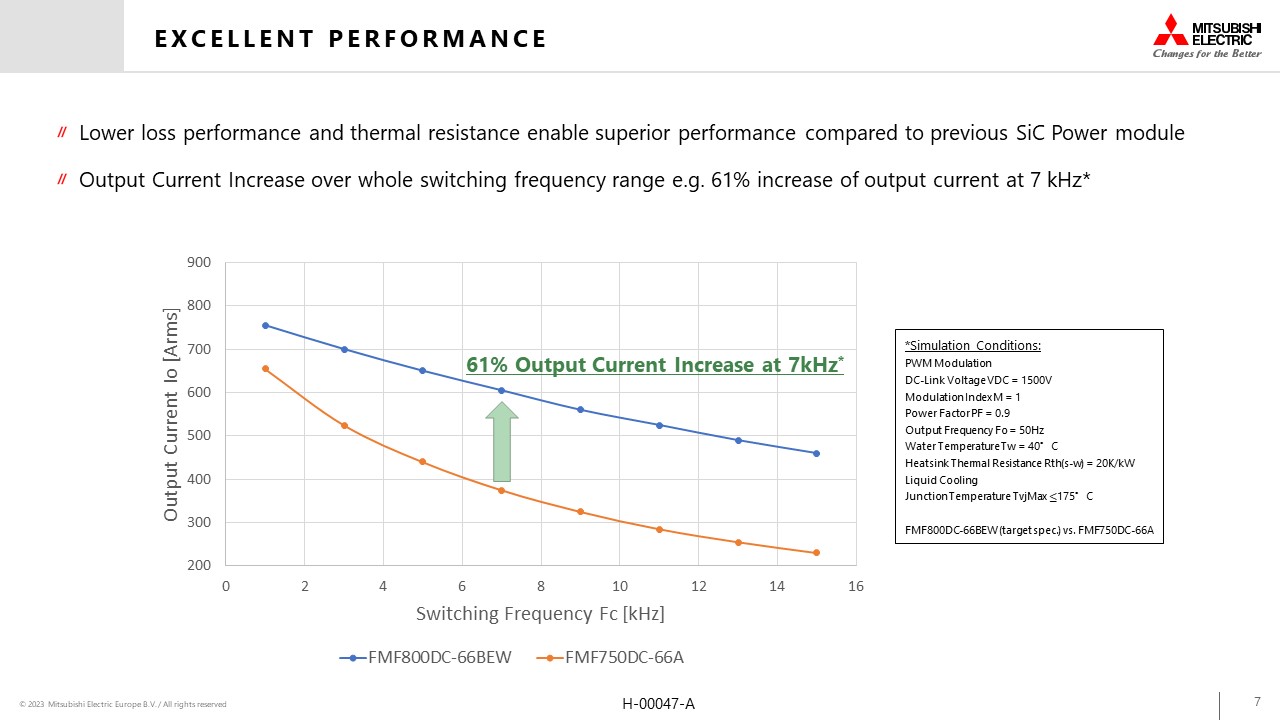

  • Superior efficiency and power density increase compared to silicon product

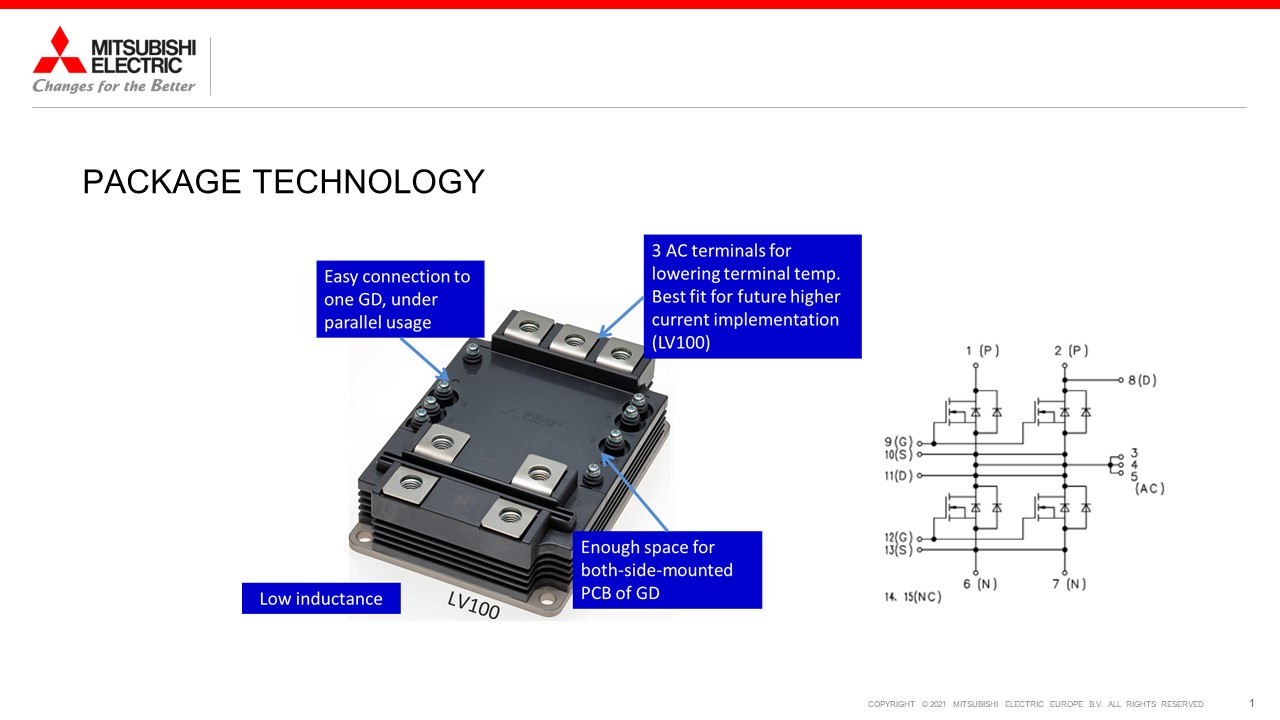

  • Low inductance package to deliver the entire SiC performance
  • Easy replacement from current silicon products and reduction of development time
  • High reliability and comprehensive market experience

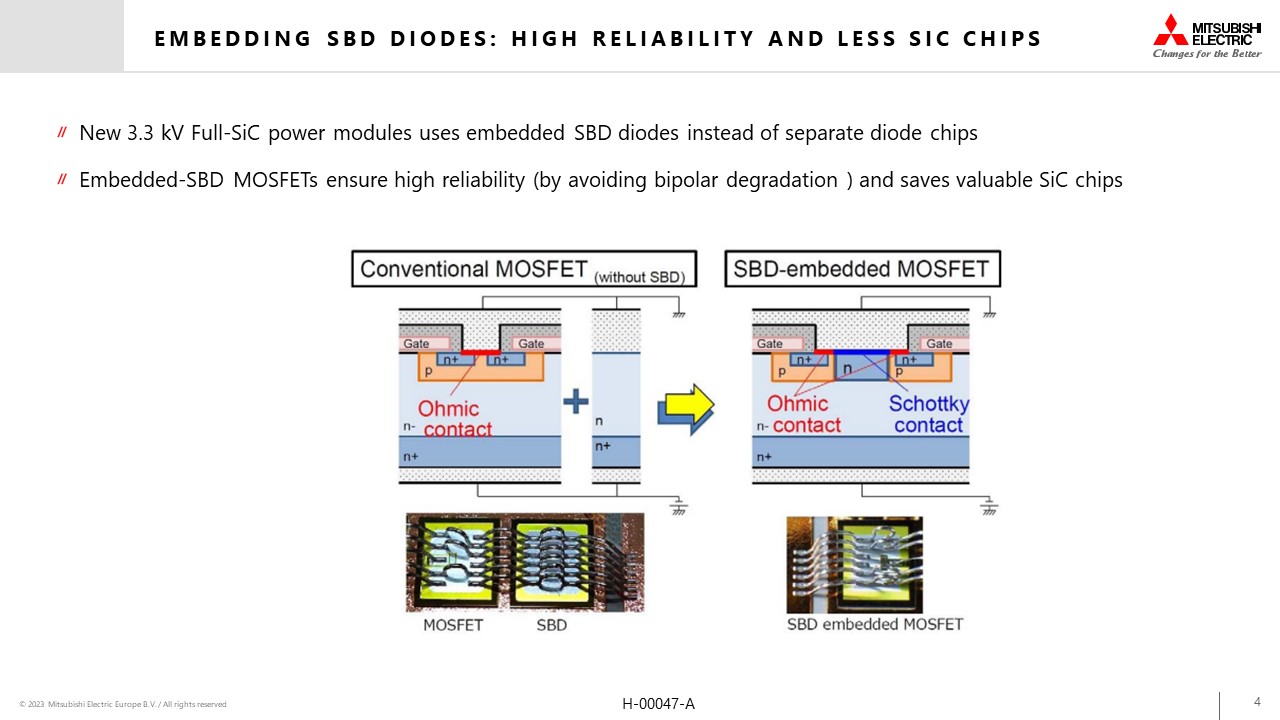

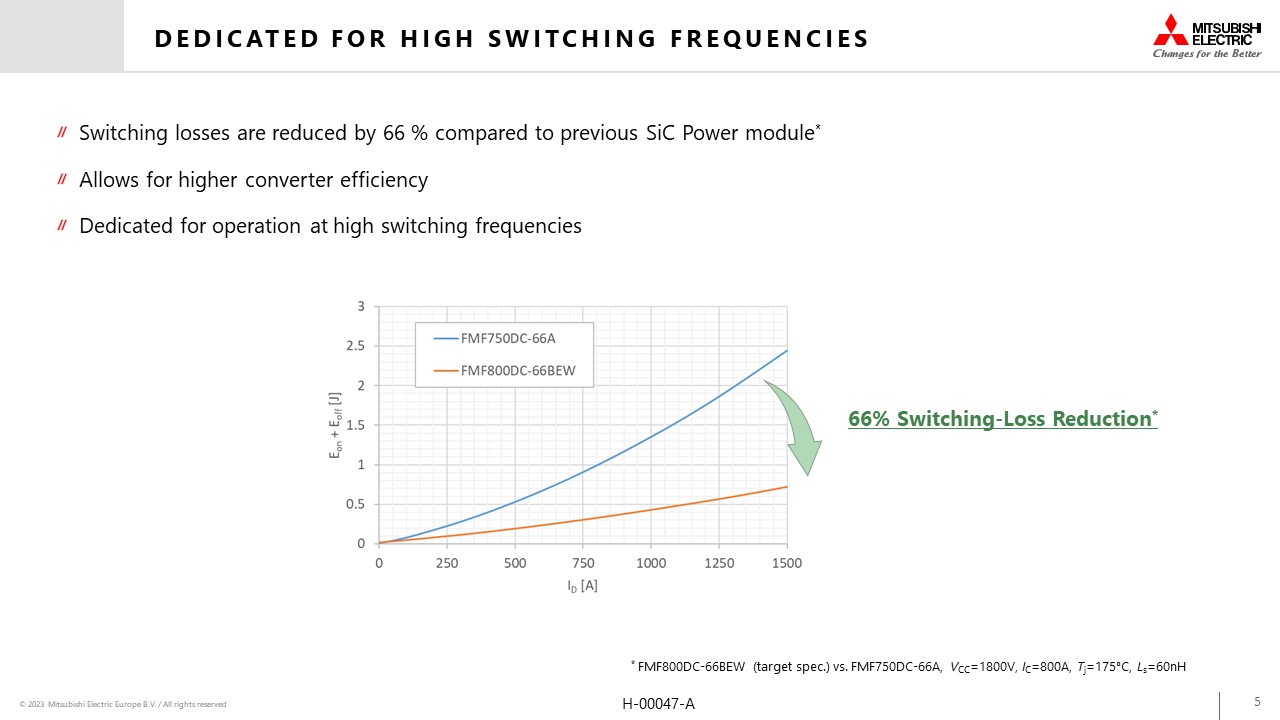

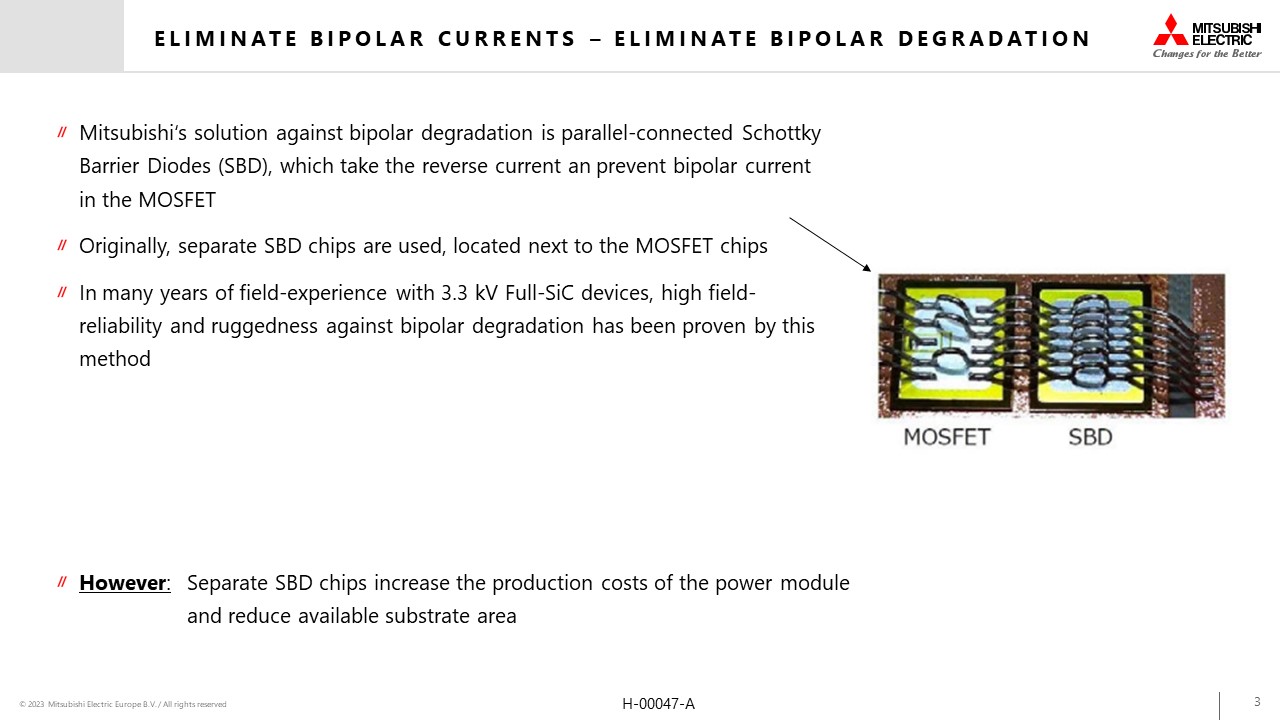

  • 800 A power module with SBD-embedded MOSFET dedicated for high switching frequencies

Attributes

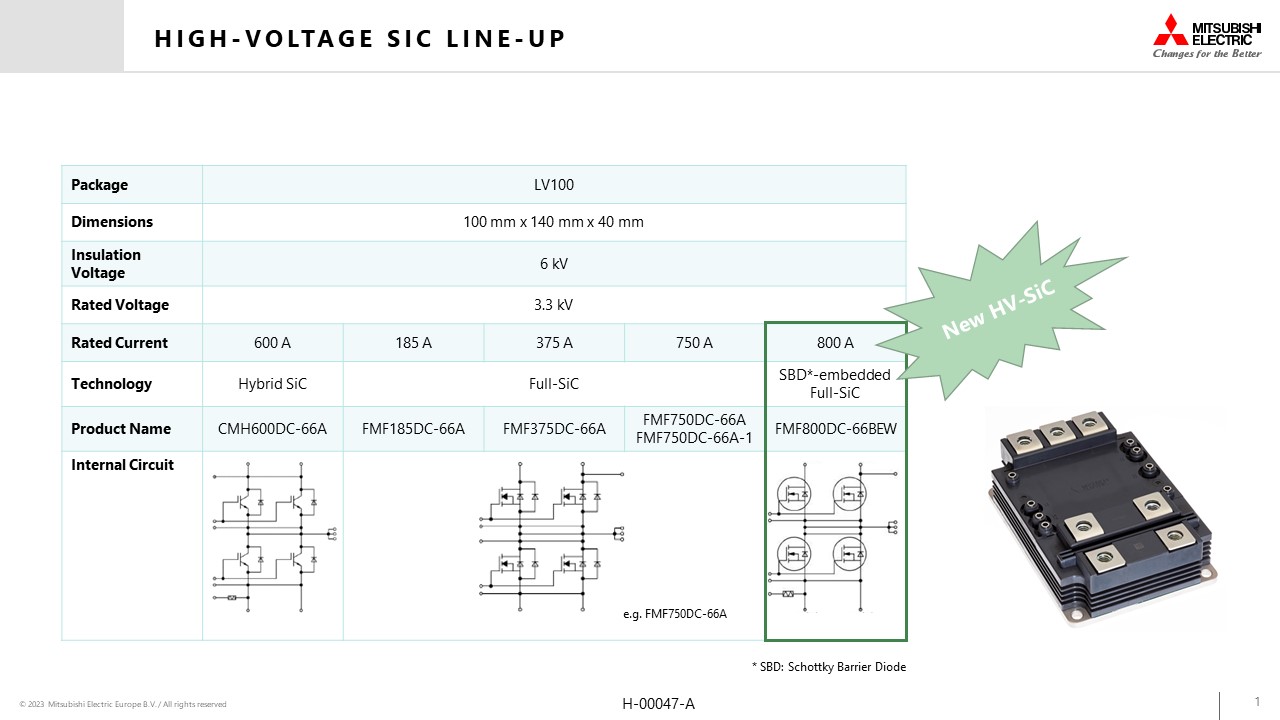

Ratings:

SBD-embedded Full-SiC:
3300 V: 800 A

Full-SiC
3300 V: 175 A, 375 A, 750 A

Hybrid-SiC
3300 V : 600 A

Dimensions [mm]:

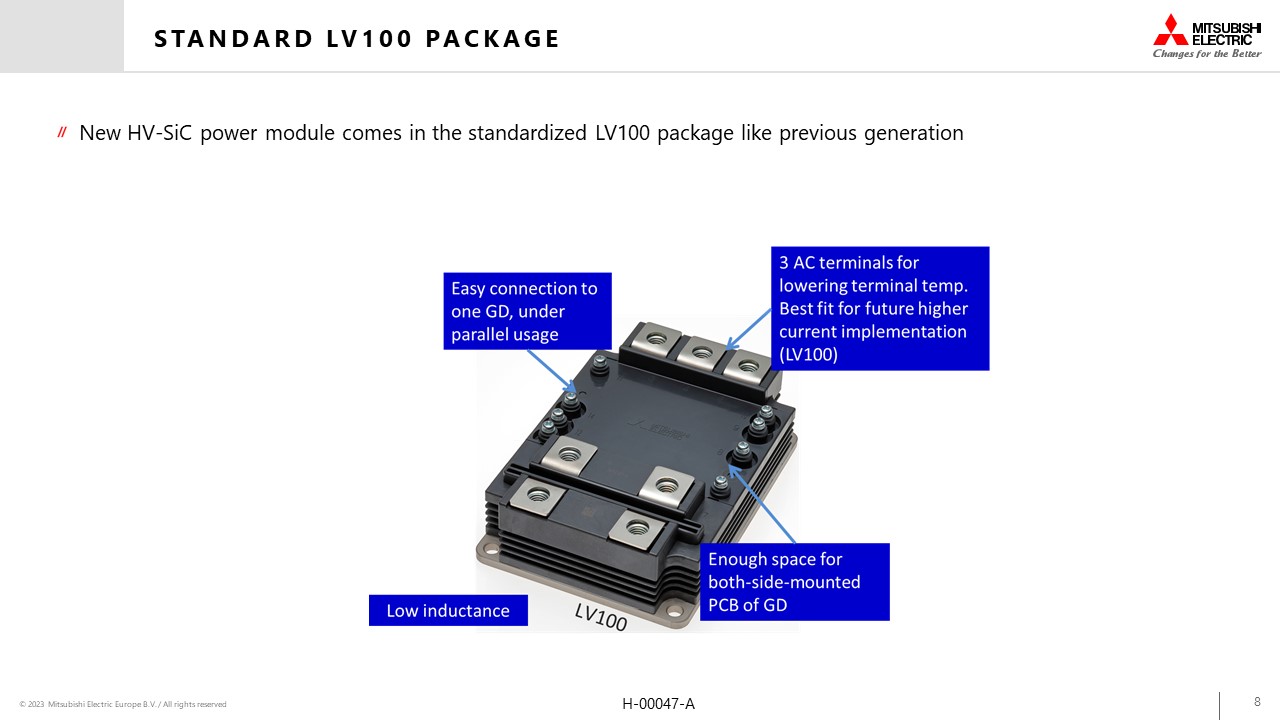

100 x 144 x 40

Downloads

3D-Model

Presentations
