Advantages

  • Standardized package allows simplified design and easy replacement
  • 32 % smaller package compared to previous generation with same current rating

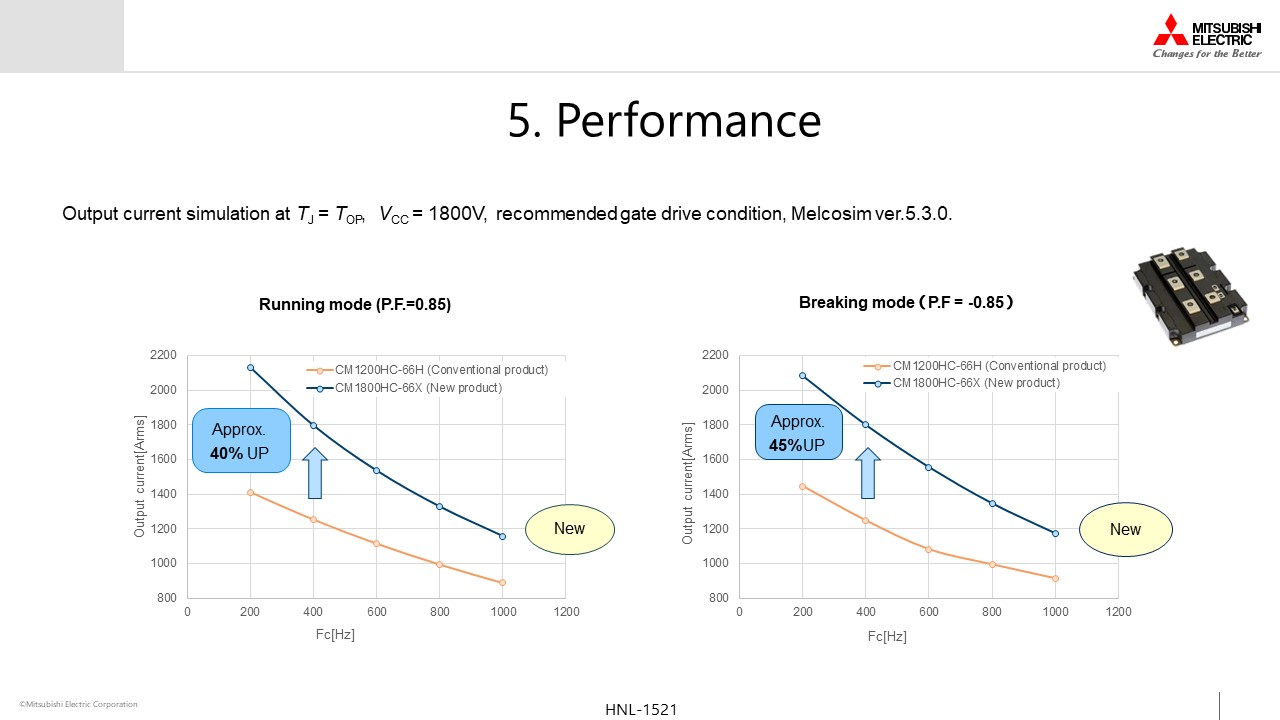

  • 50 % power increase compared to previous generation in similar package
  • Latest package technology for increasing power cycle lifetime
  • Increased humidity robustness

Attributes

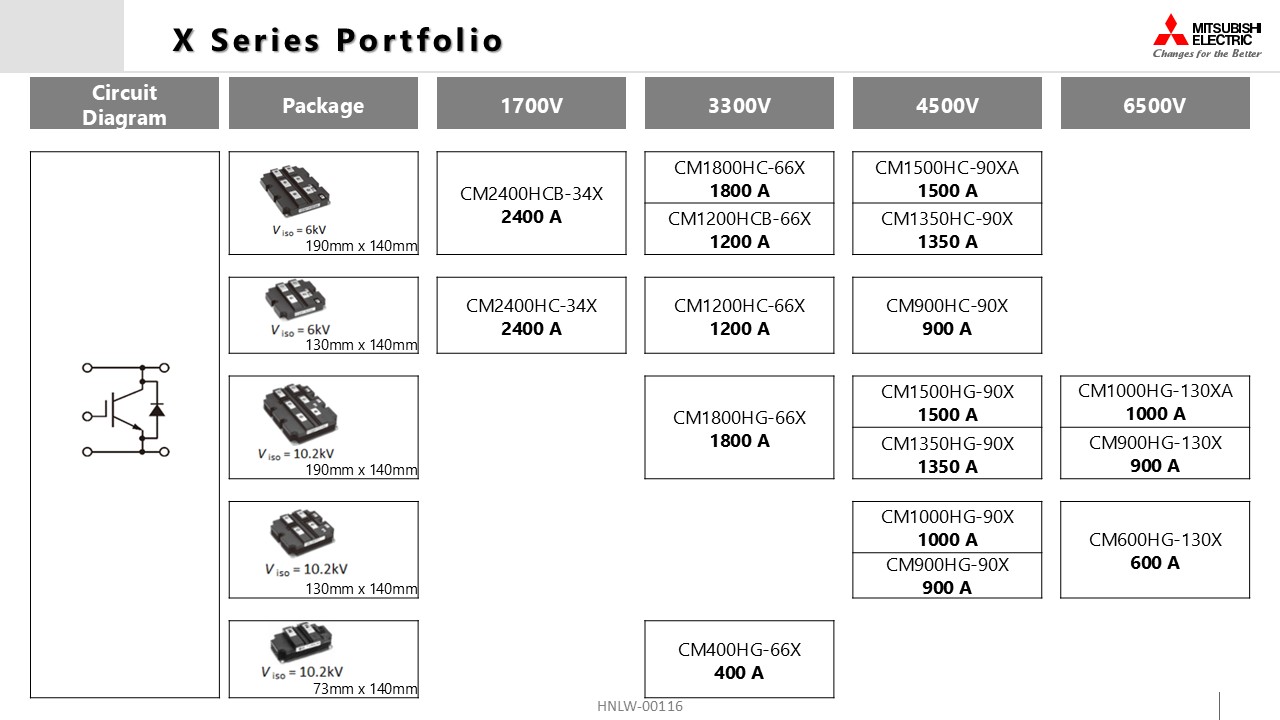

Ratings:

4500 V: 900 A, 1000 A
6500 V: 600 A

Dimensions [mm]:

130 x 140 x 40

3D-Model

Videos

High reliability, most field experienced single high voltage modules for highest power demands
