Advantages

  • Latest 7th Gen. CSTBT™ IGBT and RFC-Diode technologies
  • Half bridge Configuration

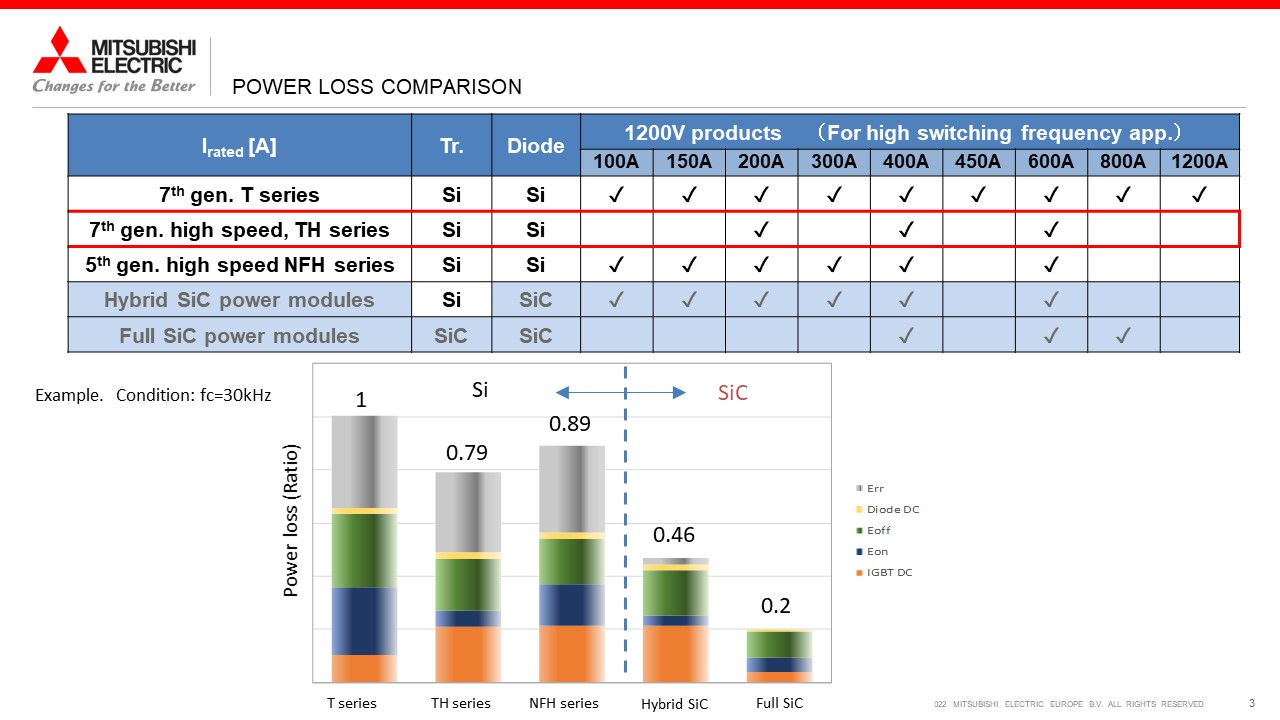

  • Low power loss at high switching frequency operation (fc: 20~60kHz)

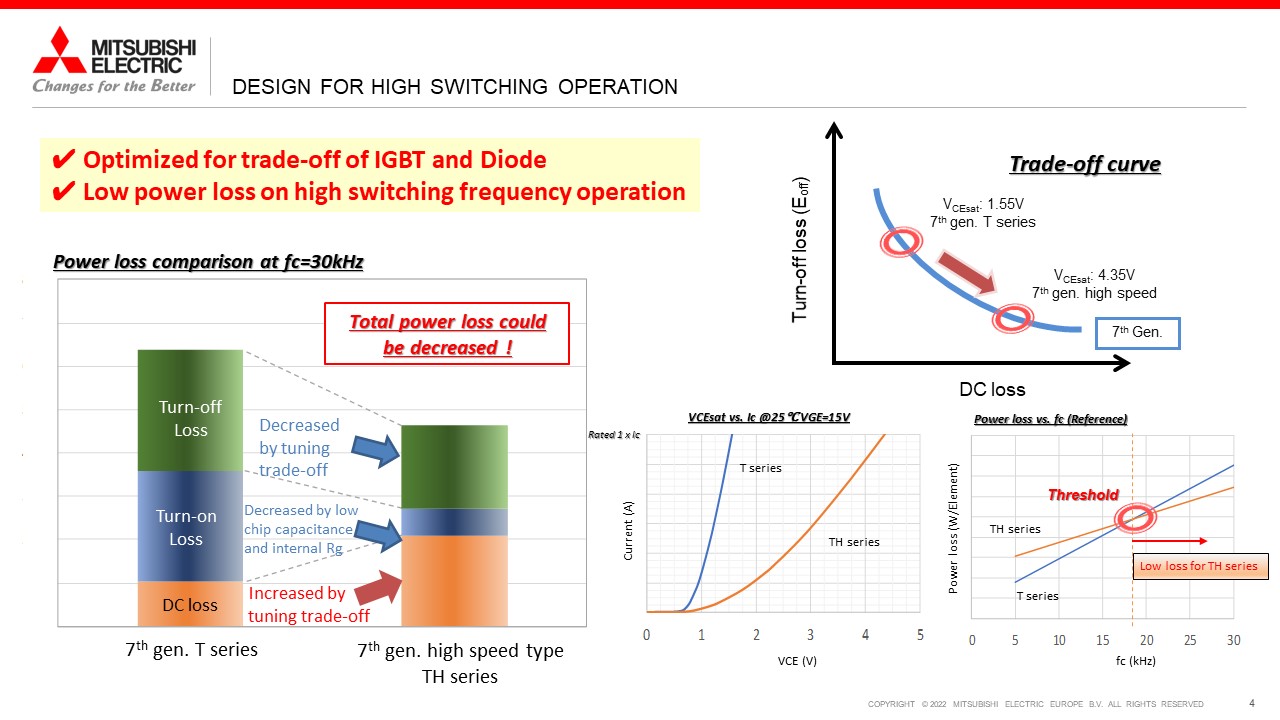

  • Optimized for trade-off of IGBT and Diode

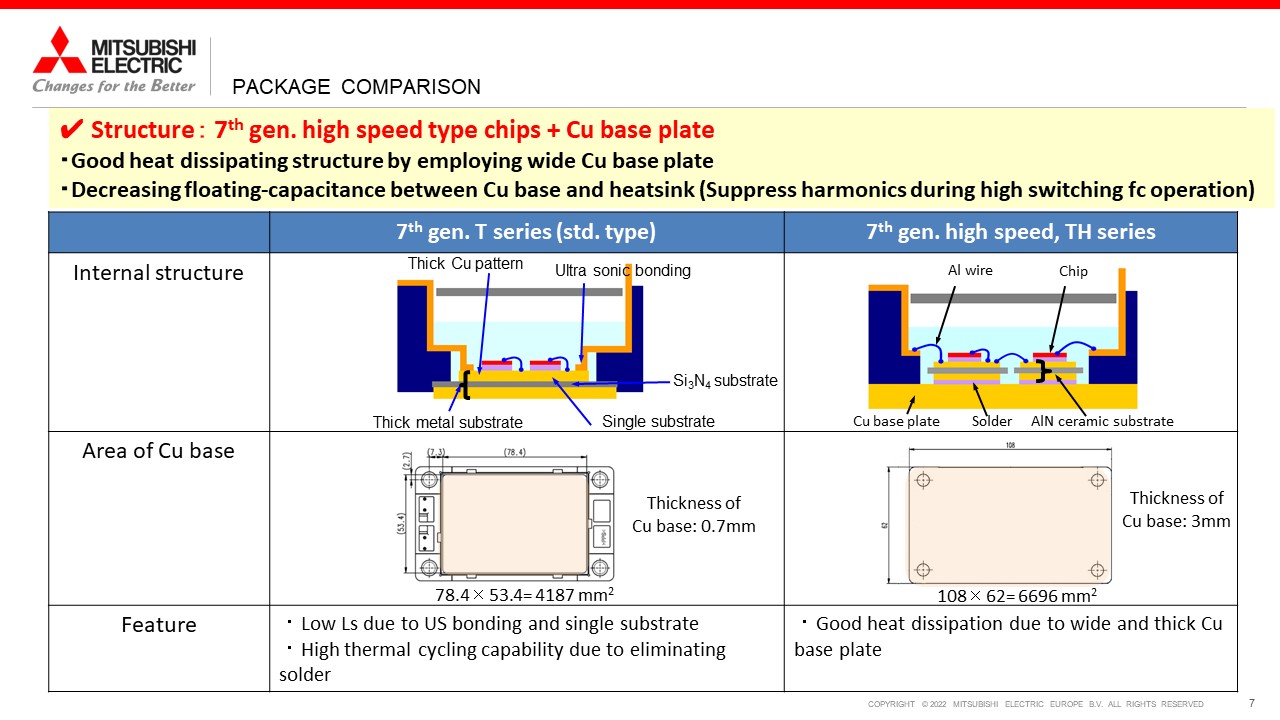

  • Low thermal resistance and high power density by AlN ceramic substrate
  • Low inductive package with 4kV insulation
  • High temperature operation with Tvjmax = 175˚C junction temperature at overload events

Attributes

Ratings:

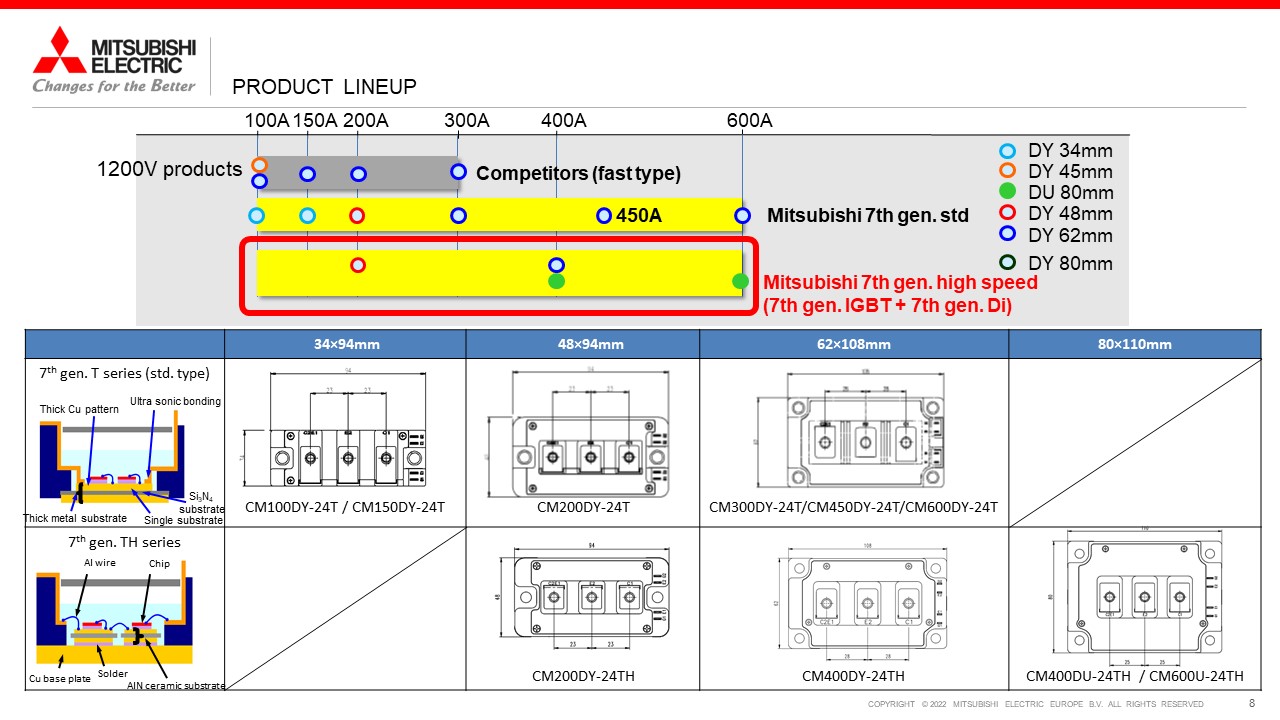

1200 V: 400 A, 600 A

Dimensions [mm]:

80 x 110 x 31
