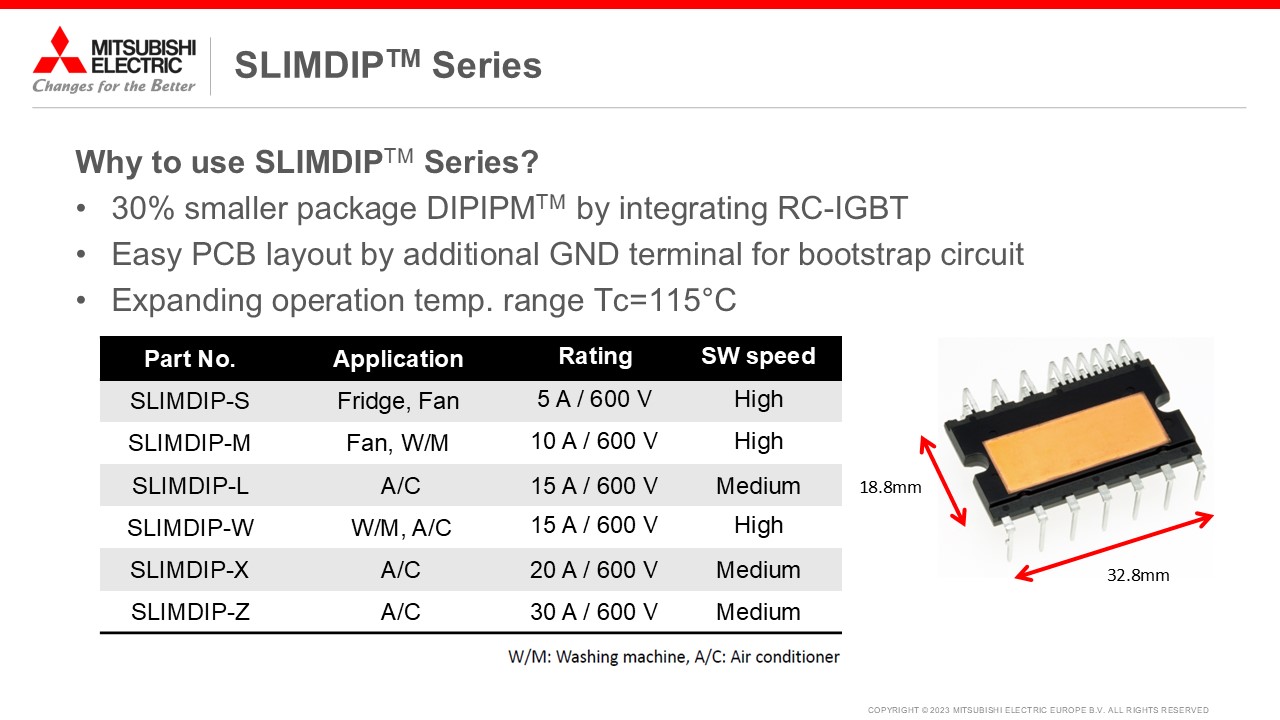

Advantages

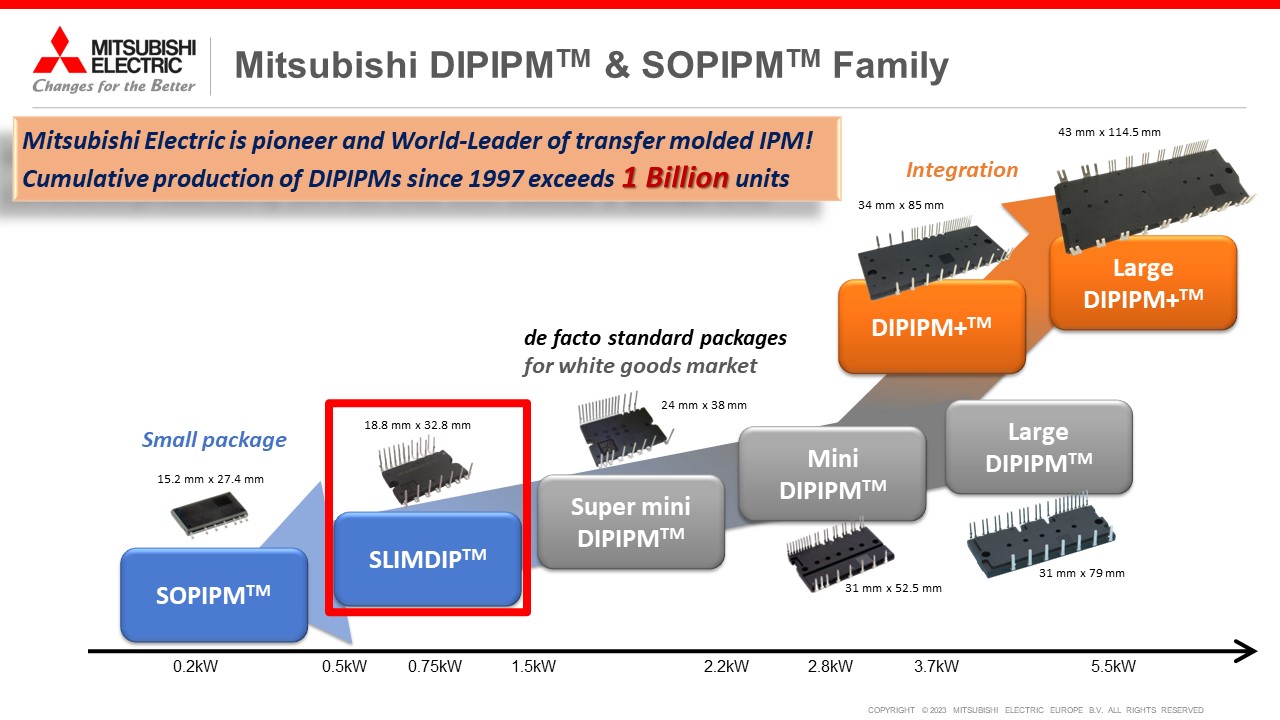

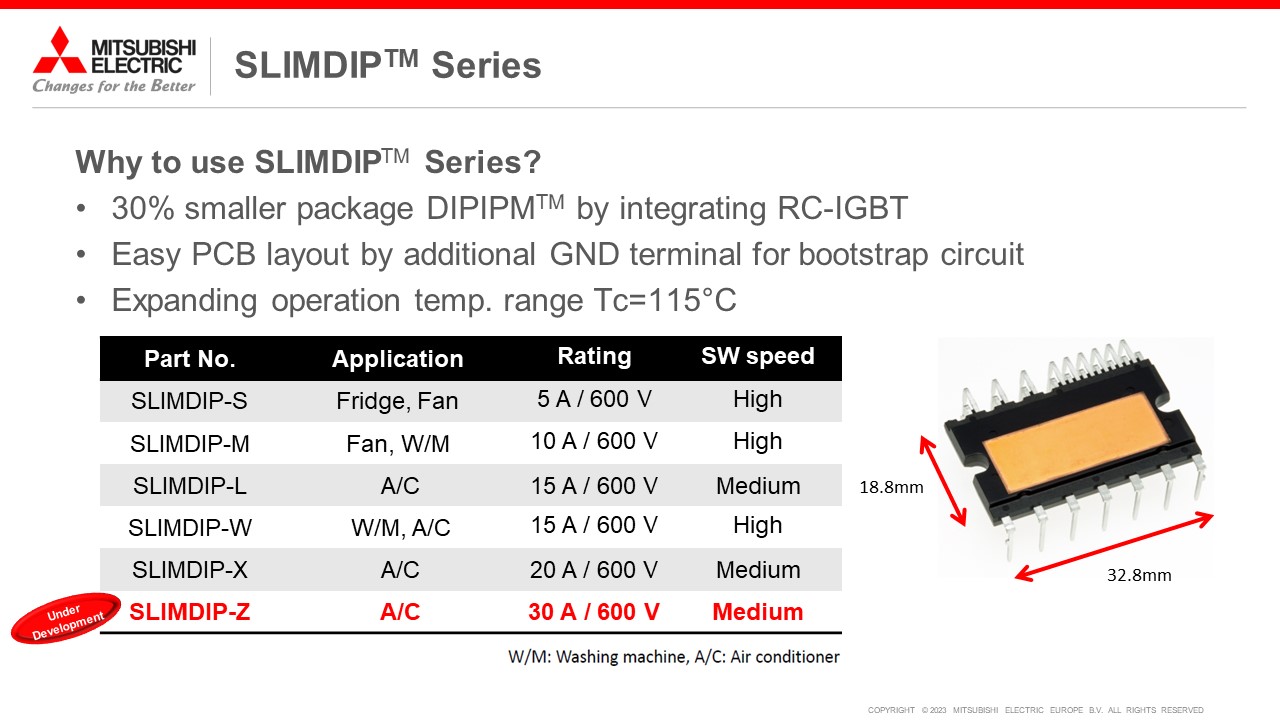

  • Smaller package (30% smaller than Super Mini DIPIPM)

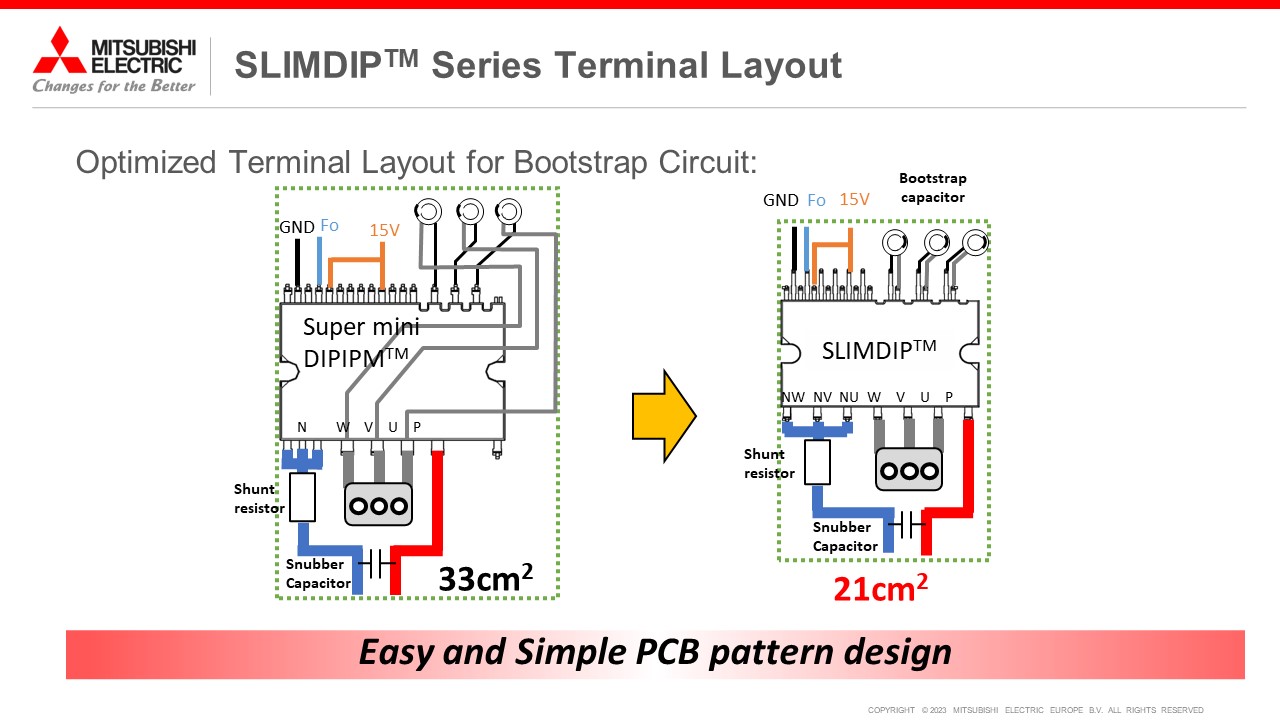

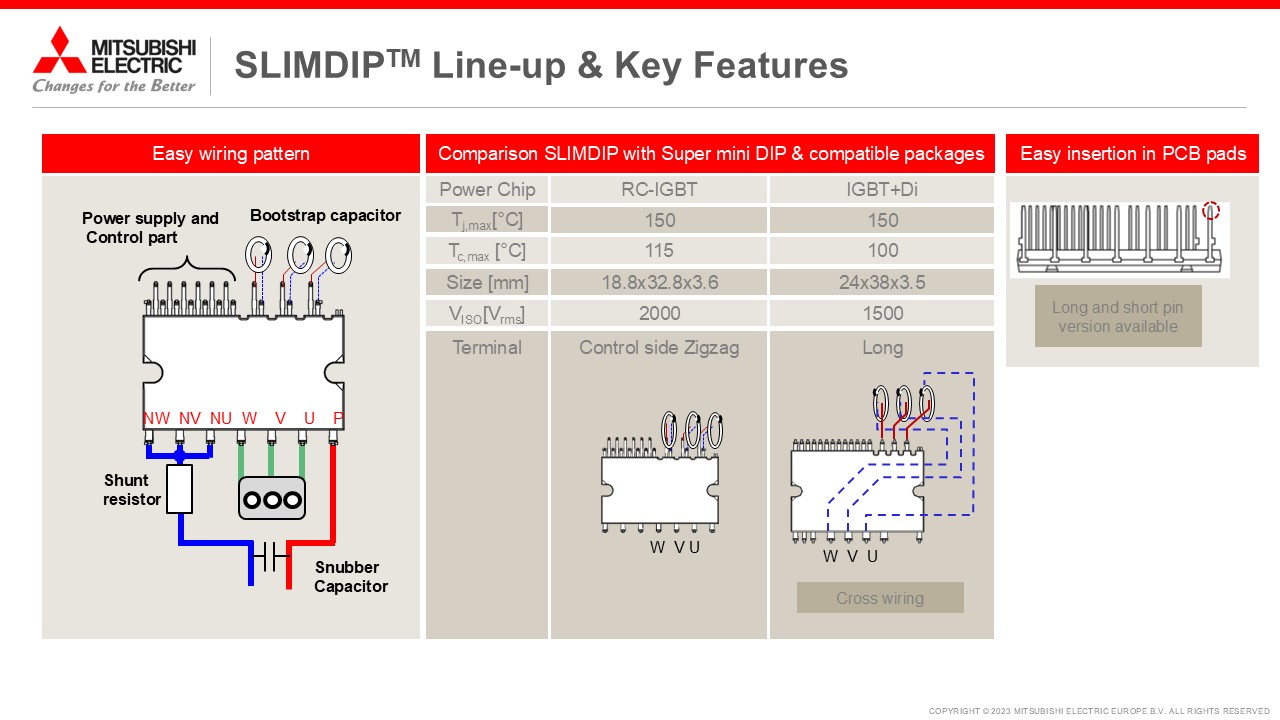

  • Integrated bootstrap diode eliminates the need for external diode, simplifying design & PCB layout

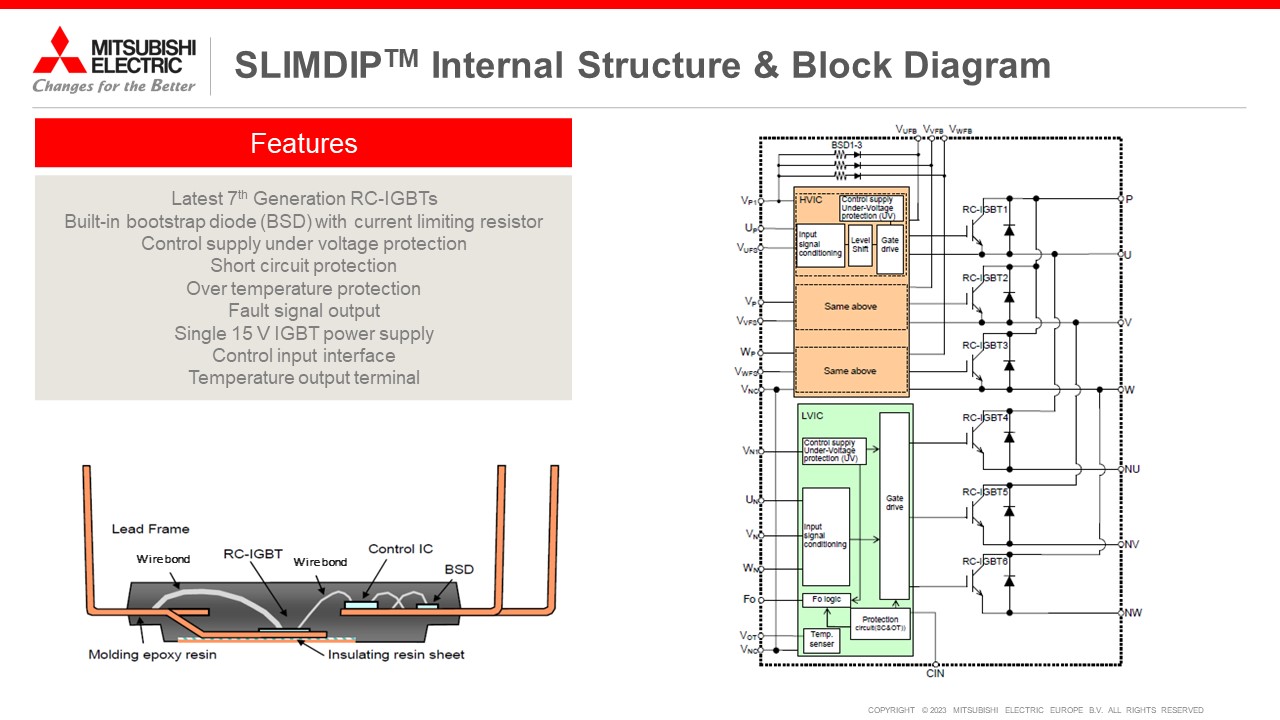

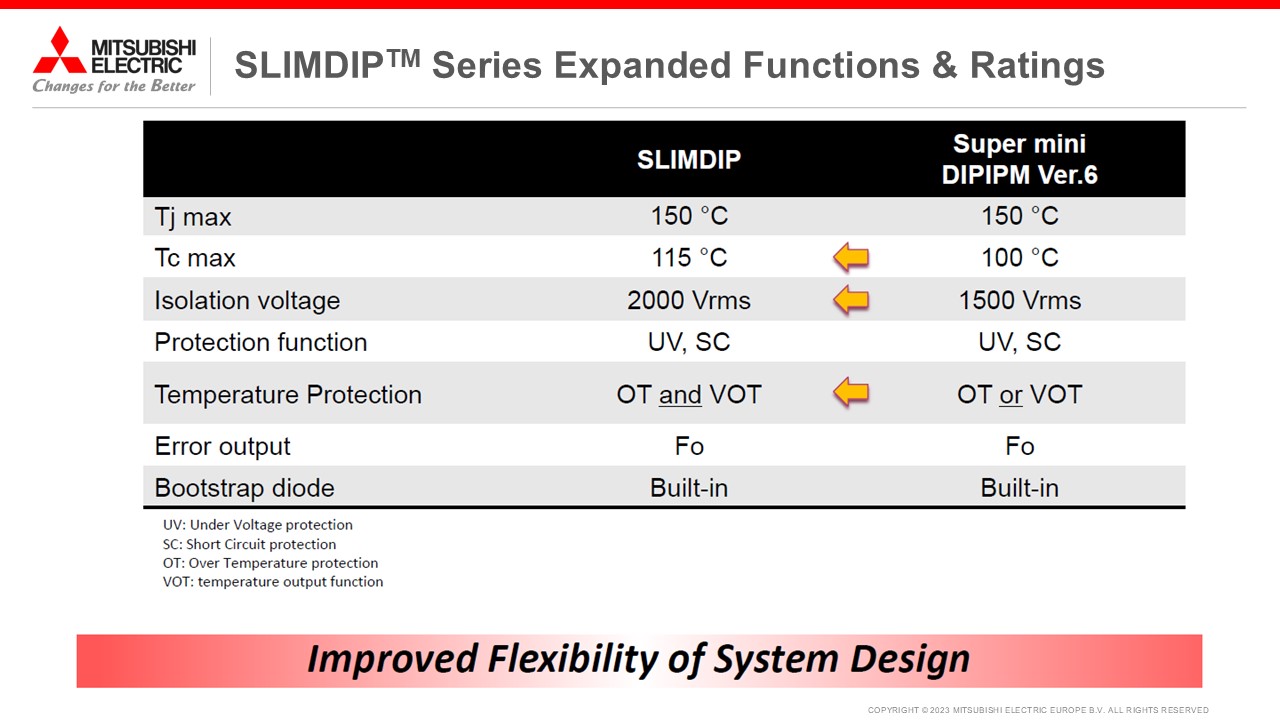

  • Dedicated protection functions: short circuit, over temperature, under voltage lockout
  • Robust package for high temperature operation, Tc,max of 115 C for switching operation
  • UL recognized, isolation voltage Viso = 2000V AC RMS

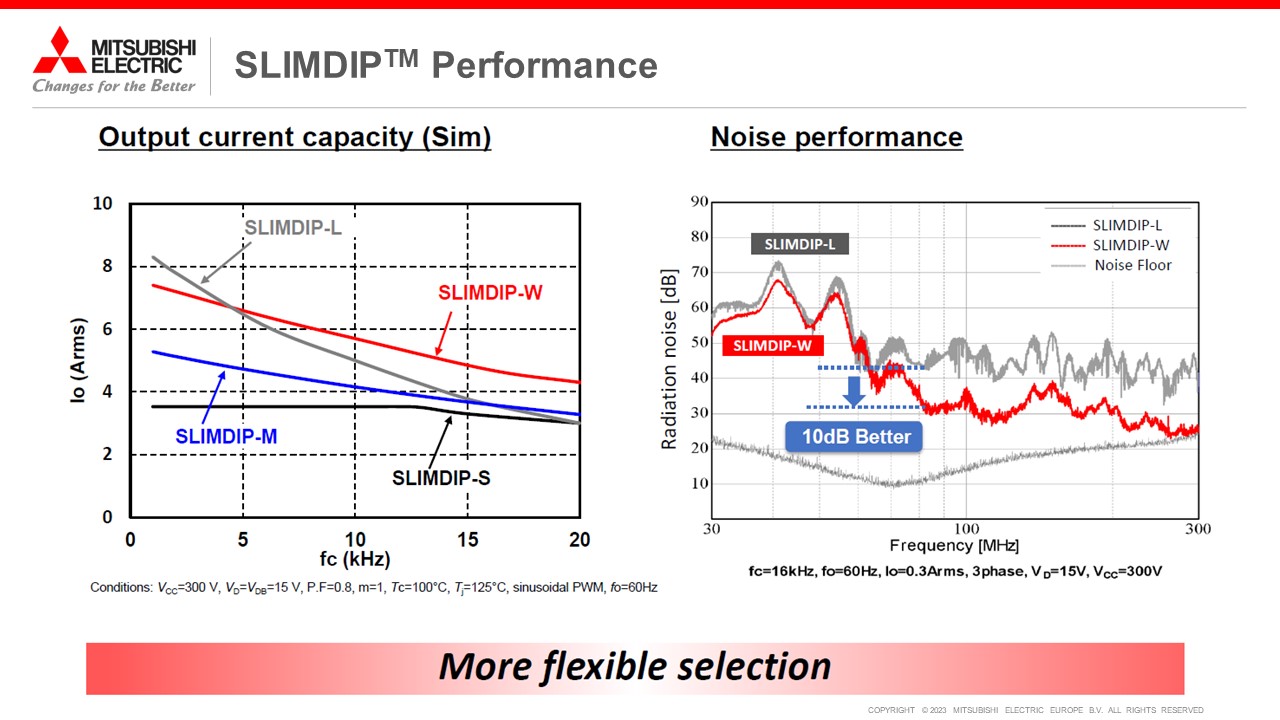

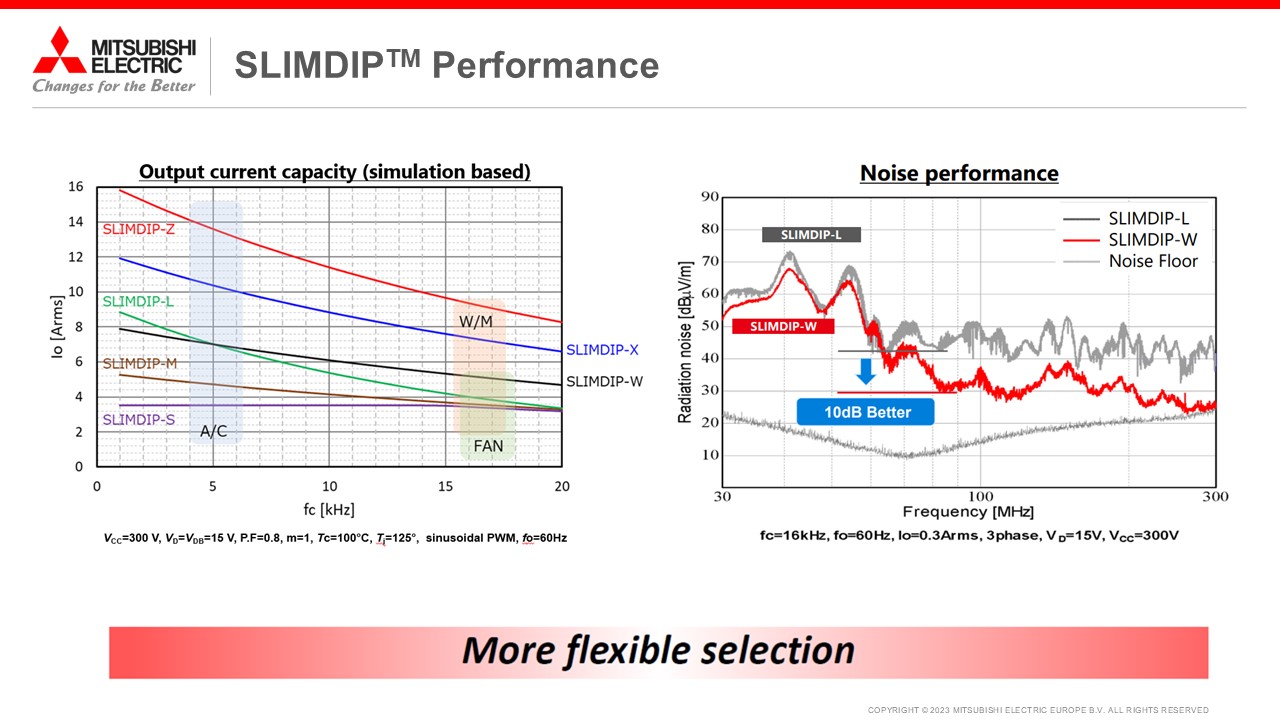

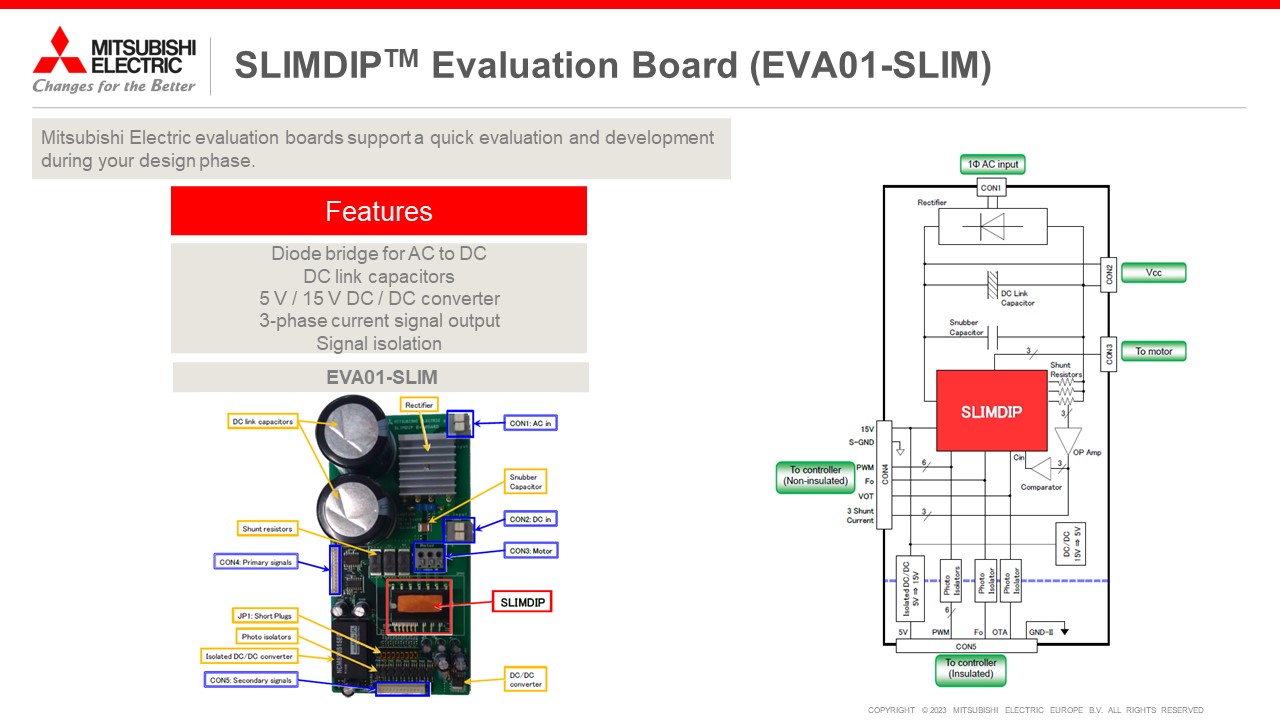

Attributes

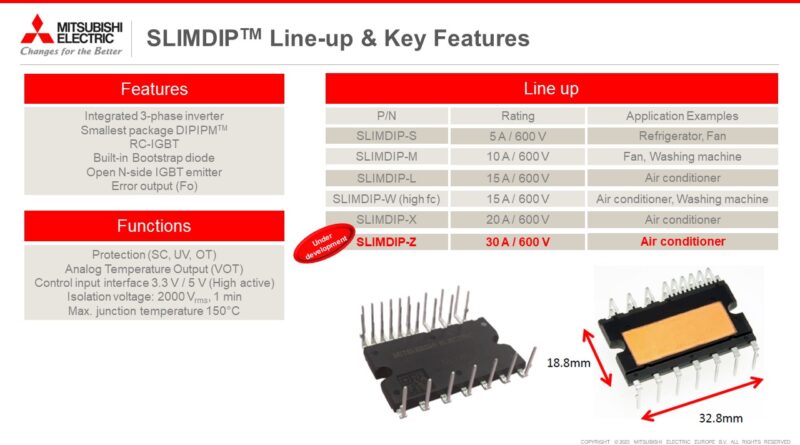

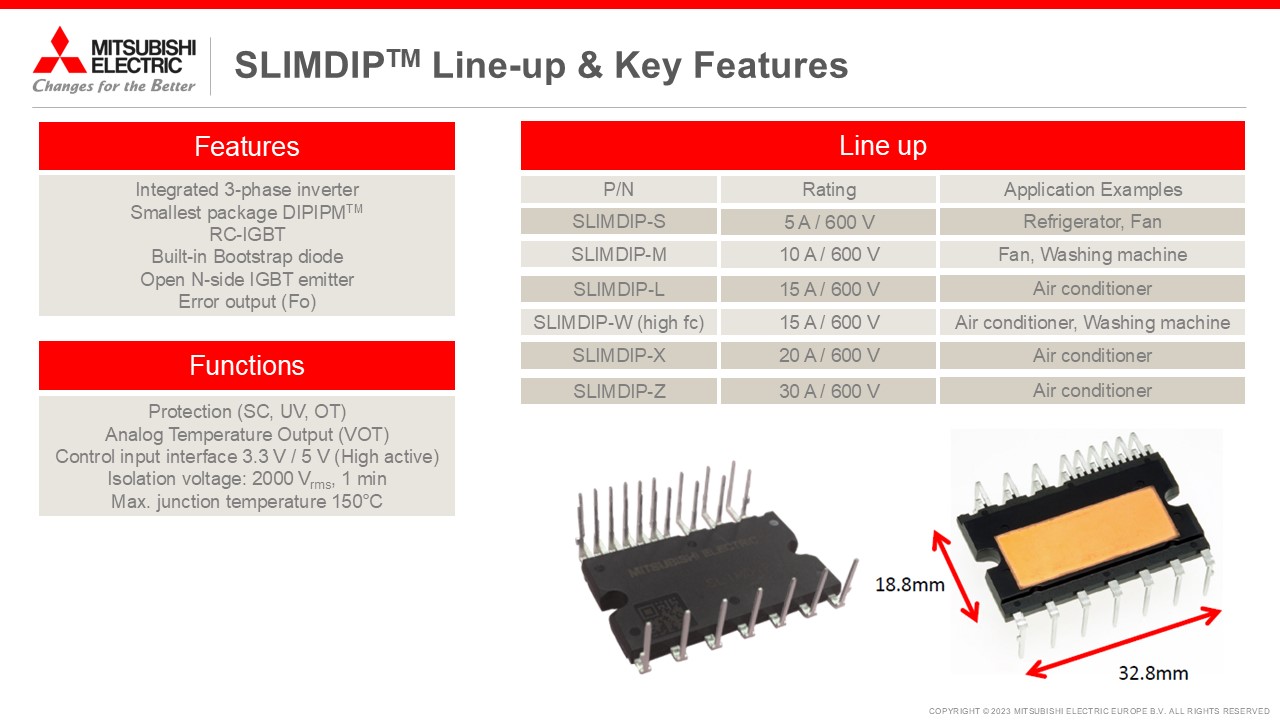

Ratings:

600 V : 5 A, 10 A, 15 A, 20 A, 30 A

Dimensions [mm]:

18.8 x 32.8 x 3.6
