Advantages

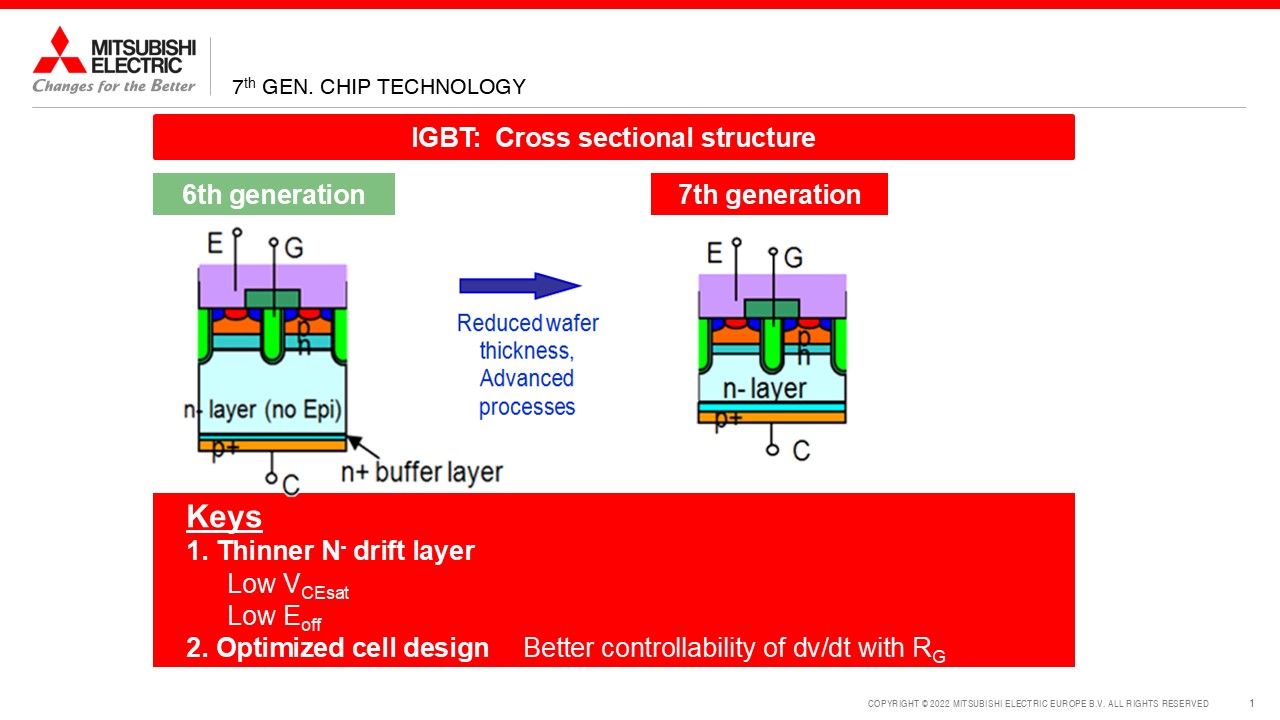

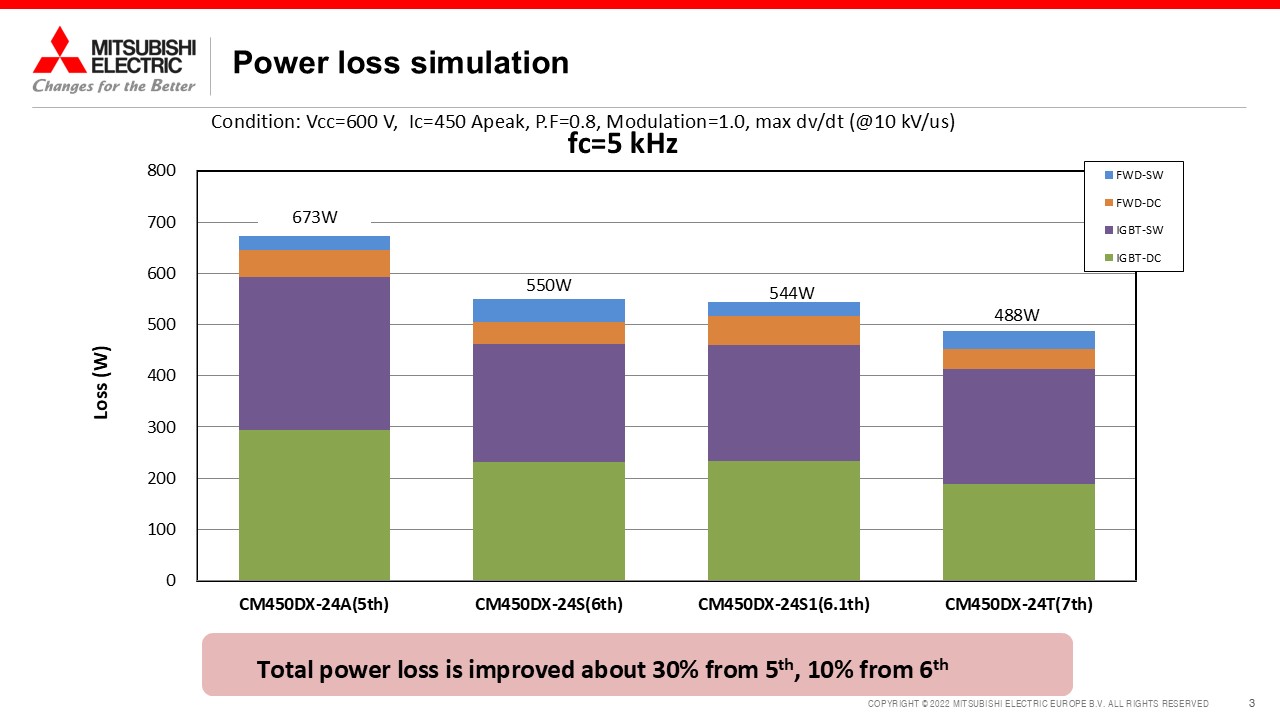

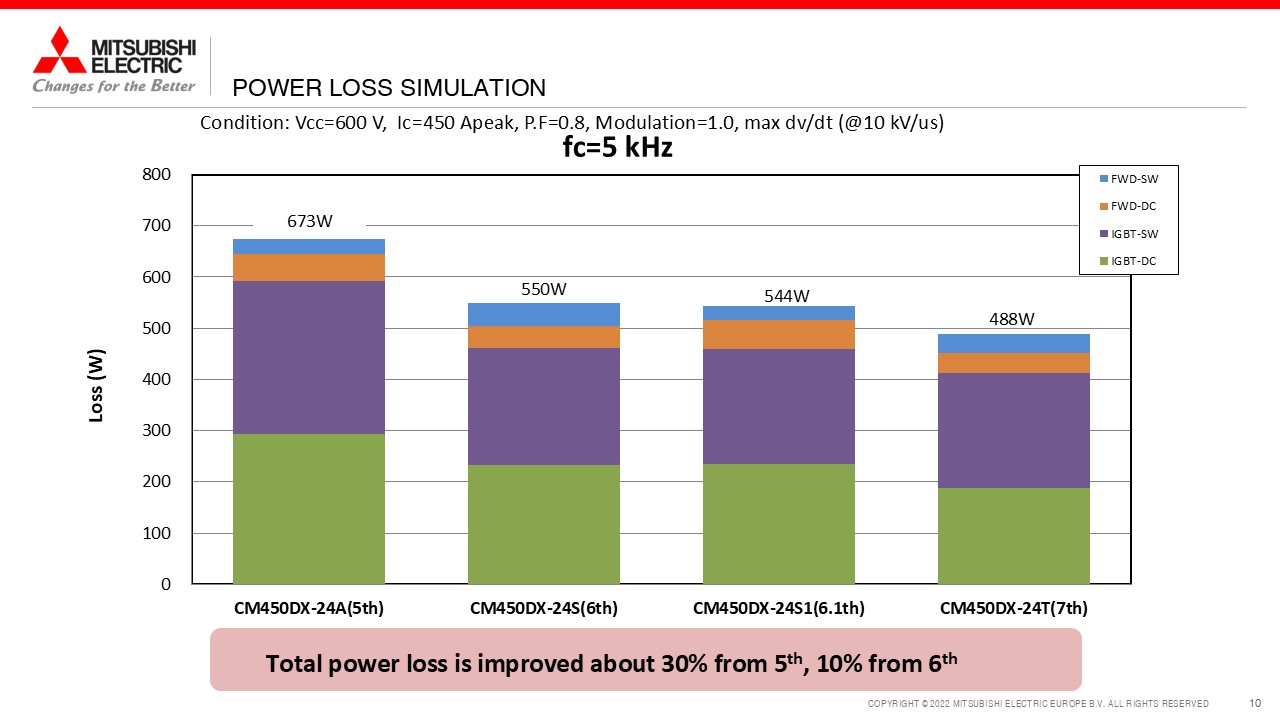

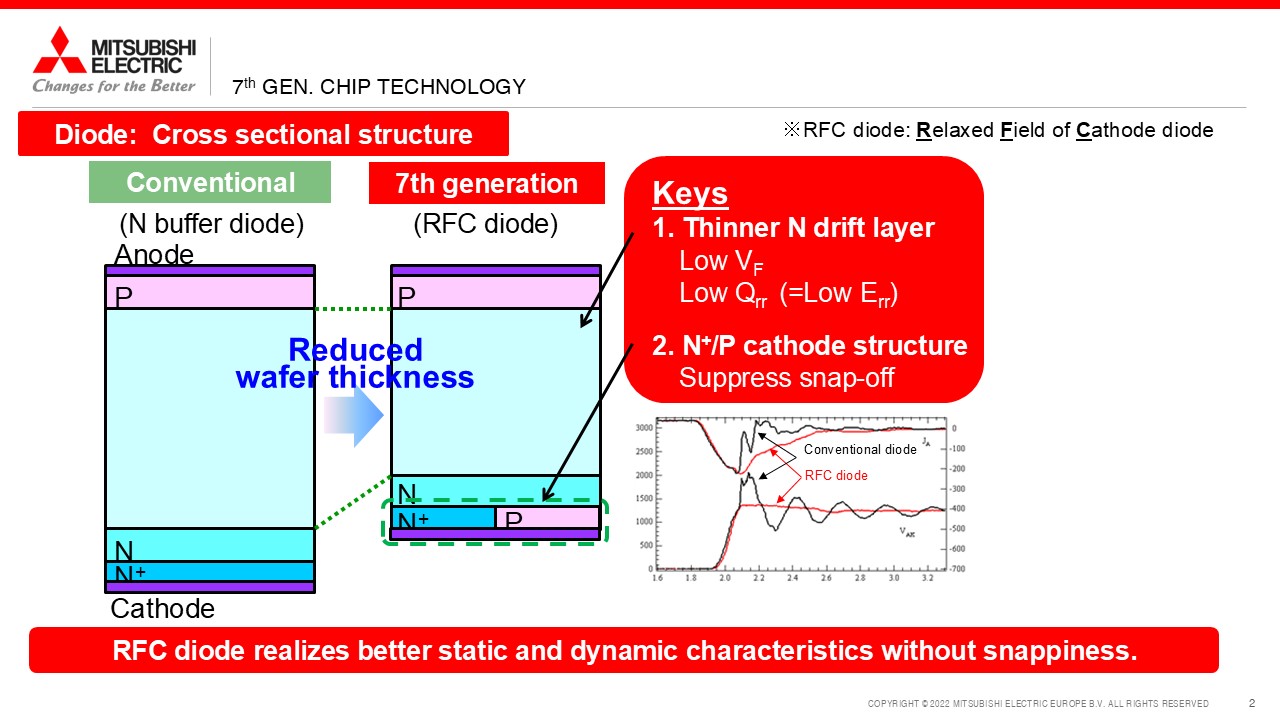

  • High efficiency by latest 7th Gen. IGBT Technology

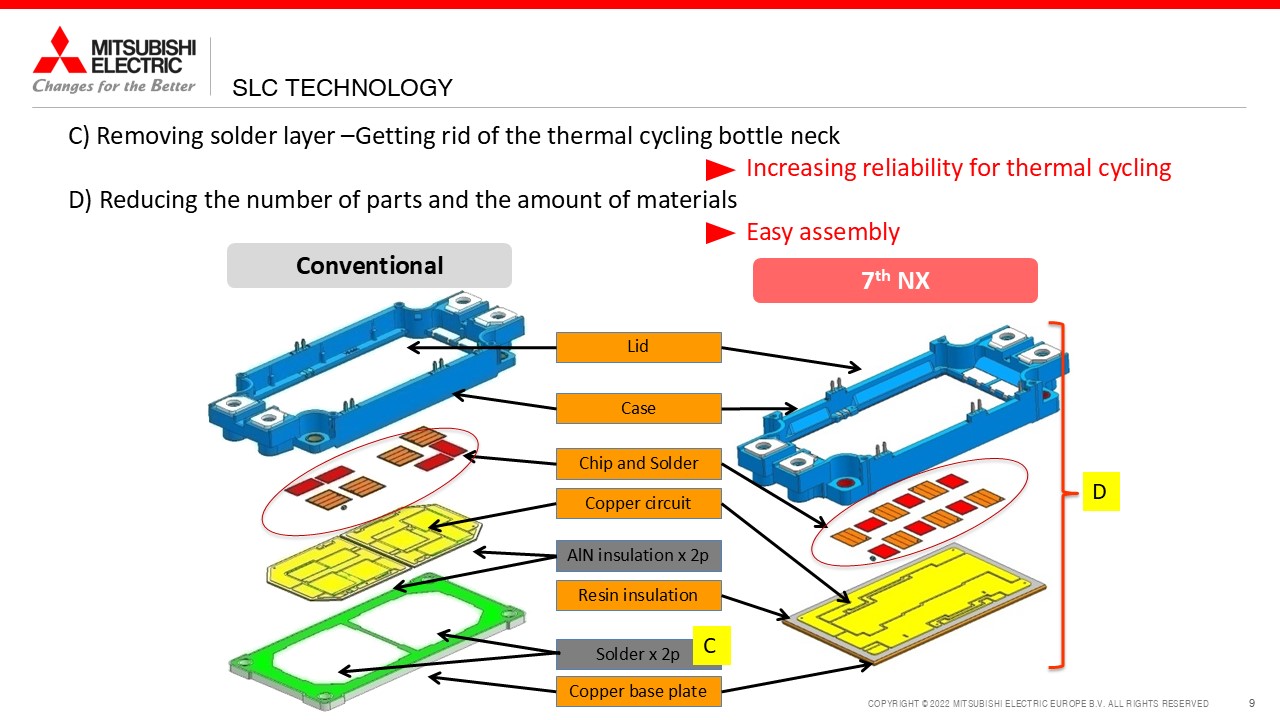

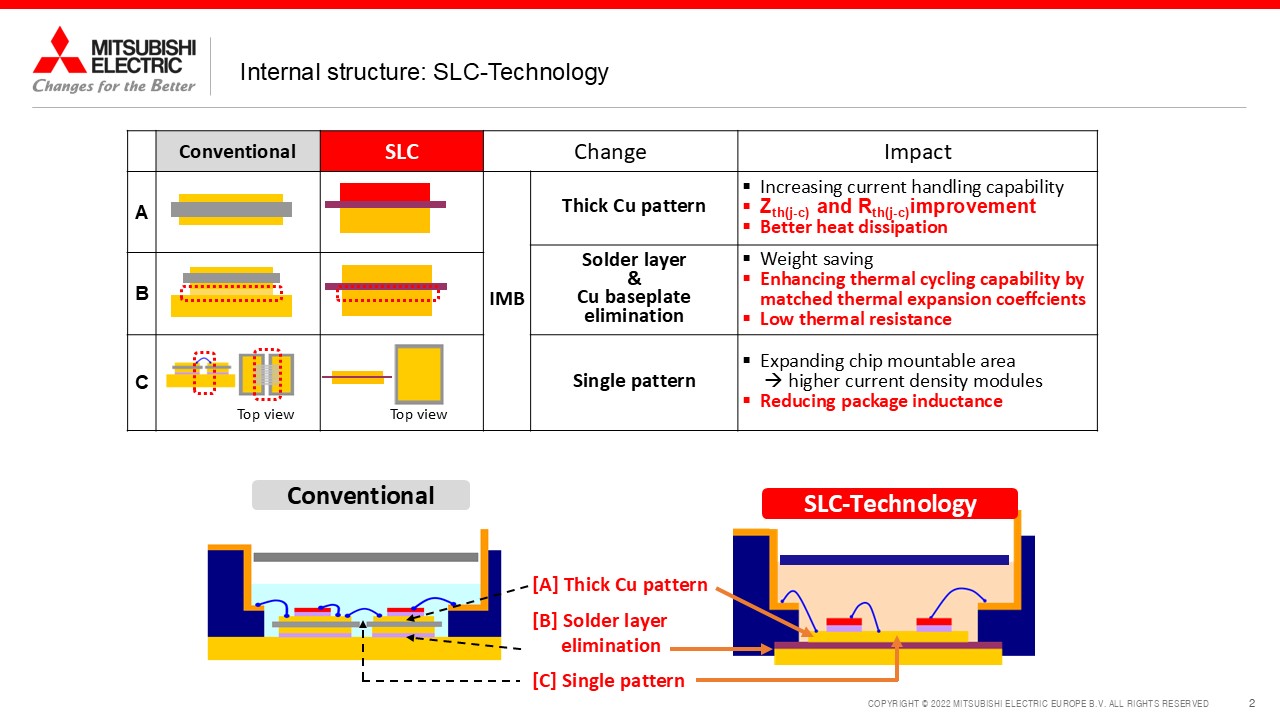

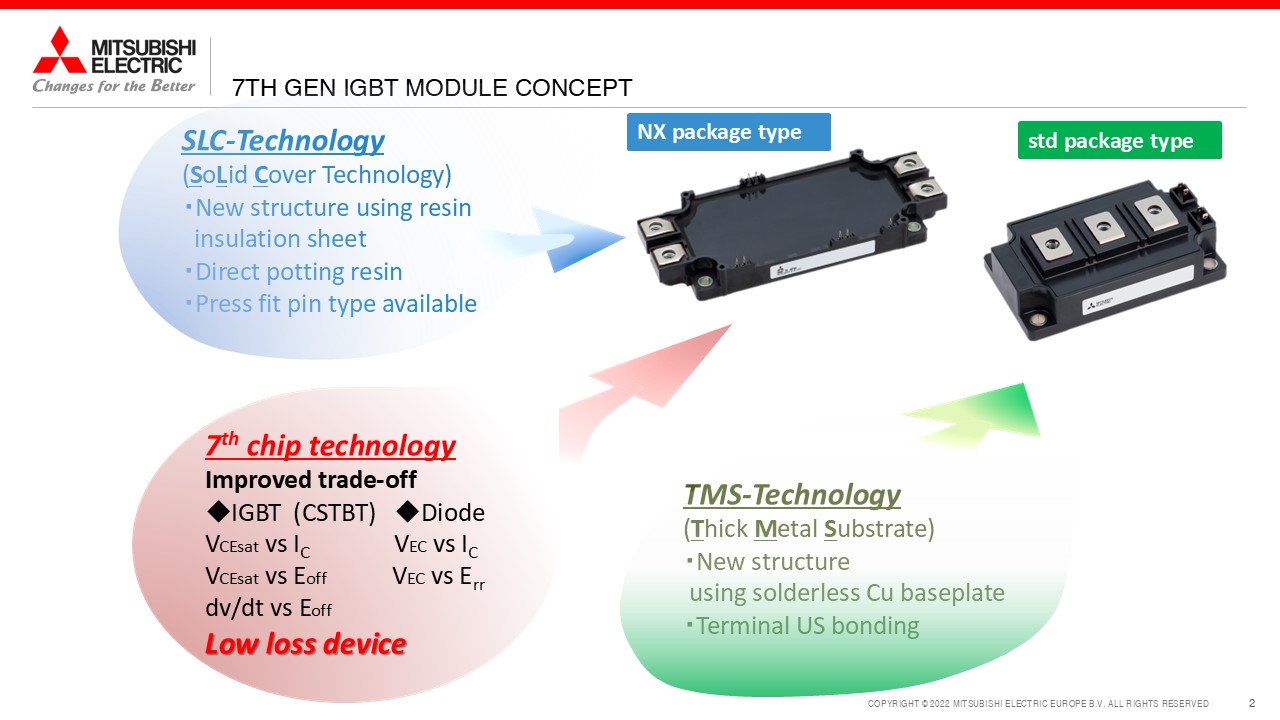

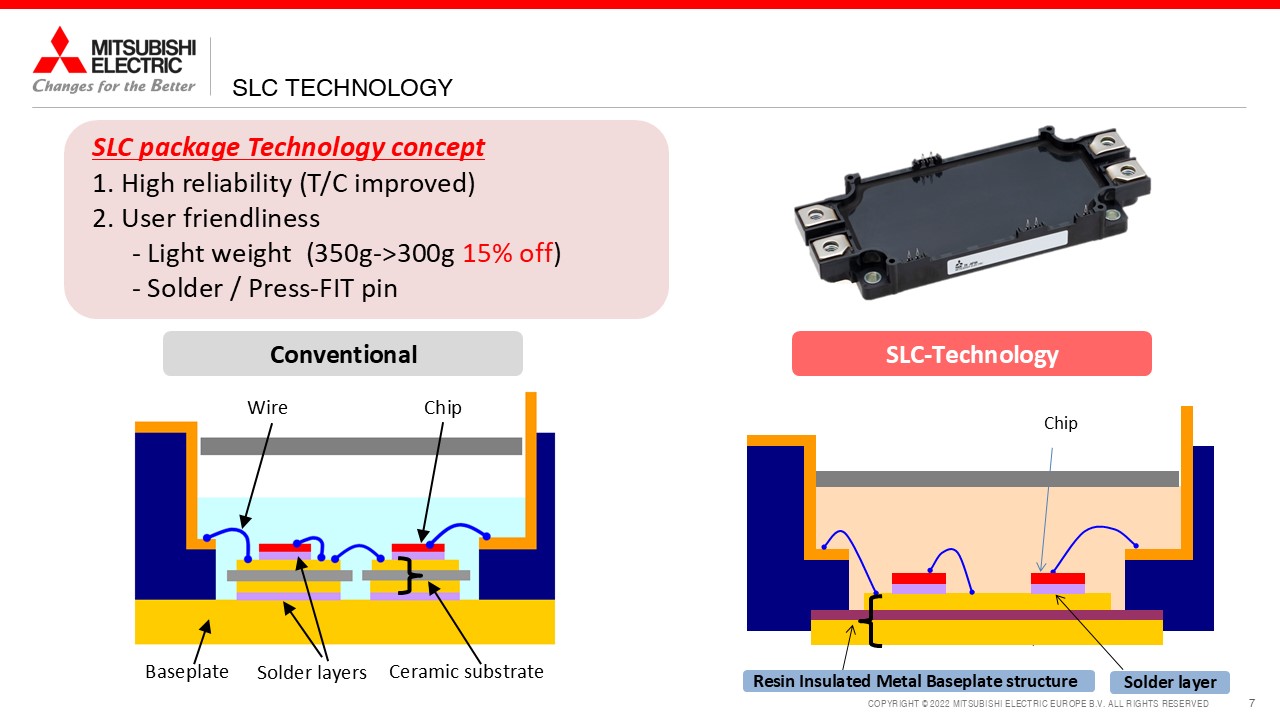

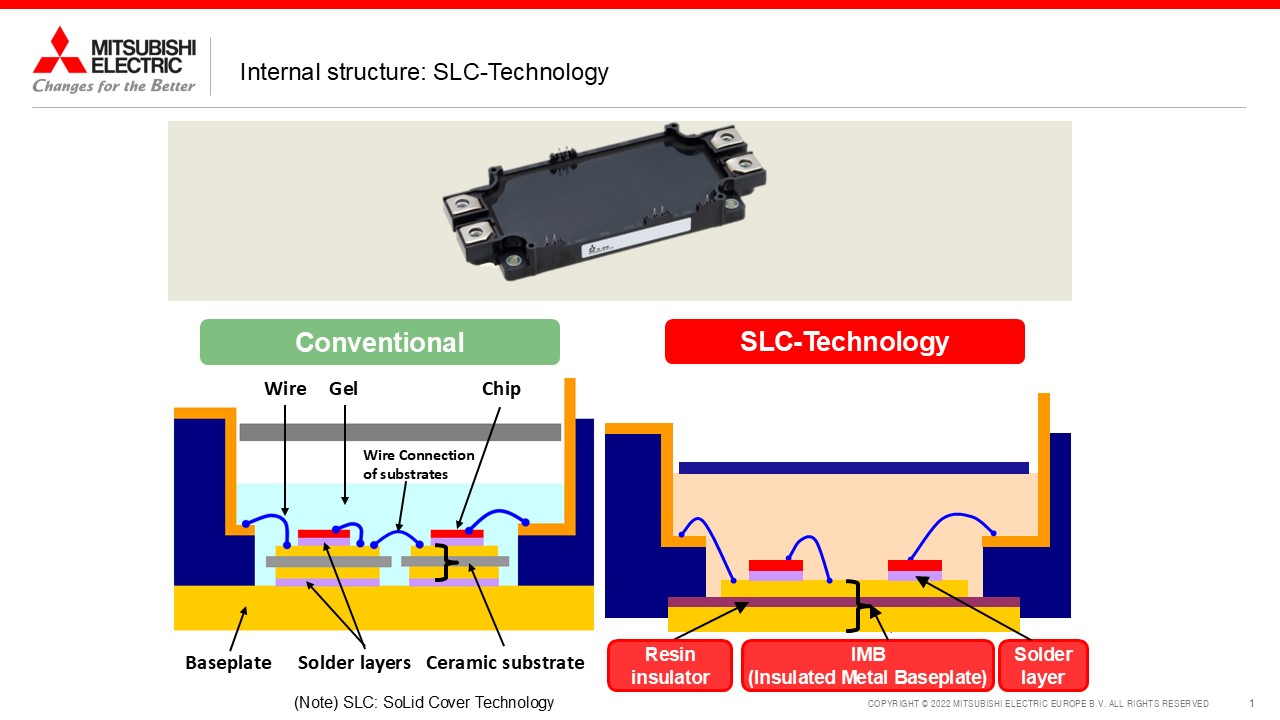

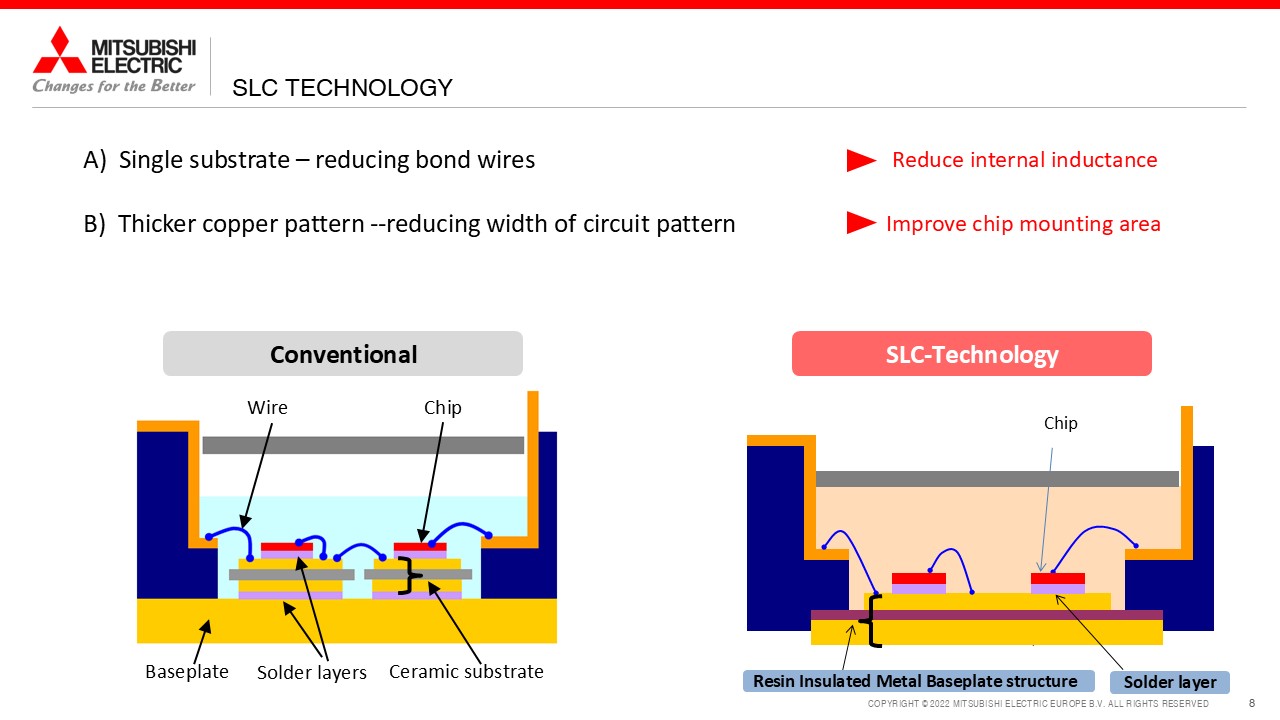

  • High Reliability by improved thermal cycle capability with SLC-Technology
  • Pre applied PC-TIM available

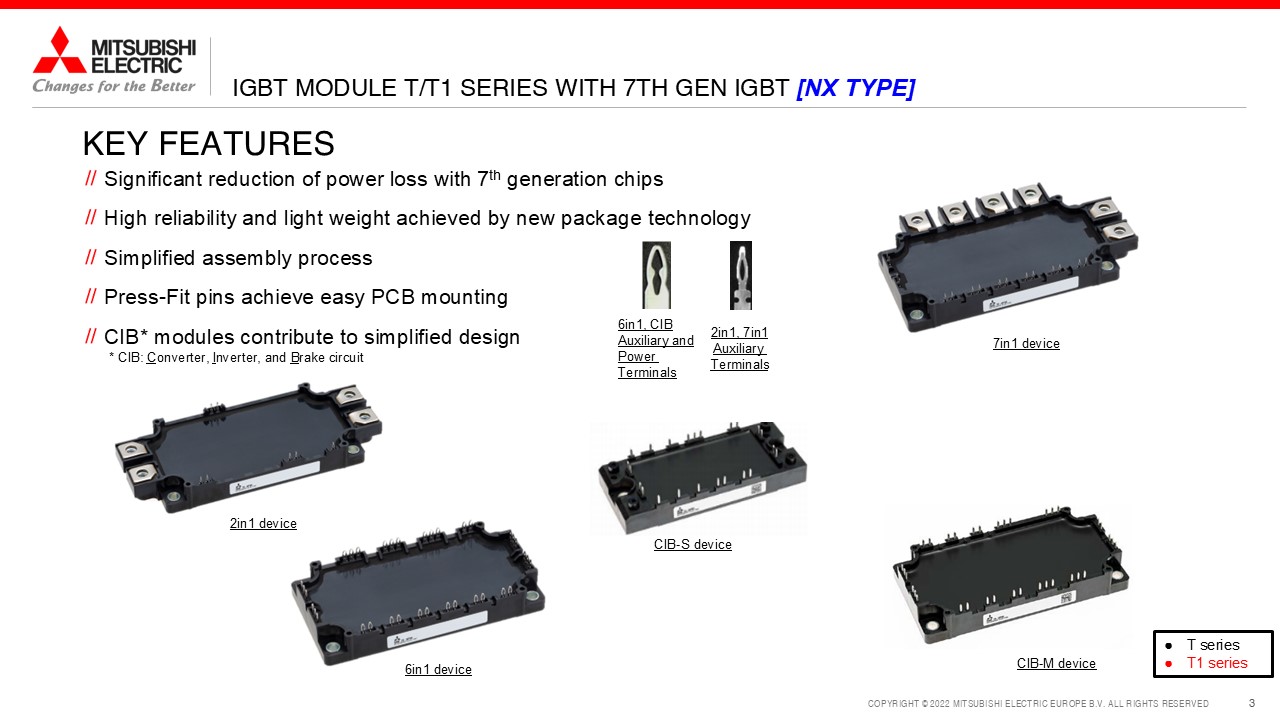

  • Optional press-fit or solder pin terminals available for optimized assembly processes
  • High temperature operation with Tvjmax = 175˚C junction temperature at overload events

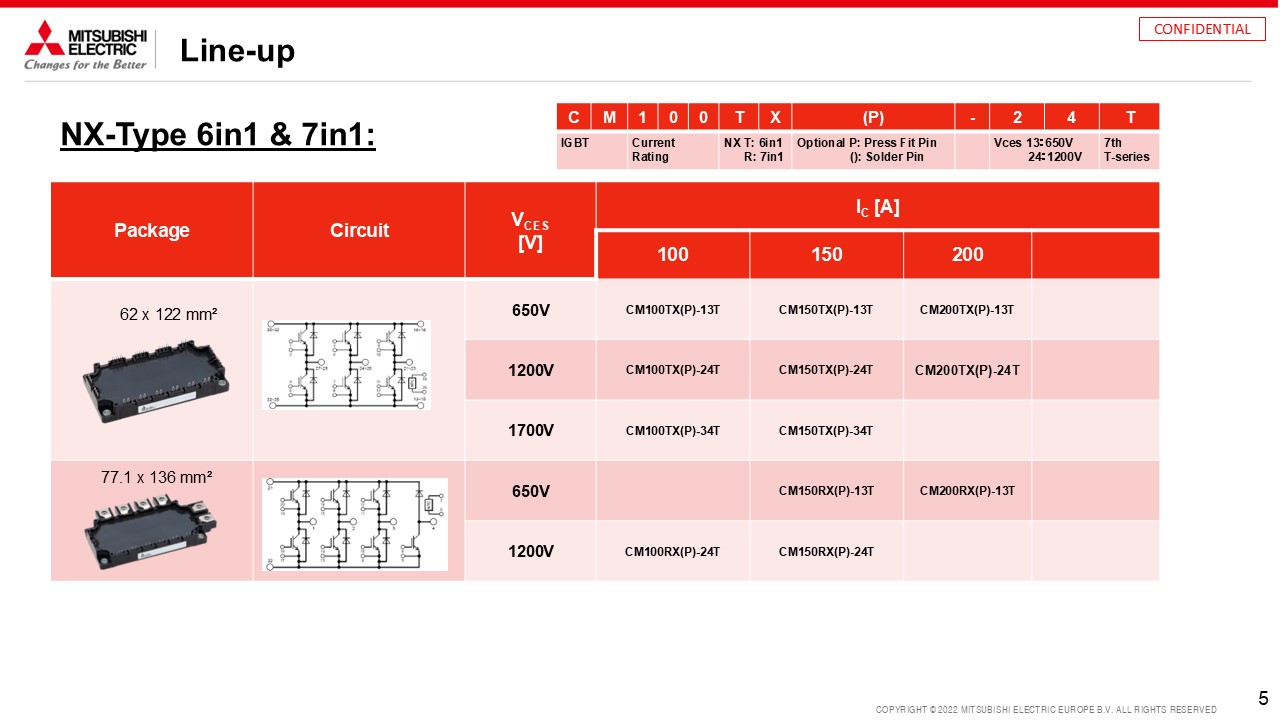

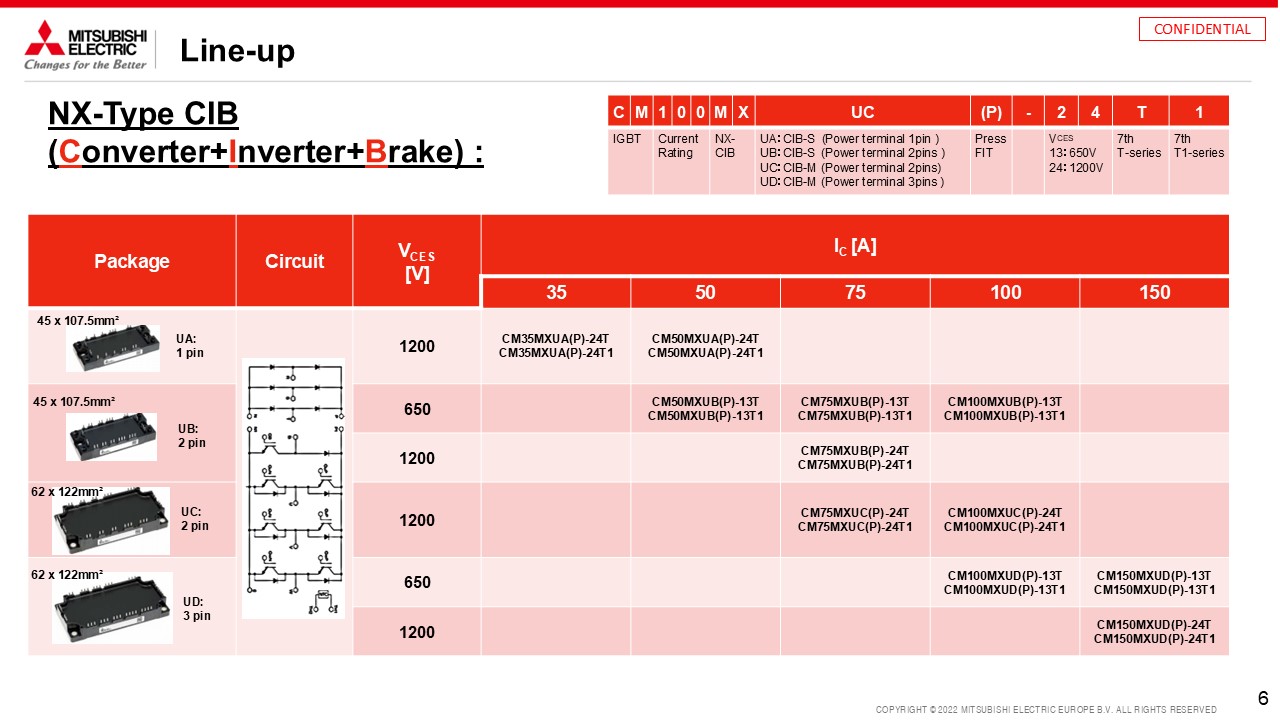

Attributes

Ratings:

650 V: 300 A, 450 A, 600 A

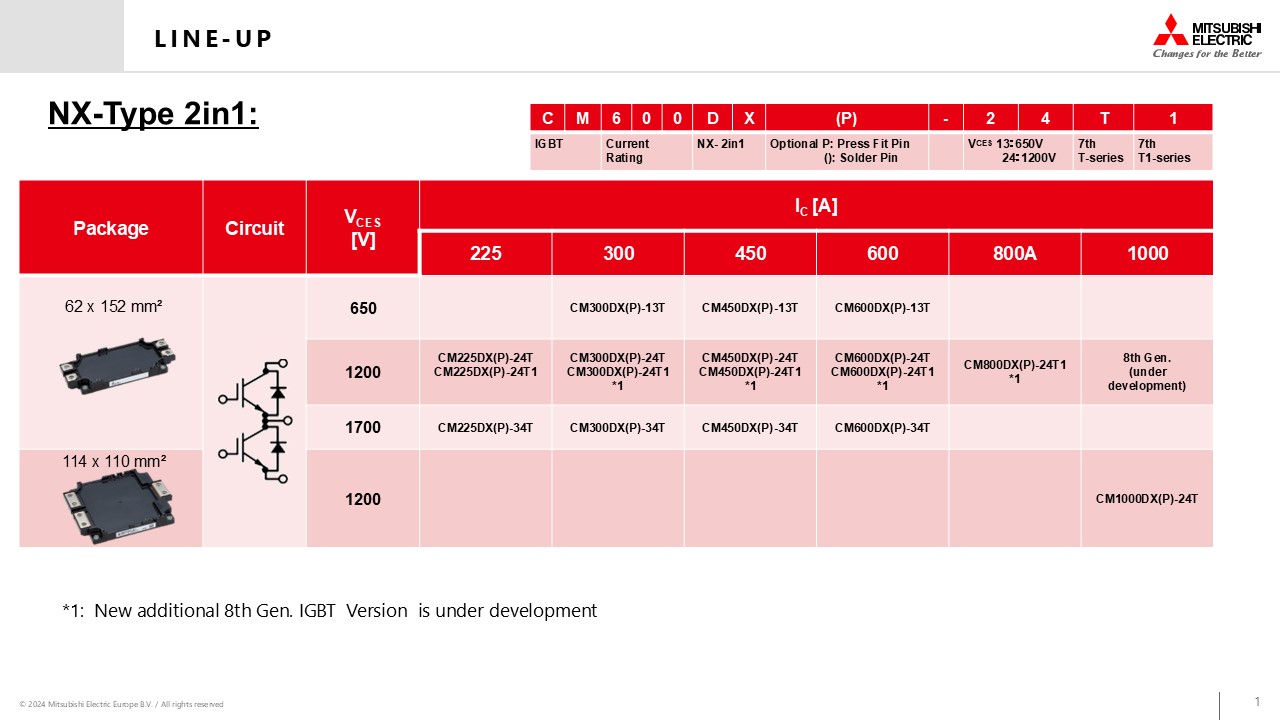

1200 V: 225 A, 300 A, 450 A, 600 A, 800 A
1700 V: 225 A, 300 A, 450 A, 600 A

Dimensions [mm]:

62 x 152 x 17
