Advantages

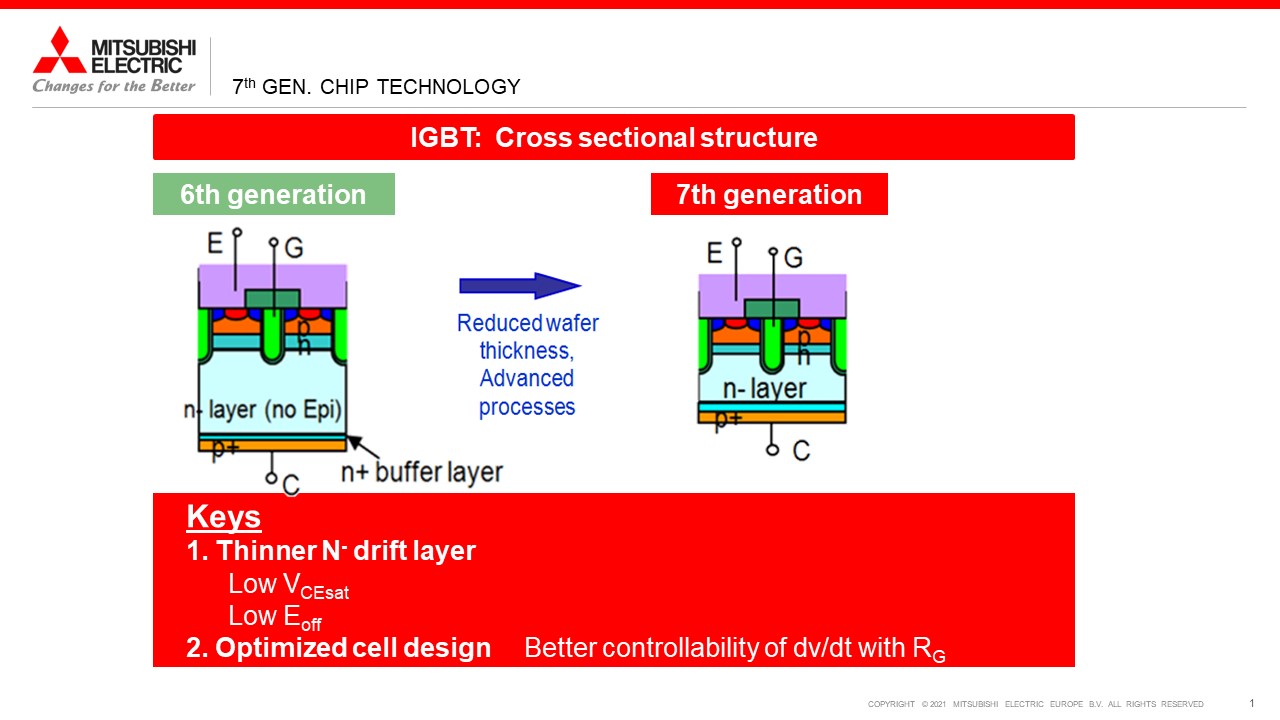

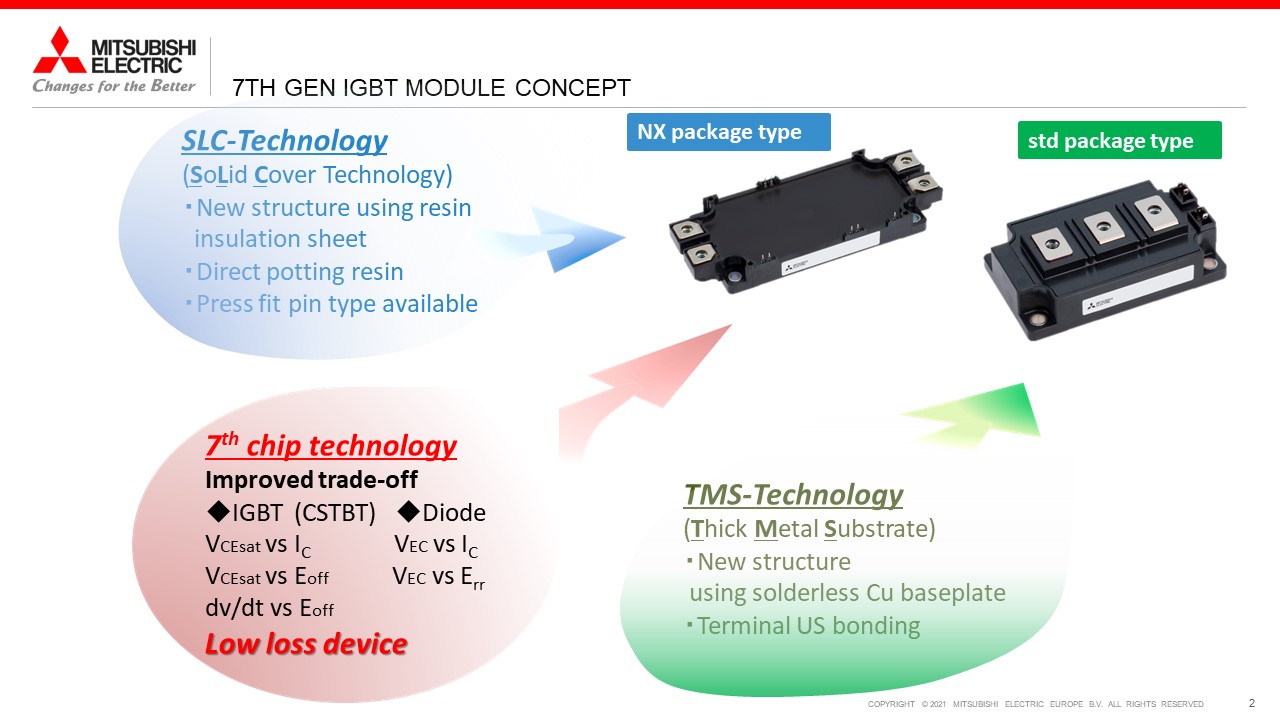

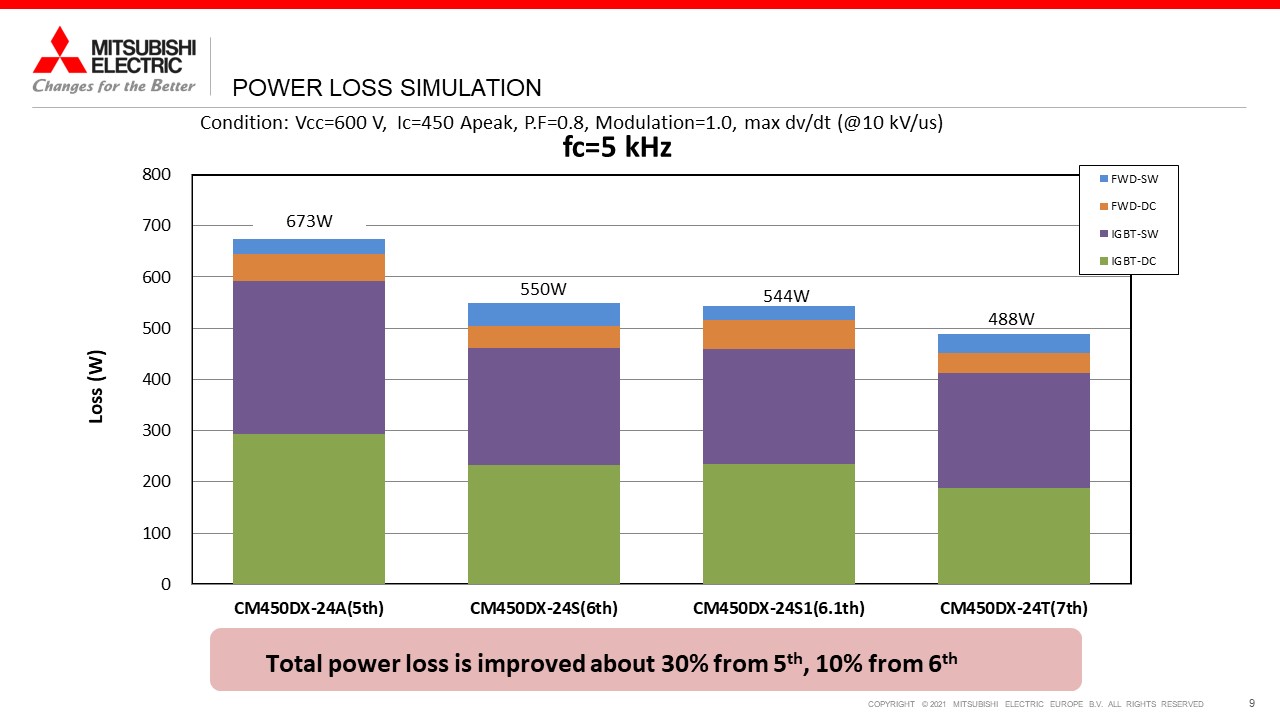

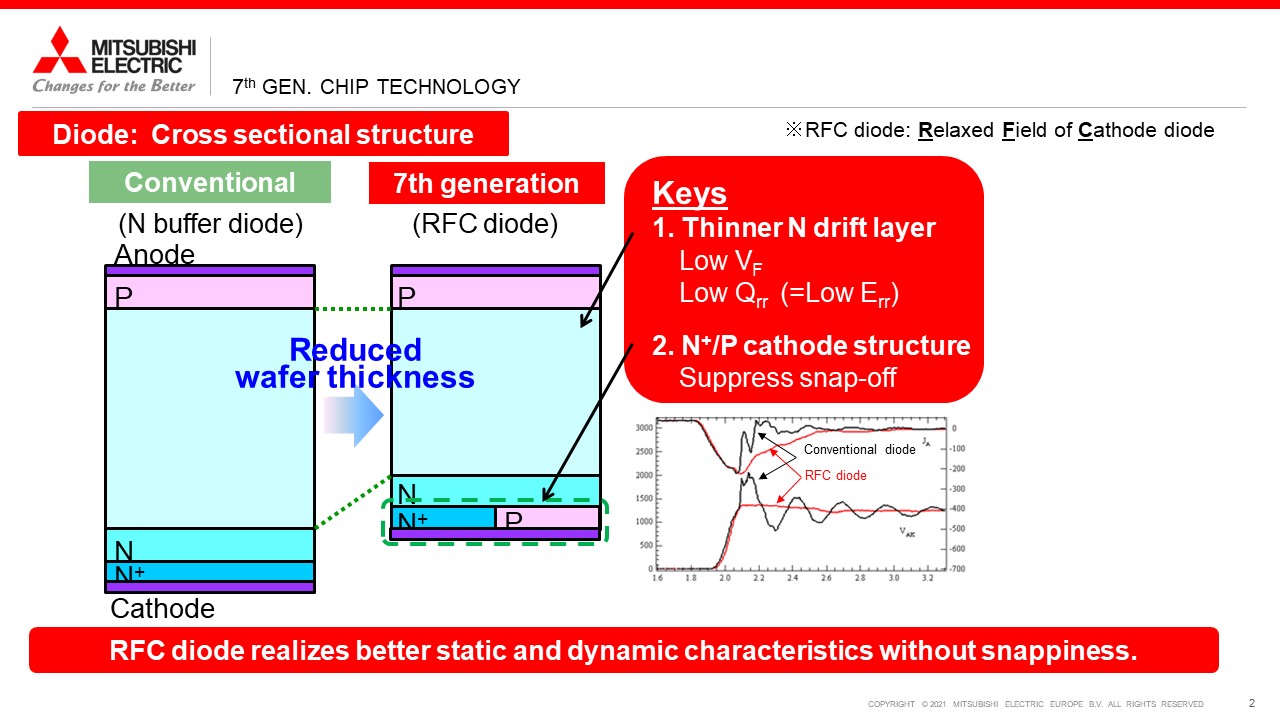

  • High efficiency by latest 7th Gen. IGBT Technology

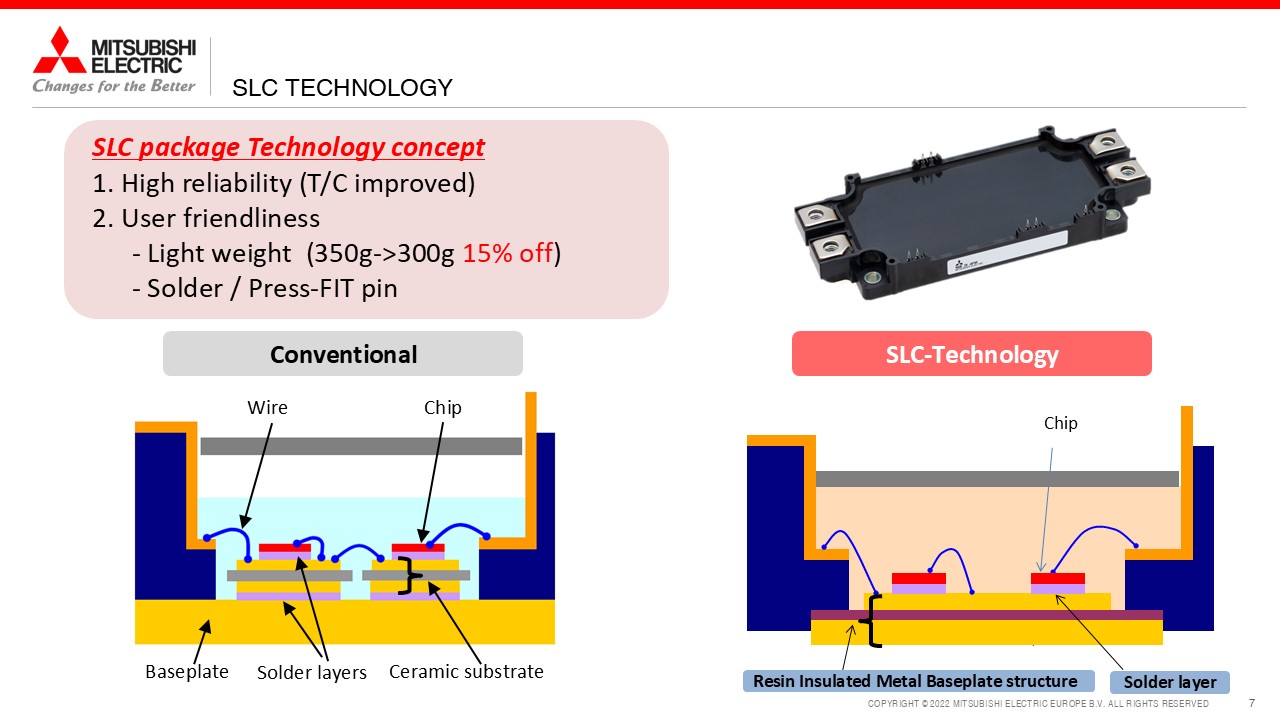

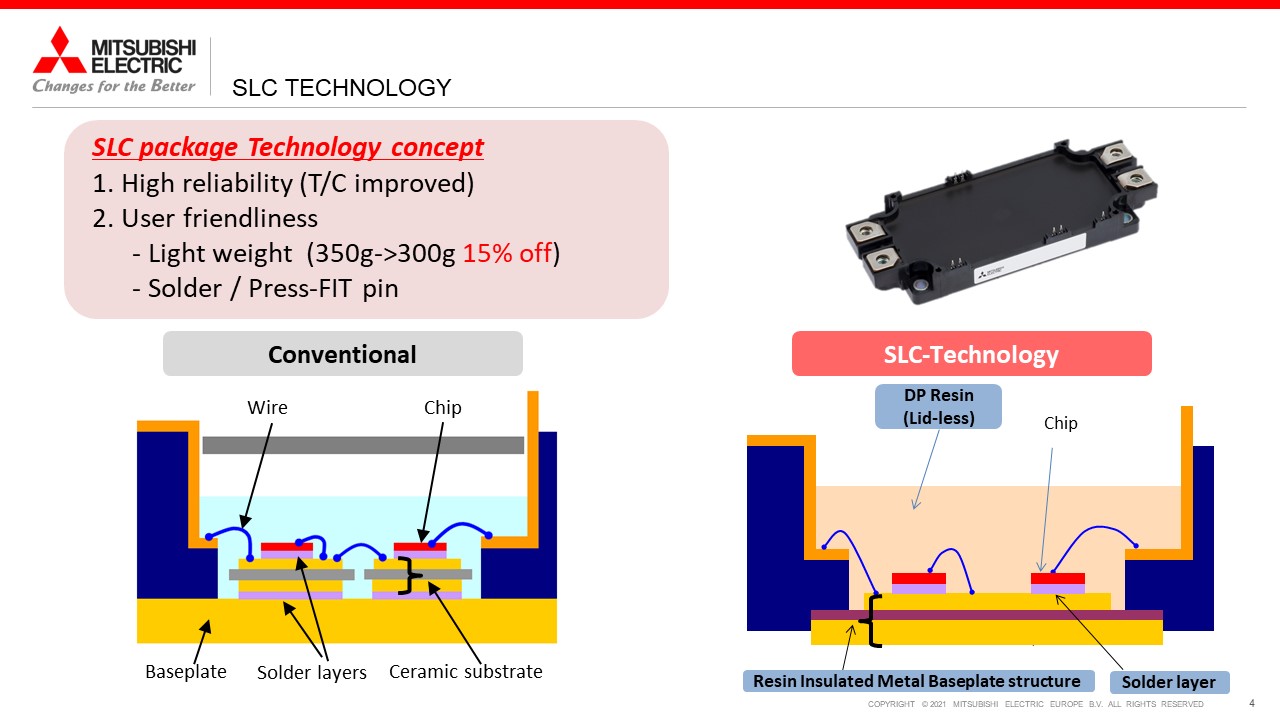

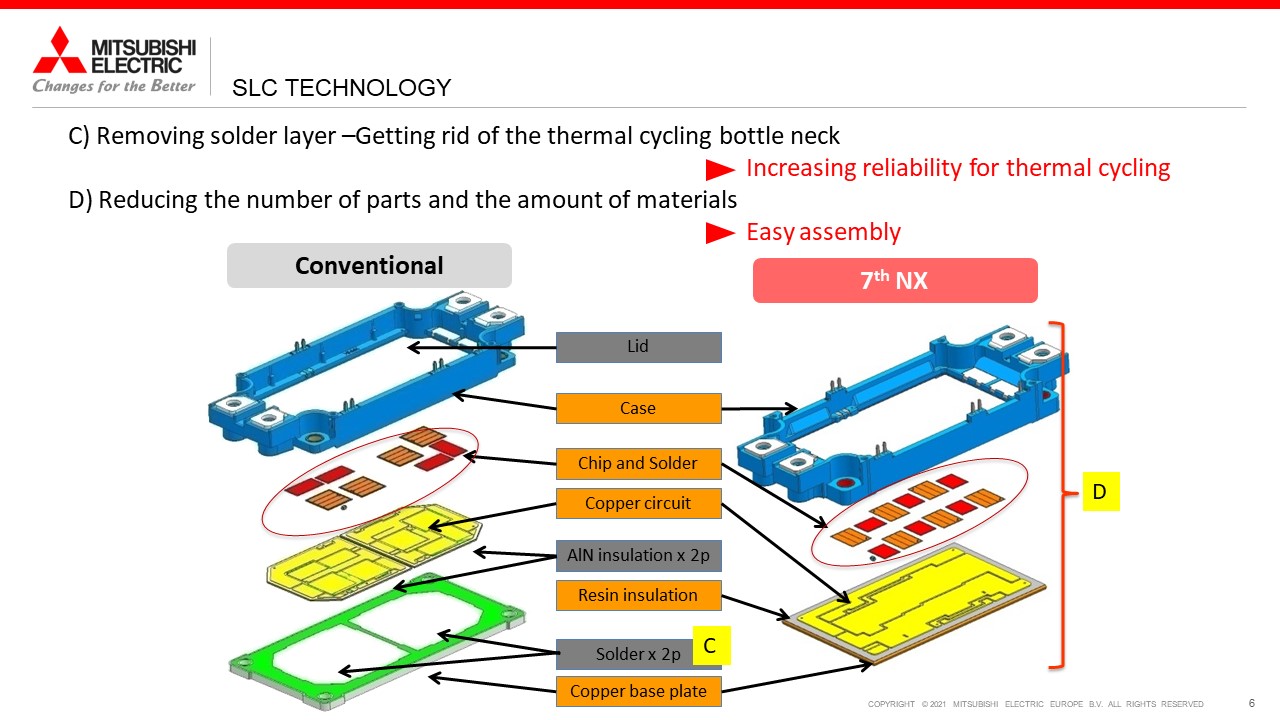

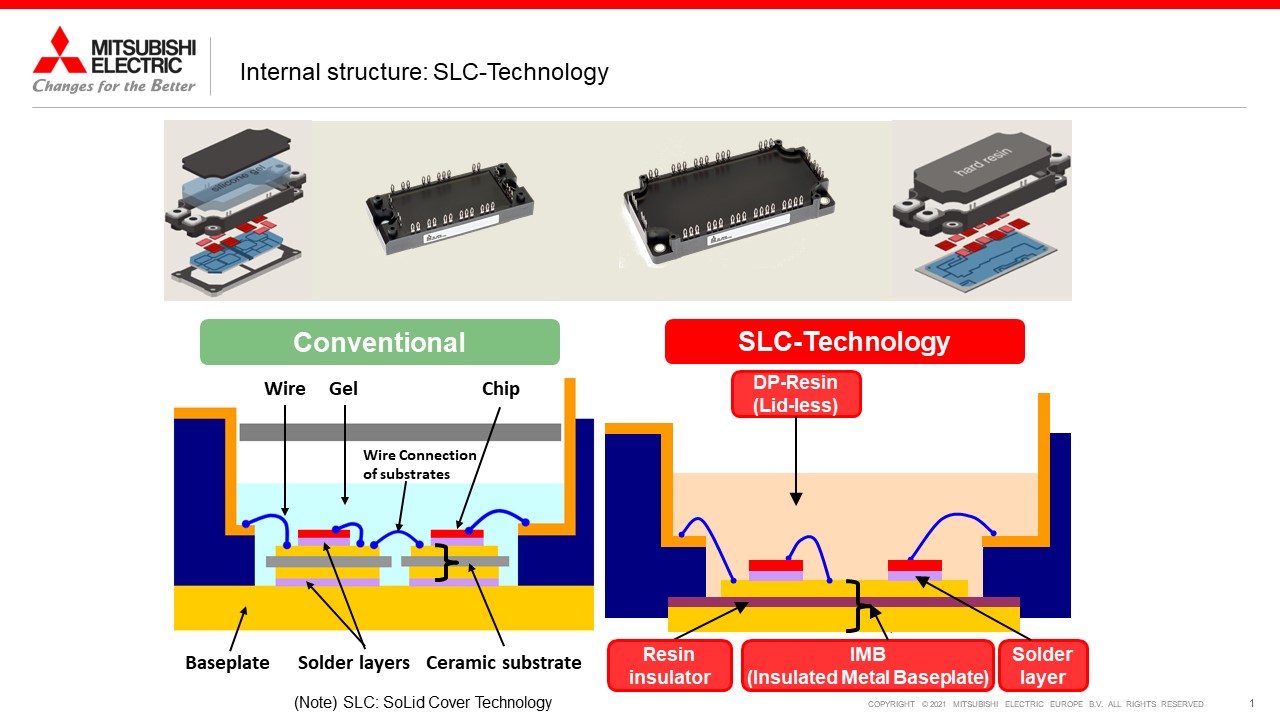

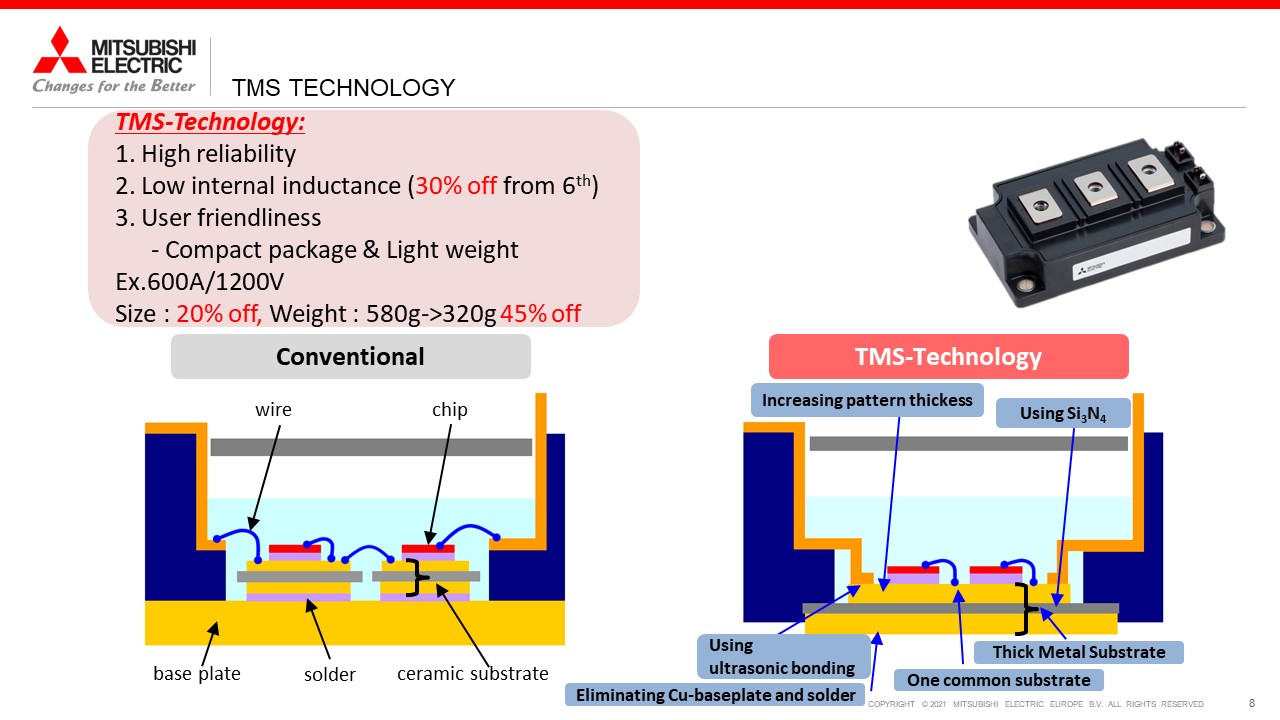

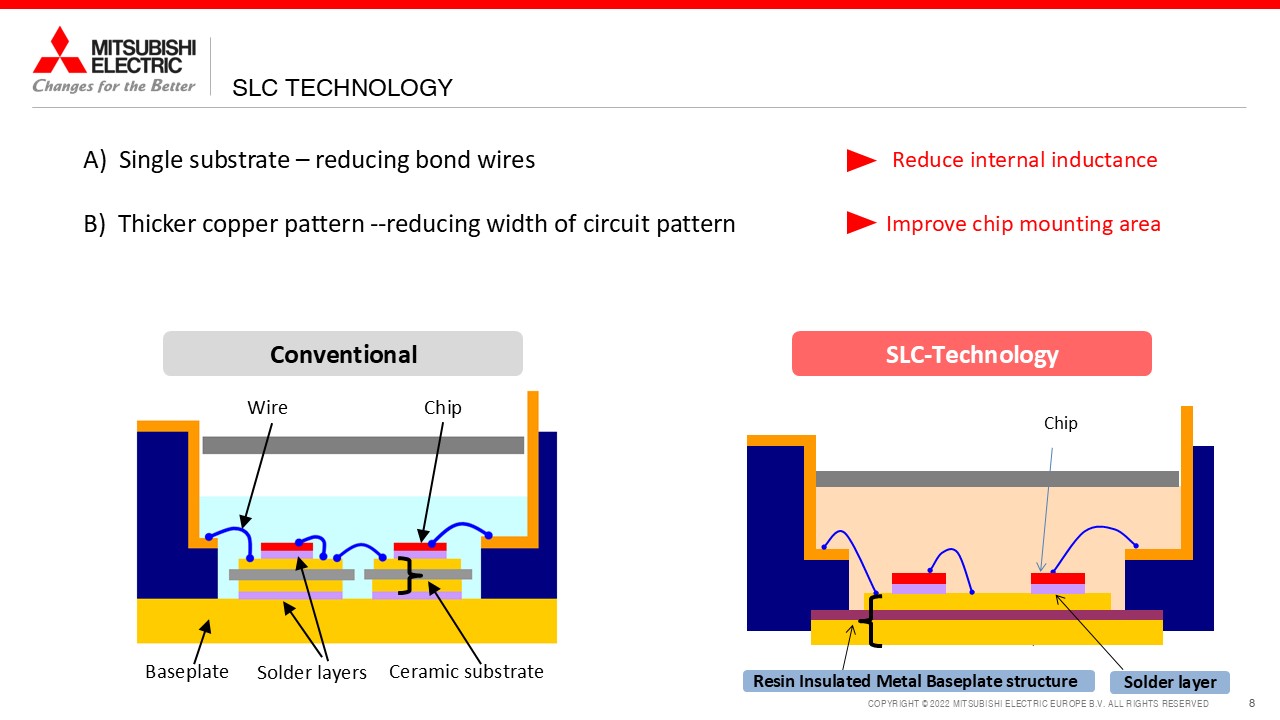

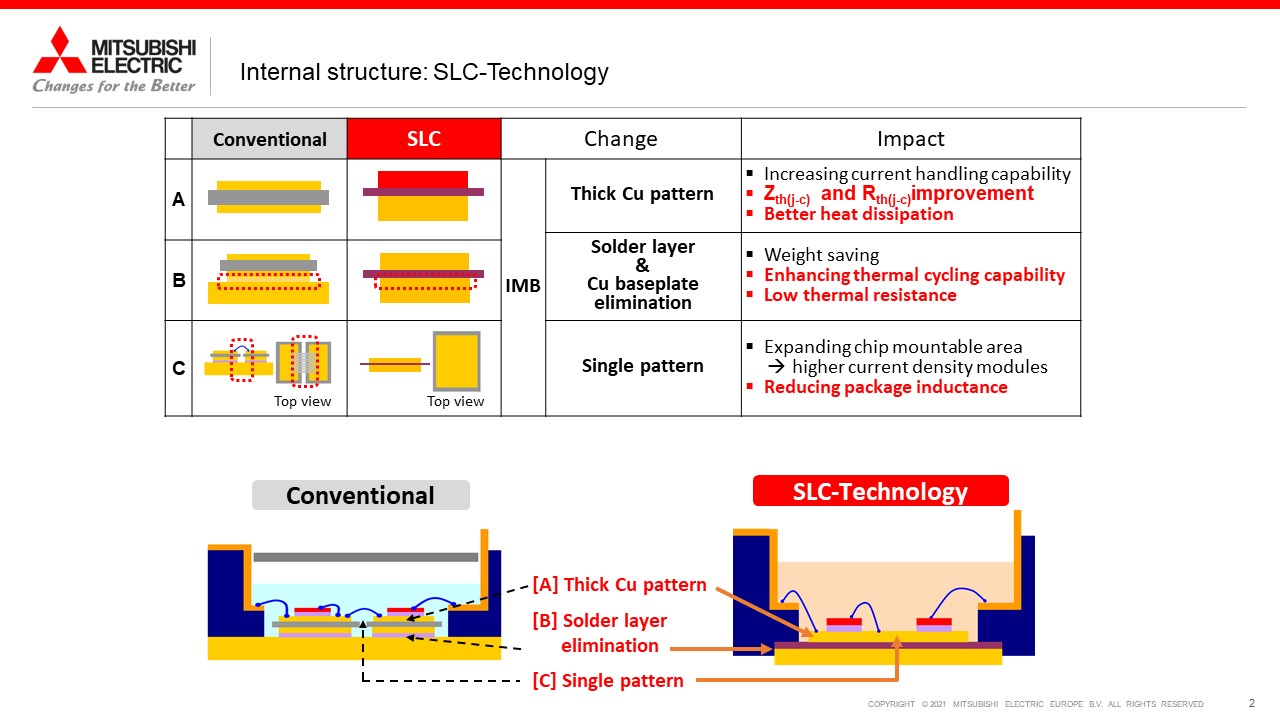

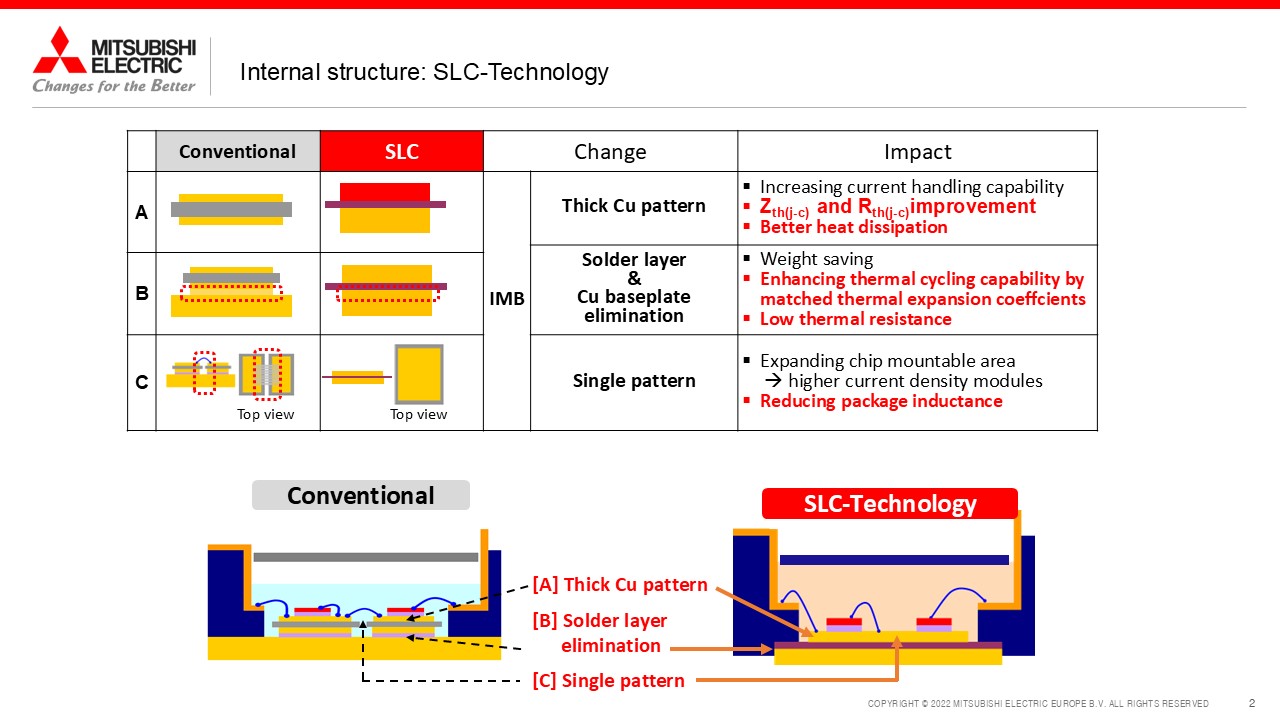

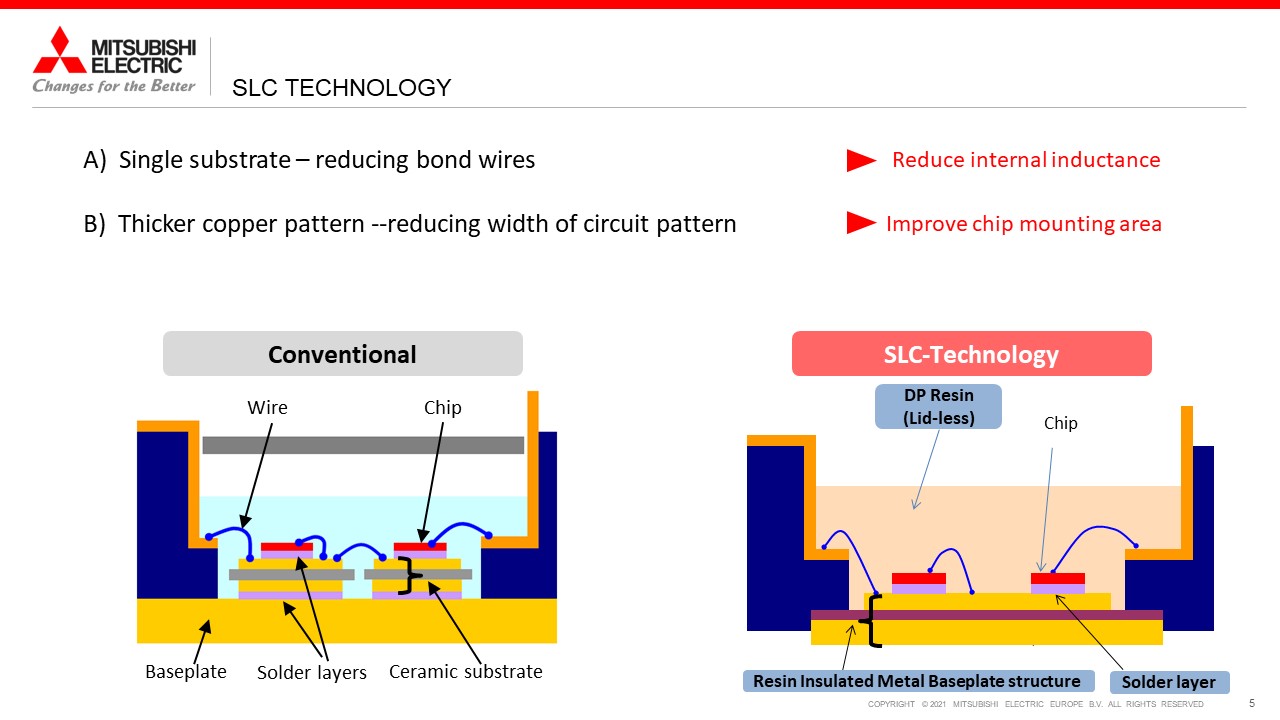

  • High Reliability by improved thermal cycle capability with SLC-Technology
  • Pre applied PC-TIM available

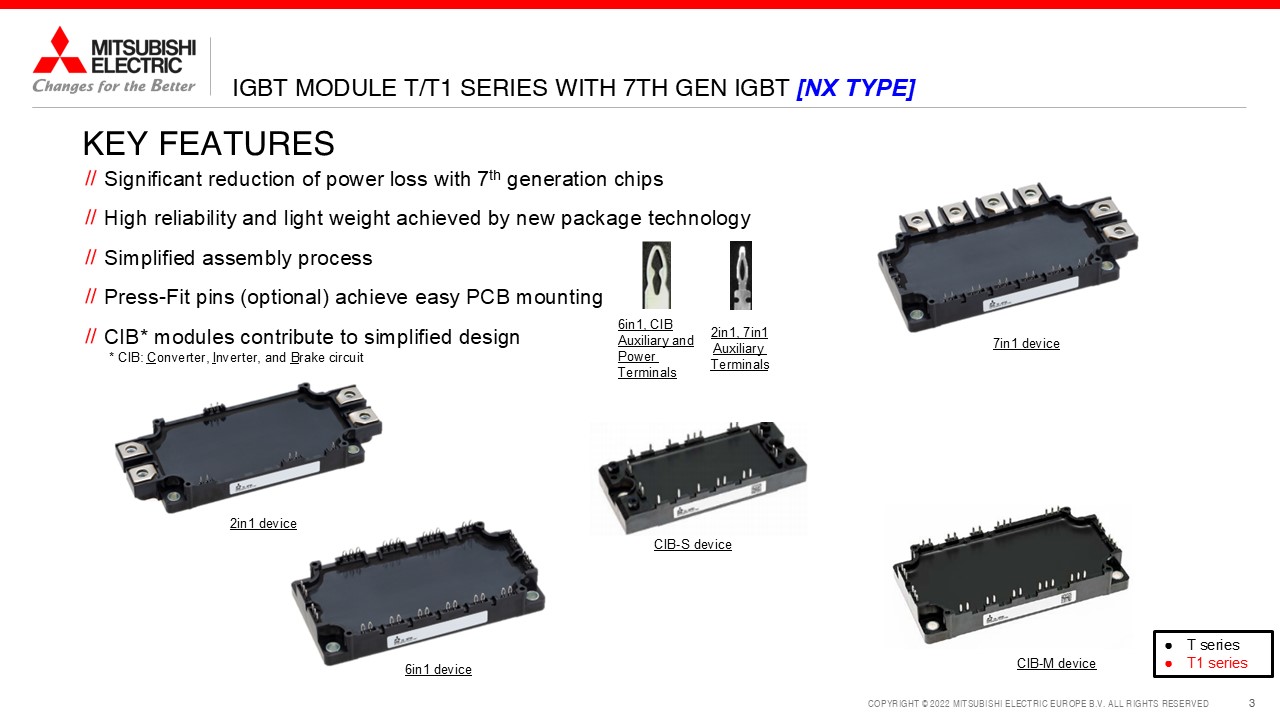

  • Optional press-fit or solder pin terminals available for optimized assembly processes

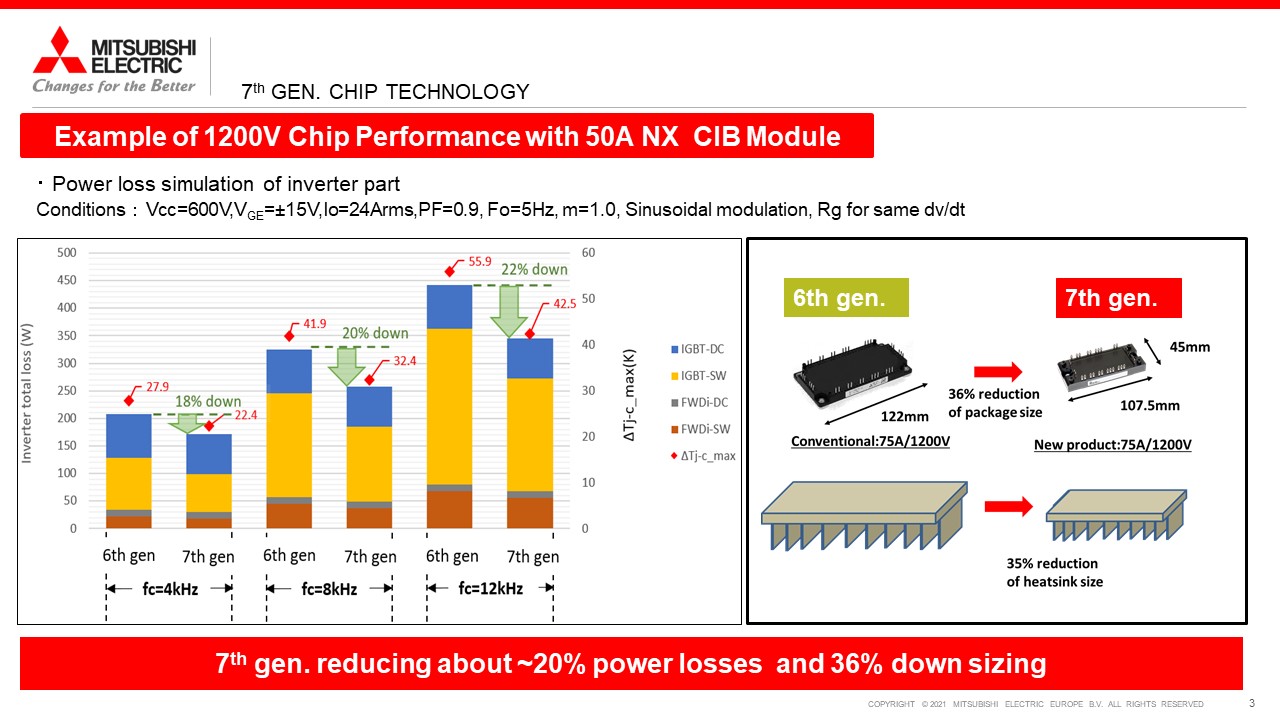

  • 36% higher power density
  • High temperature operation with Tvjmax = 175˚C junction temperature at overload events

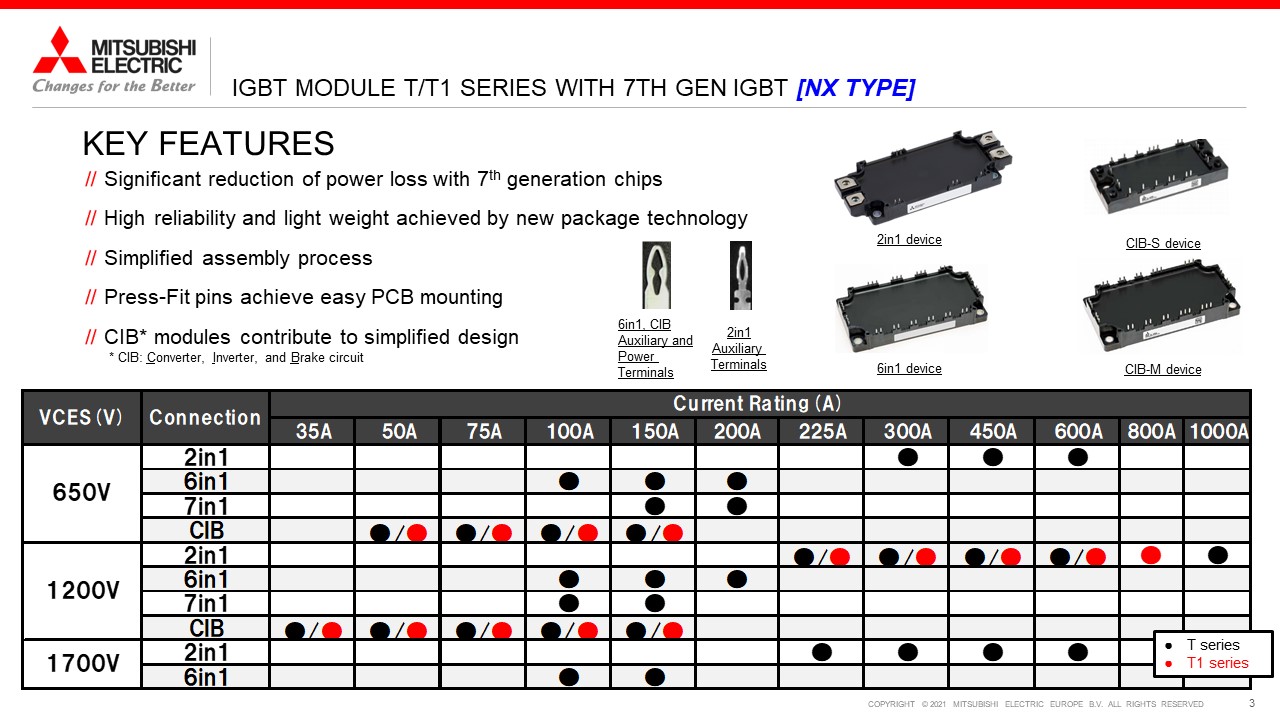

Attributes

Ratings:

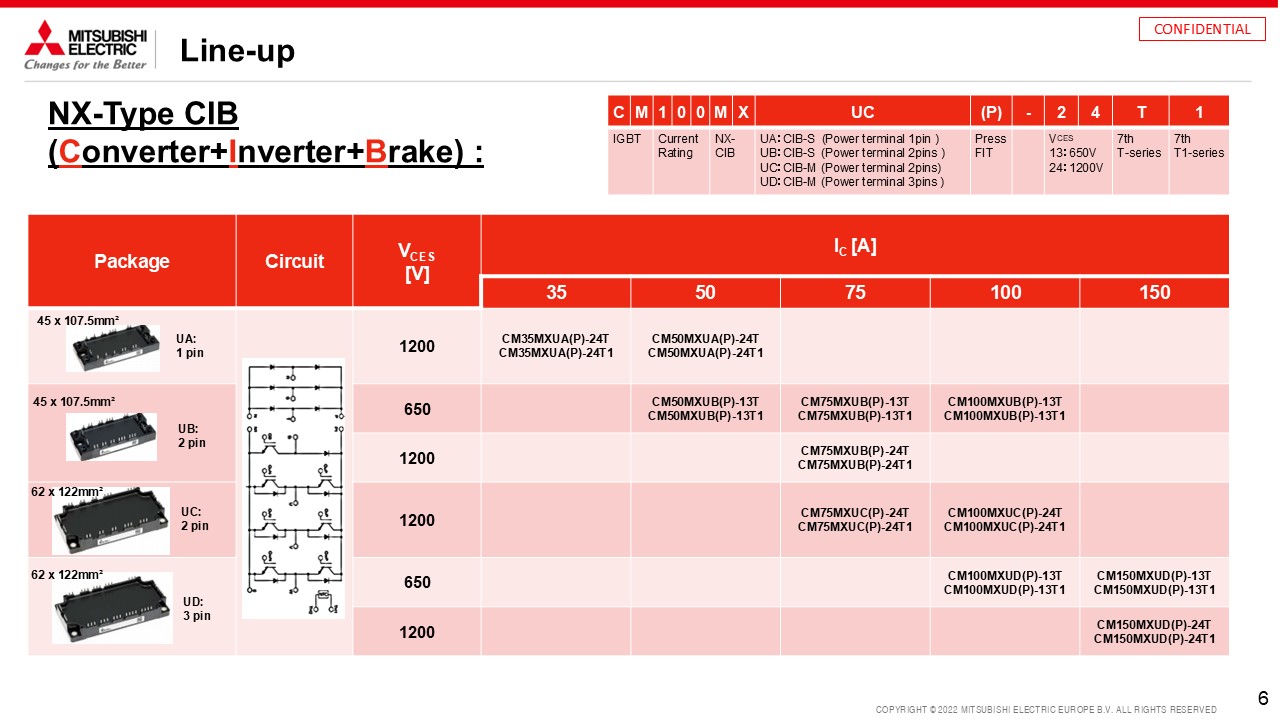

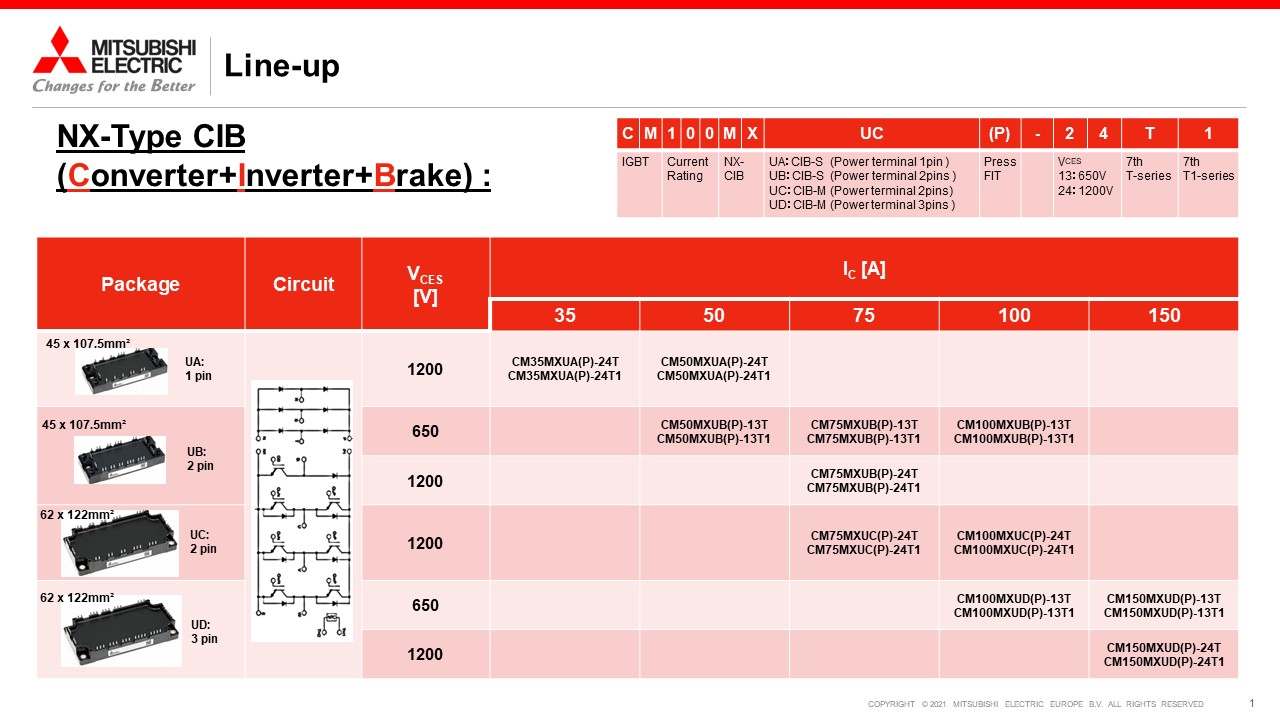

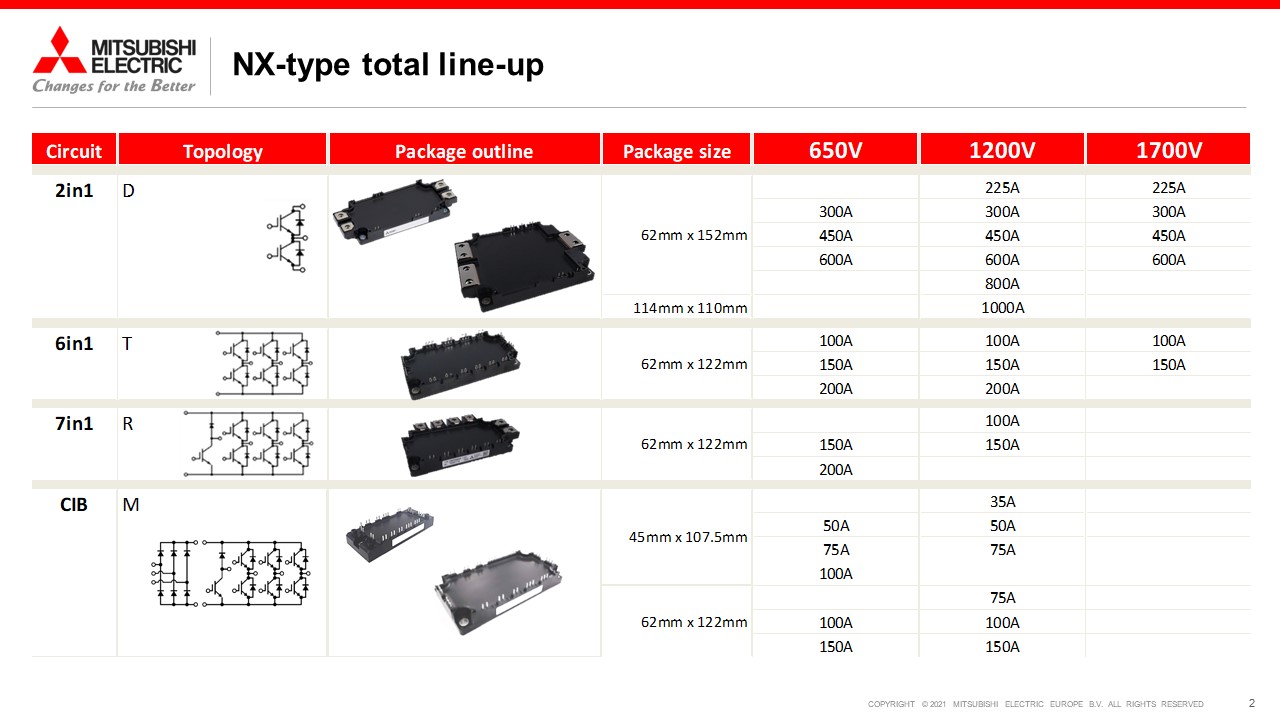

650 V: 50 A, 75 A, 100 A
1200 V: 35 A, 50 A, 75 A

Dimensions [mm]:

54 x 107.5 x 17

3D-Model

Videos

YouTube Logo

We need your consent to load the Youtube service!

We use a third party service to embed video content that may collect data about your activity.
Please review the details and accept the service to watch this video.

This content is not permitted to load due to trackers that are not disclosed to the visitor.
The website owner needs to setup the site with their CMP to add this content to the list of technologies used.

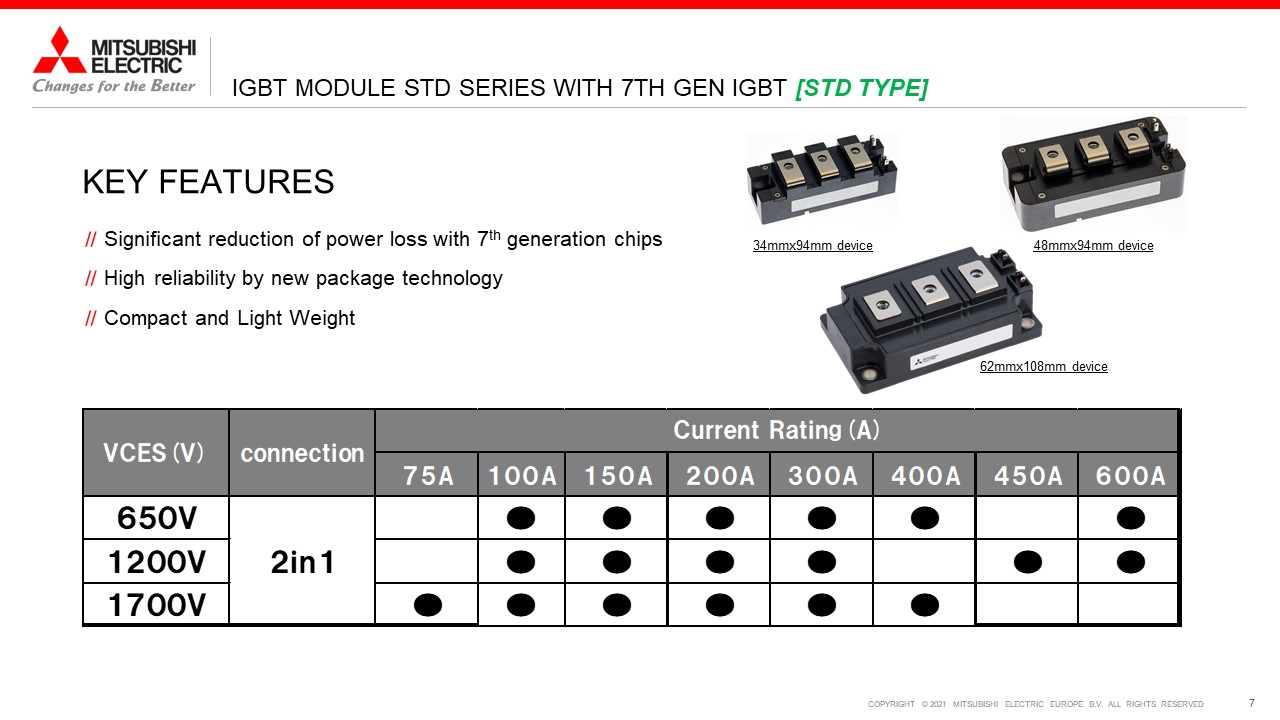

7th gen NX- and std-type IGBT modules: A solution for industrial applications
