Advantages

  • Next generation high capacity standard package for industrial use

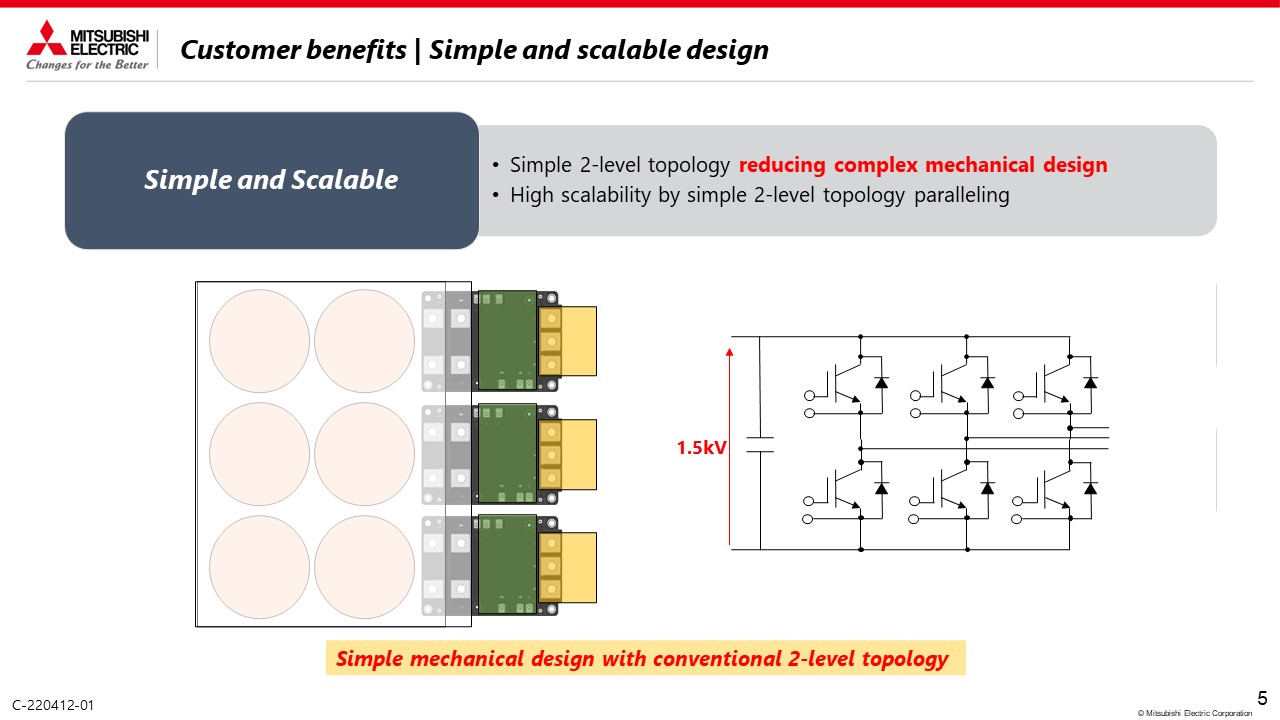

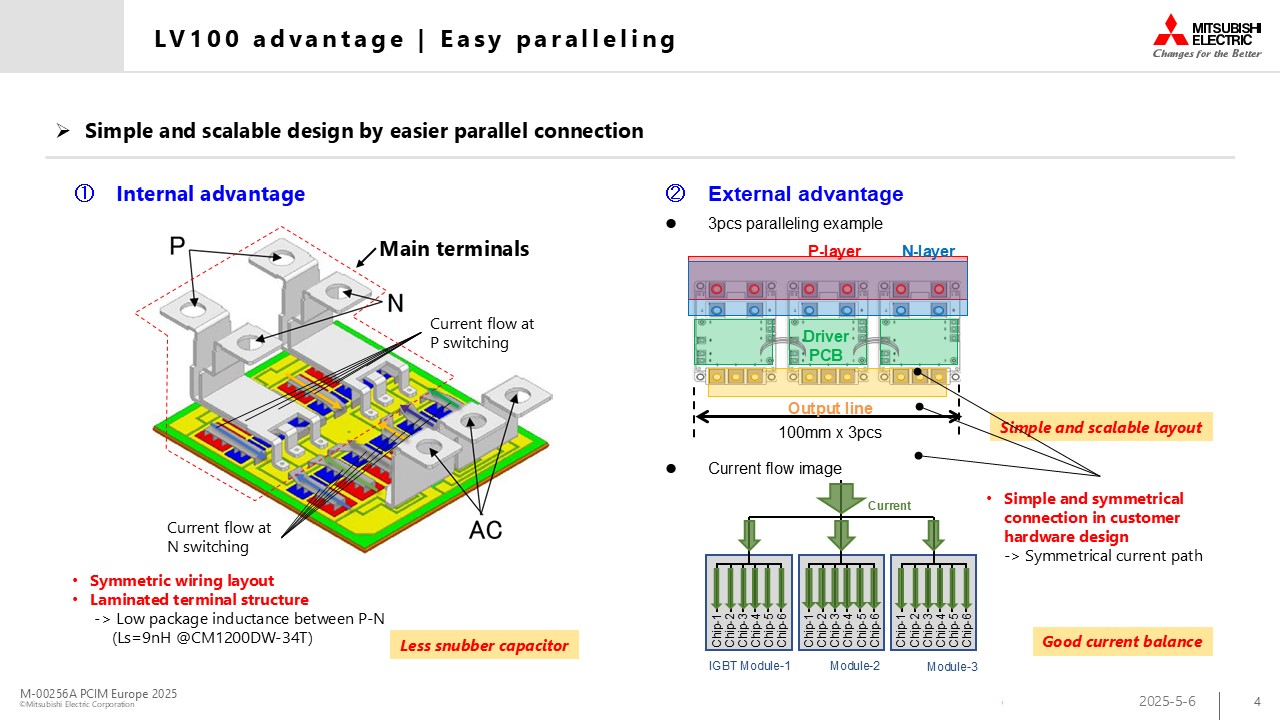

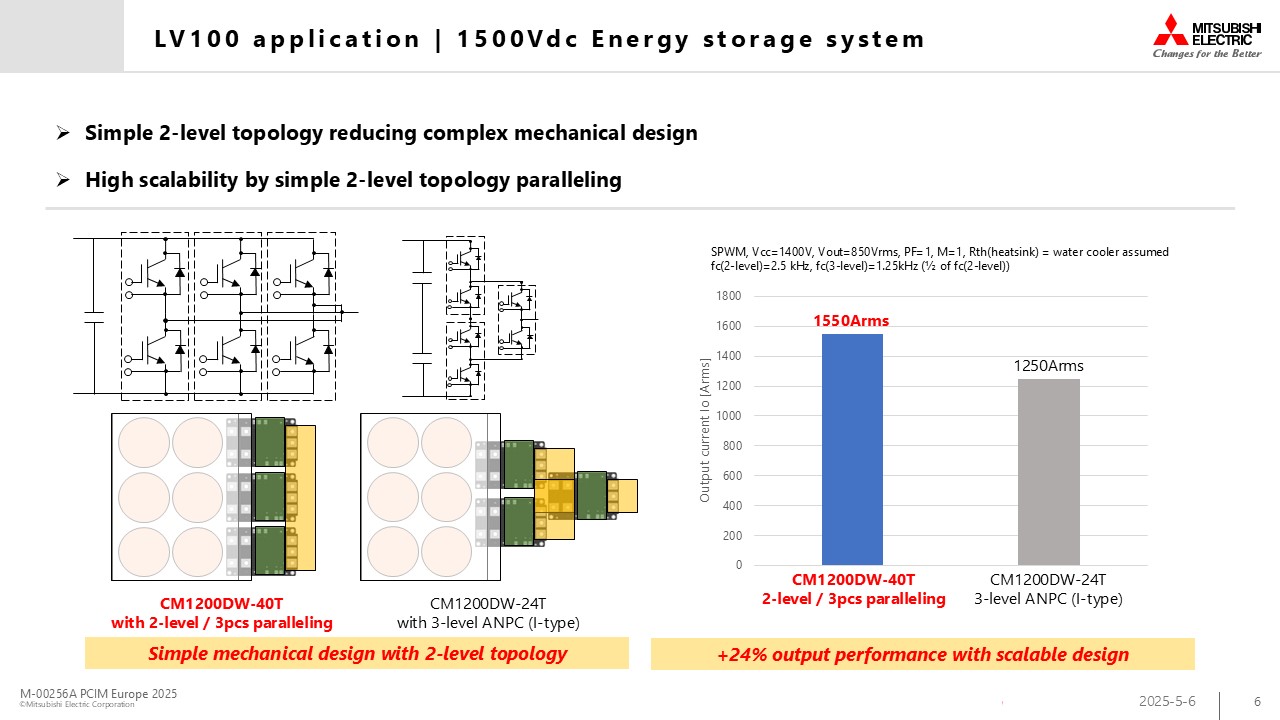

  • Scalability by easy paralleling

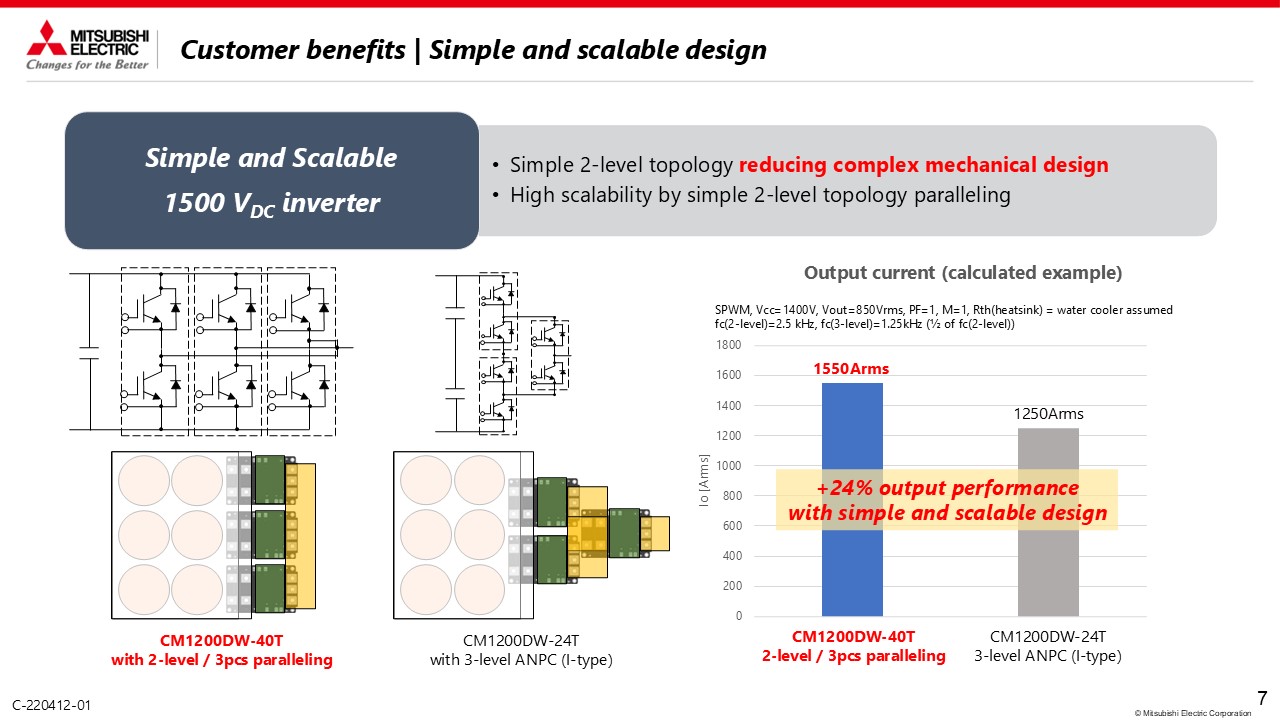

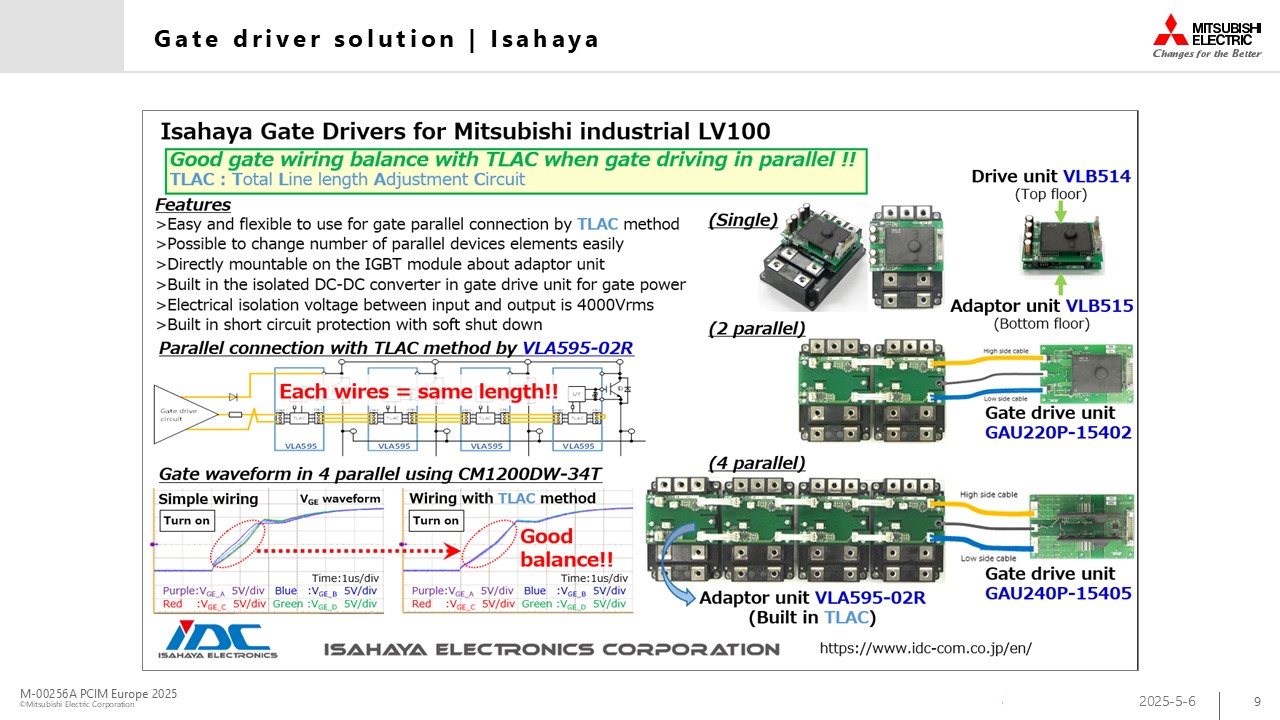

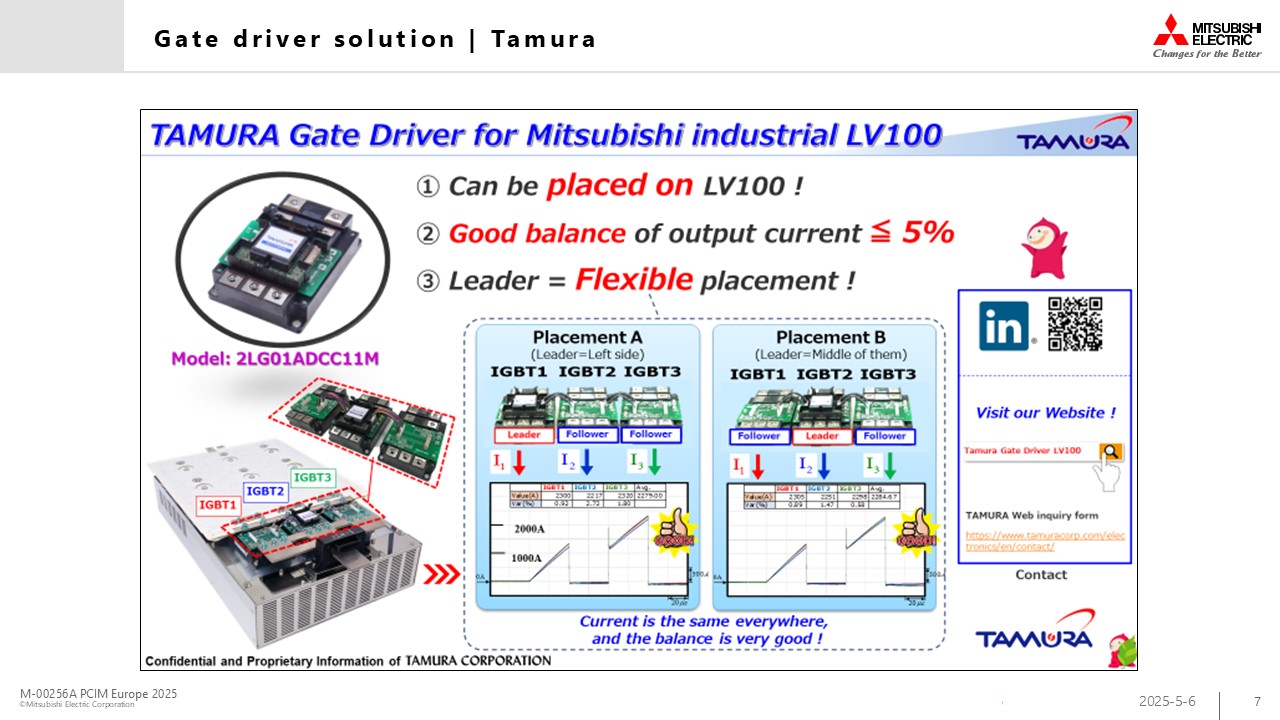

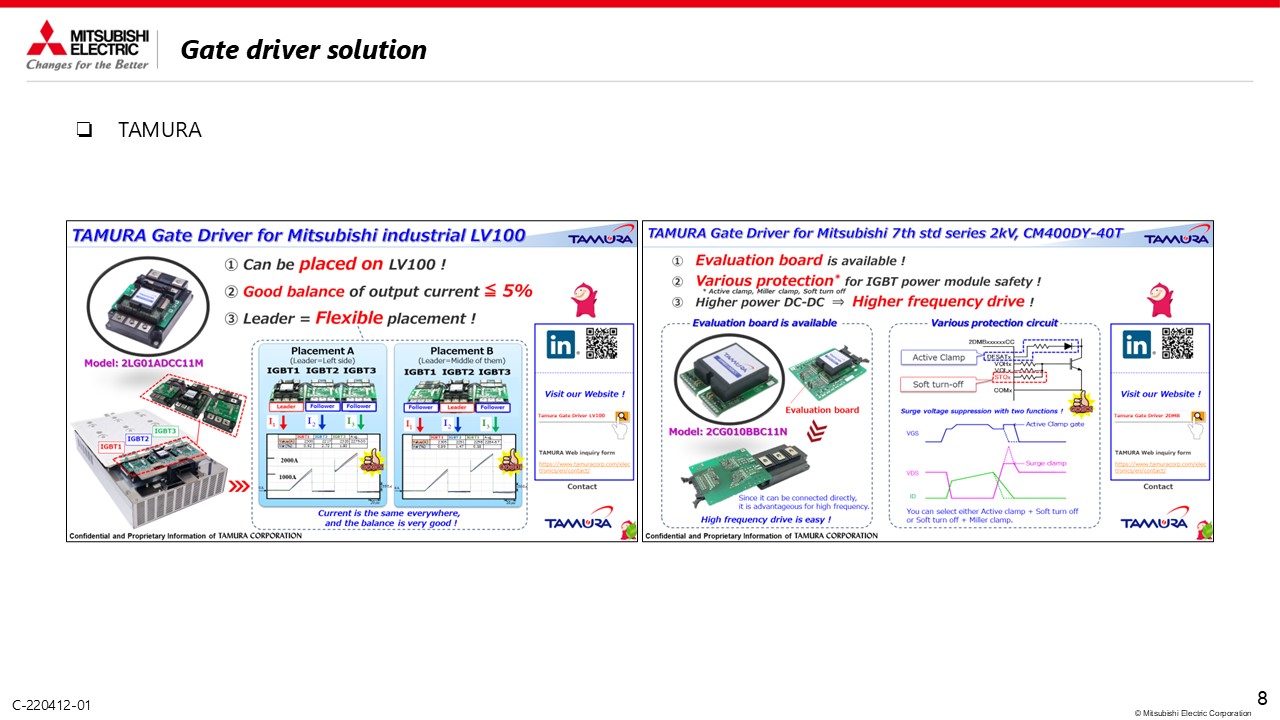

  • Enabling simplified inverter layout and assembly

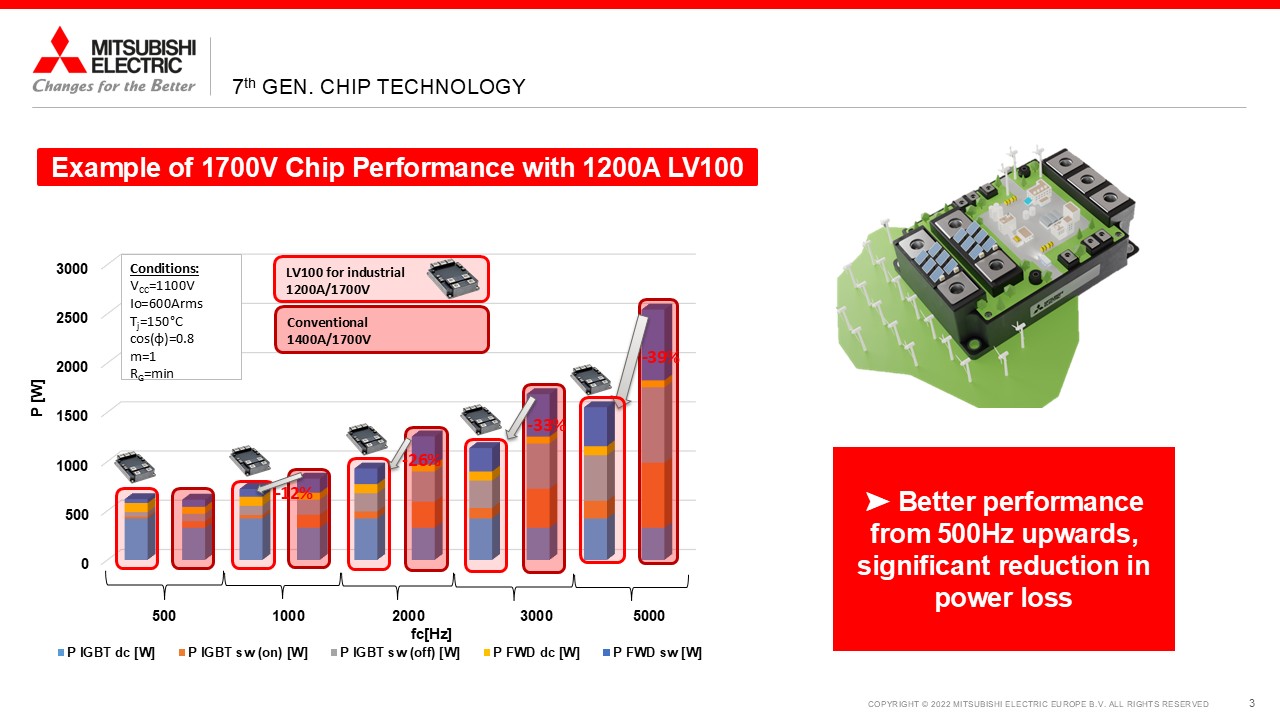

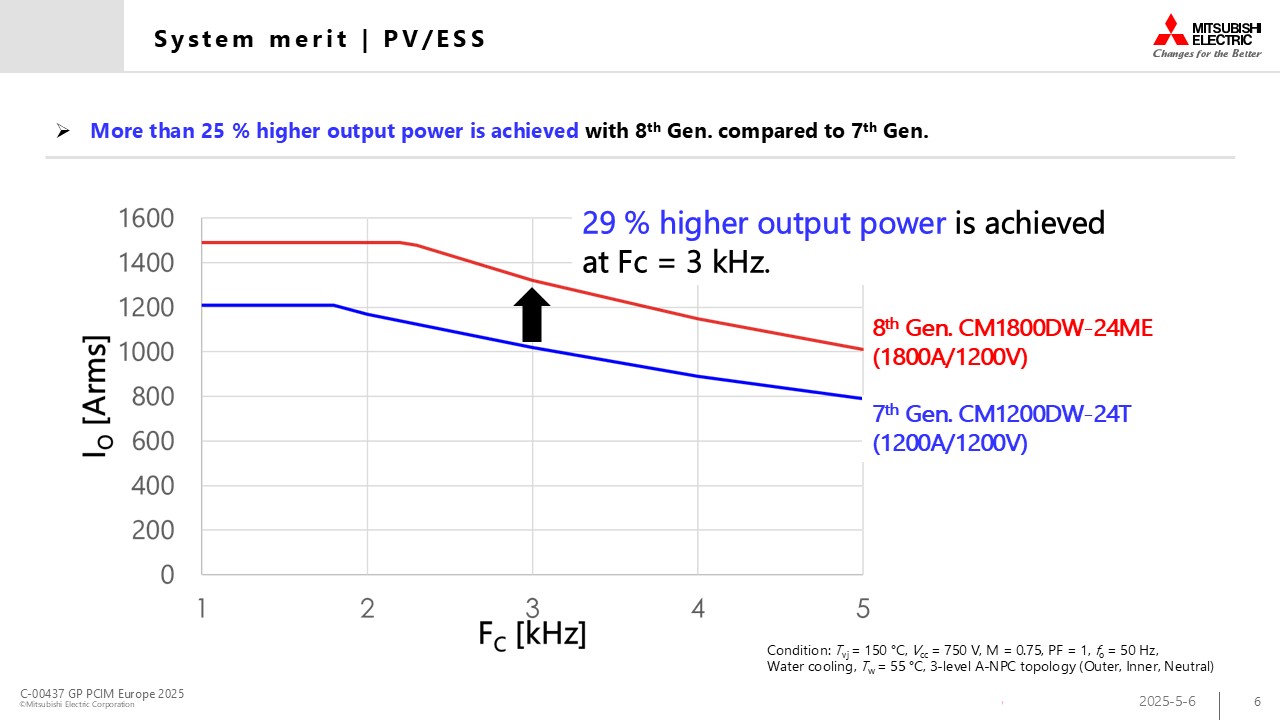

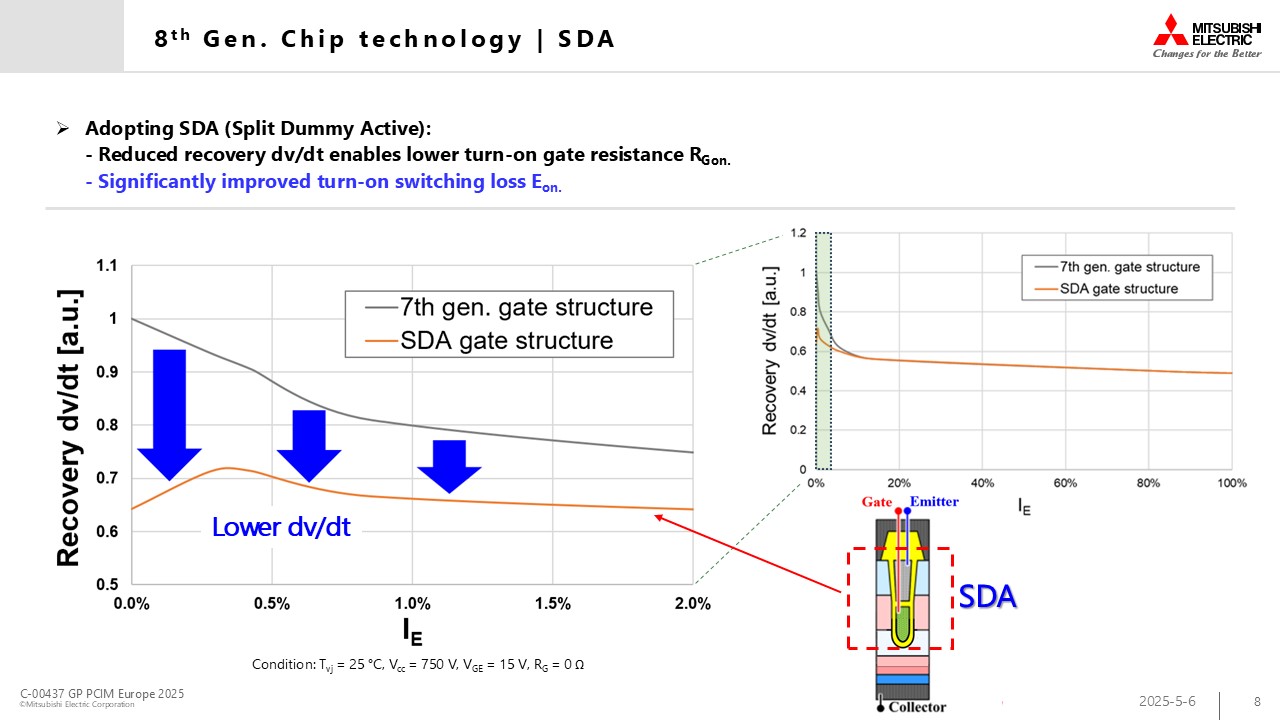

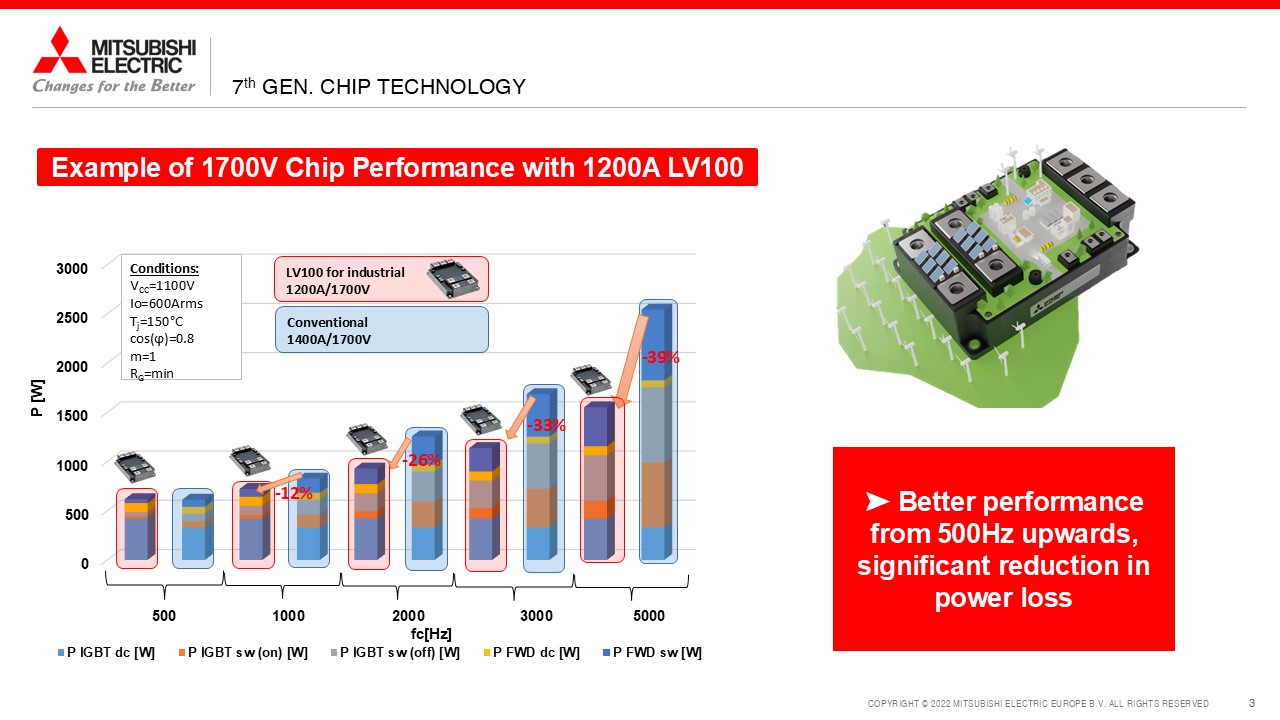

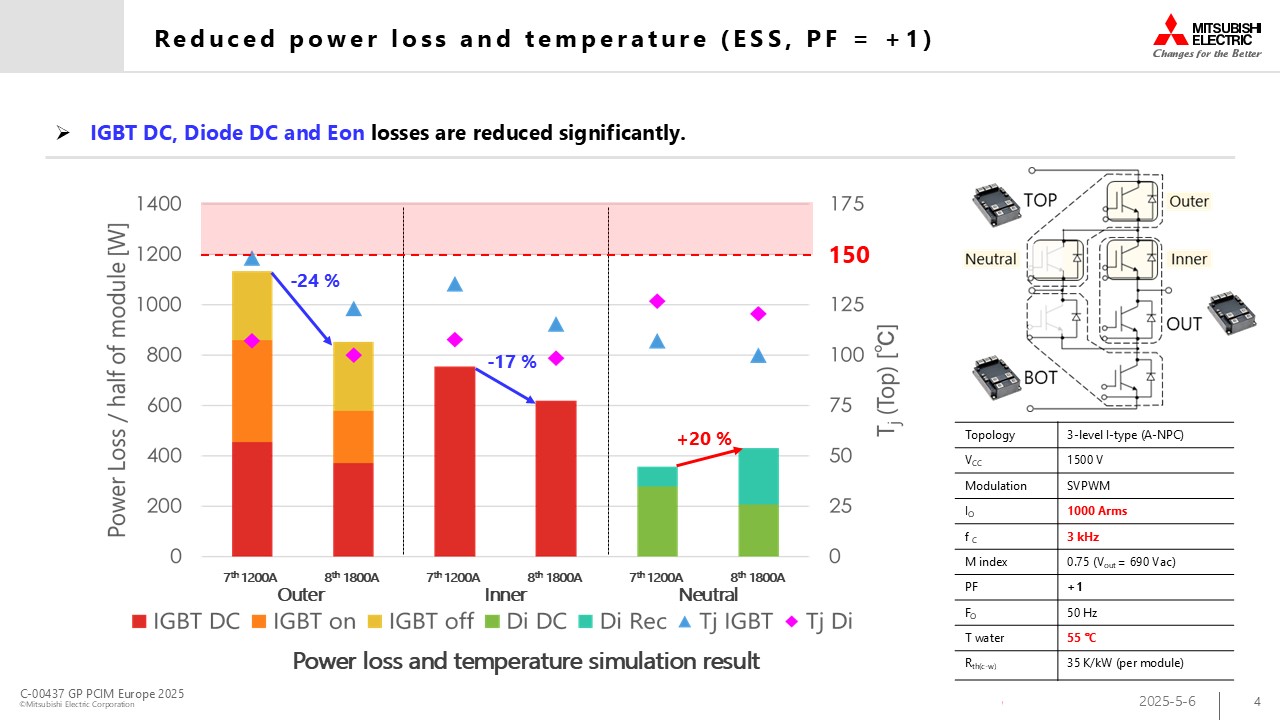

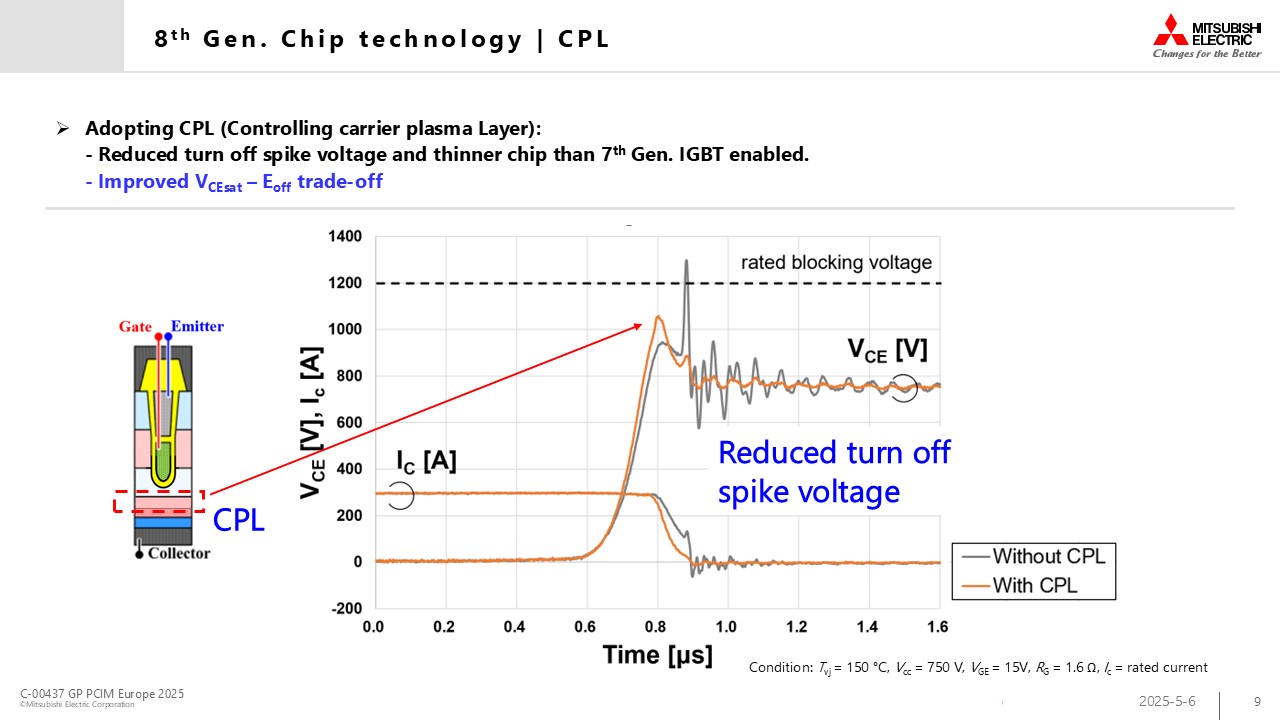

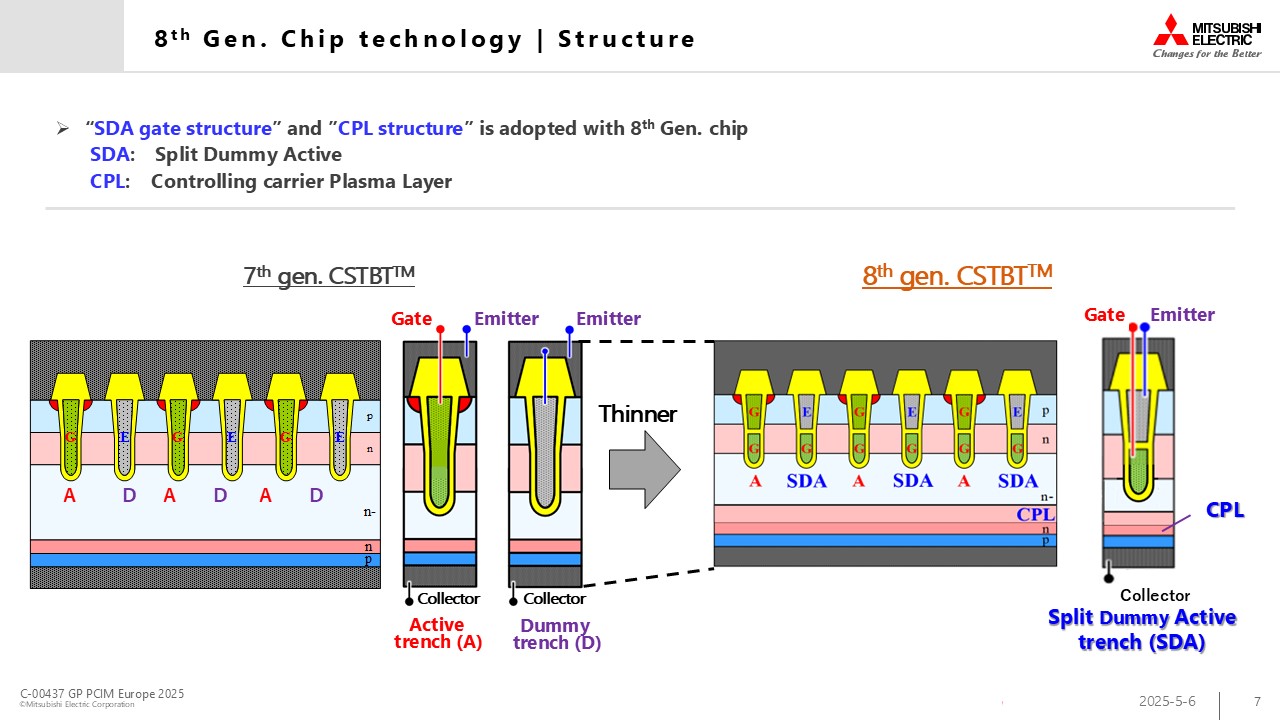

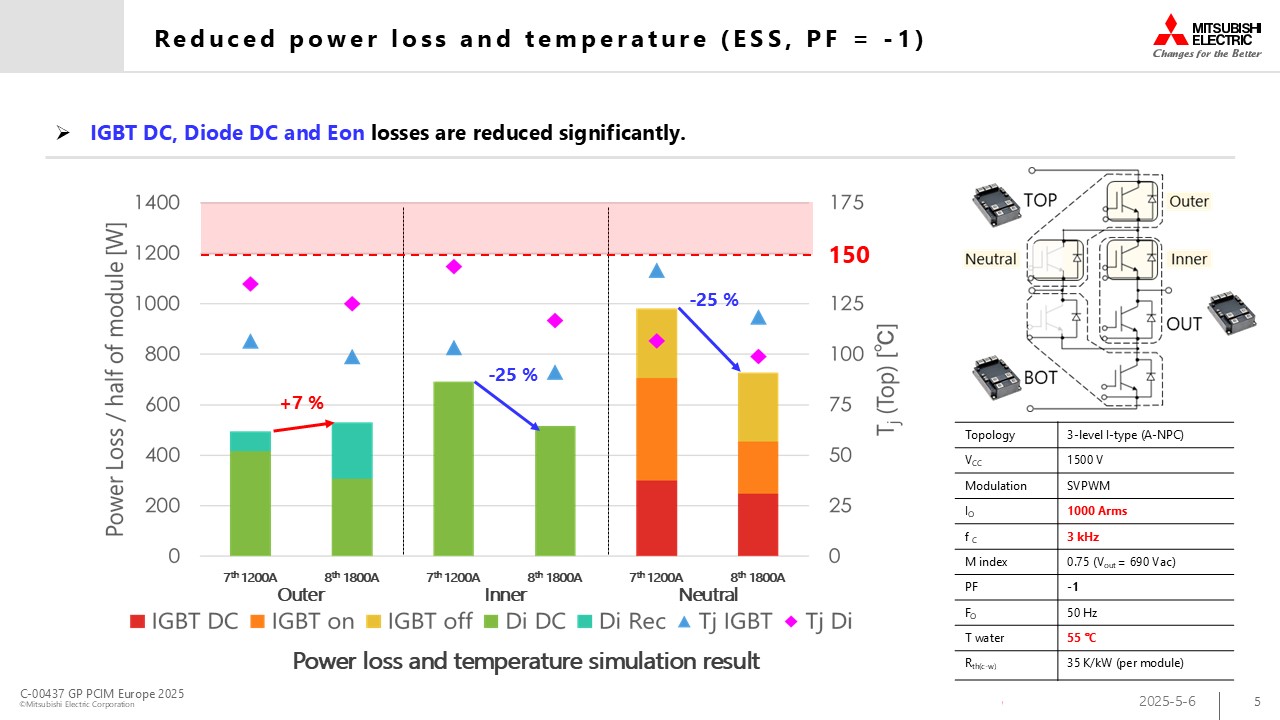

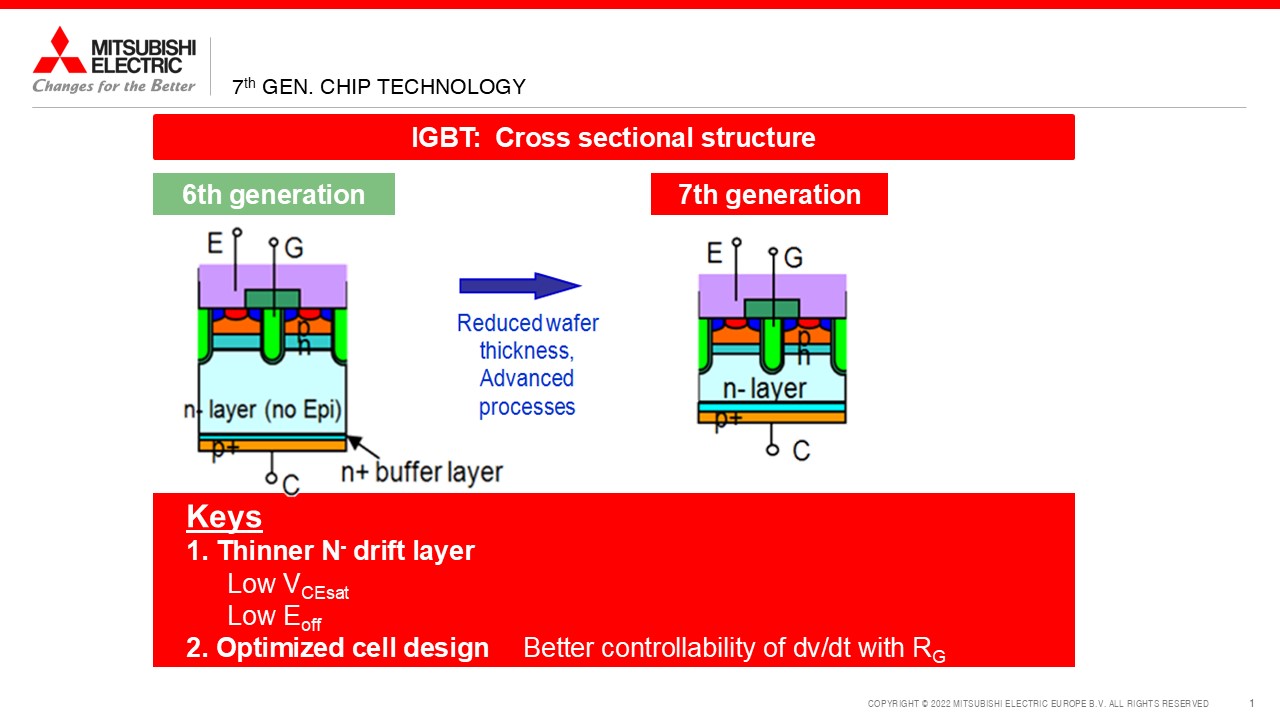

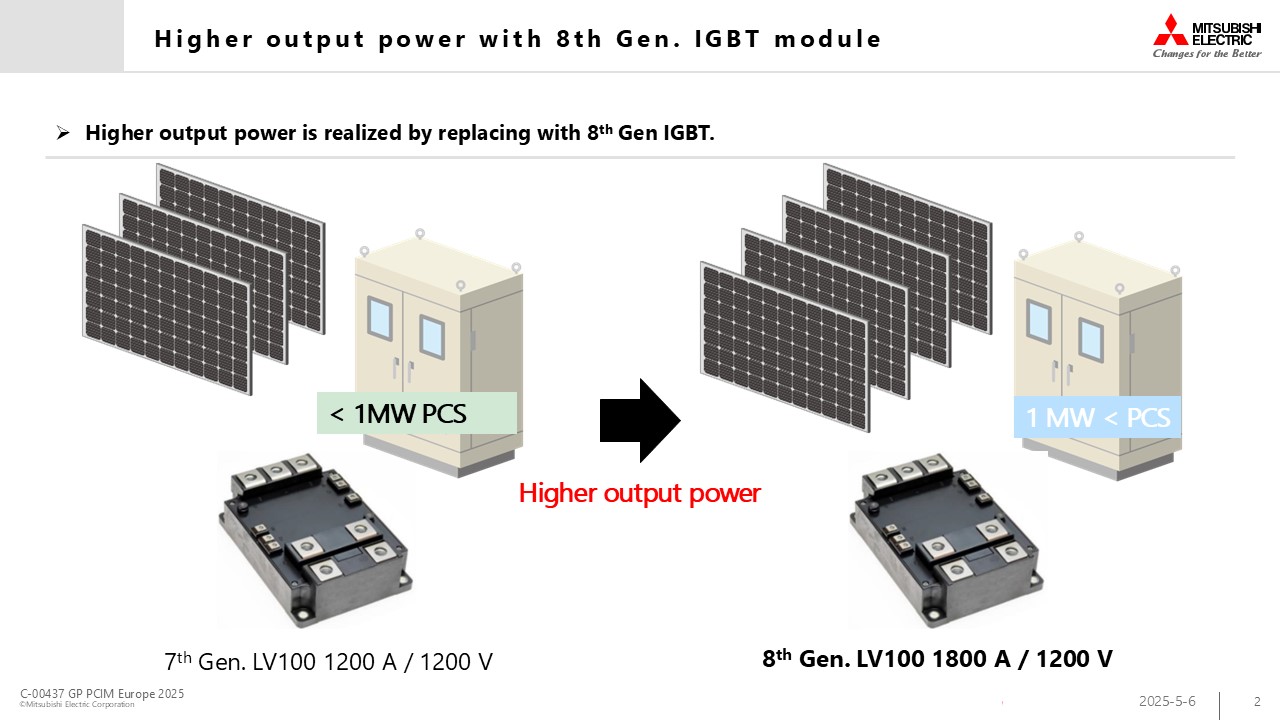

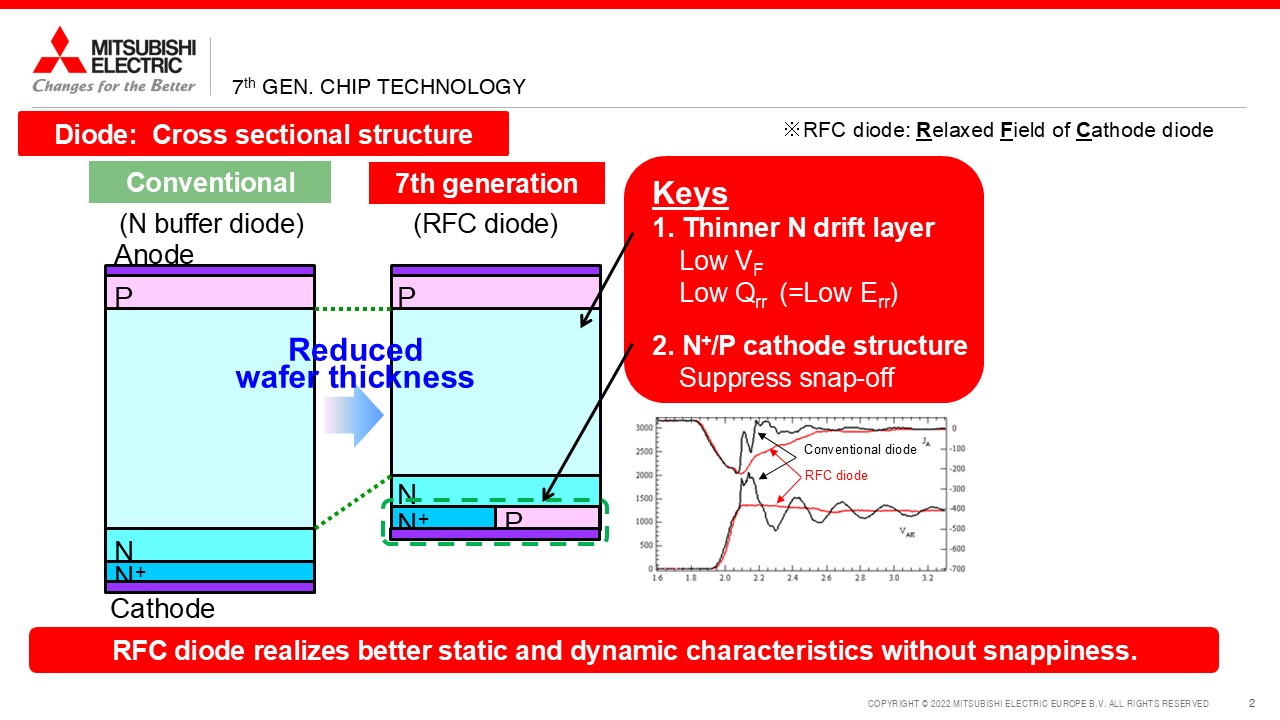

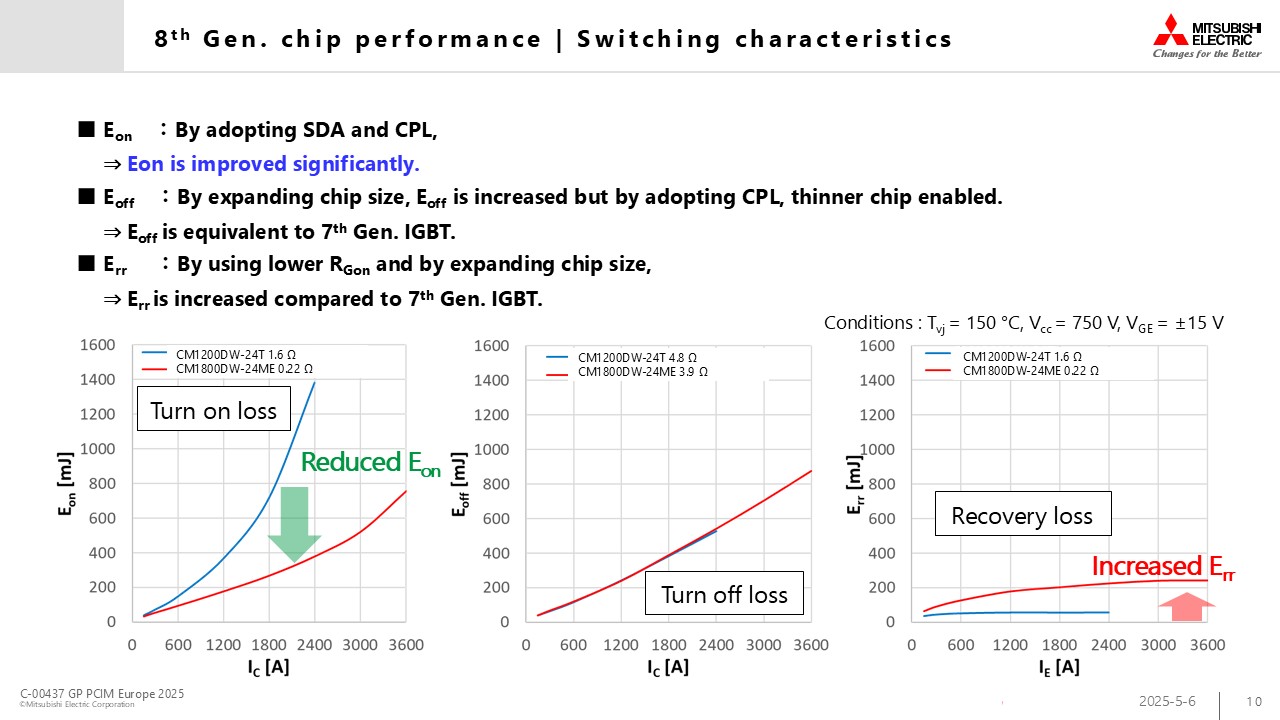

  • High efficiency by latest 7th Gen. IGBT Technology

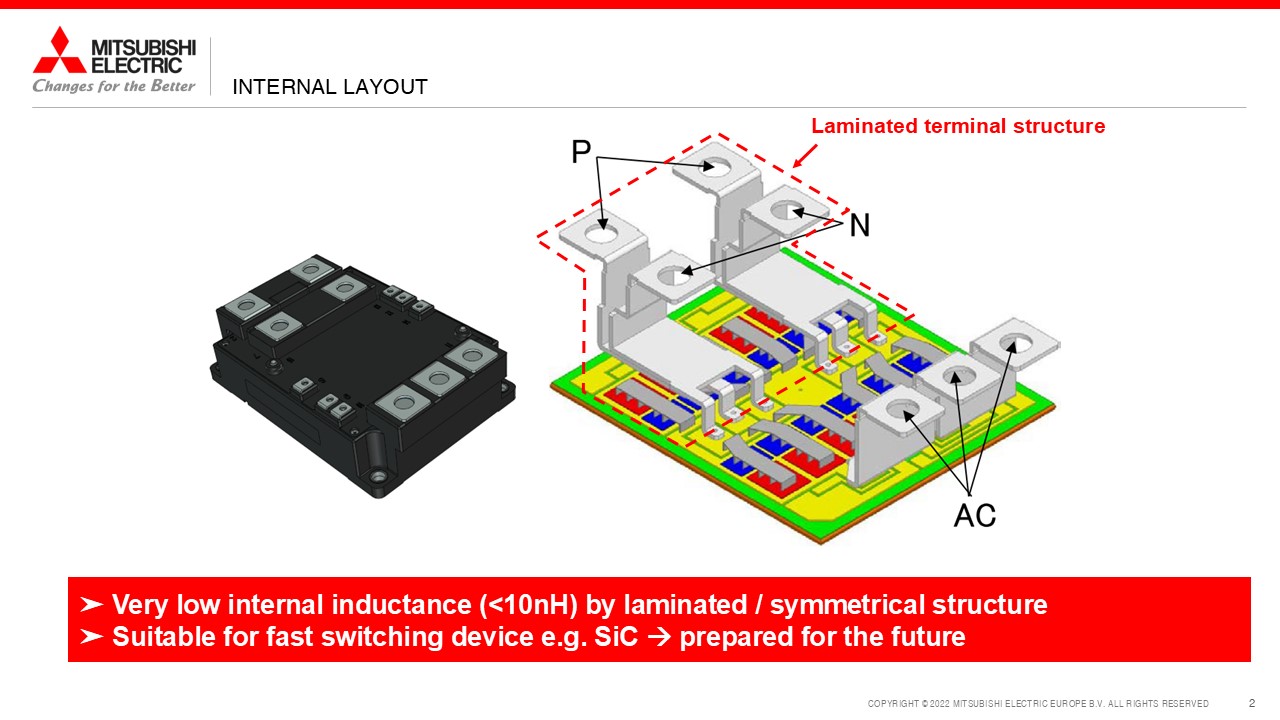

  • High current capability by 3 AC-output Terminals

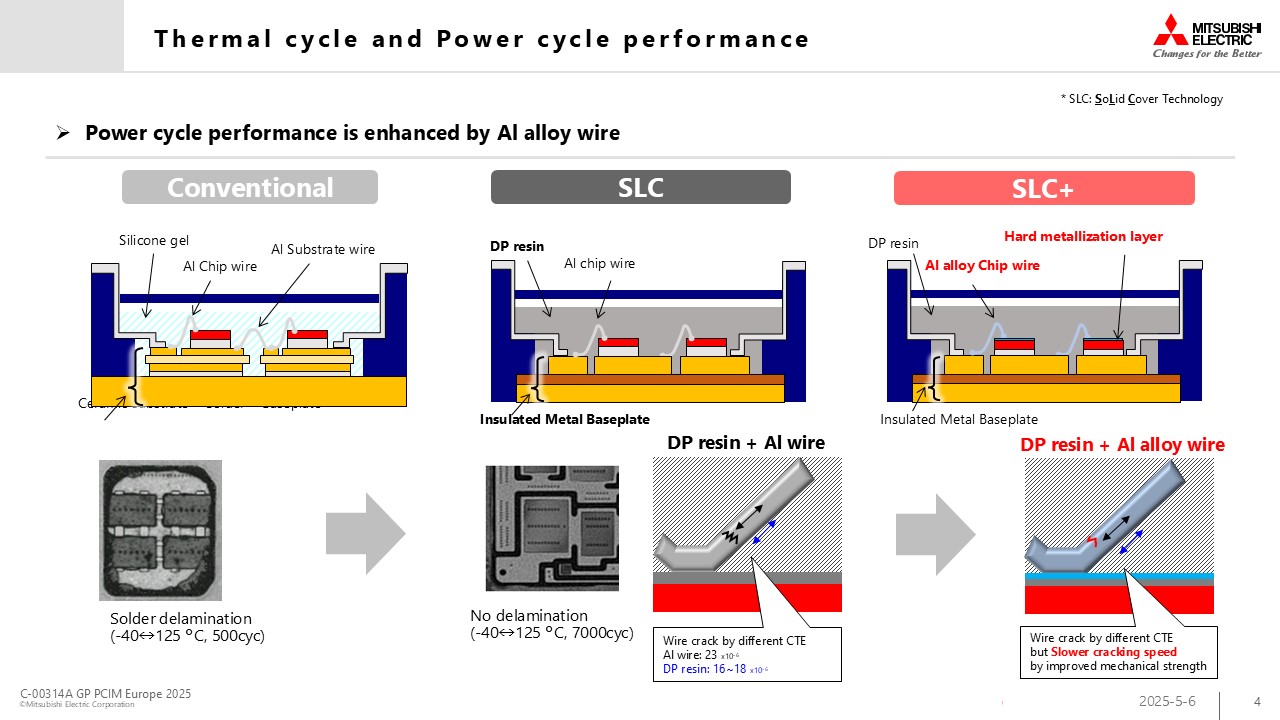

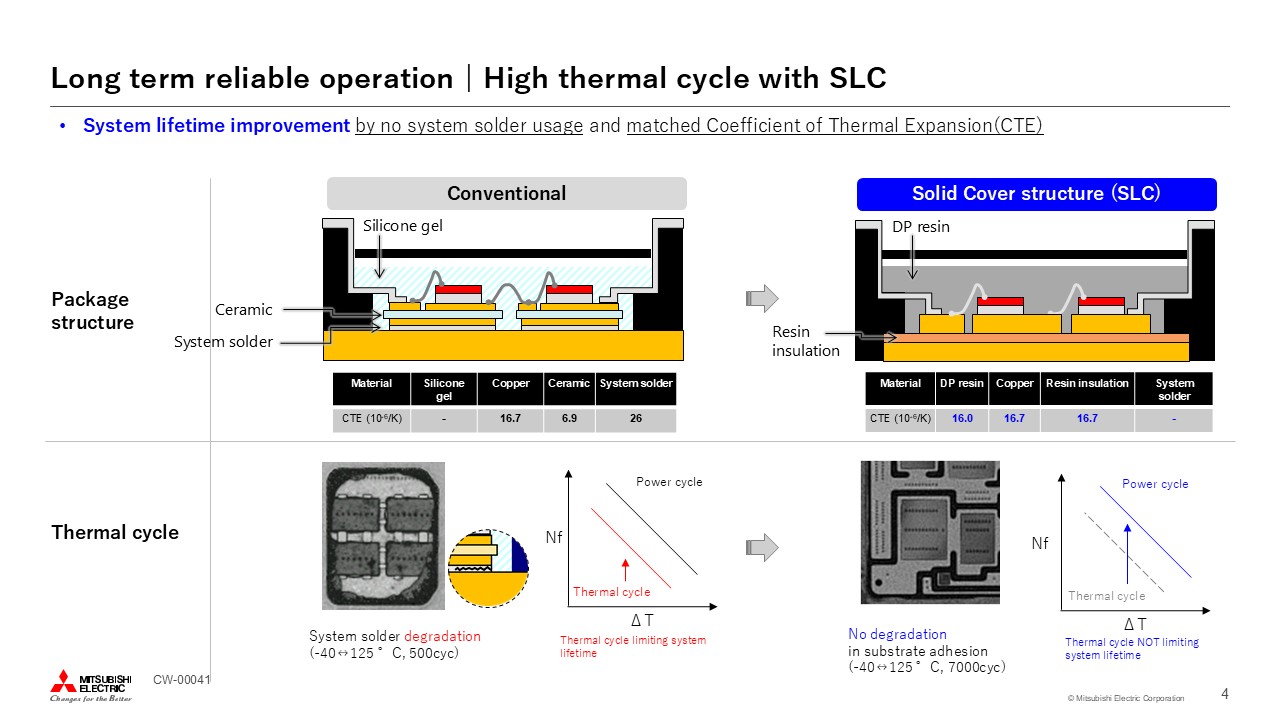

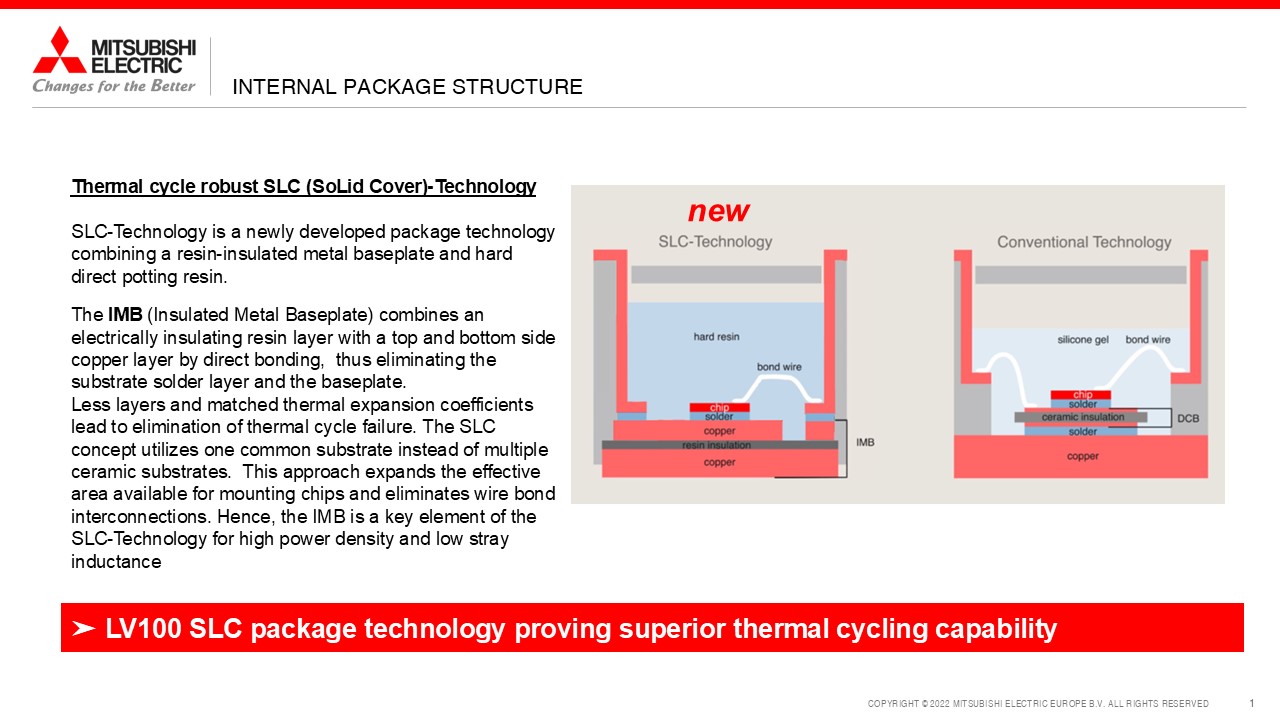

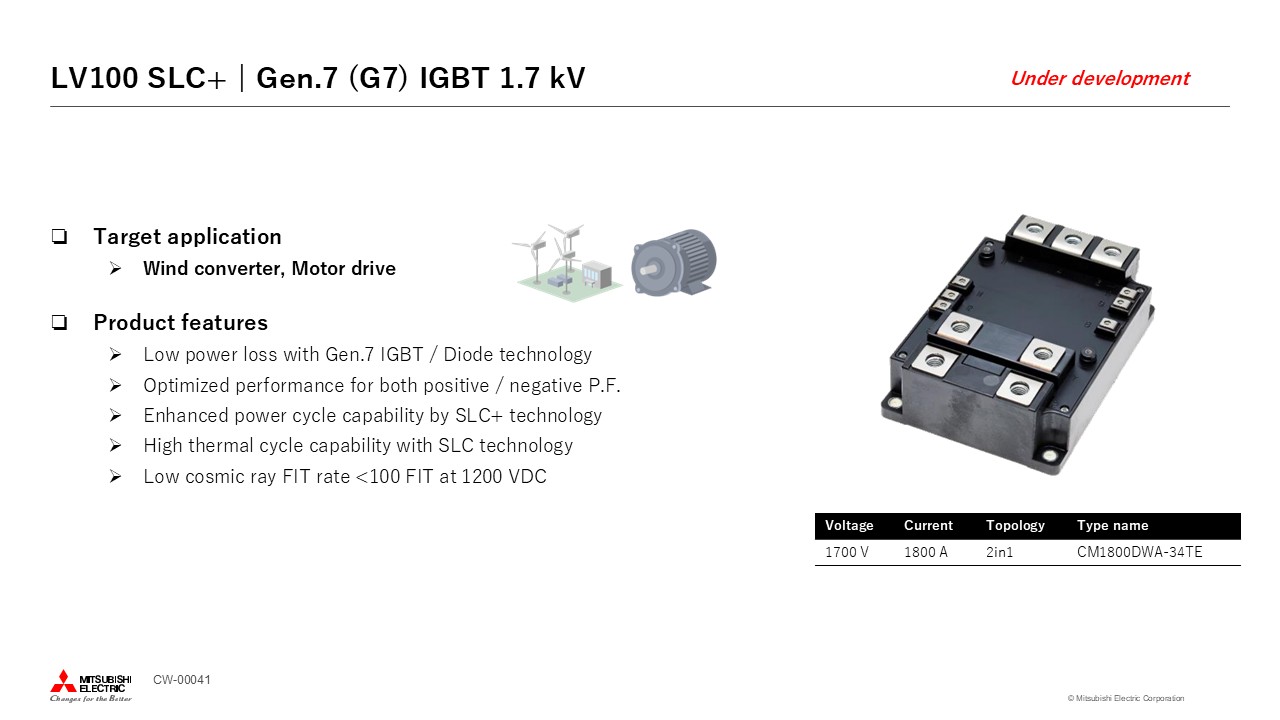

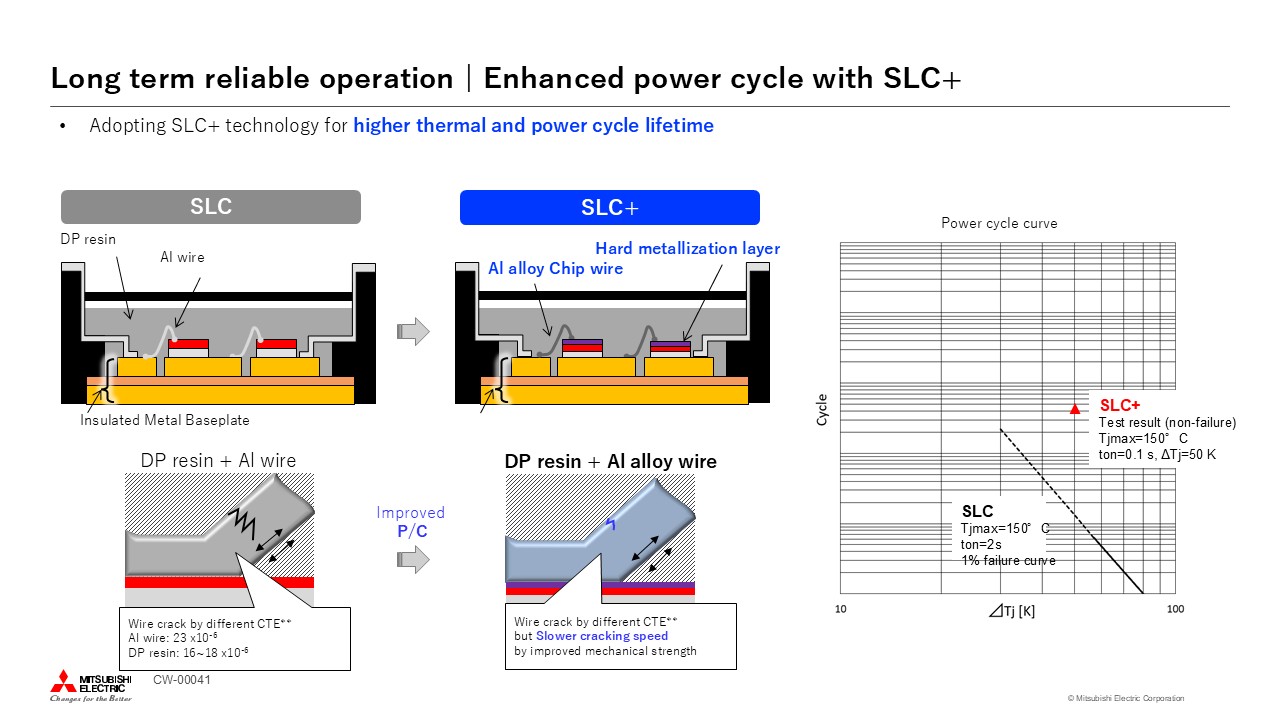

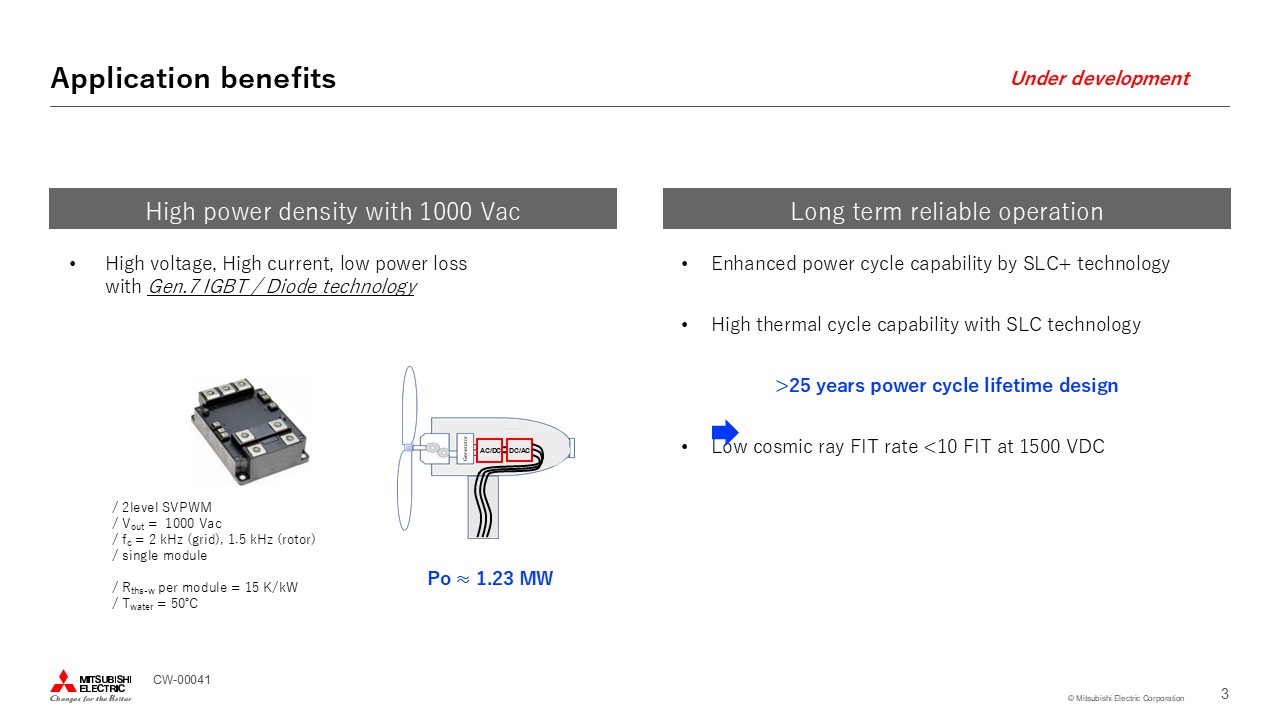

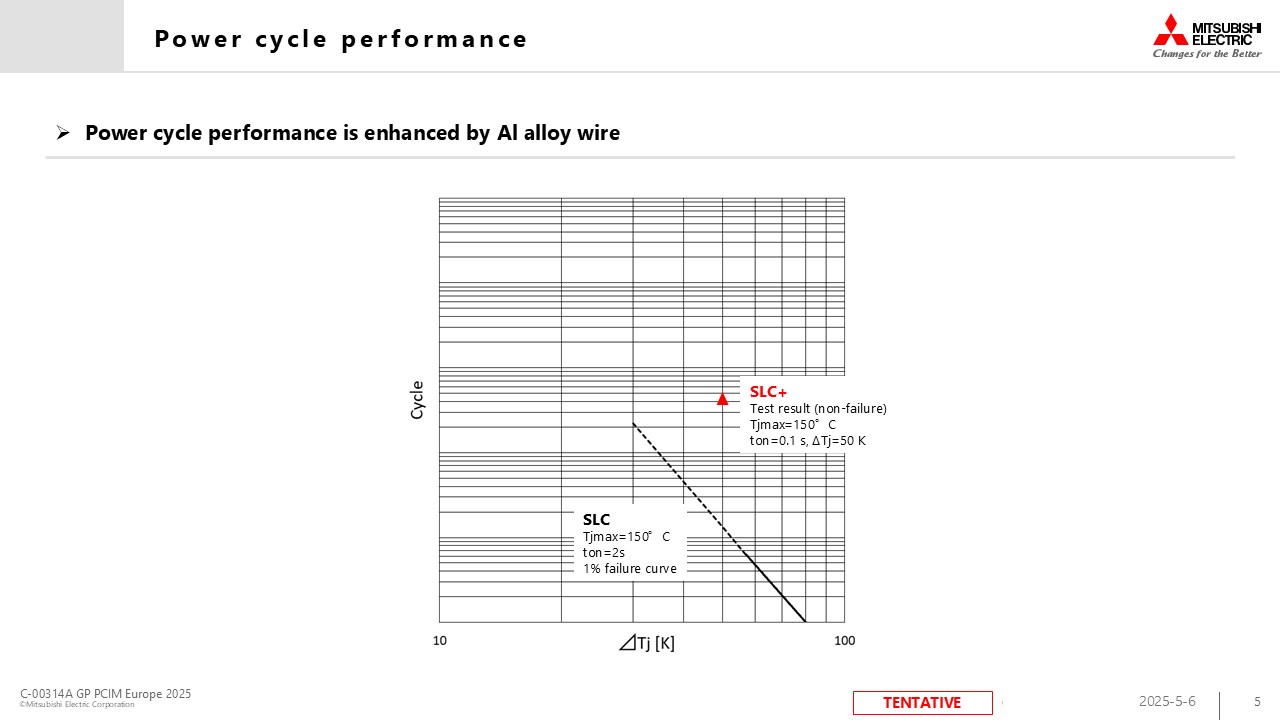

  • High thermal cycle capability by SLC-Technology
  • Pre applied PC-TIM available

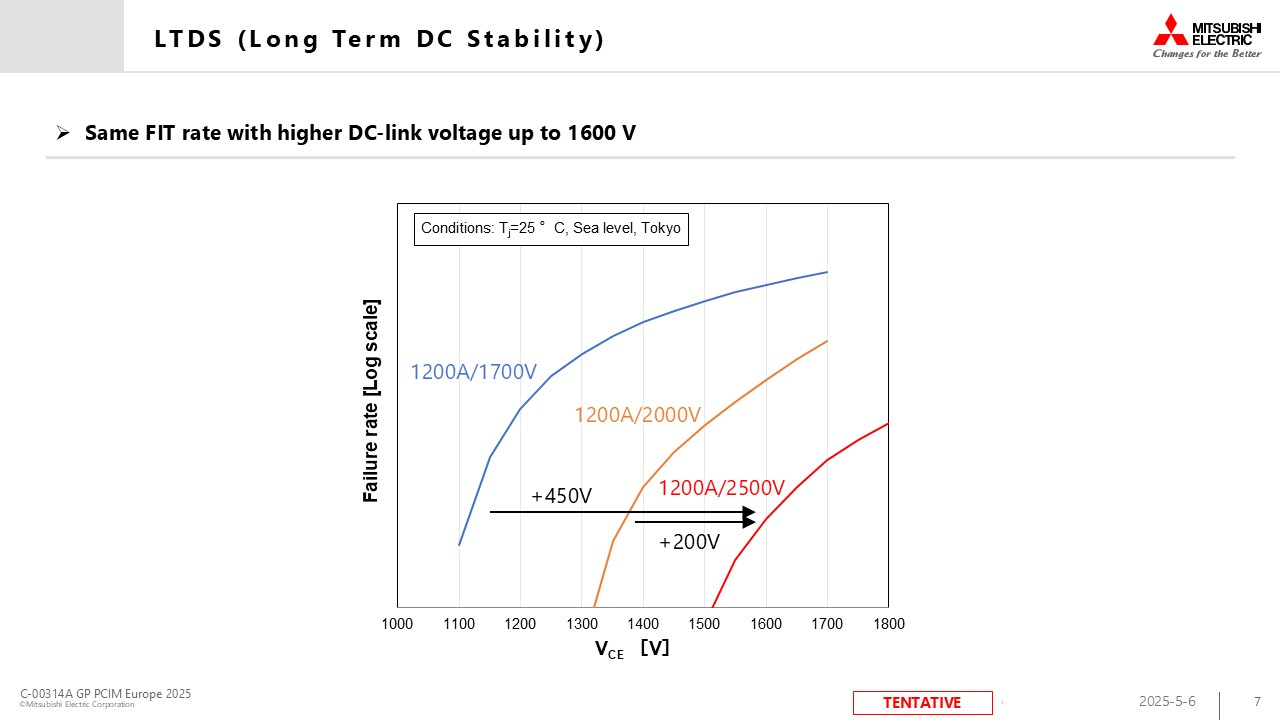

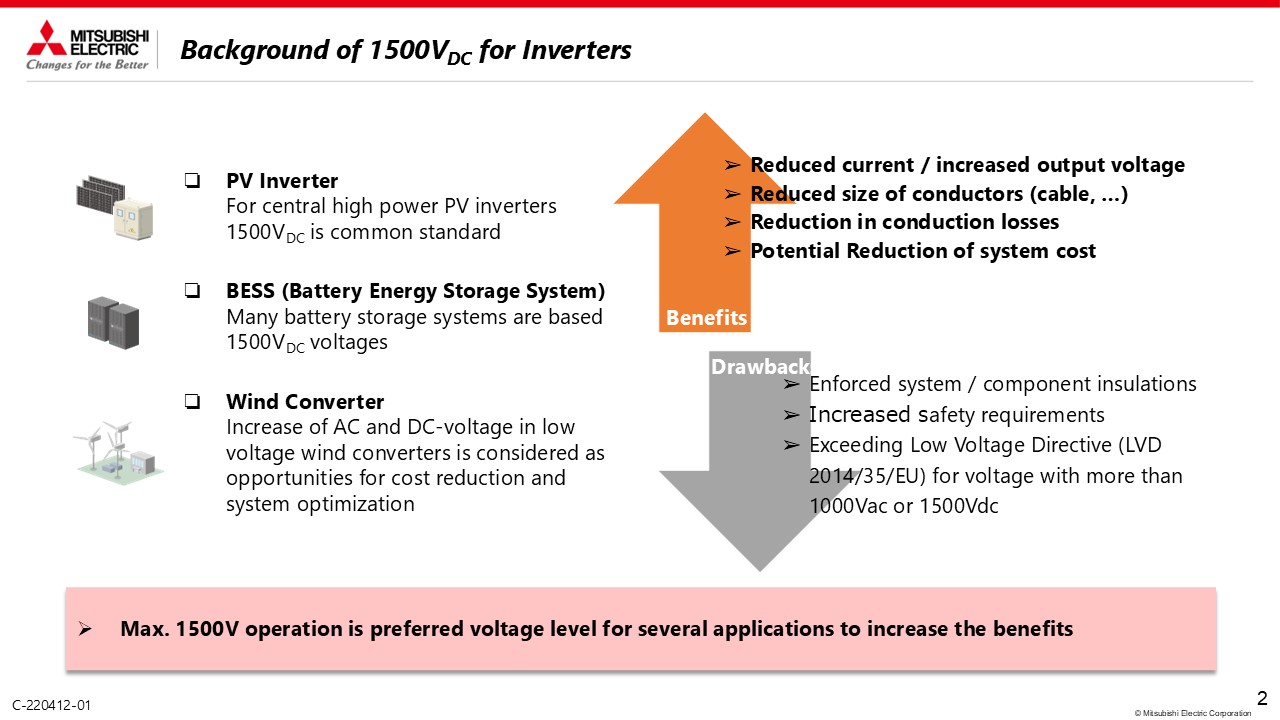

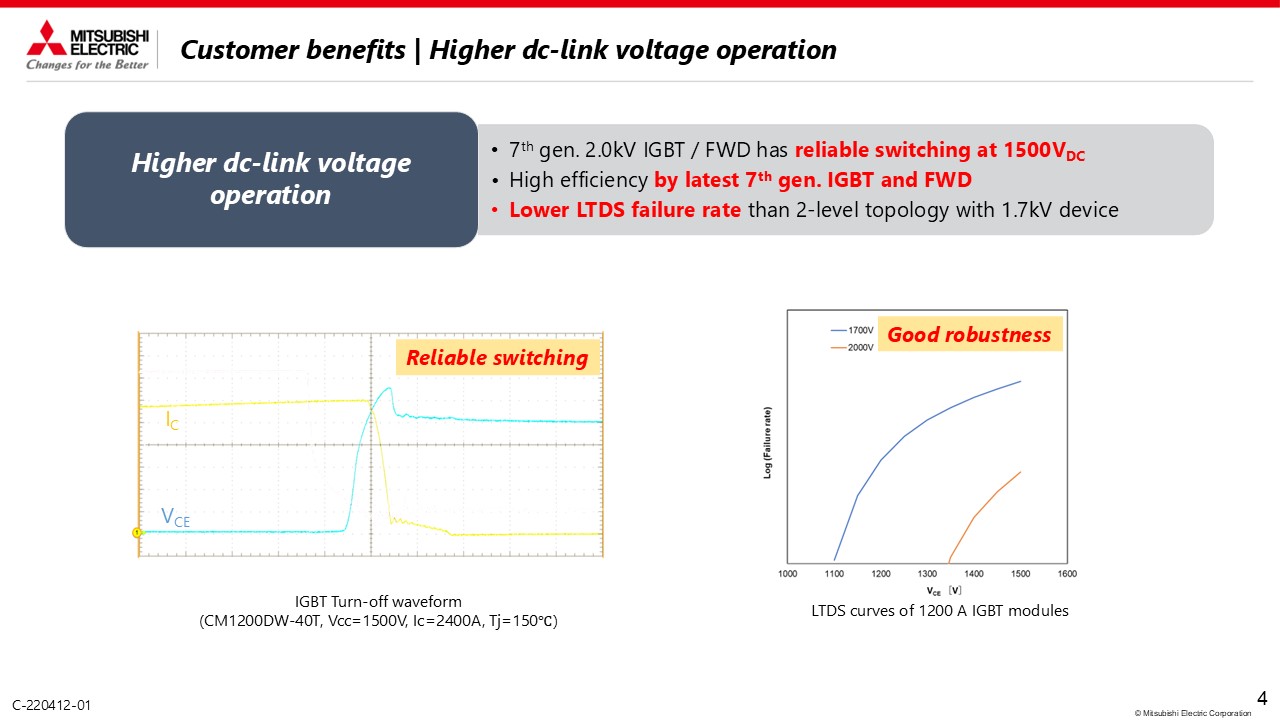

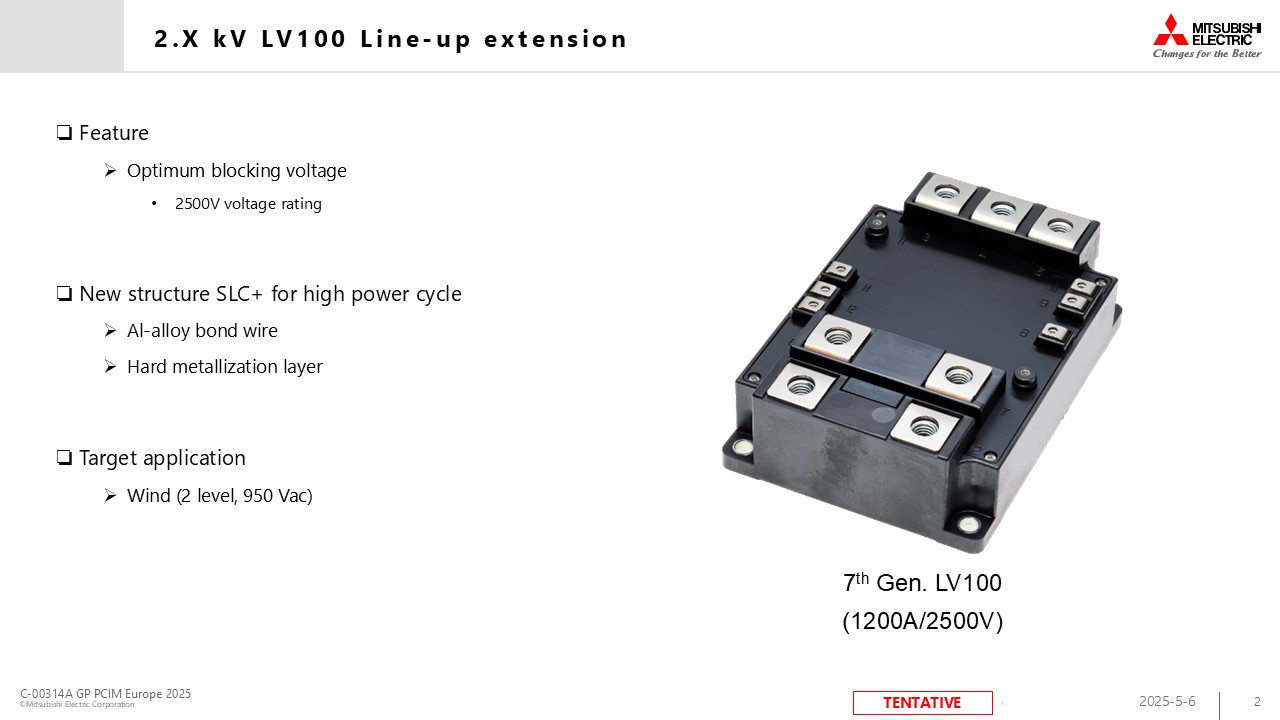

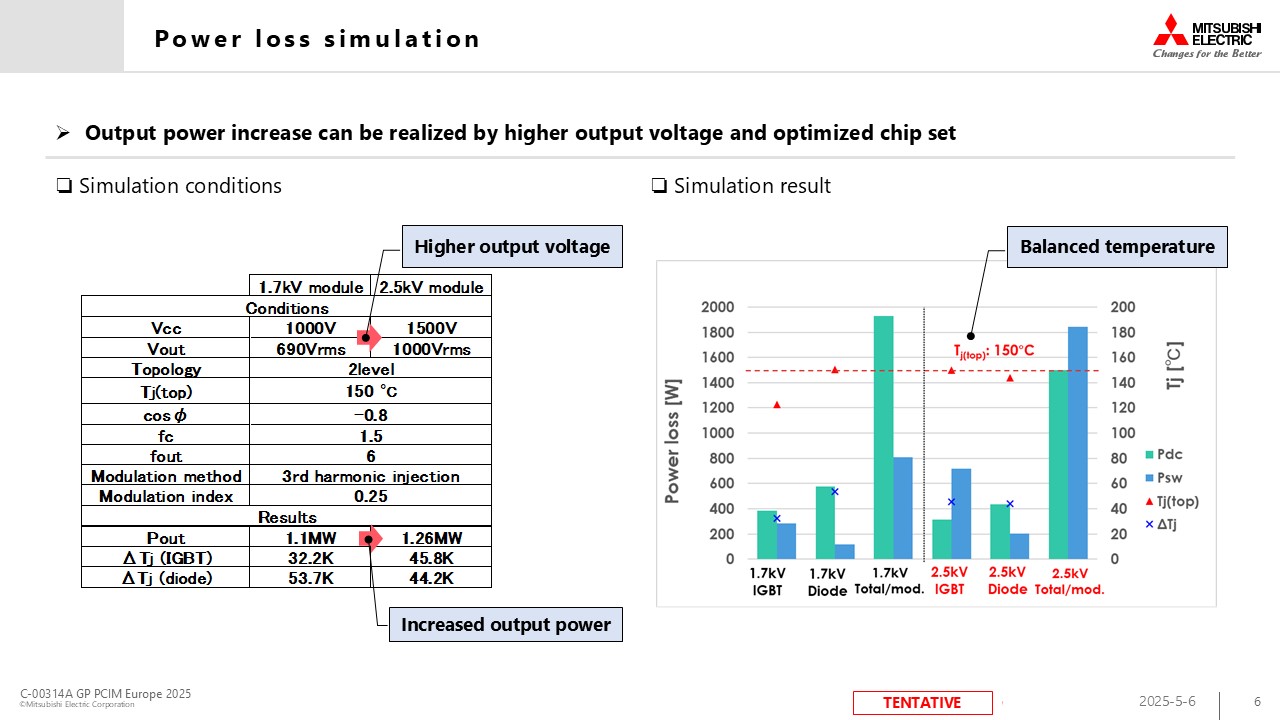

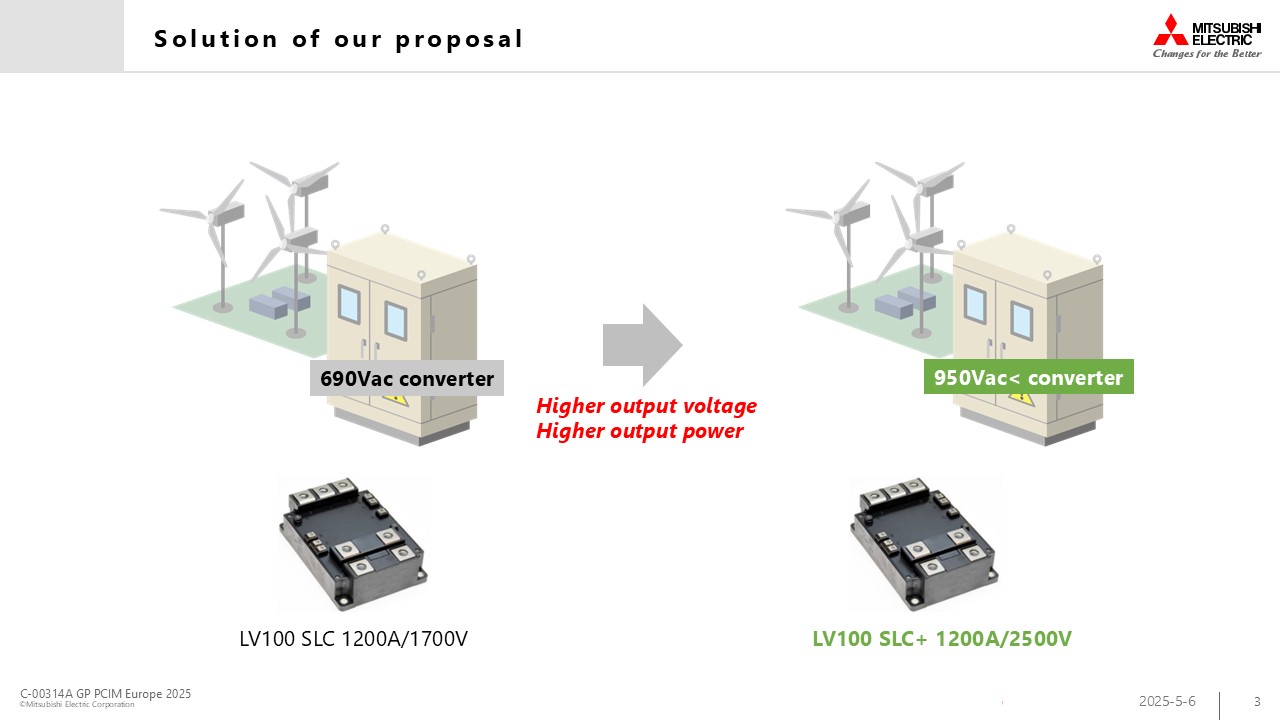

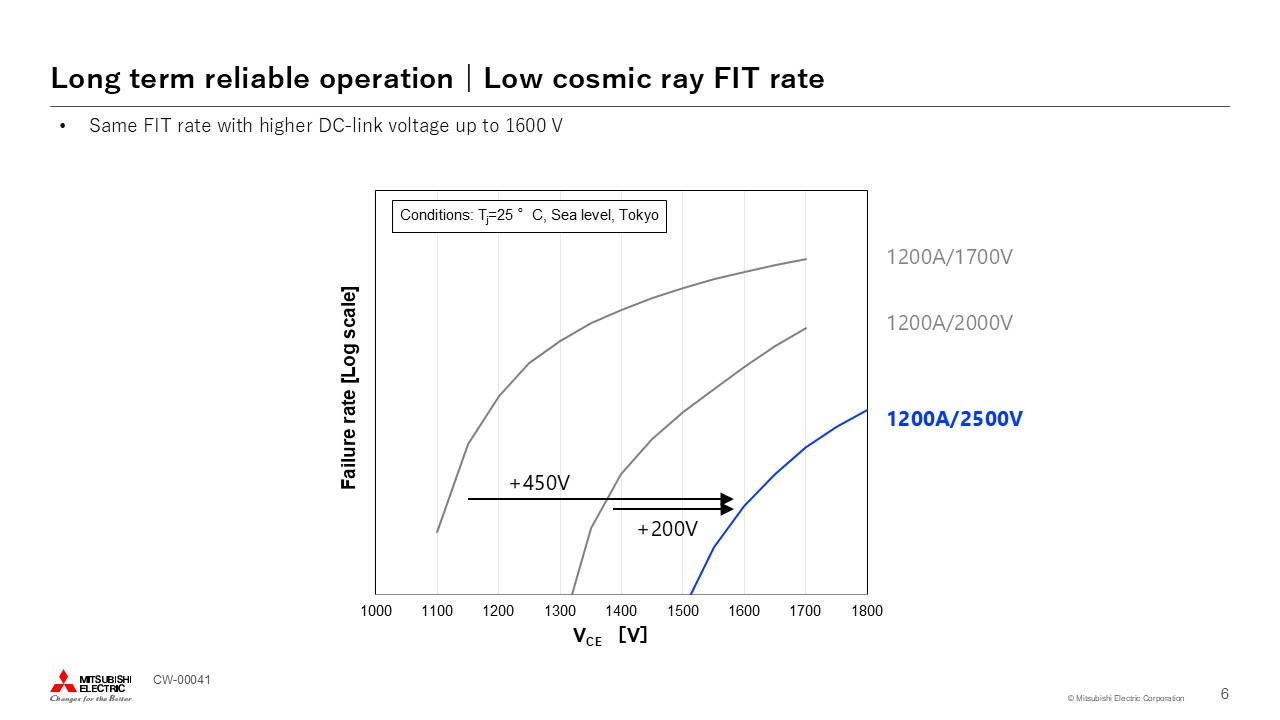

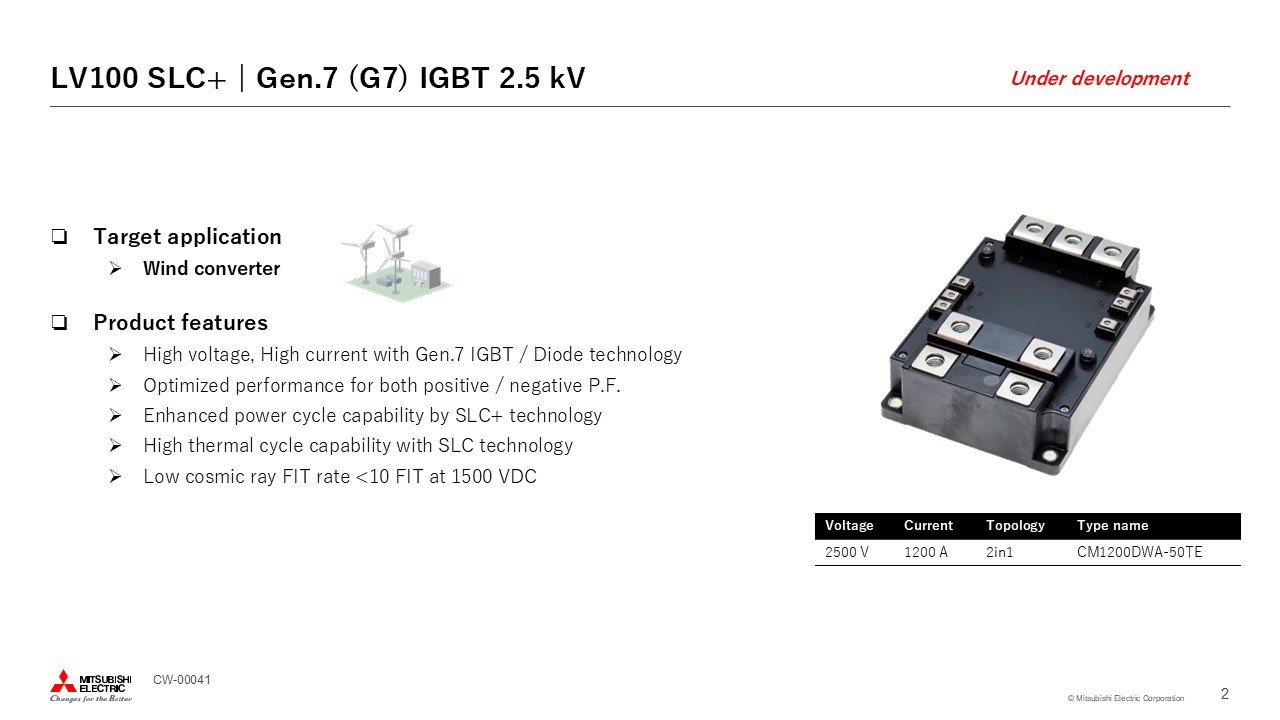

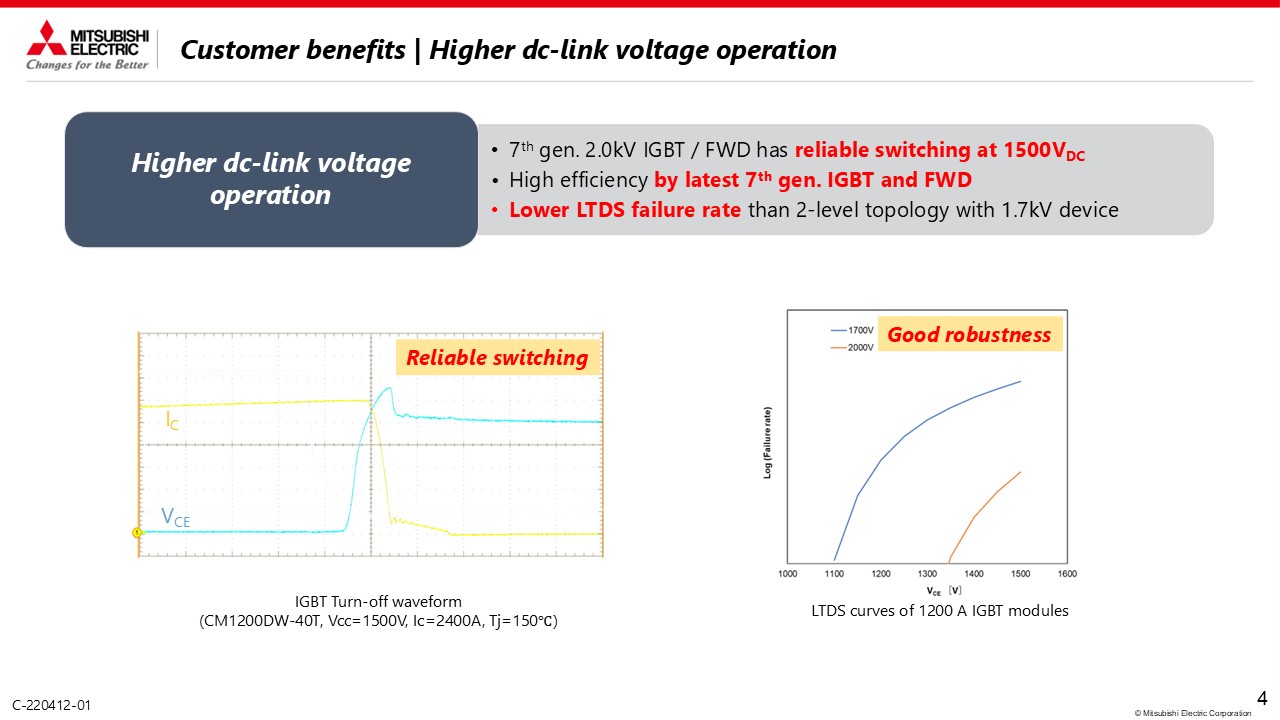

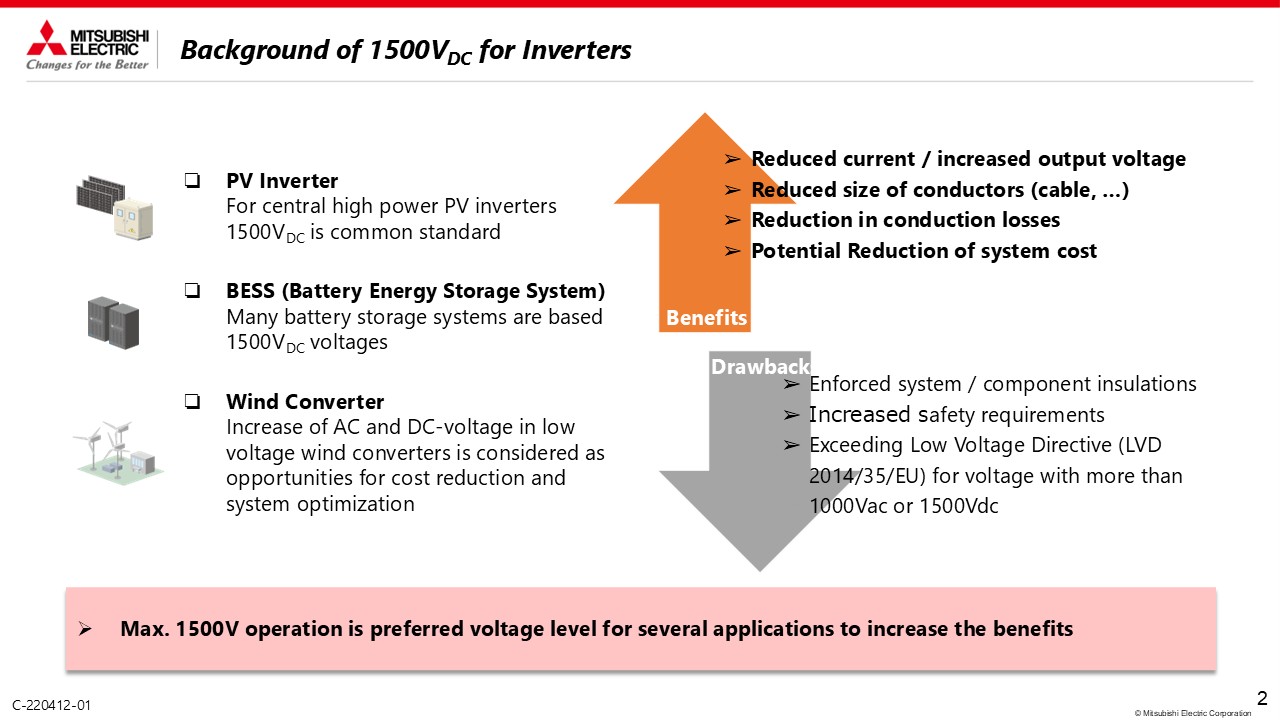

  • New 2000 V class available enabling 2-level for 1500Vdc inverter systems
  • High temperature operation with Tvjmax = 175˚C junction temperature at overload events

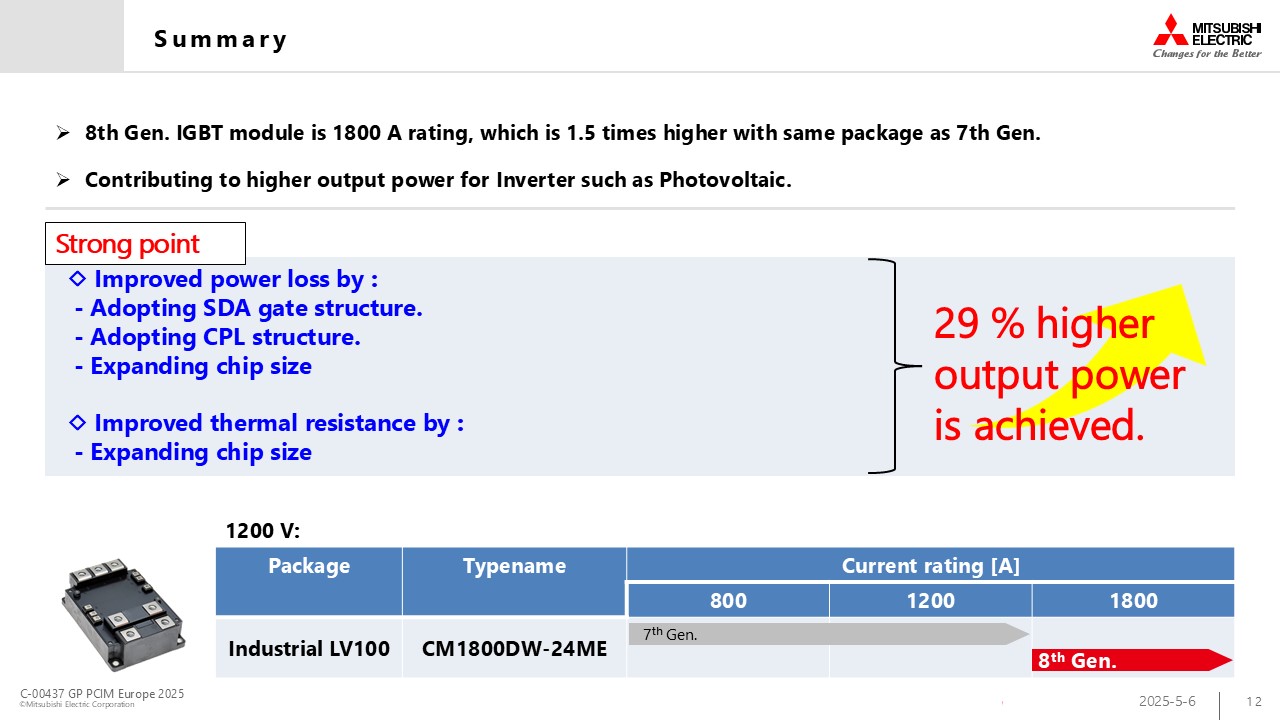

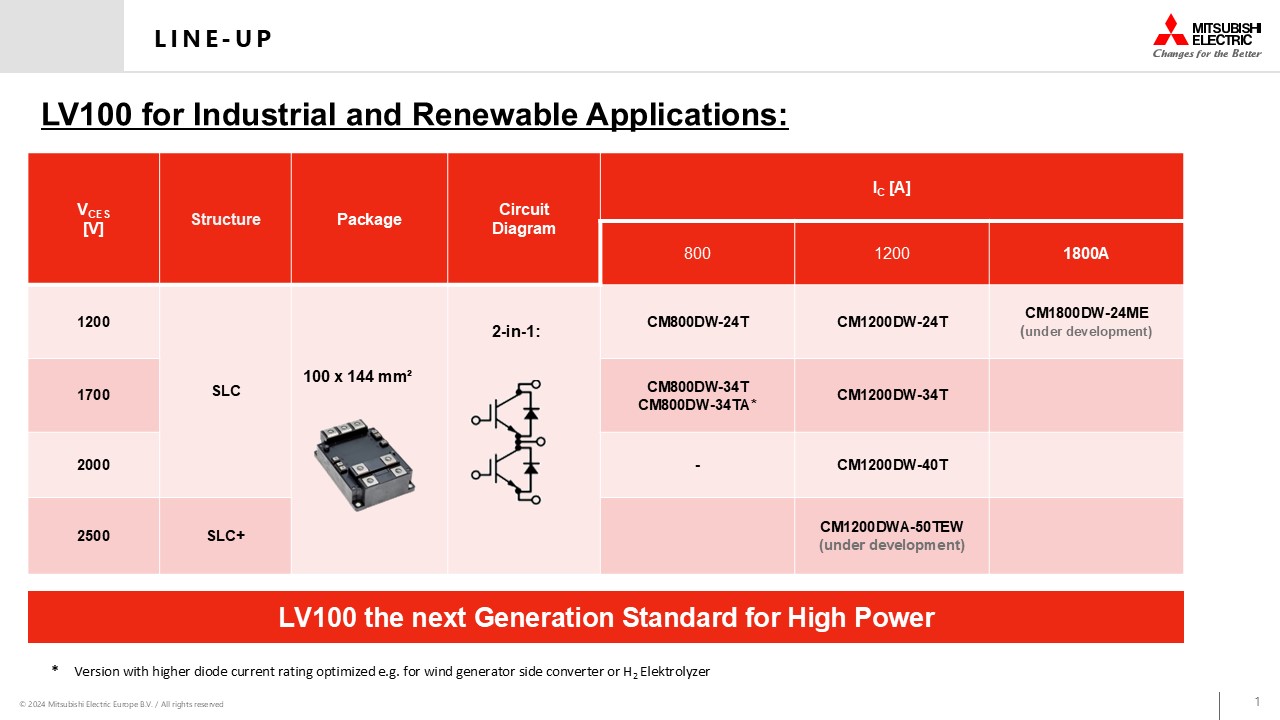

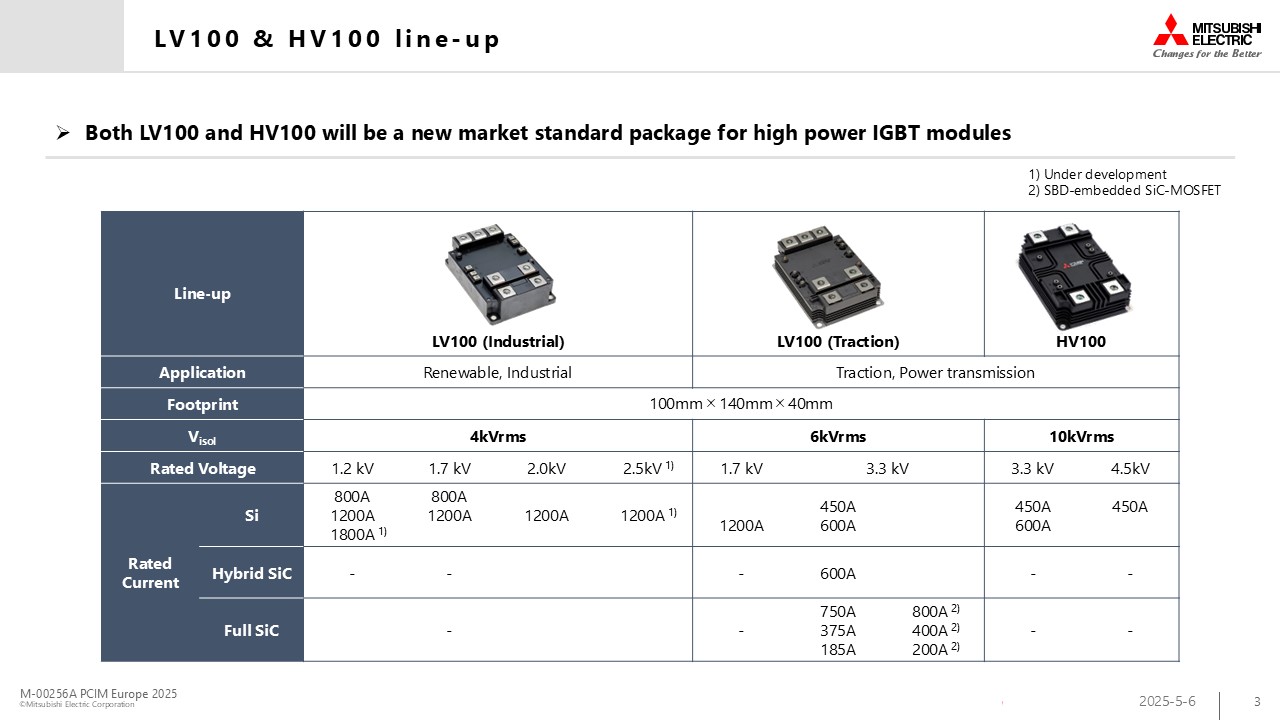

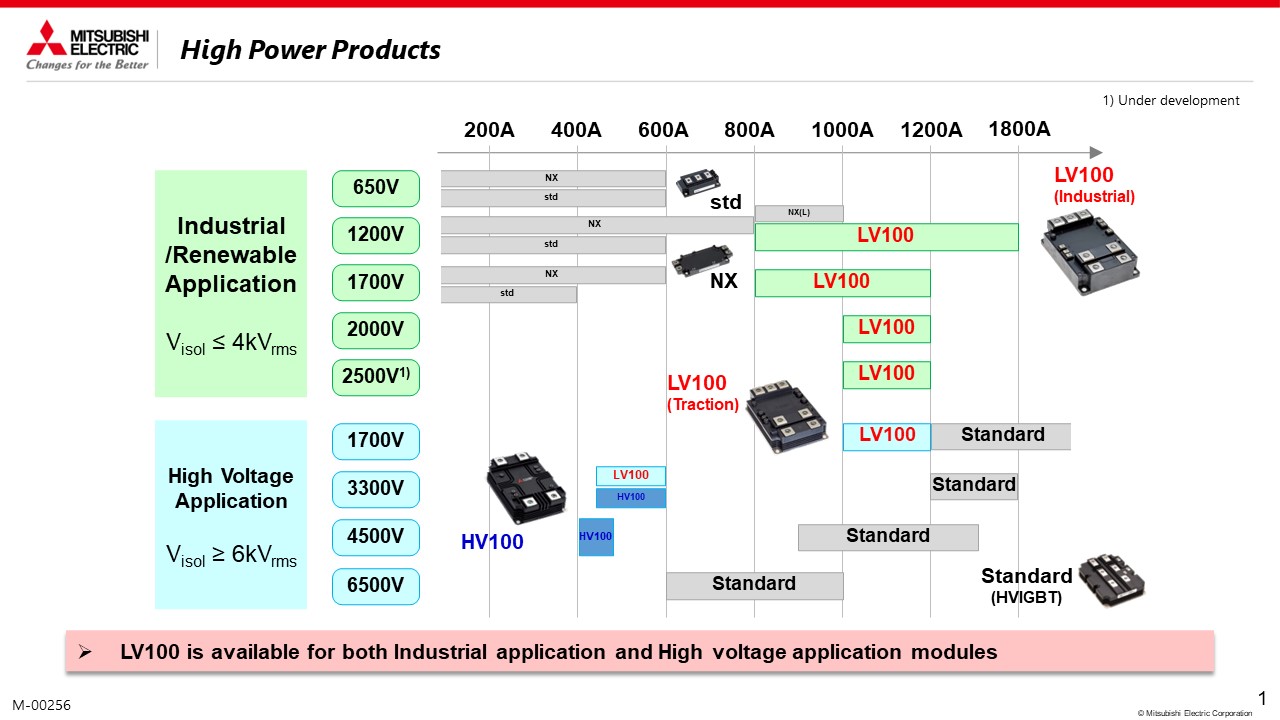

Attributes

Ratings:

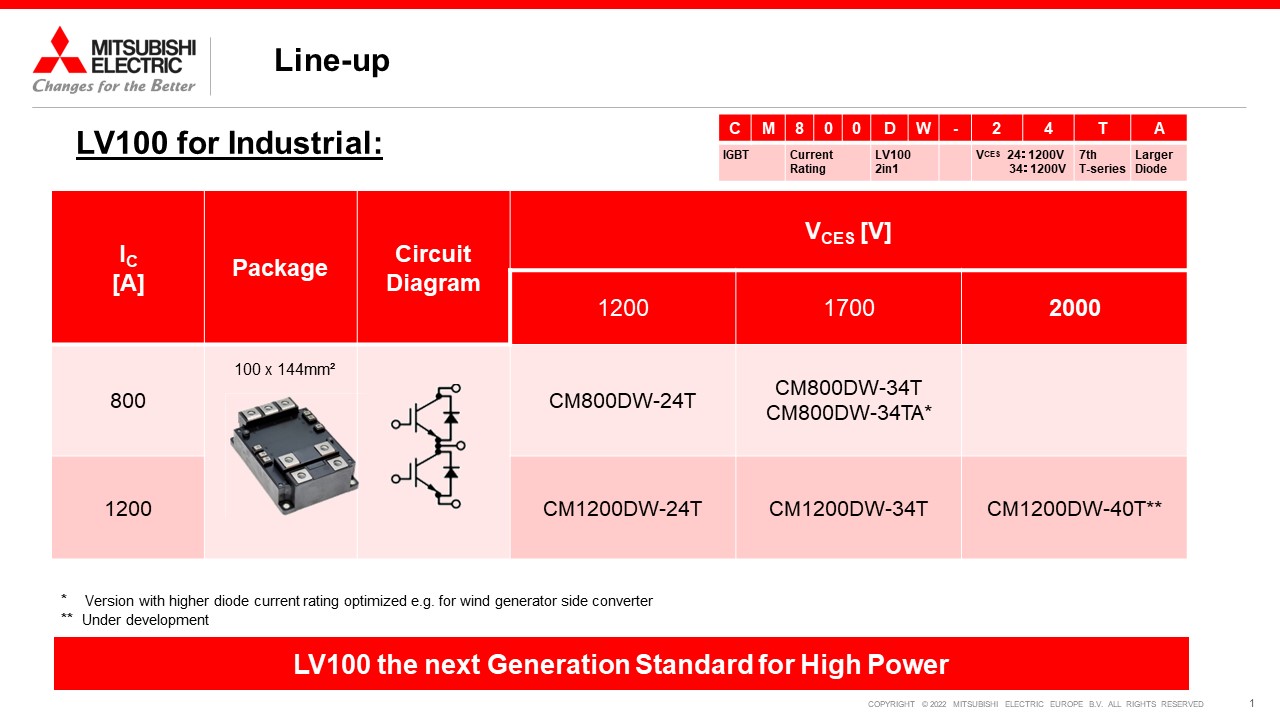

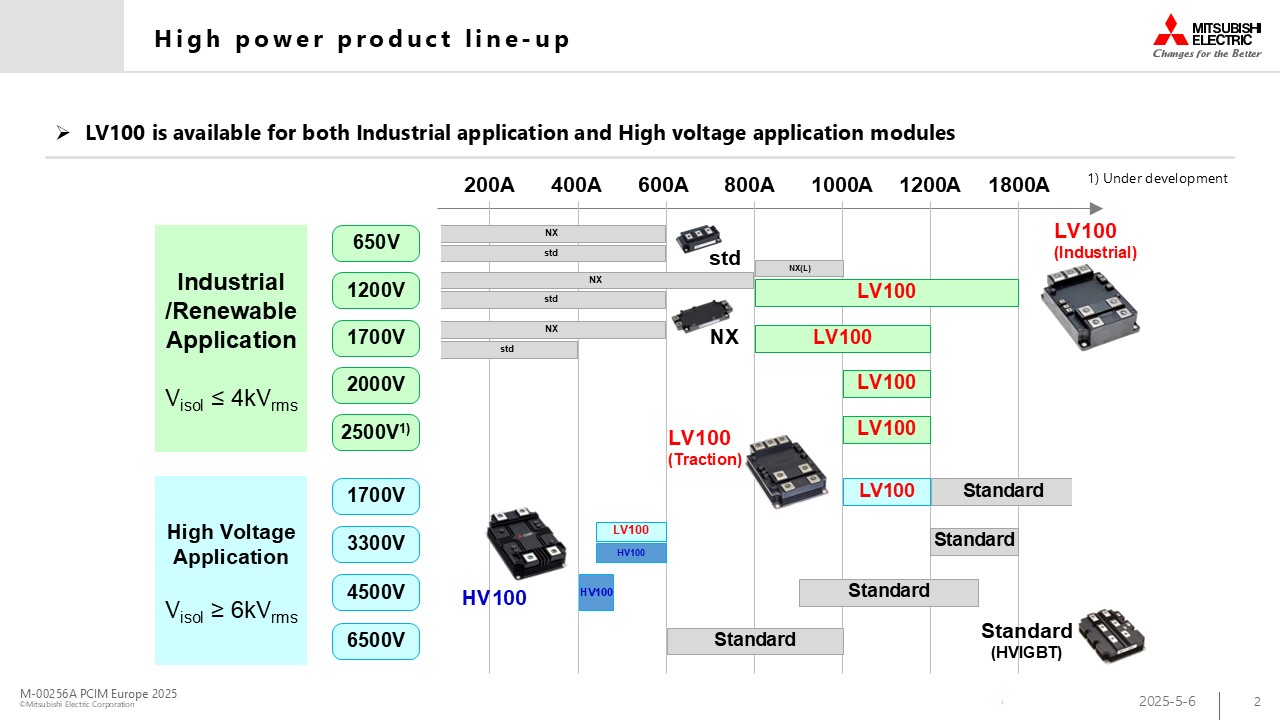

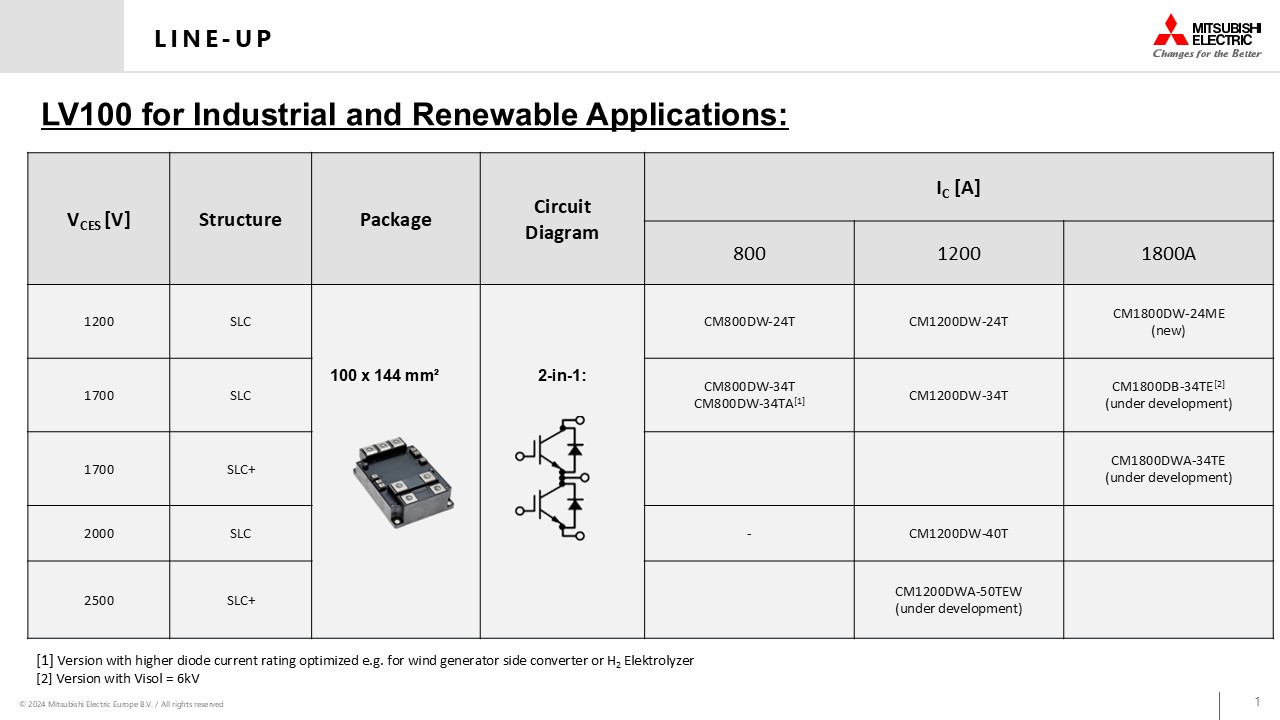

1700 V: 800 A, 1200 A
1200 V: 800 A,1200 A

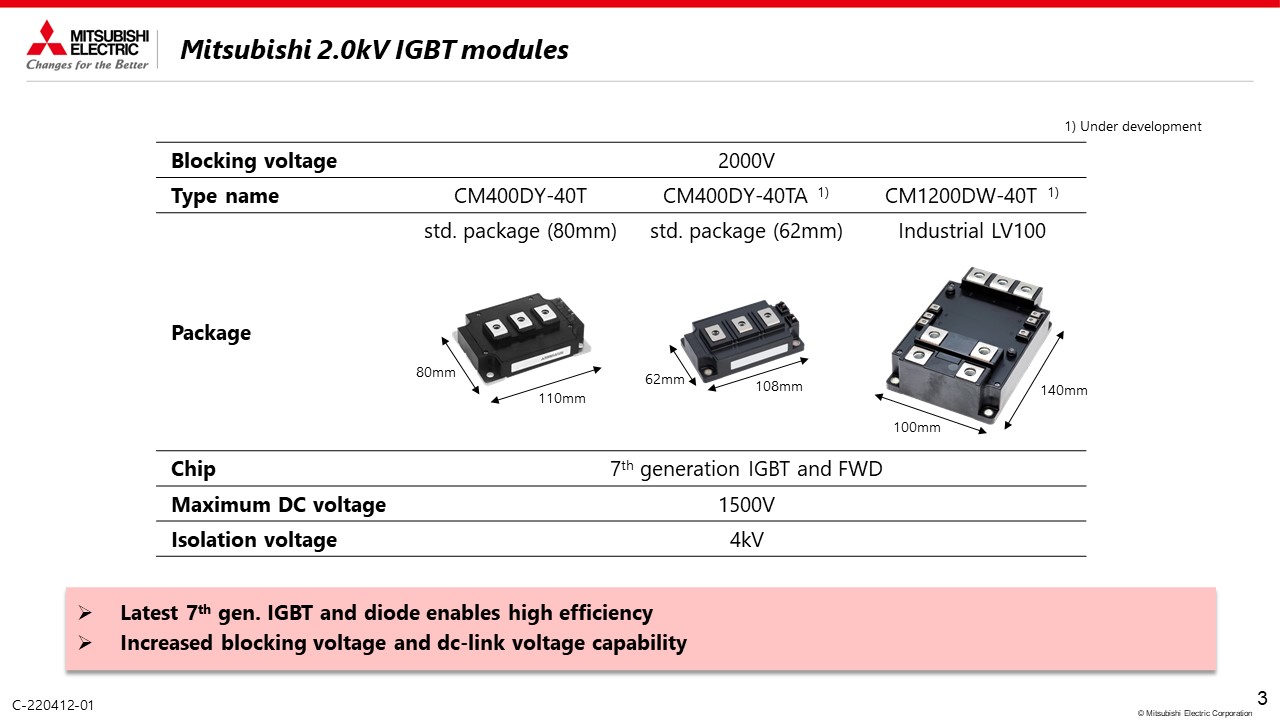

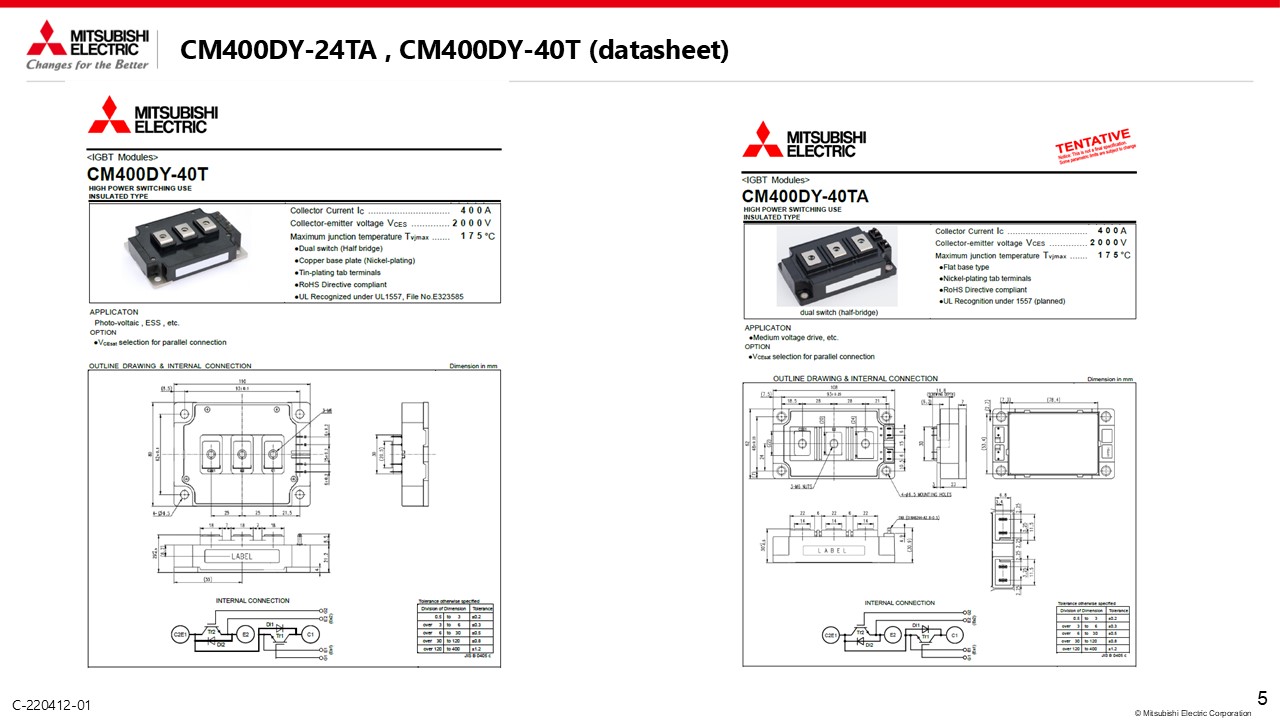

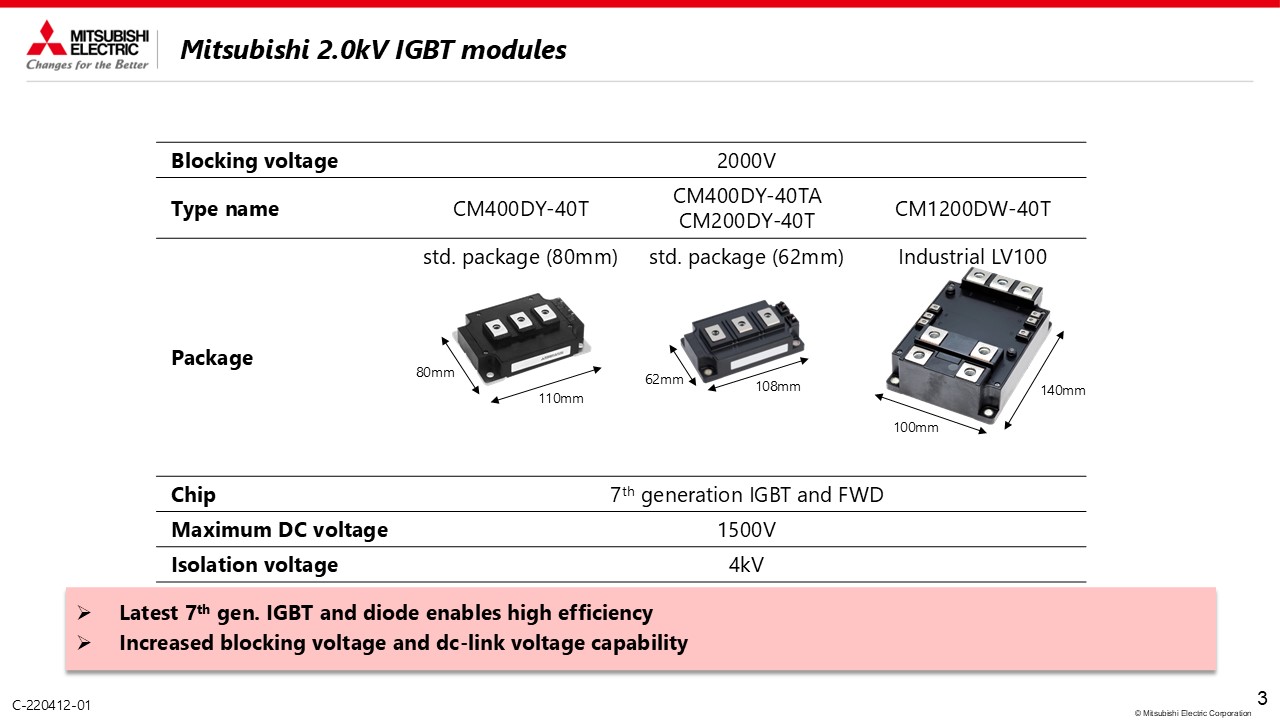

2000 V: 1200 A

Dimensions [mm]:

100 x 144 x 40

Downloads

3D-Model

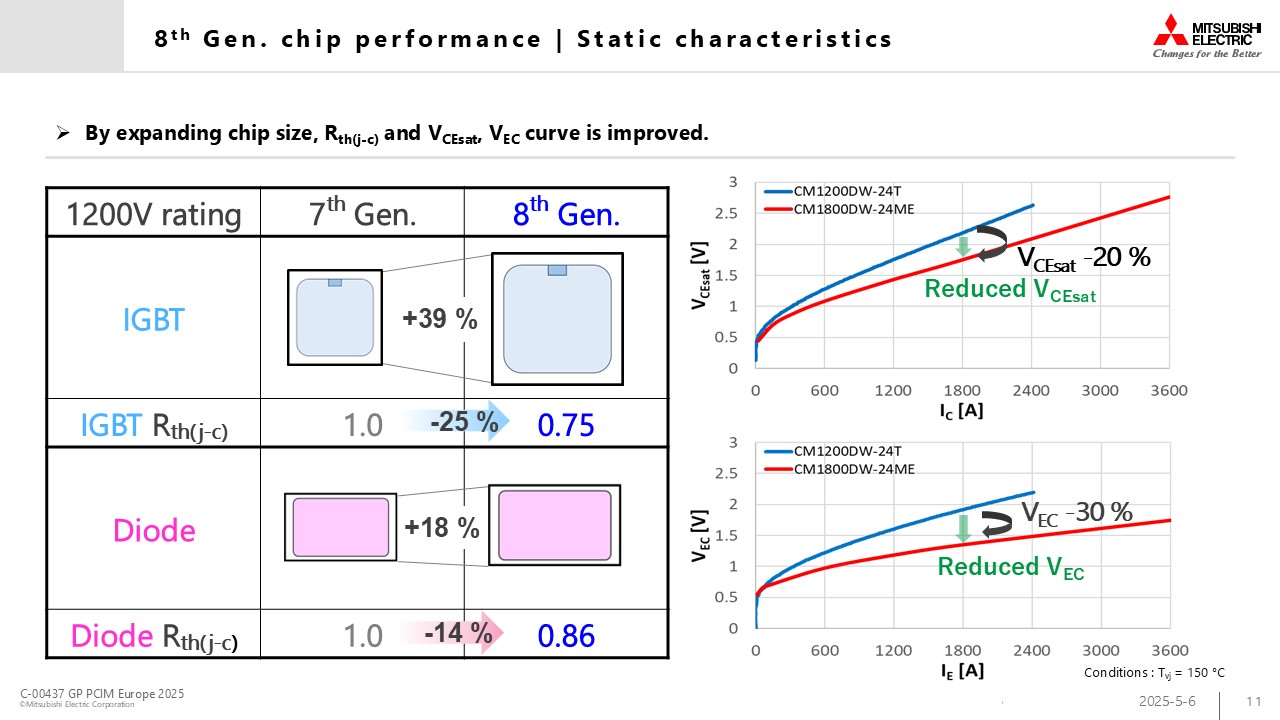

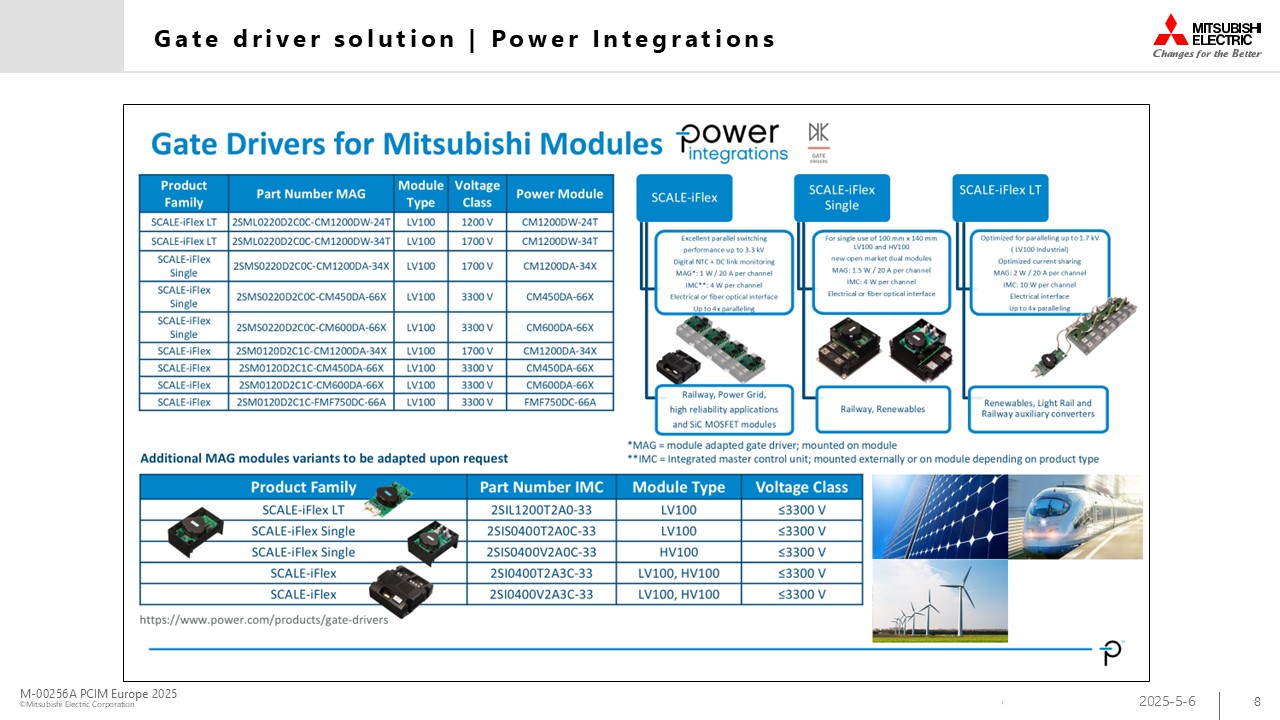

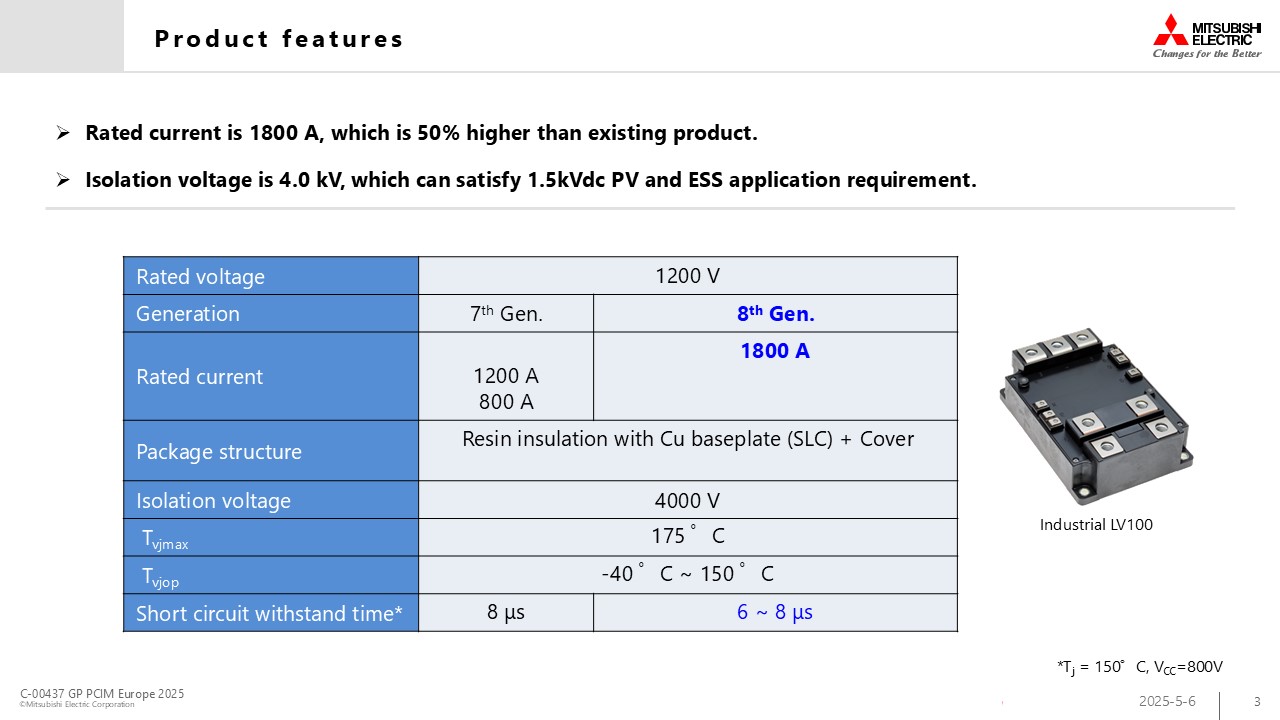

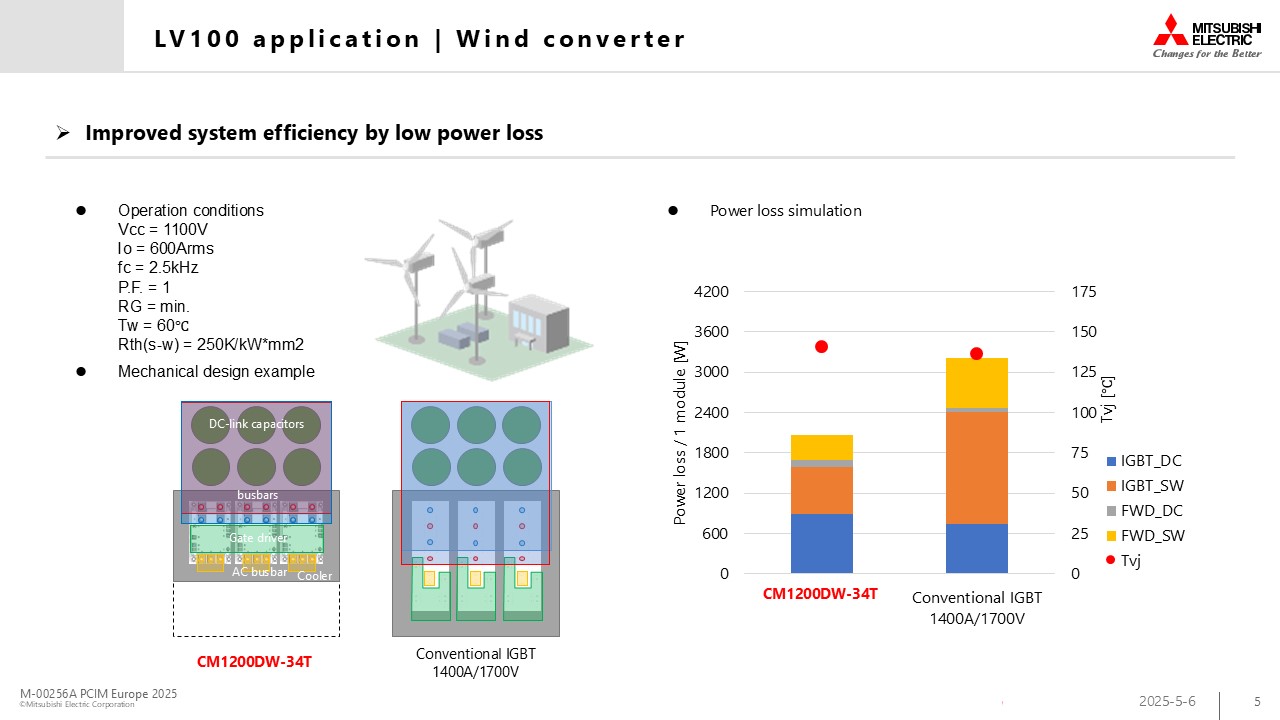

Presentations

Videos

YouTube Logo

We need your consent to load the Youtube service!

We use a third party service to embed video content that may collect data about your activity.
Please review the details and accept the service to watch this video.

This content is not permitted to load due to trackers that are not disclosed to the visitor.
The website owner needs to setup the site with their CMP to add this content to the list of technologies used.

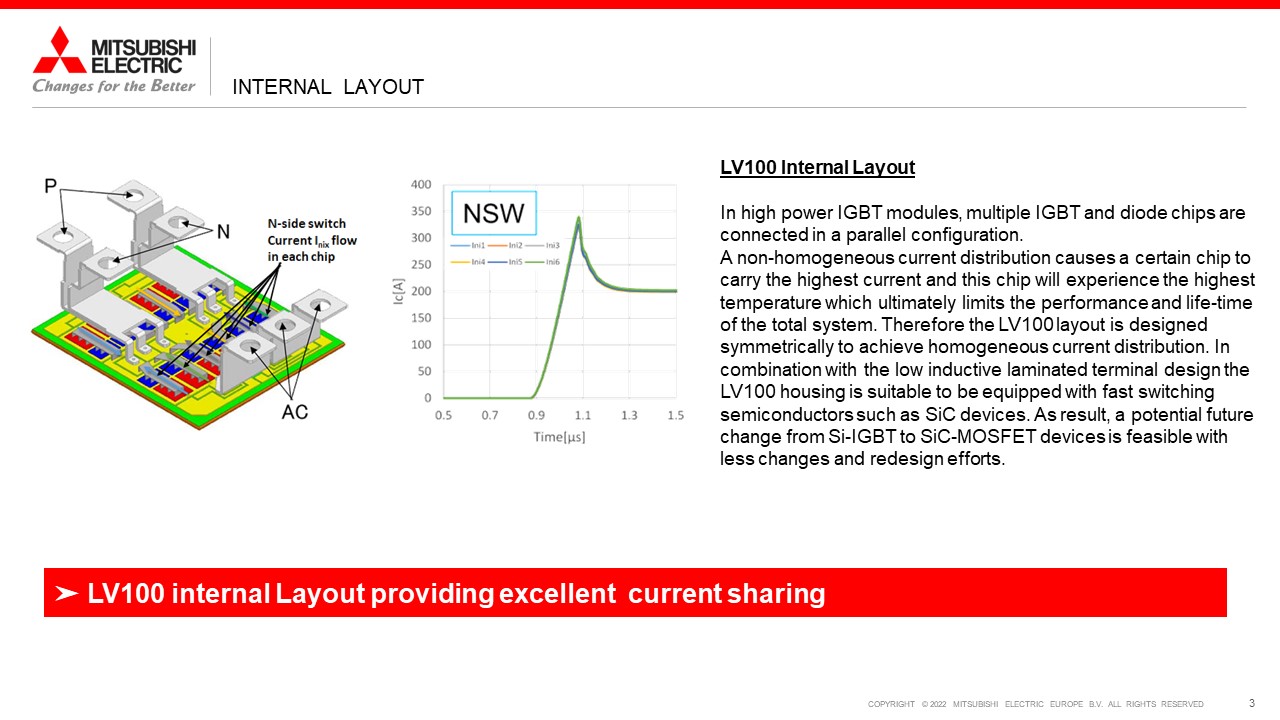

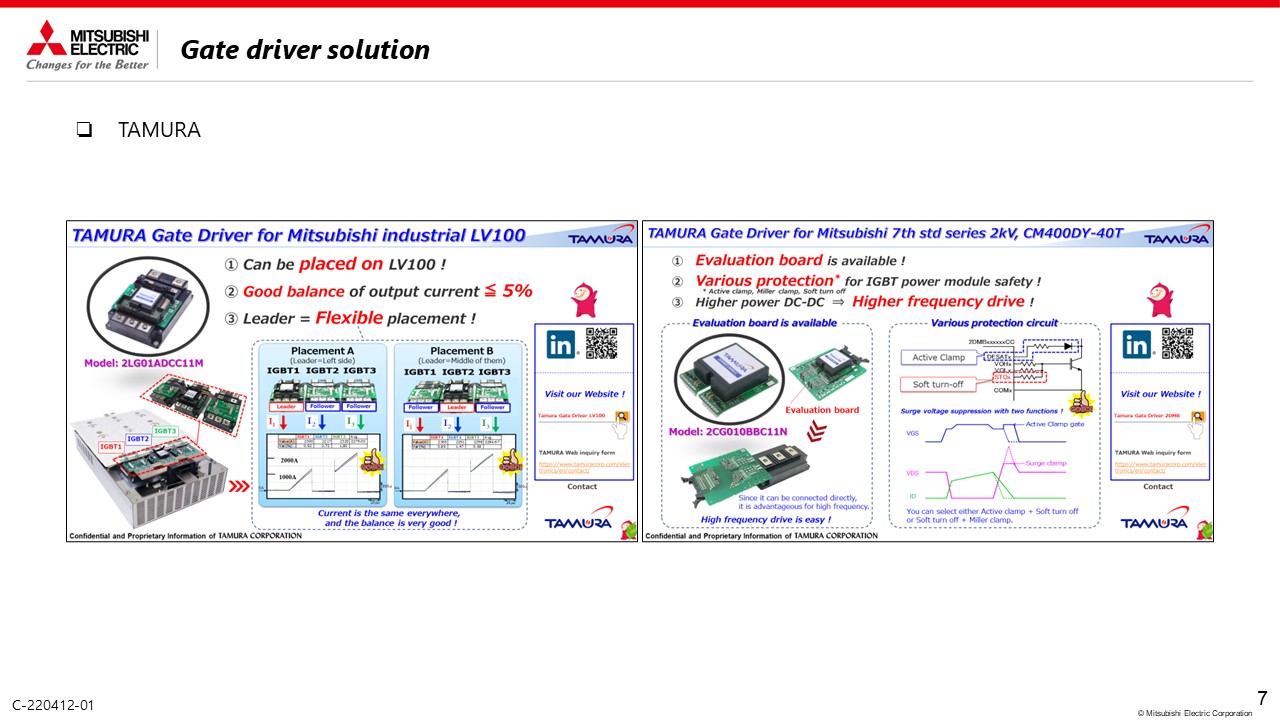

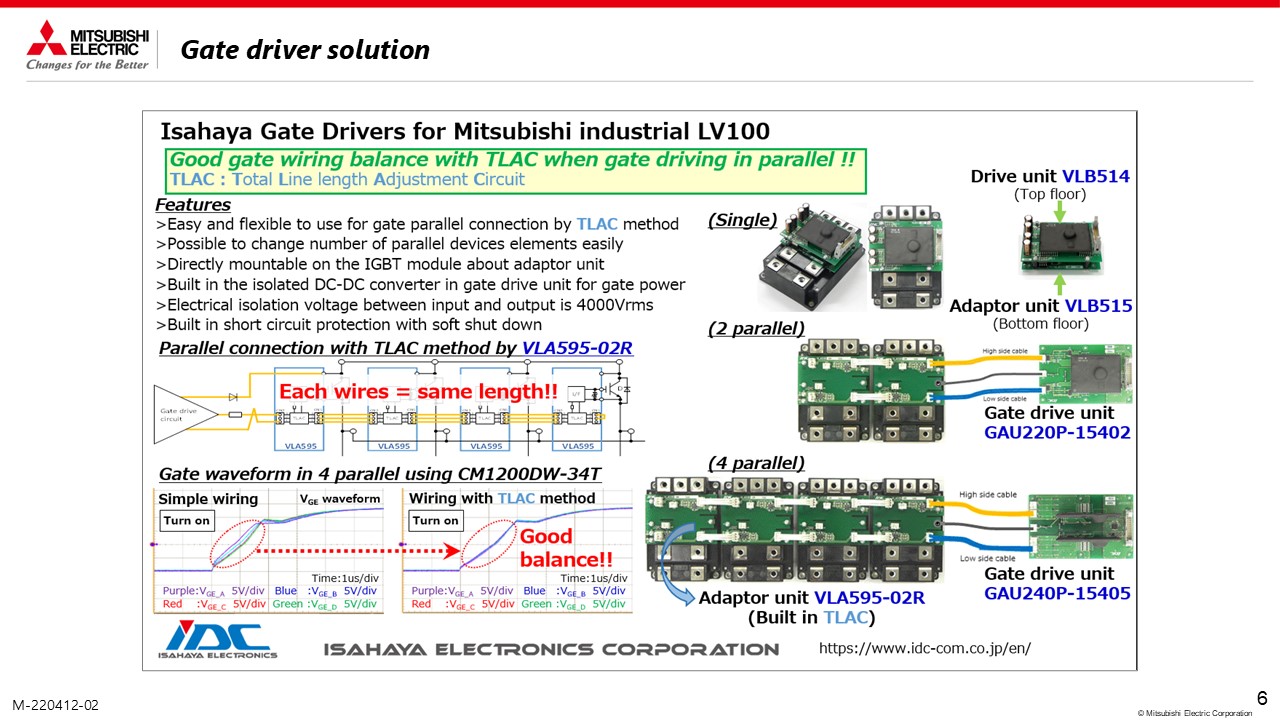

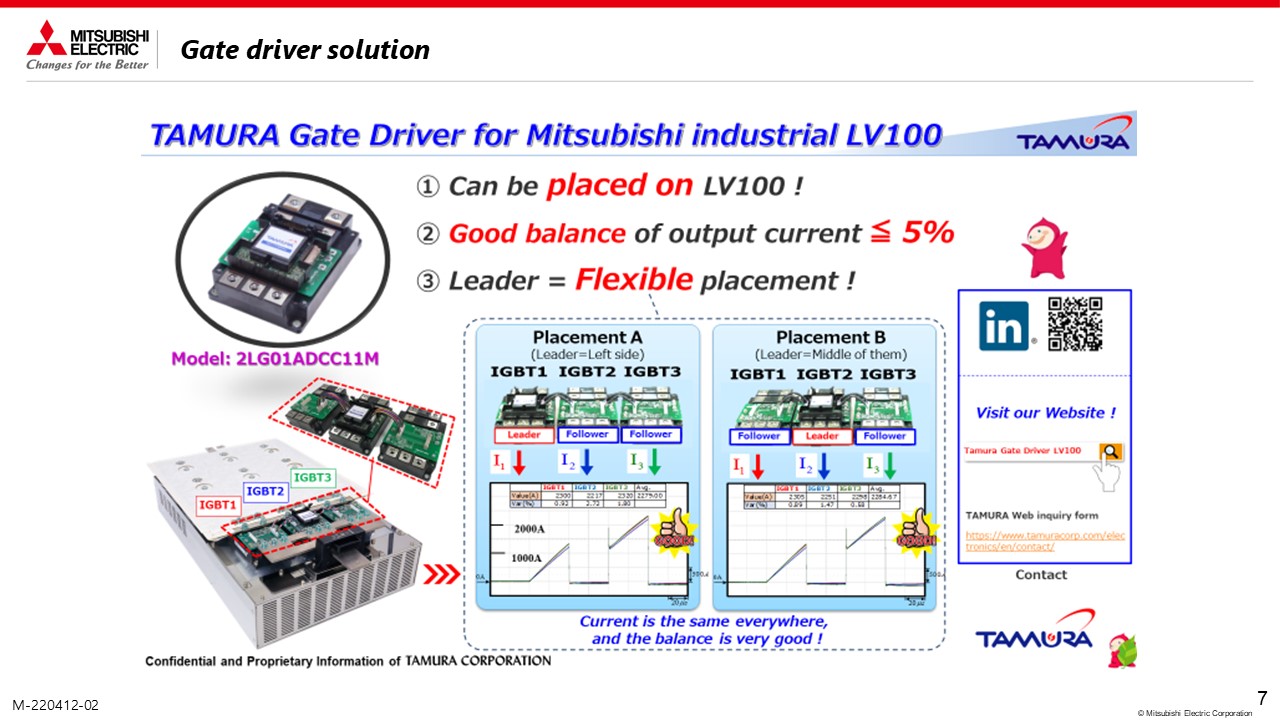

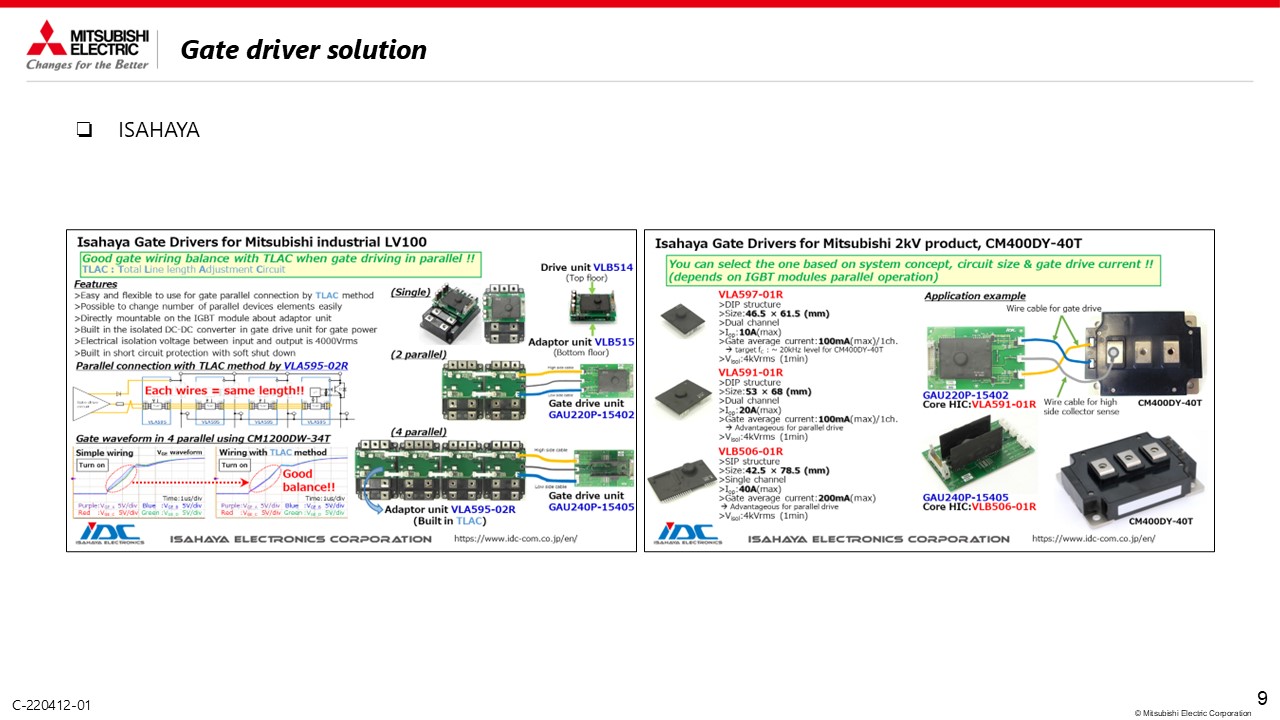

LV100 power modules - the best approach for high power applications

LV100 power modules - the best approach for high power applicationsNew 2kV IGBT: A solution for 1500V renewable applicationsLV100: The preferred solution for wind converter applicationsLow inductive, future-proof high-voltage LV100 and HV100 dual modules for great flexibilityLV100 for industrial and renewable applications, Dual type 7th Generation 1200A/1700V IGBT module
