7th Gen. IGBT NX-type 7-in-1 Module

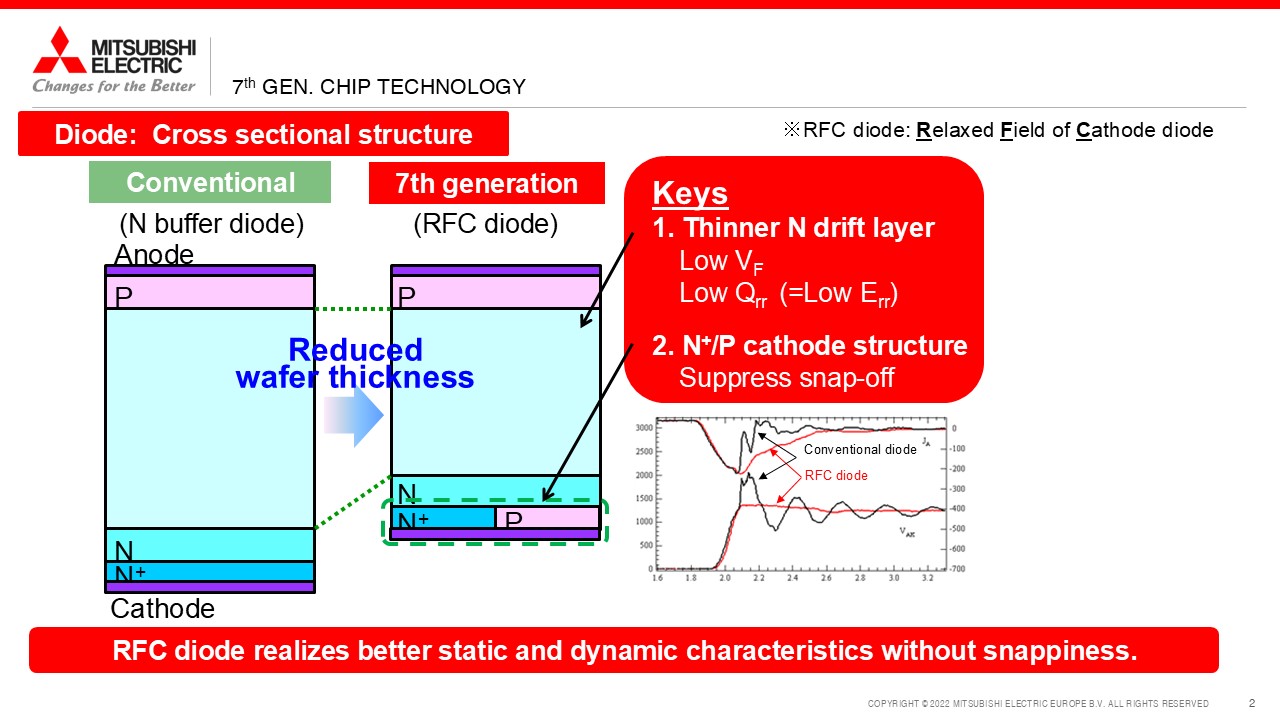

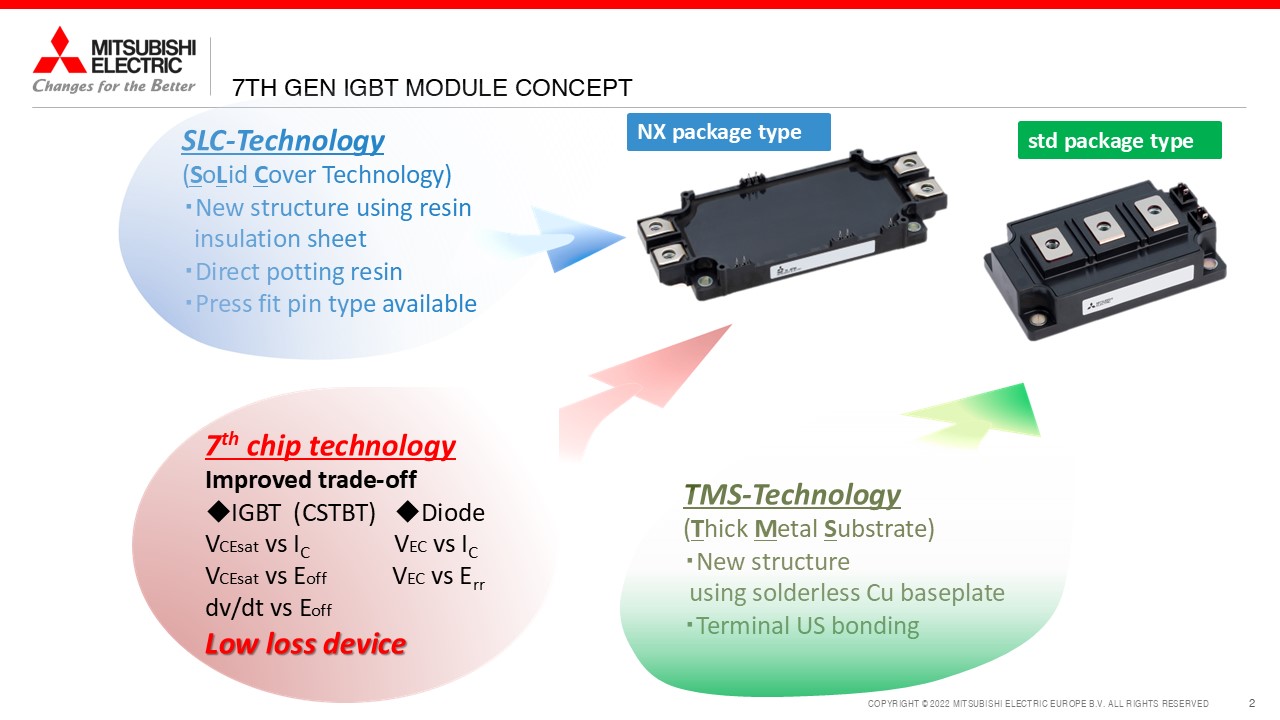

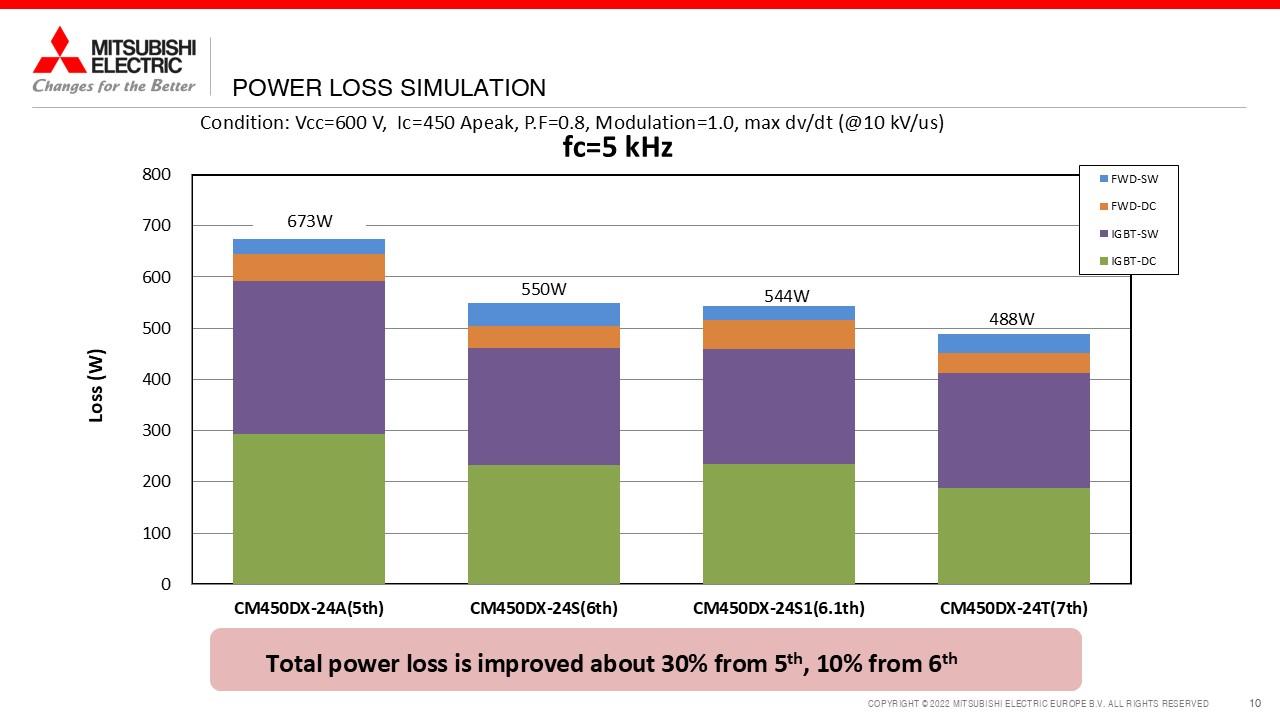

  • High efficiency by latest 7th Gen. IGBT Technology

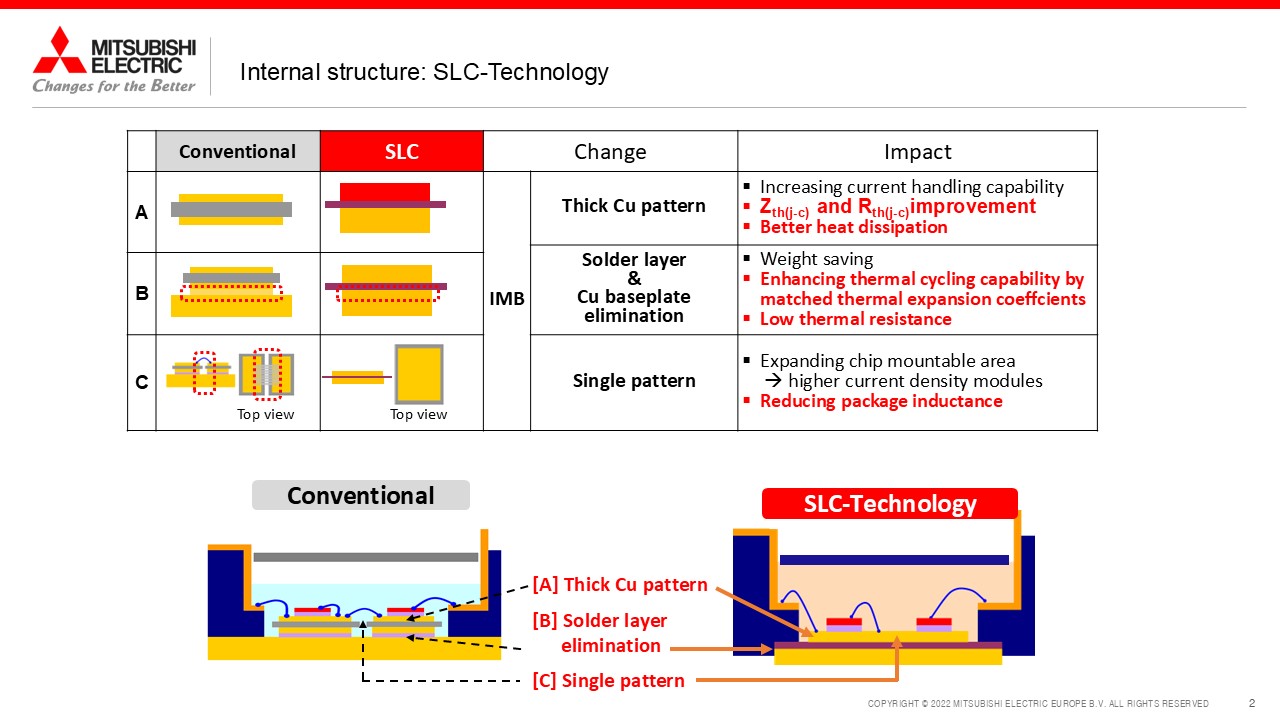

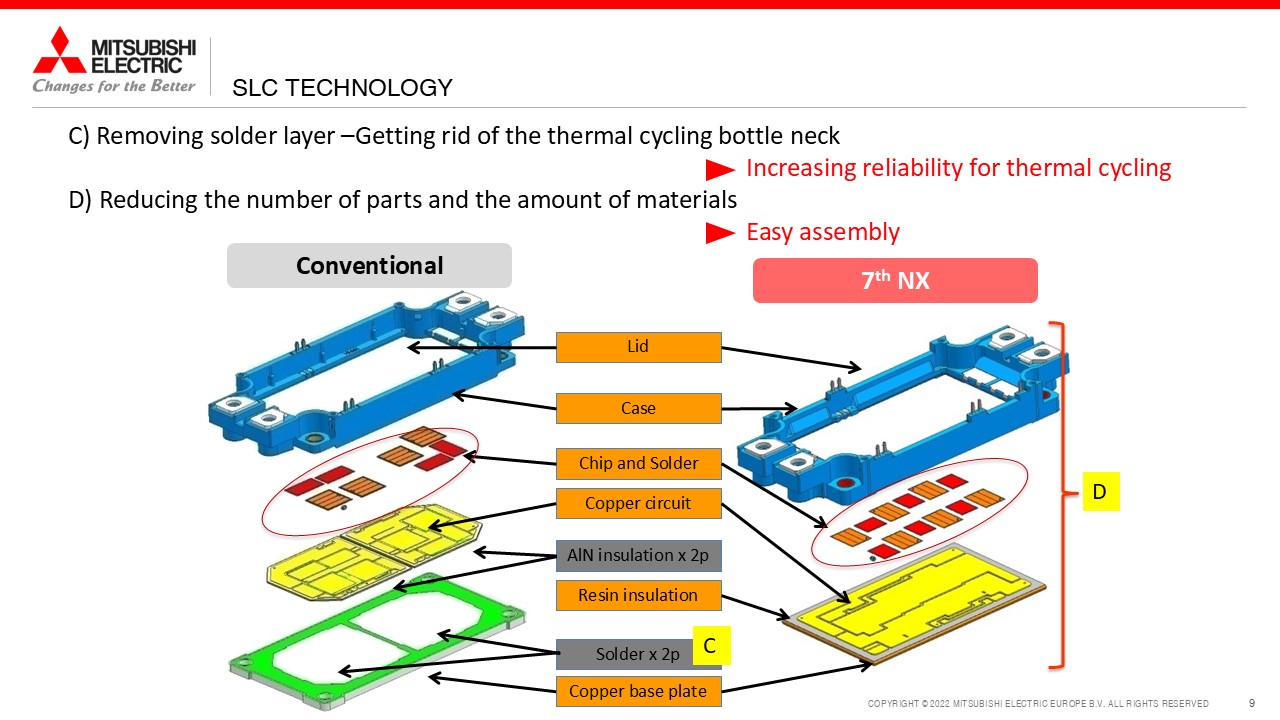

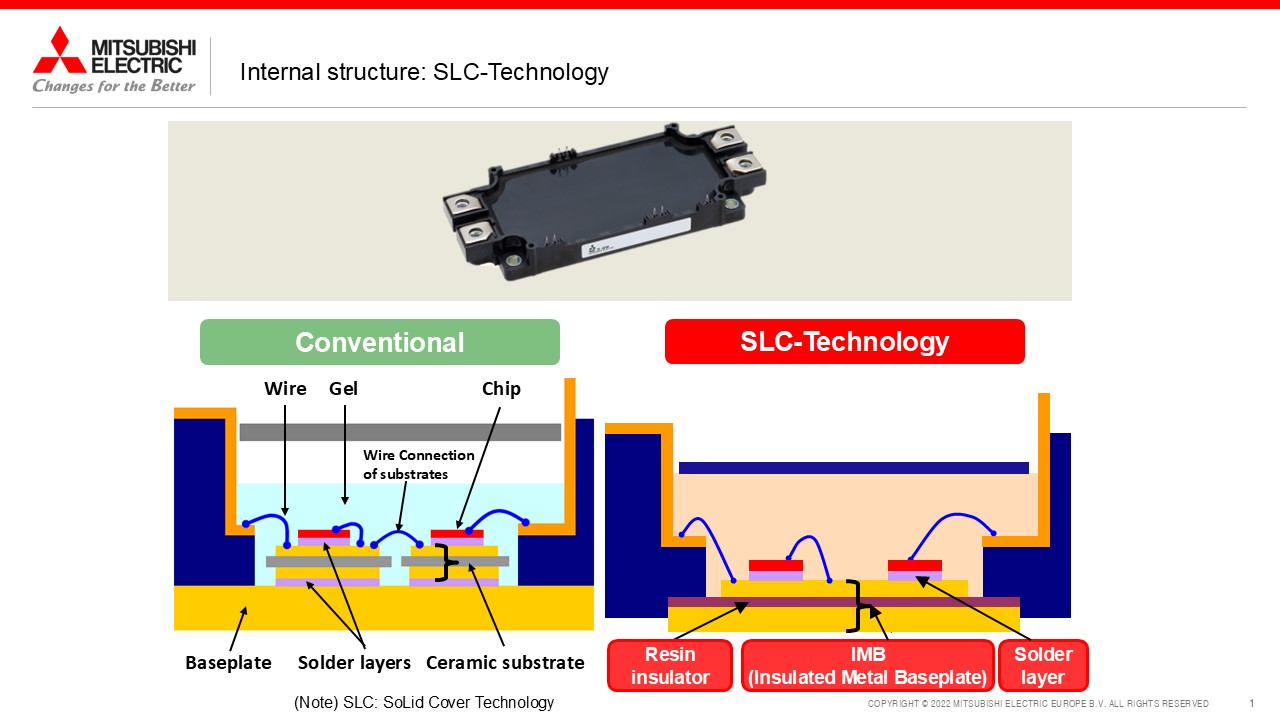

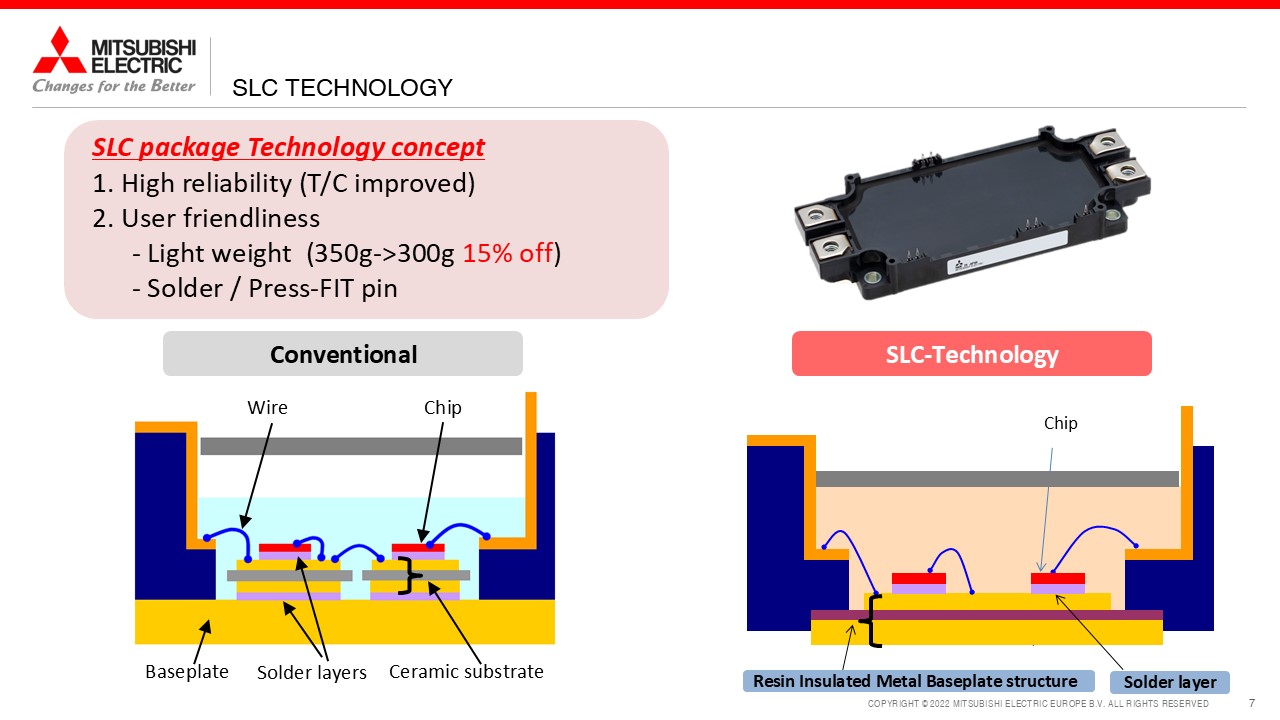

  • High Reliability by improved thermal cycle capability with SLC-Technology
  • Pre applied PC-TIM available

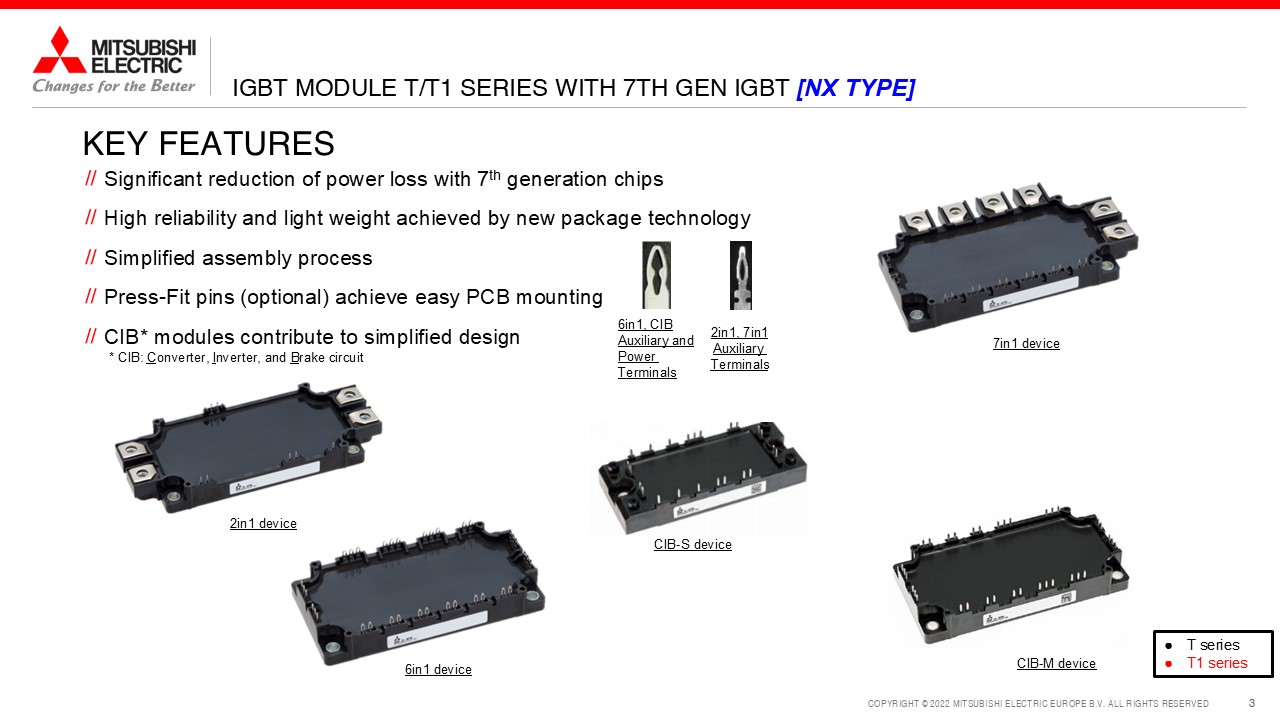

  • Optional press-fit or solder pin terminals available for optimized assembly processes
  • High temperature operation with Tvjmax = 175˚C junction temperature at overload events

Advantages

Attributes

Ratings:

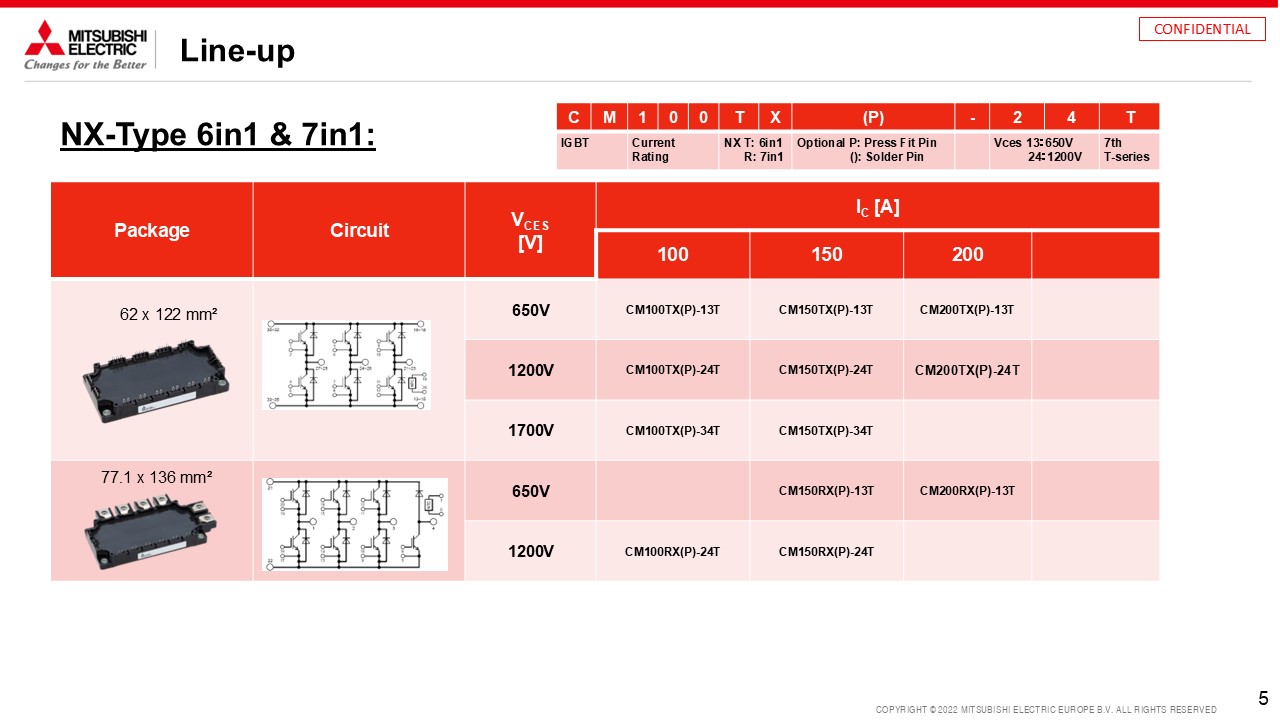

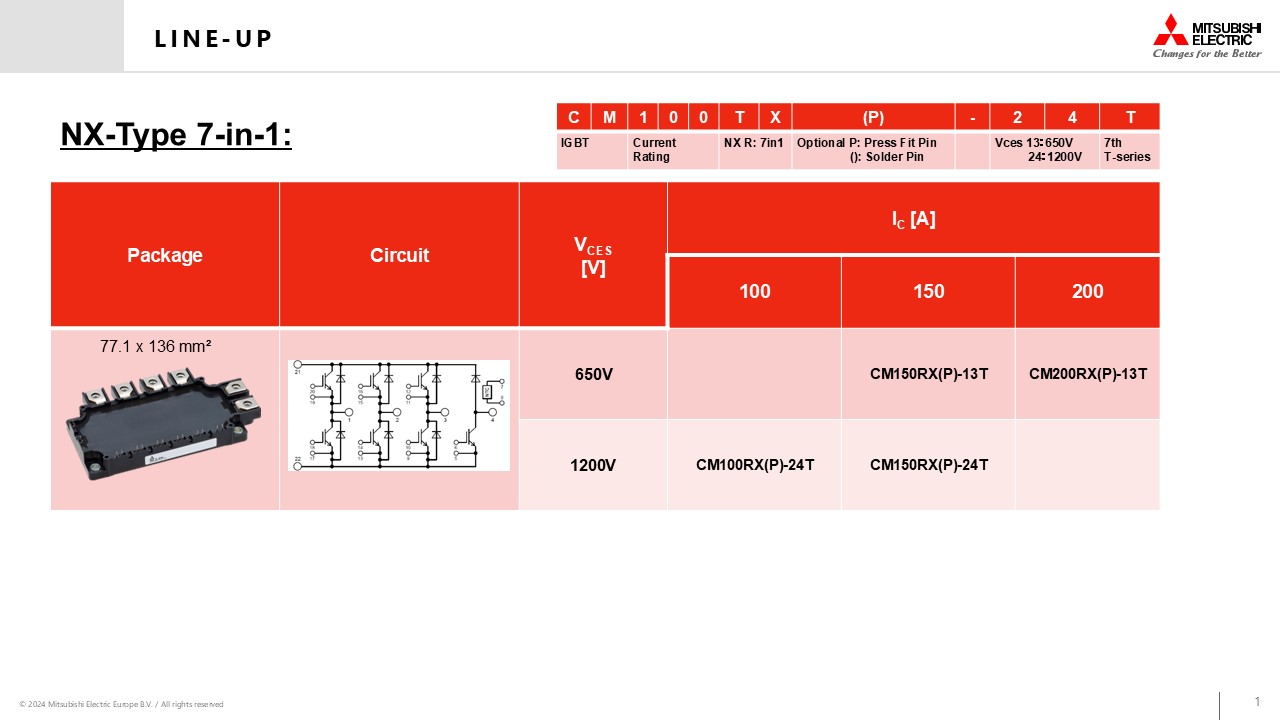

650 V : 150 A, 200 A
1200 V: 100 A, 150 A

Dimensions [mm]:

62 x 137 x 17

3D-Model

Videos

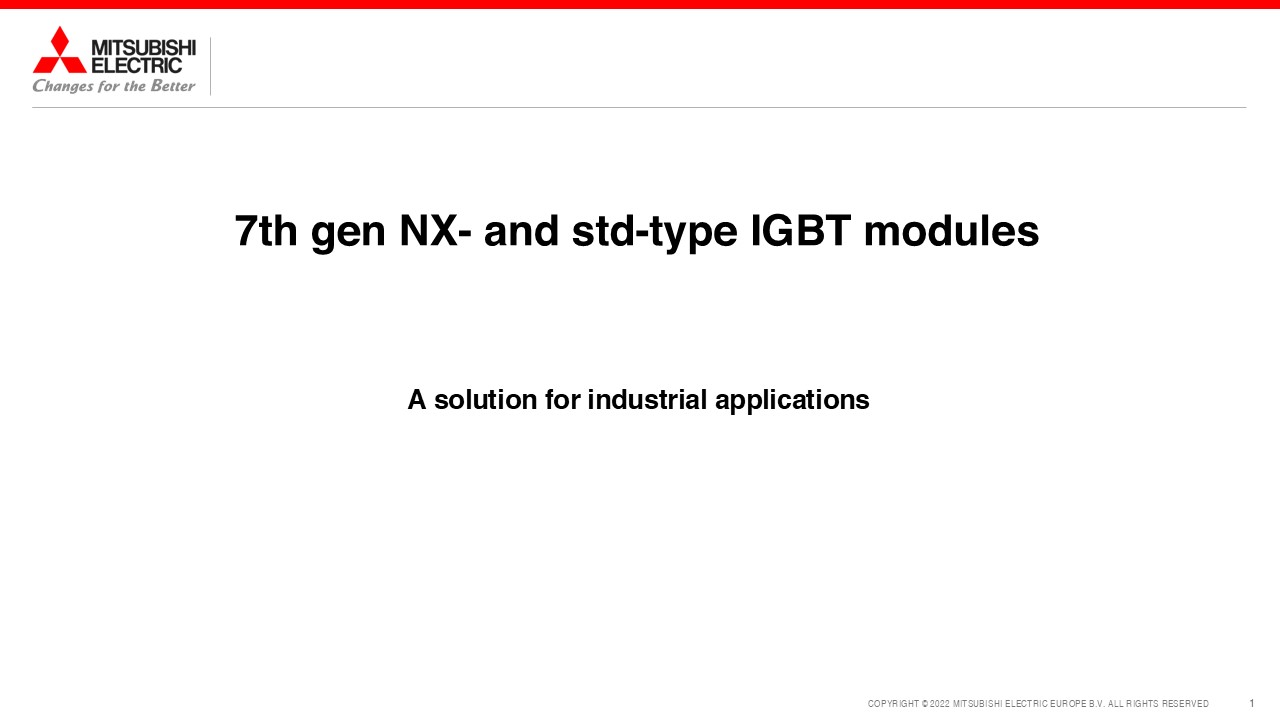

7th gen NX- and std-type IGBT modules: A solution for industrial applications
