Advantages

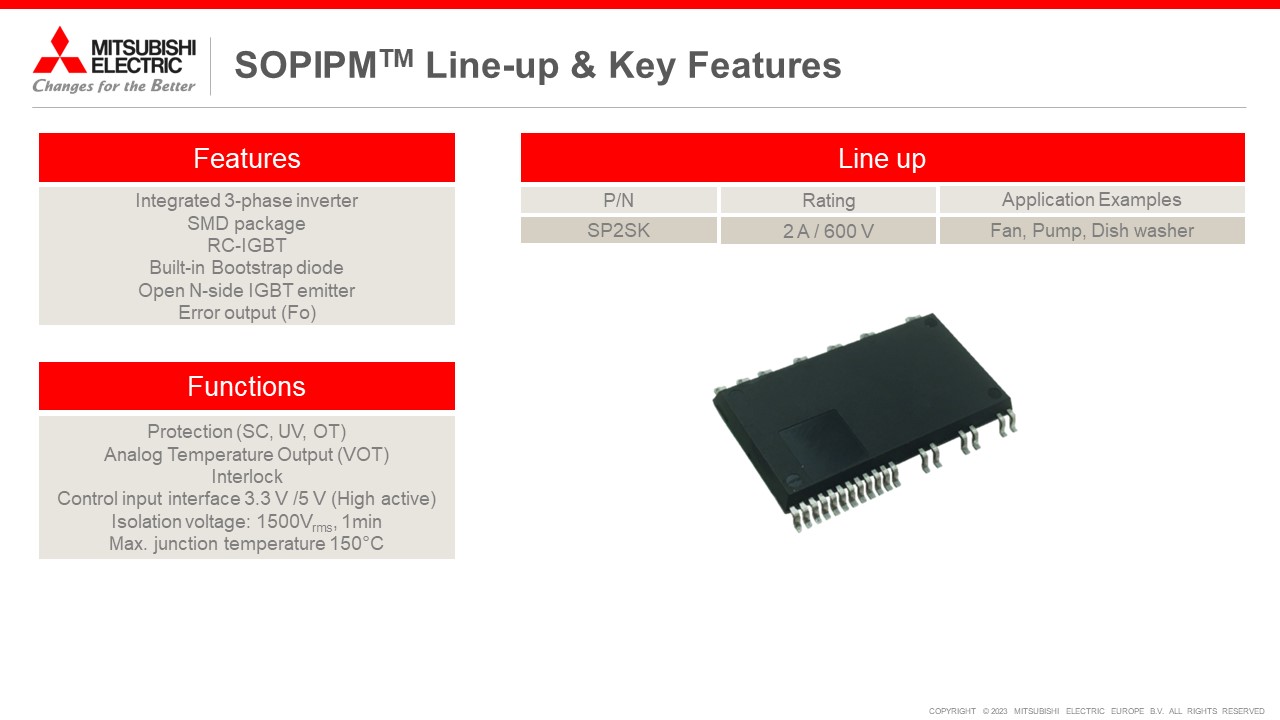

  • SMD type IPM with RC-IGBT chip technology
  • Integrated bootstrap diode (BSD) & limiting-resistors
  • Short circuit protection through external shunt resistor

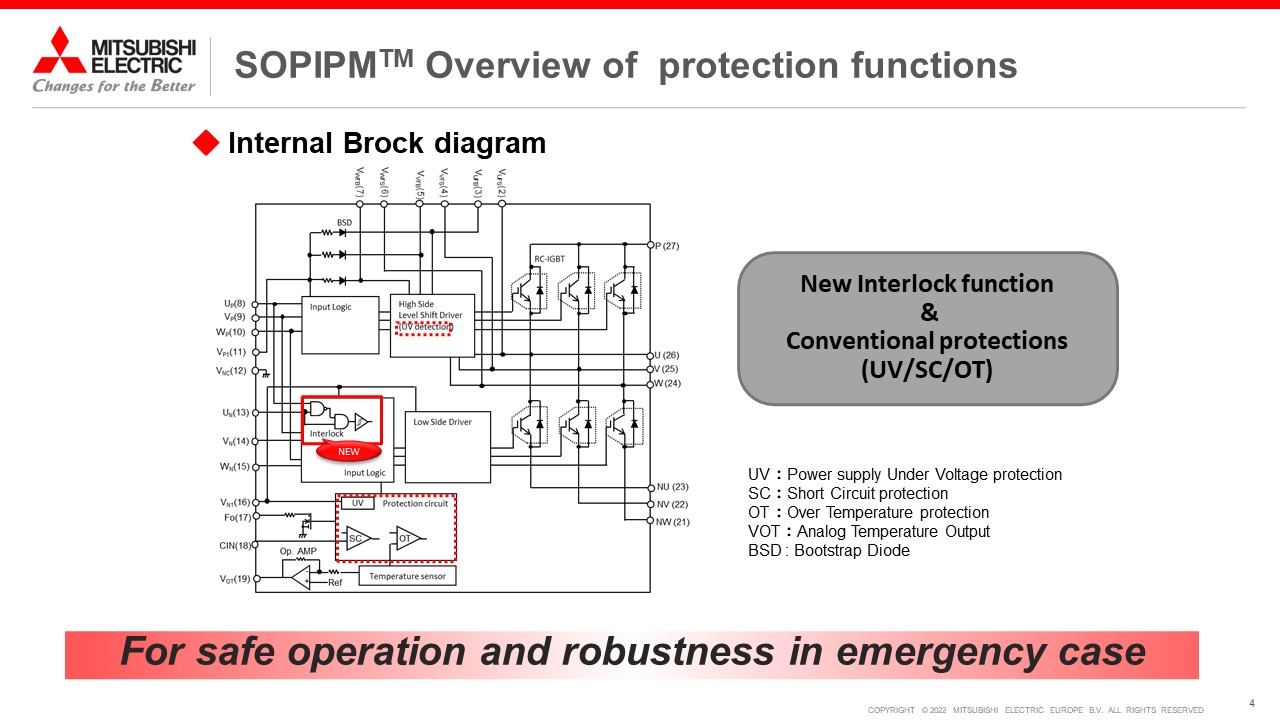

  • Power supply under-voltage protection : Fo output on N-side
  • Over Temperature protection
  • Analog temperature voltage signal output

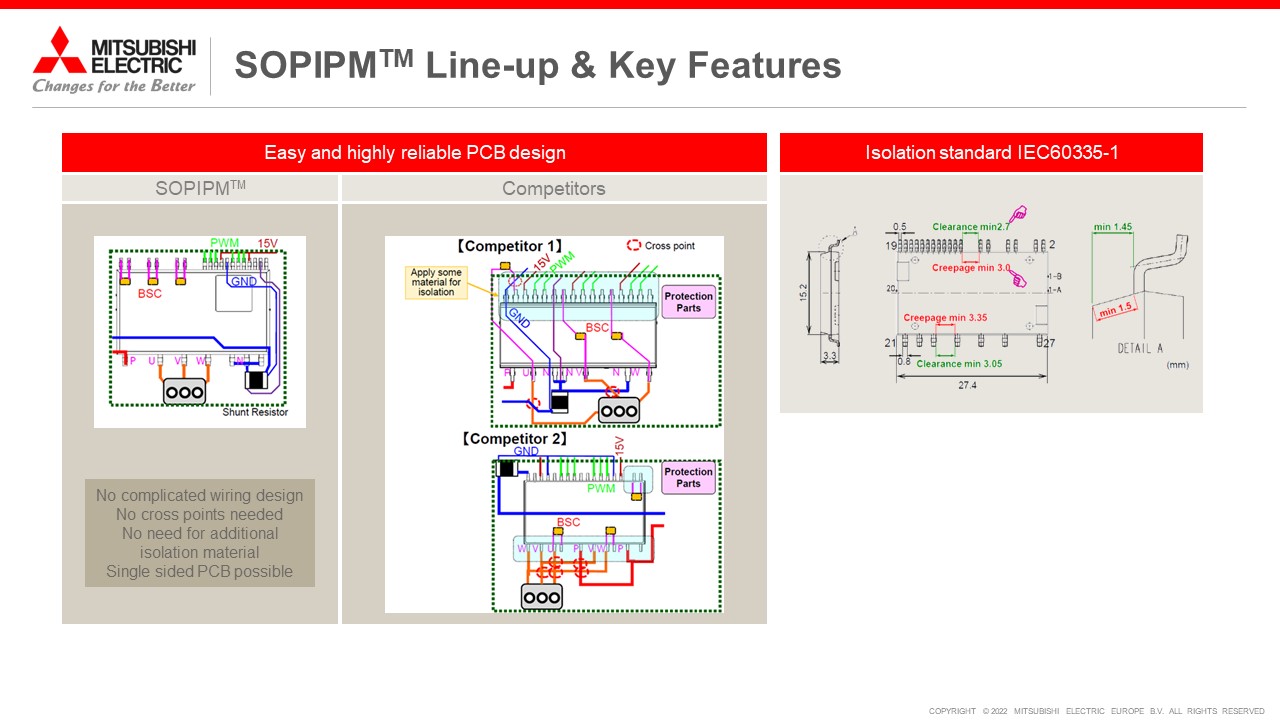

  • Optimal pin layout for easier & smaller PCB design

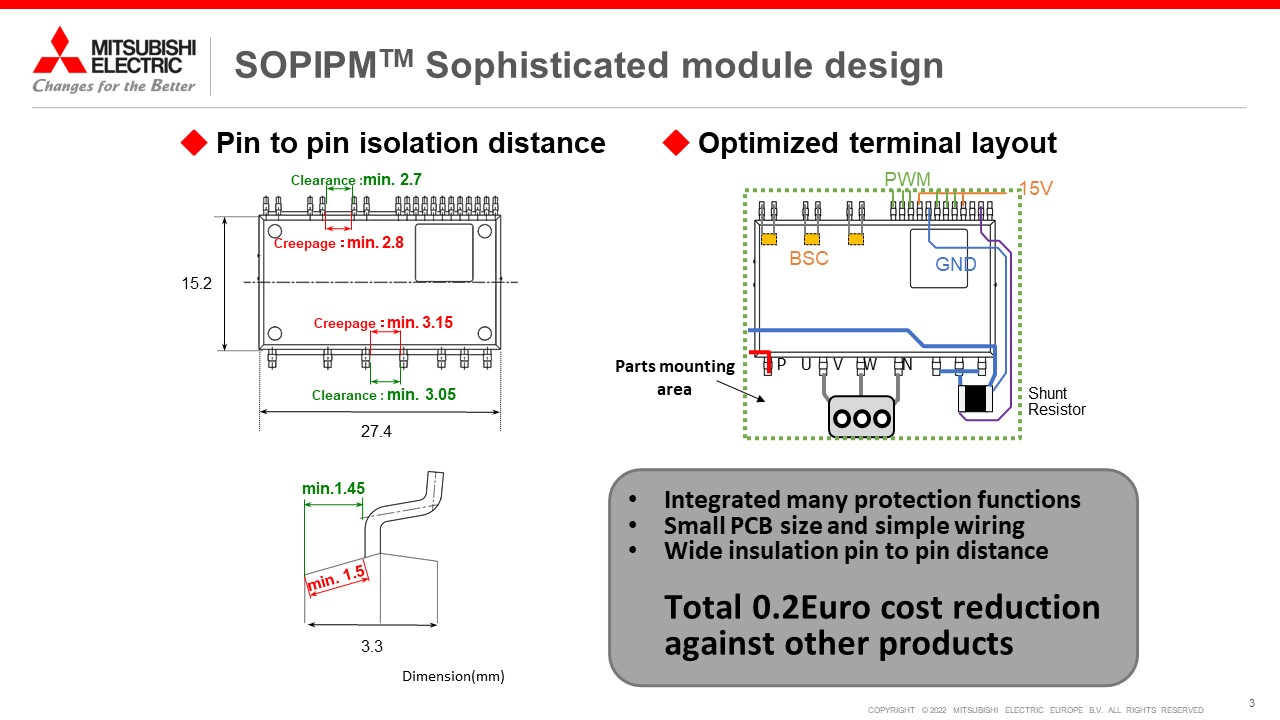

  • Ensured insulation distance for coating-less mounting
  • Interlock function

Attributes

Ratings:

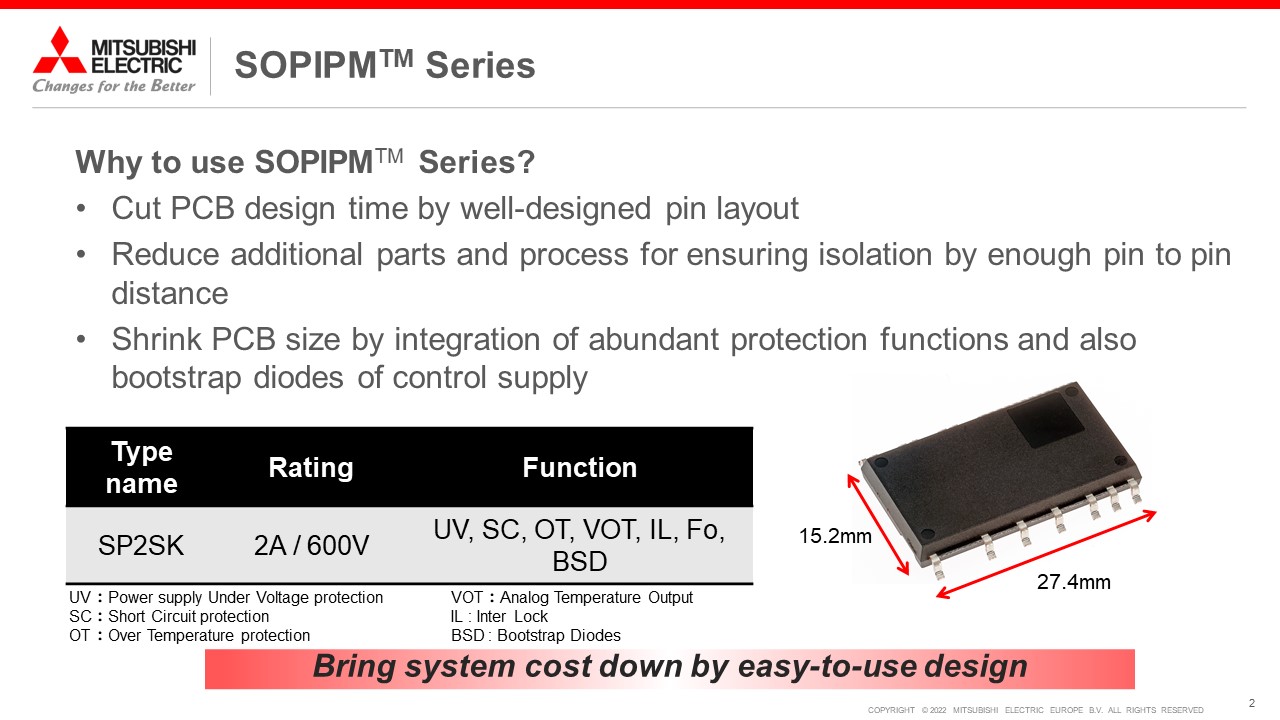

600 V : 2 A

Dimensions [mm]:

15.2 x 27.4 x 3.3
