Advantages

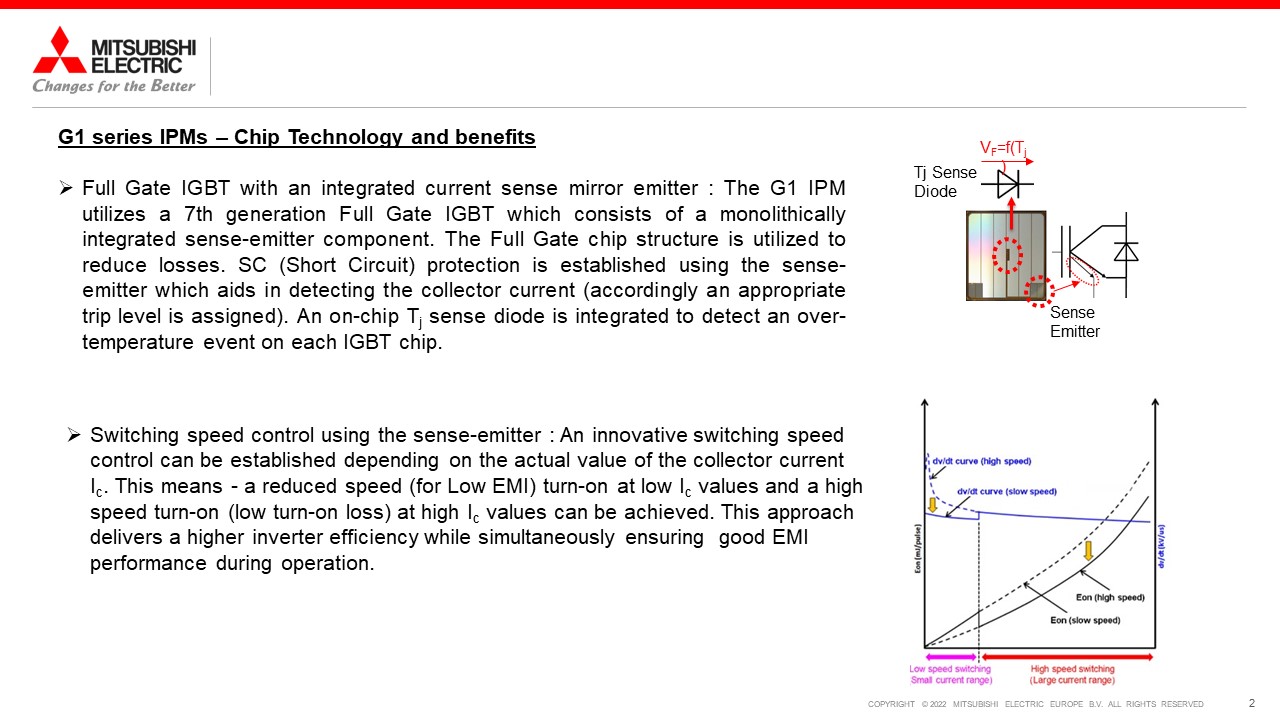

  • Low-loss 7th generation Full Gate IGBT

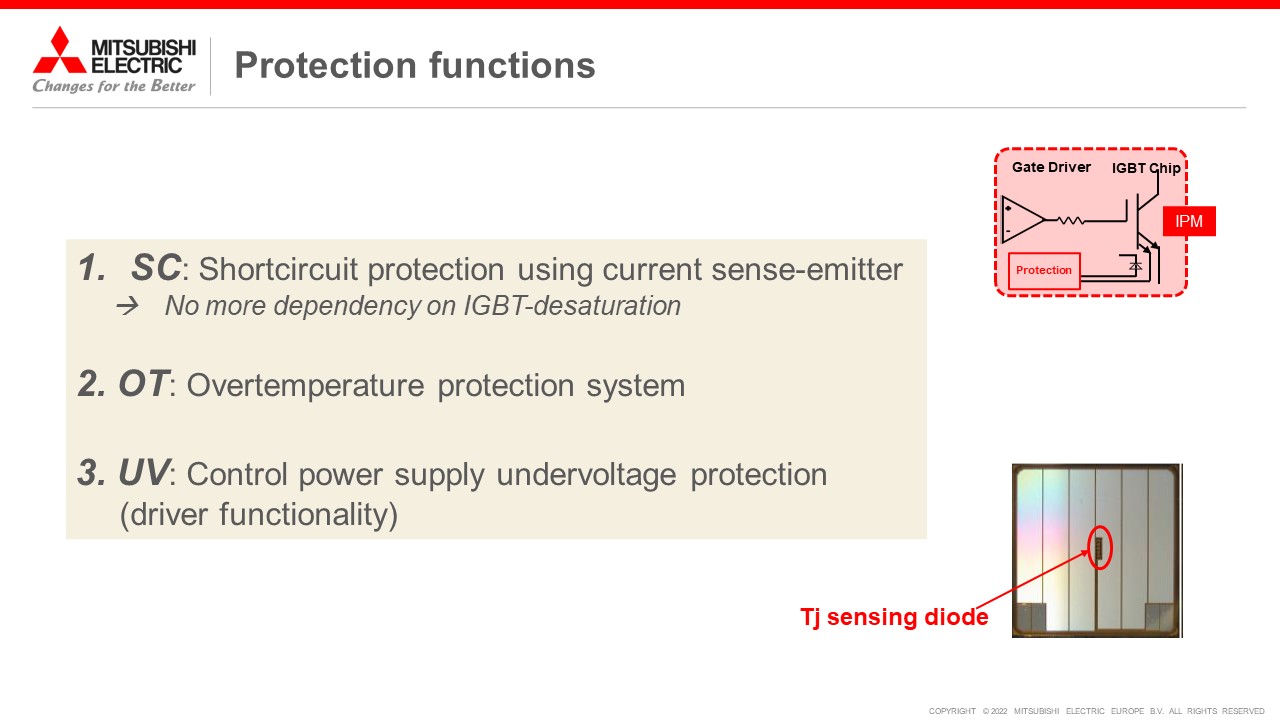

  • Advanced internal drive circuit with integrated protection functions

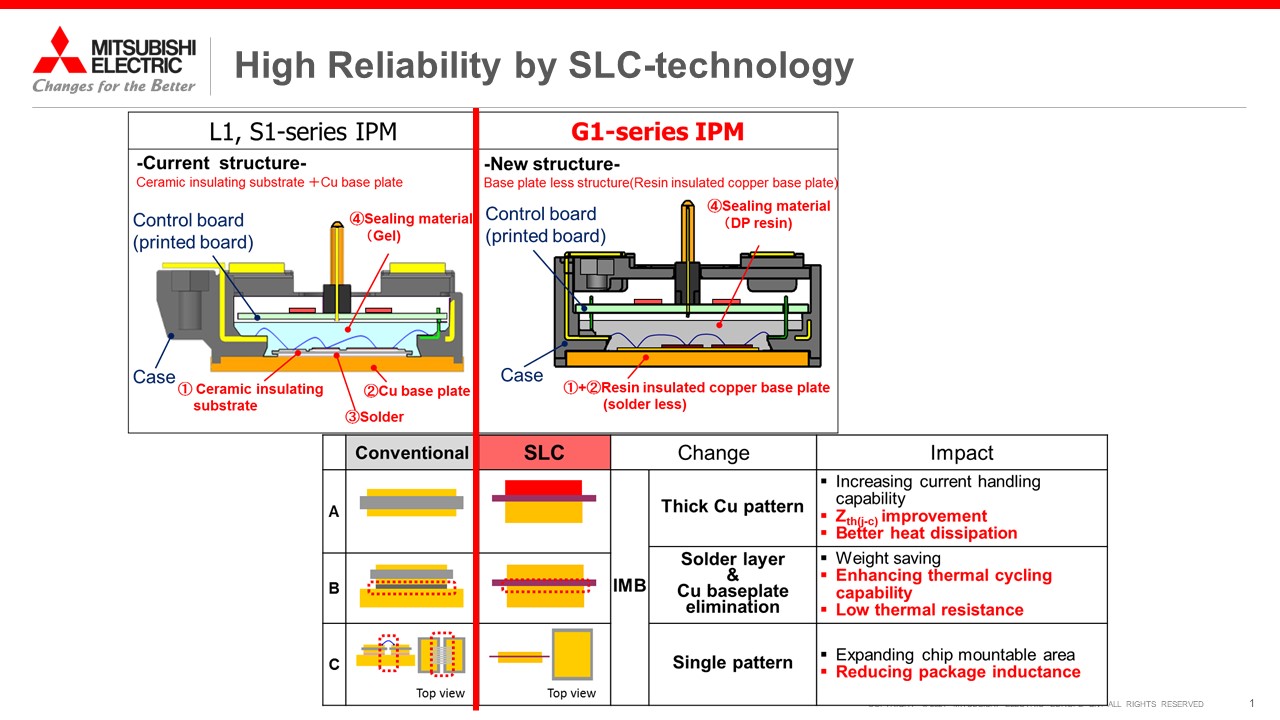

  • High reliability using a new package technology

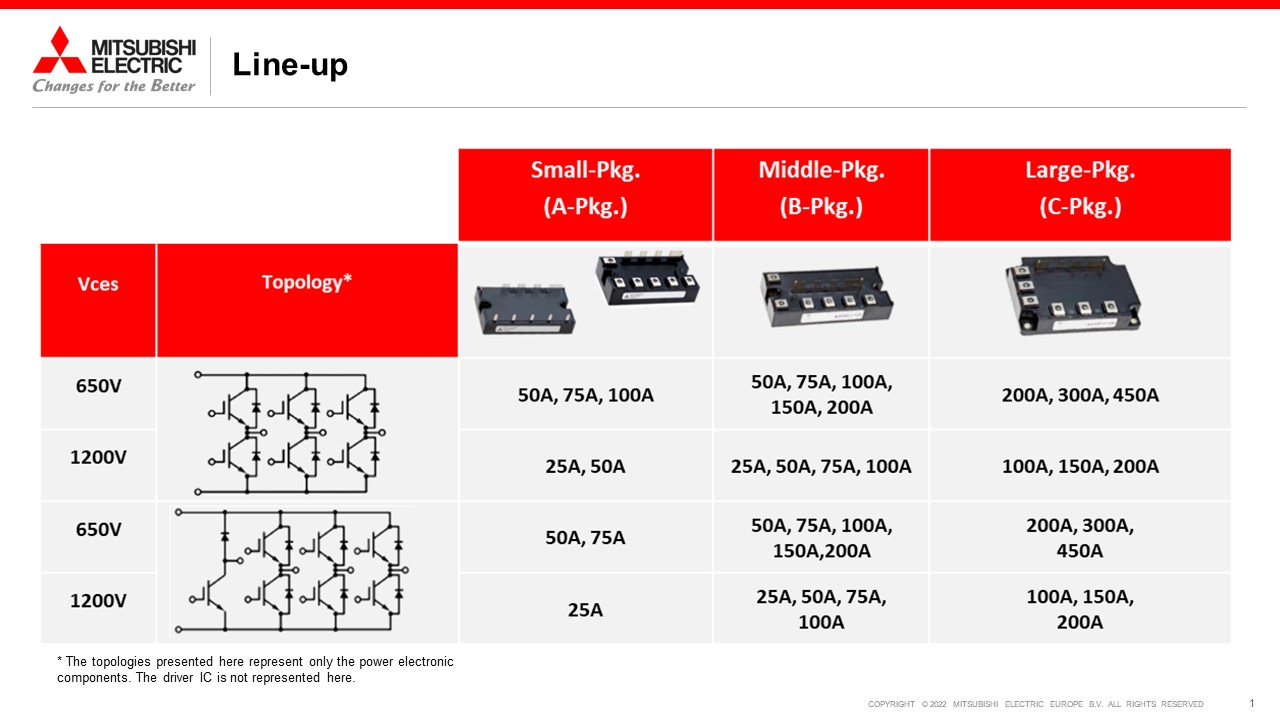

  • Line-up with multiple packages, voltage levels and current levels

Attributes

Ratings:

650 V : 50 A, 75 A, 100 A
1200 V: 25 A, 35 A, 50 A

Dimensions [mm]:

90 x 50 x 17

Downloads

3D-Model

Presentations

Videos

YouTube Logo

We need your consent to load the Youtube service!

We use a third party service to embed video content that may collect data about your activity.
Please review the details and accept the service to watch this video.

This content is not permitted to load due to trackers that are not disclosed to the visitor.
The website owner needs to setup the site with their CMP to add this content to the list of technologies used.

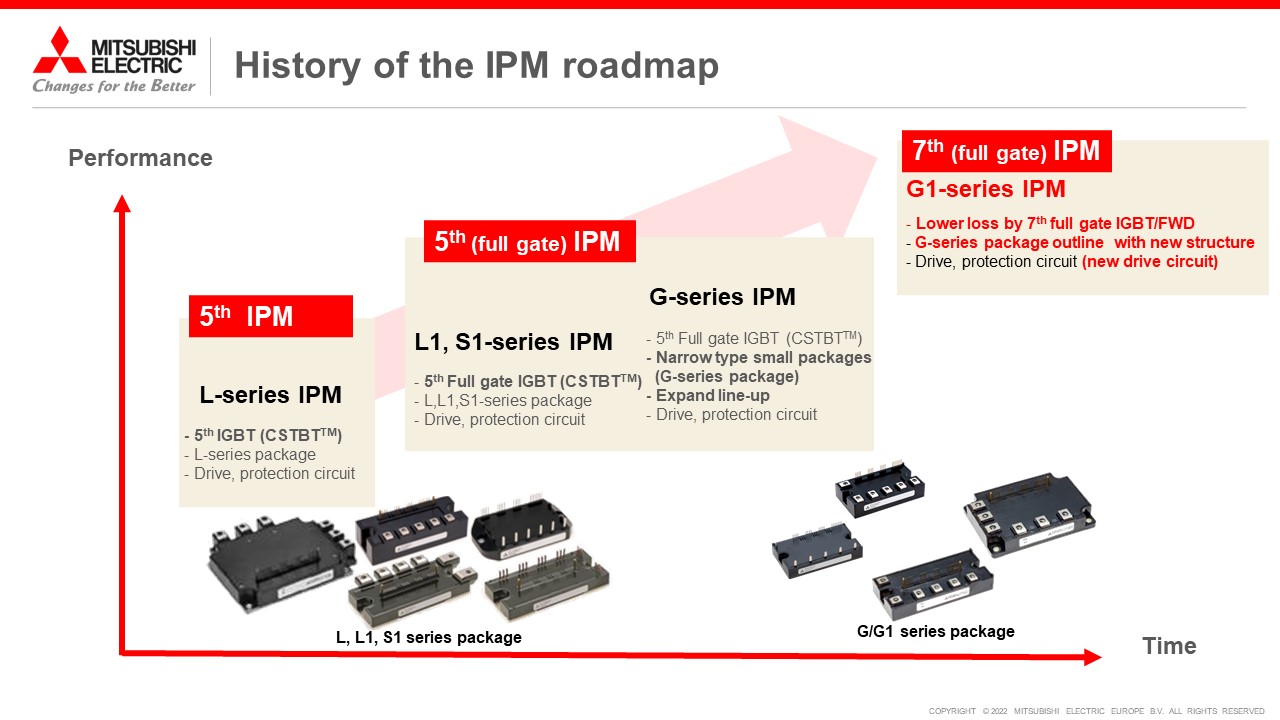

G1 series Intelligent Power Module: High reliability, high performance and easy design - achieved using the G1 IPM

G1 series Intelligent Power Module: High reliability, high performance and easy design - achieved using the G1 IPM
