Advantages

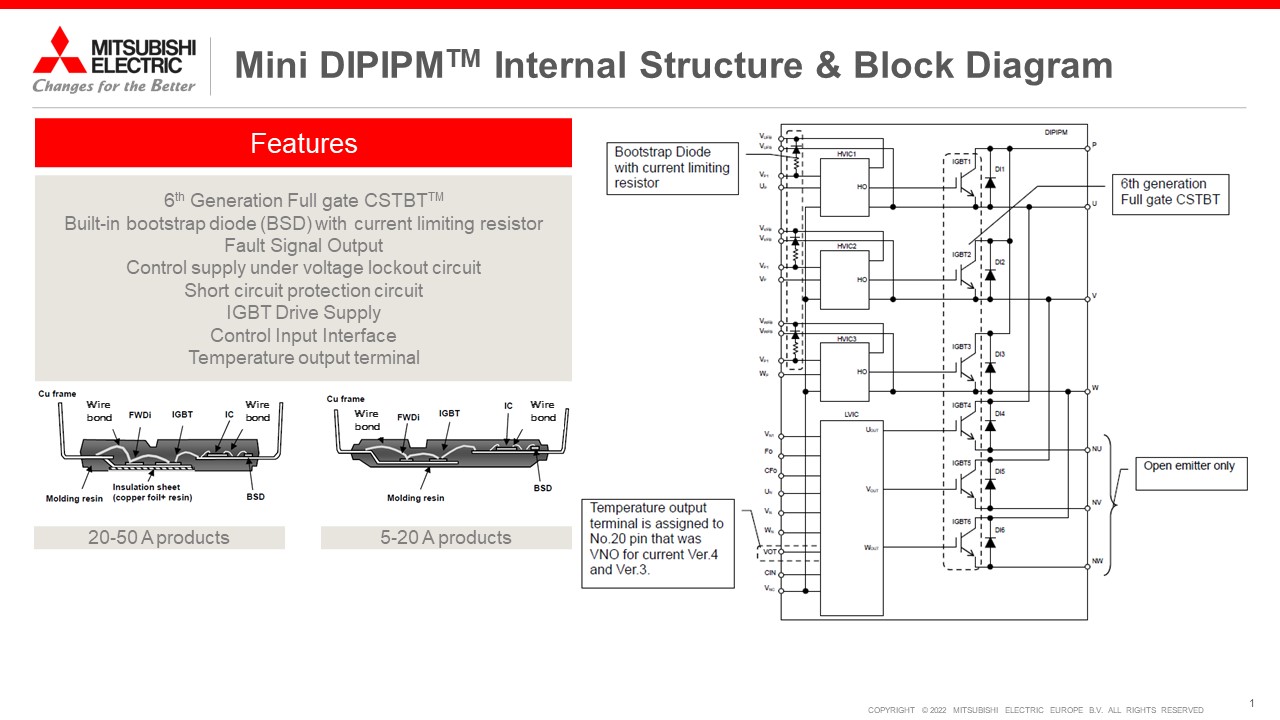

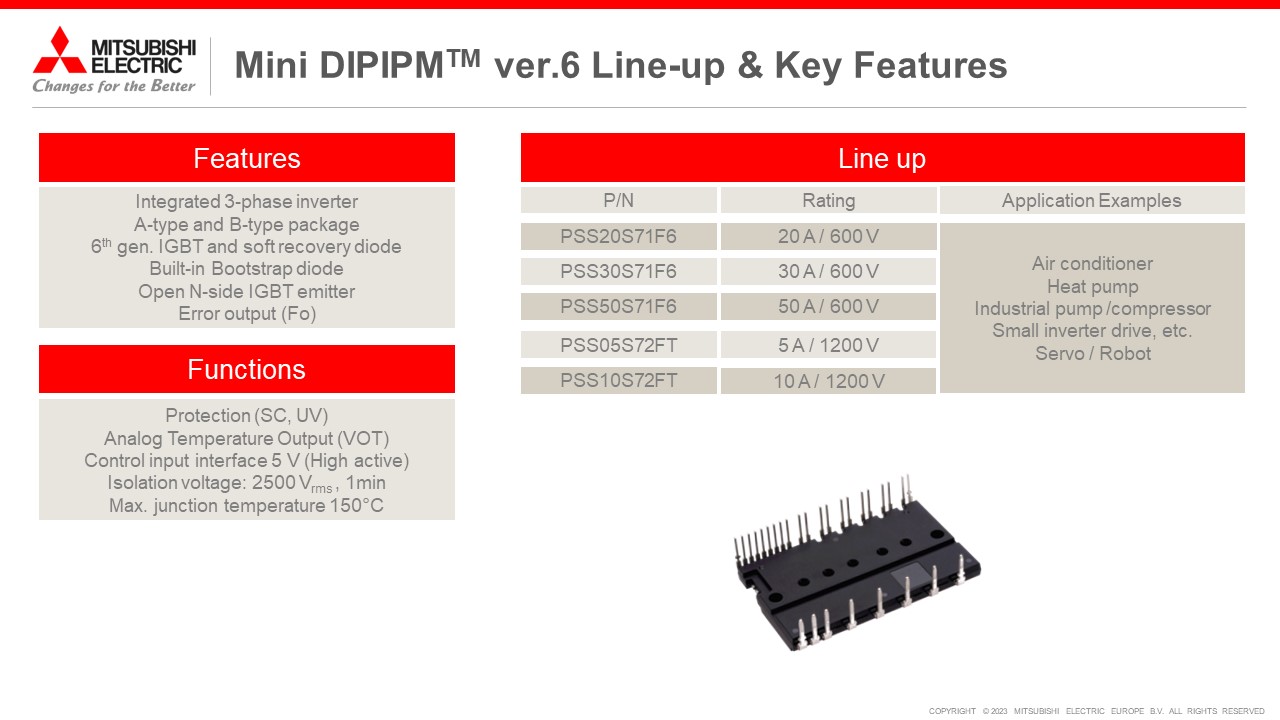

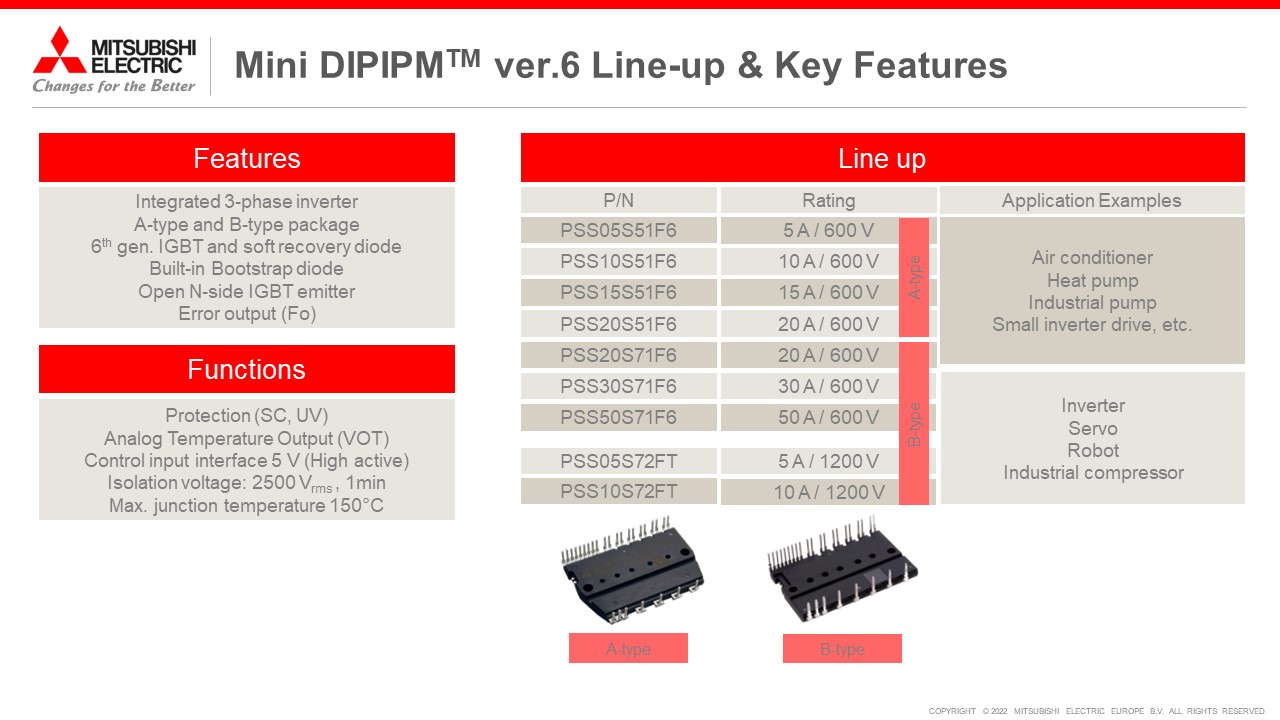

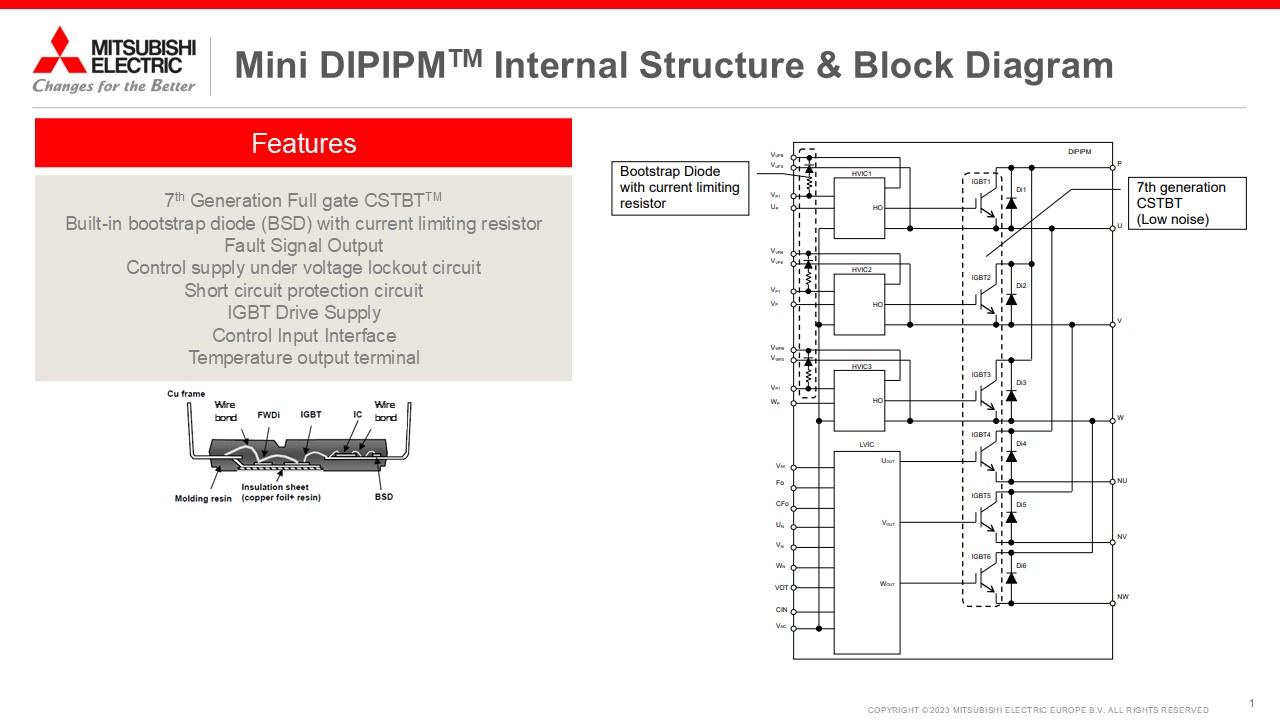

  • Integrated 3-phase inverter (6-in-1)
  • 7th generation IGBT and soft recovery diode (Noise reductuion)
  • Integrated driver ICs with protective functions (SC, UV, OT, Fo)
  • Temperature information (VOT)
  • Built-in Bootstrap diode
  • Isolation voltage: 2500Vrms AC, 1min
  • Max. junction temperature Tj=150°C

Attributes

Ratings:

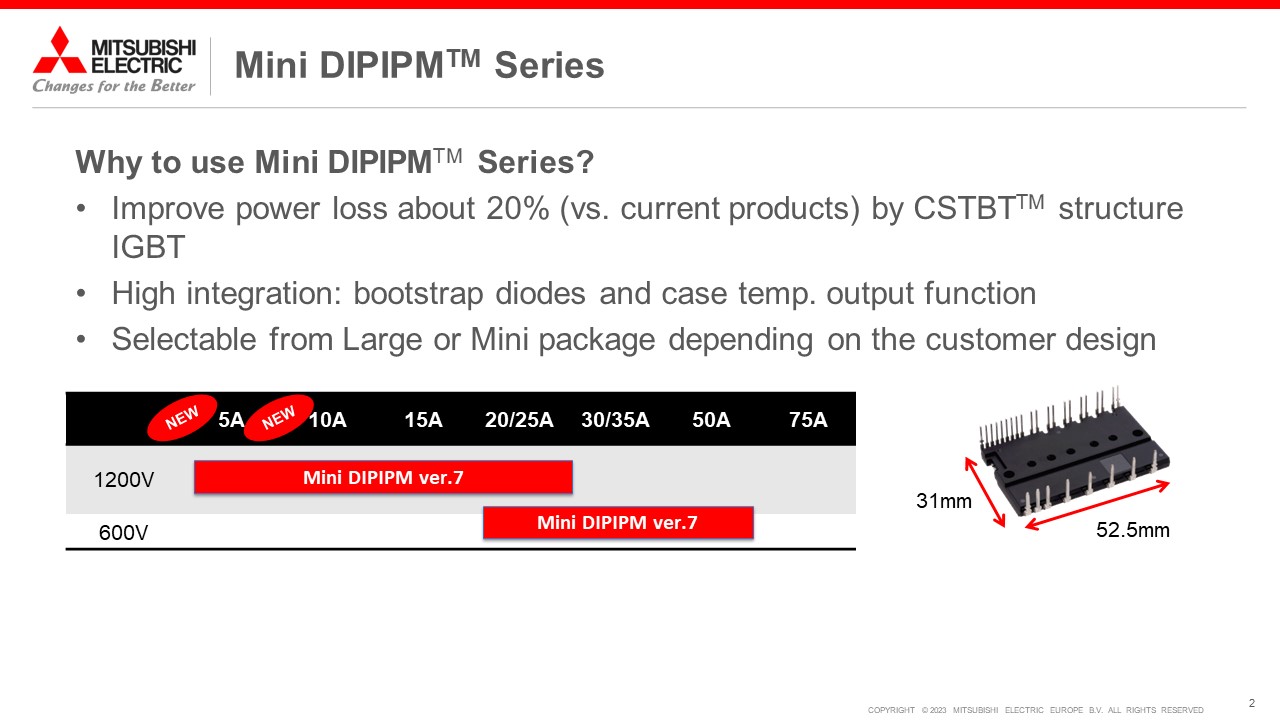

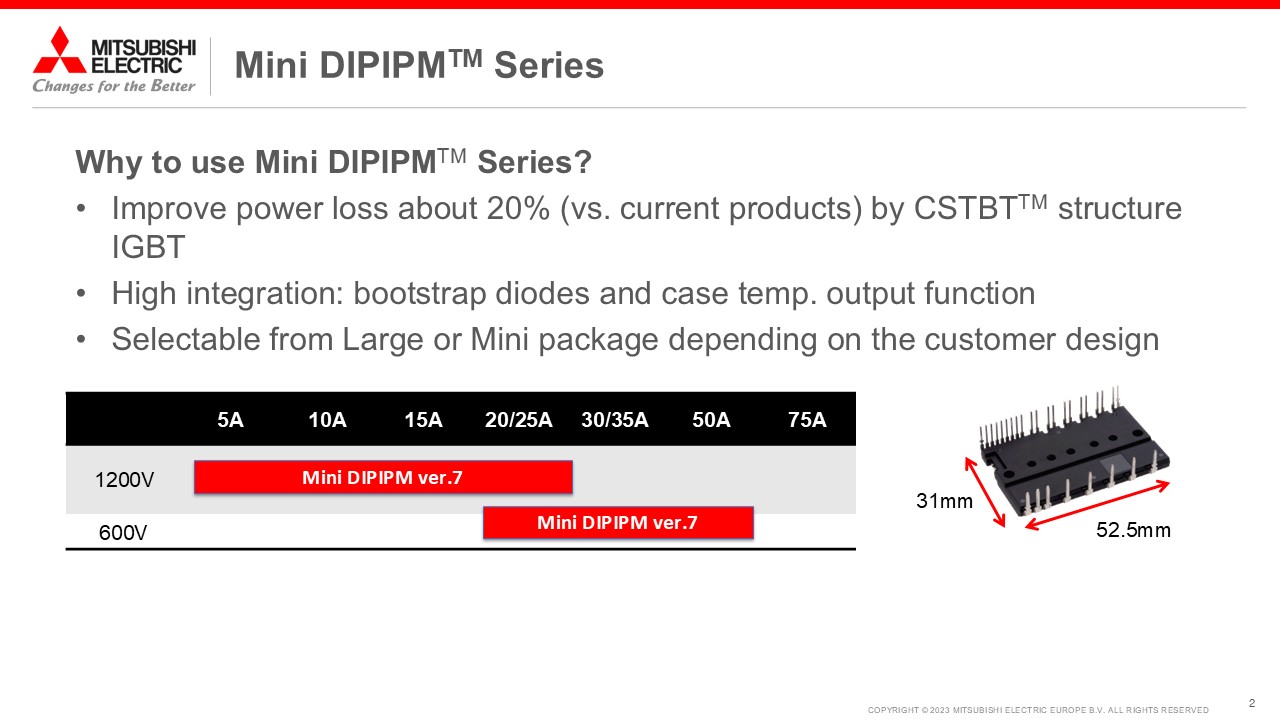

600 V : 5 A, 10 A, 15 A, 20 A, 30 A, 50 A
1200 V : 5 A , 10 A

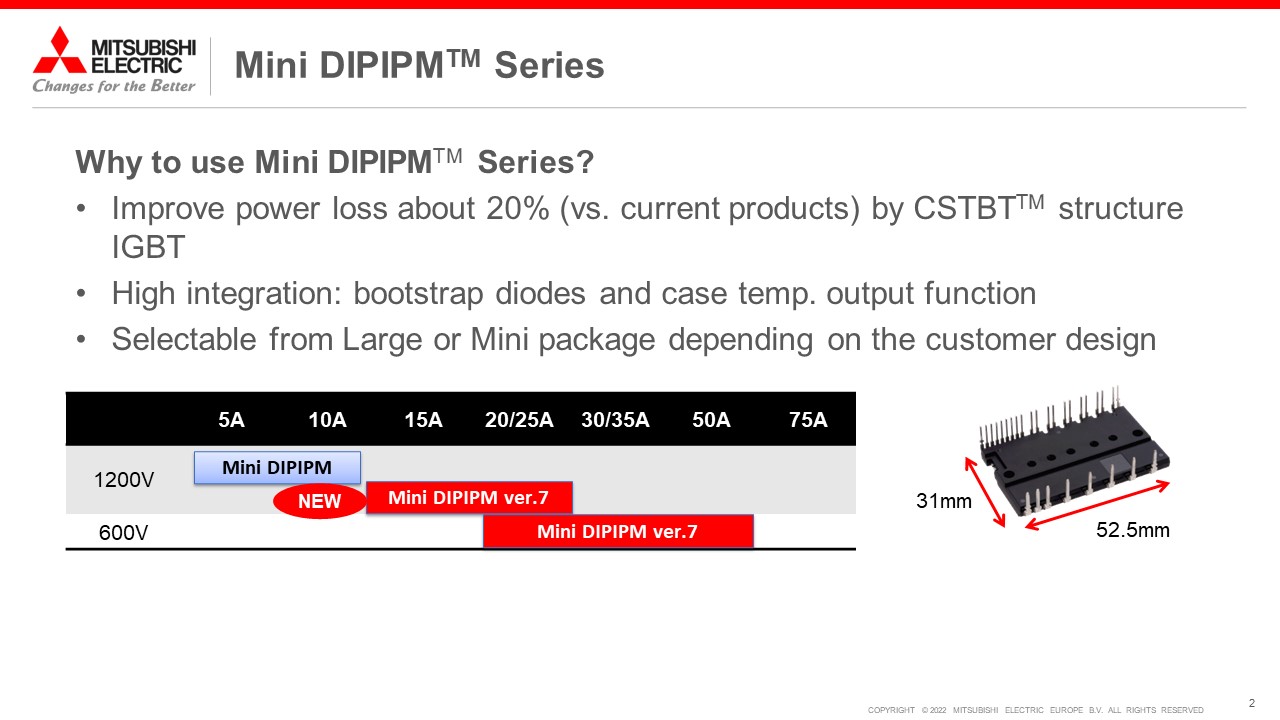

Dimensions [mm]:

31 x 52.5 x 5.6
