7^th Gen. IGBT CIB Module NX-M pkg.

Discover our Power Modules

Advantages

High efficiency by latest 7th Gen. IGBT Technology

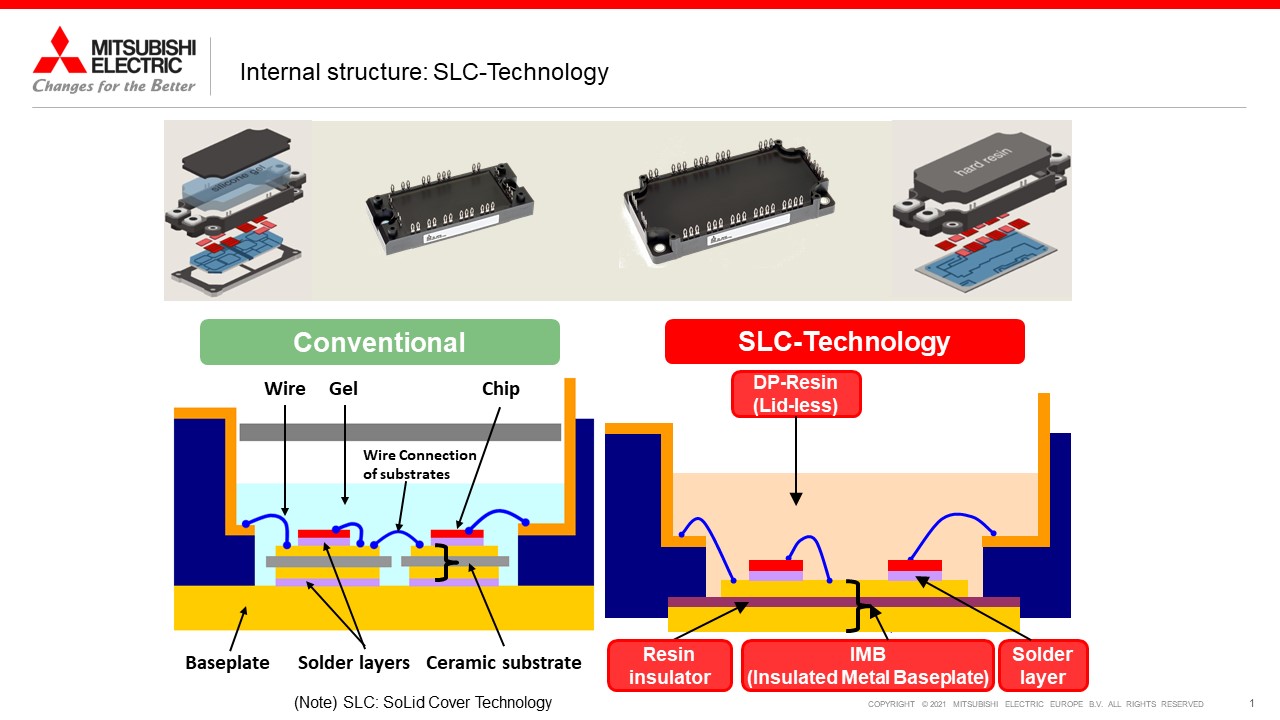

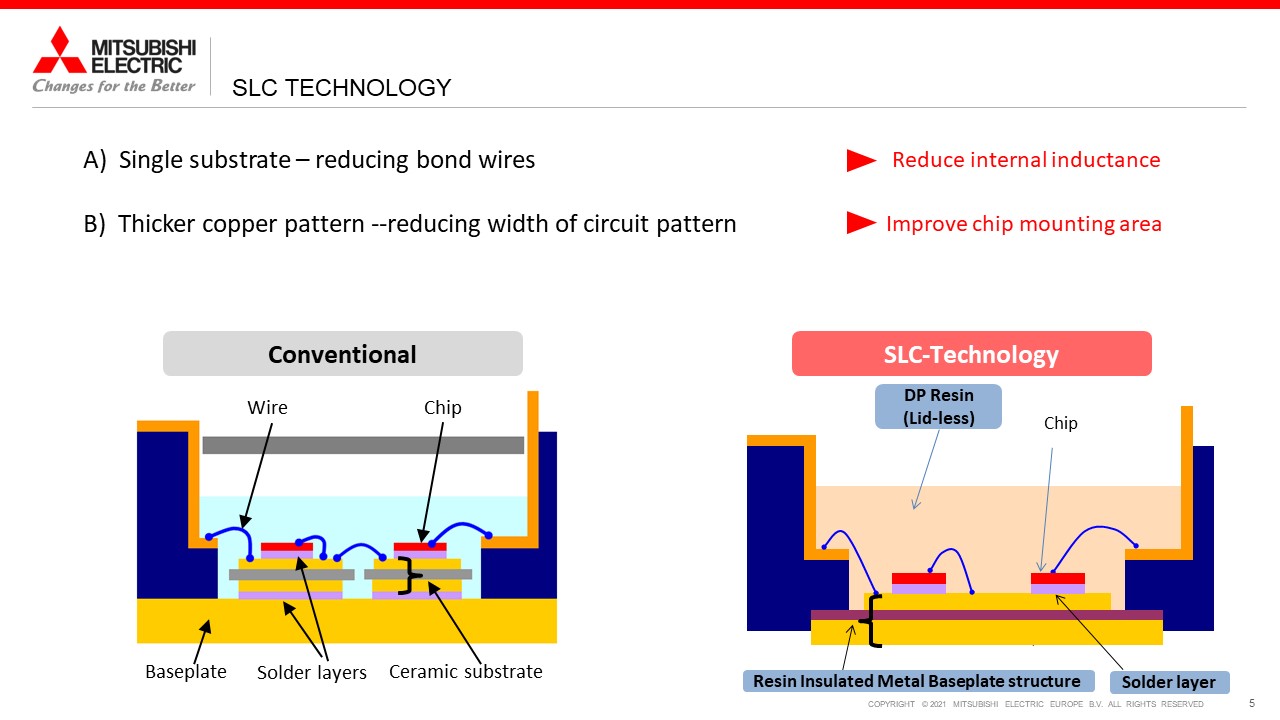

High Reliability by improved thermal cycle capability with SLC-Technology
Pre applied PC-TIM available
Optional press-fit or solder pin terminals available for optimized assembly processes
36% higher power density
High temperature operation with Tvjmax = 175˚C junction temperature at overload events

Attributes

Ratings:

650 V : 100 A, 150 A
1200 V: 75 A, 100 A, 150 A

Dimensions [mm]:

62 x 122 x 17

Downloads

3D-Model

Presentations

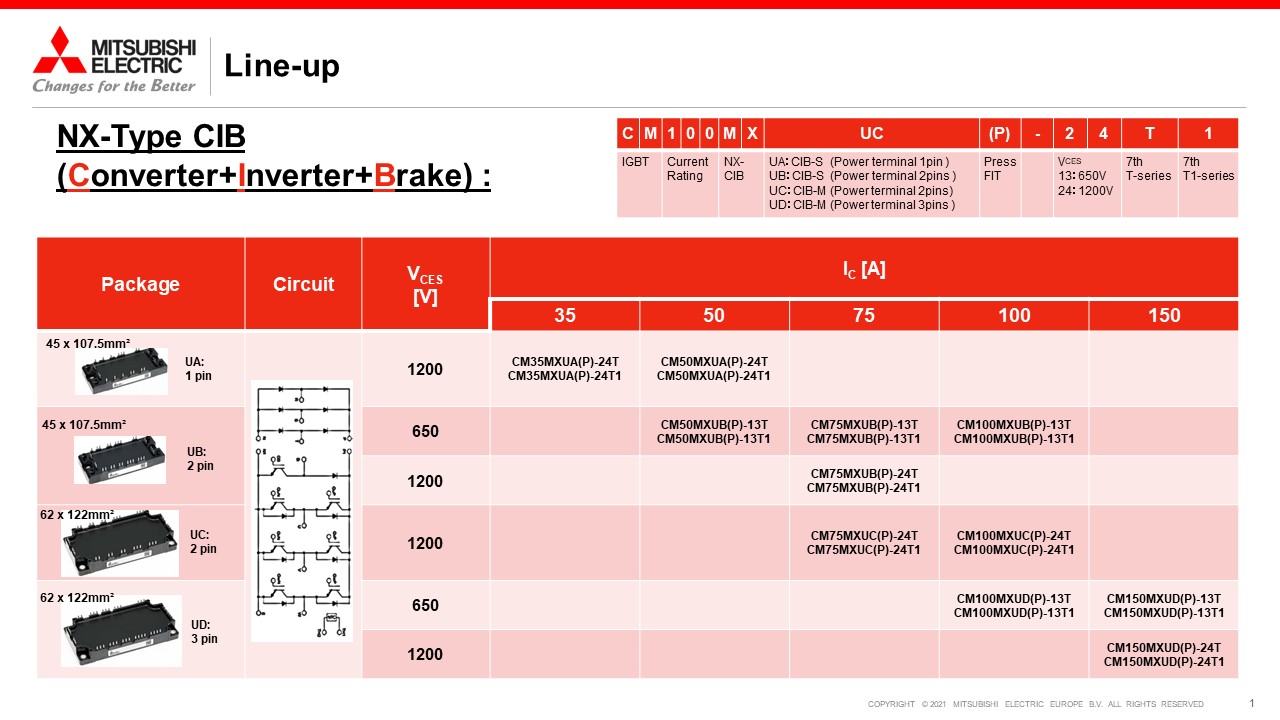

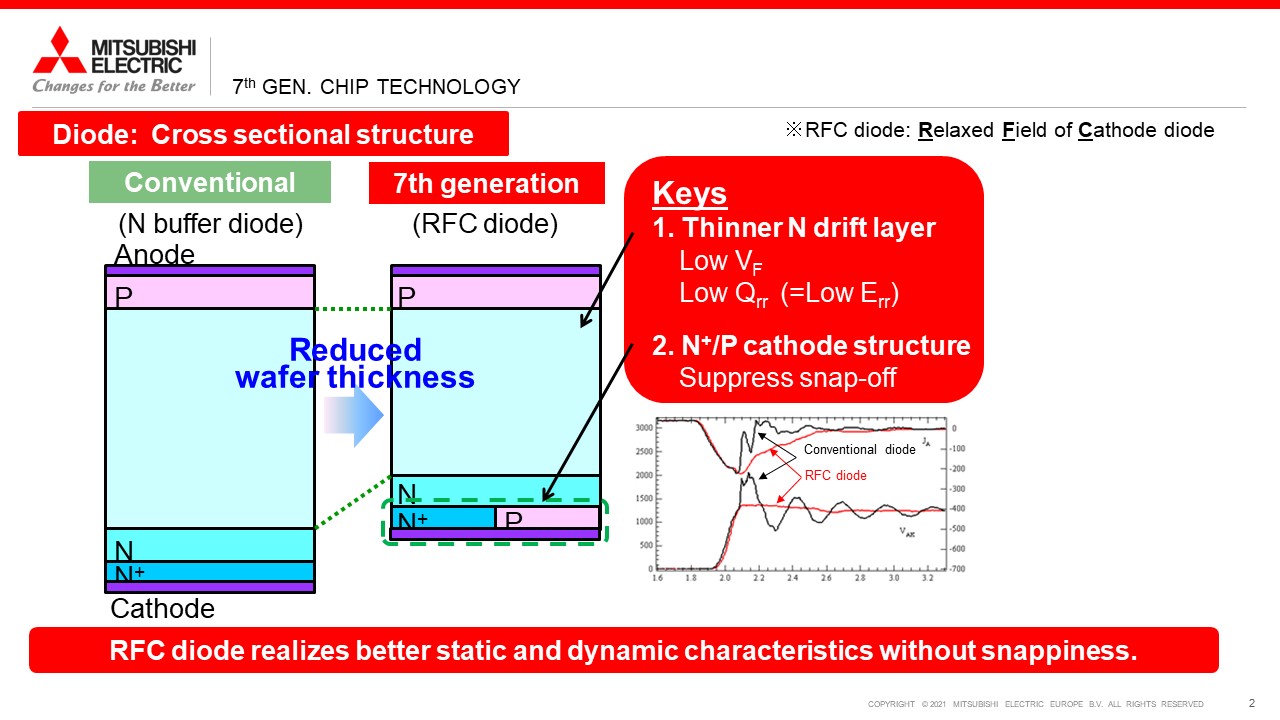

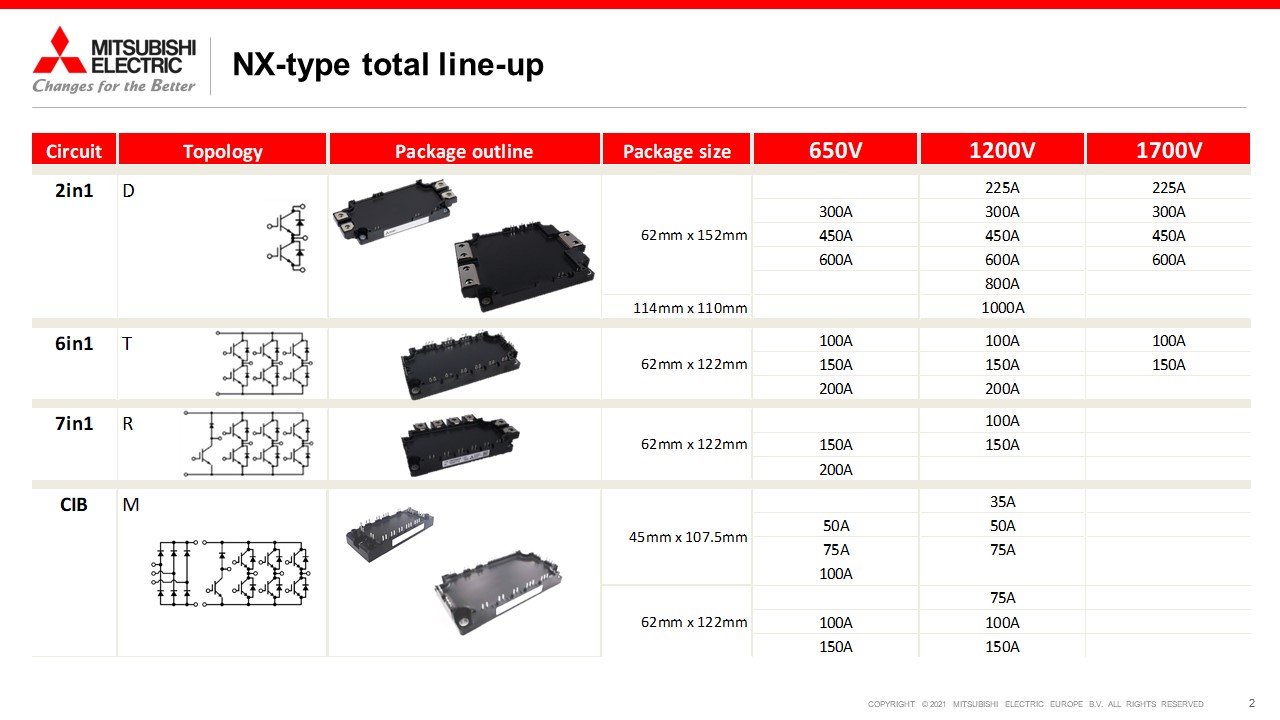

Line-up Chip Technology Internal Structure 7th Gen. NX-type IGBT Modules
