7th Gen. IGBT NX-L pkg. 2-in-1 Module - Mitsubishi Electric Semiconductor Website

Power Modules for Renewables / Industrial

7^th Gen. IGBT NX-L pkg. 2-in-1 Module

Discover our Power Modules

Advantages

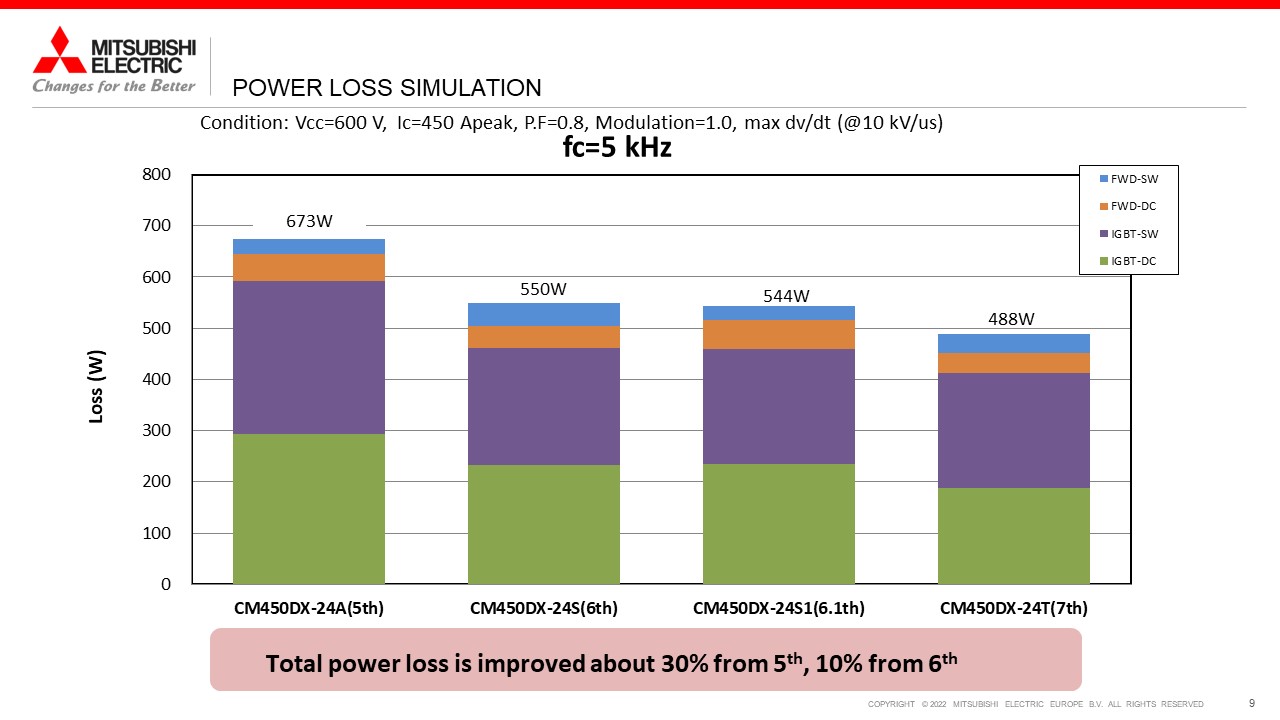

High efficiency by latest IGBT Technology

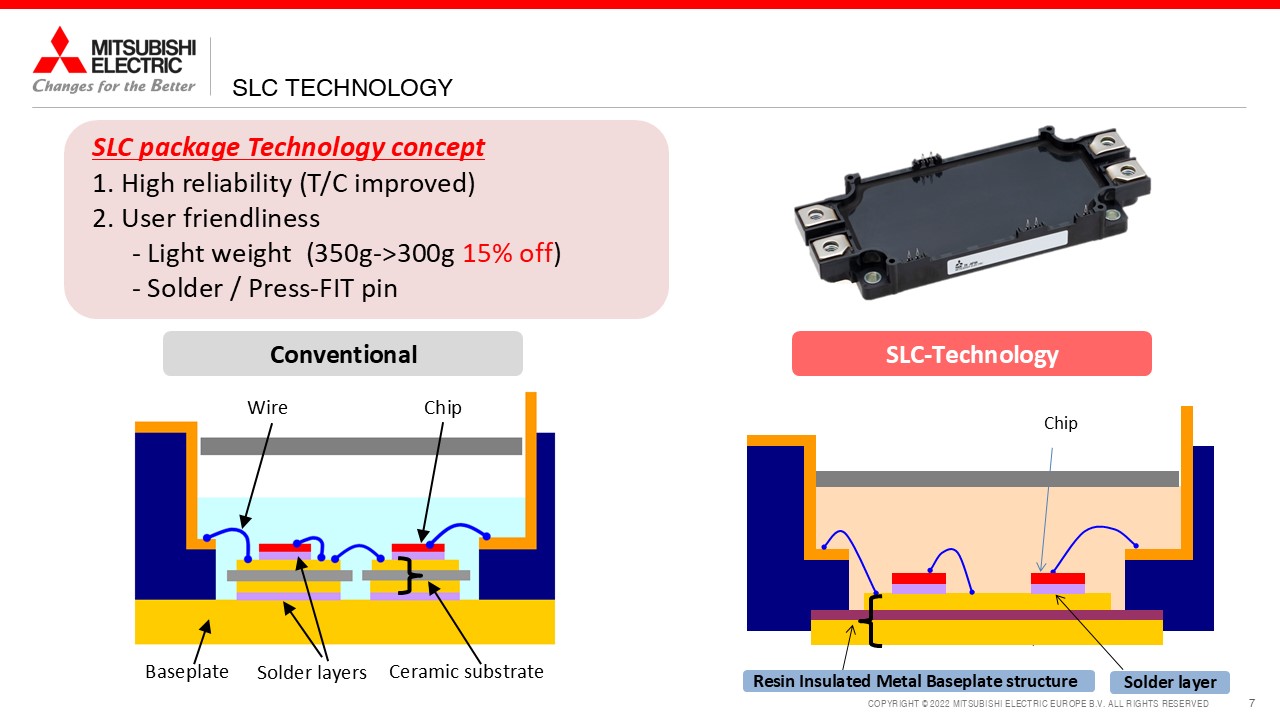

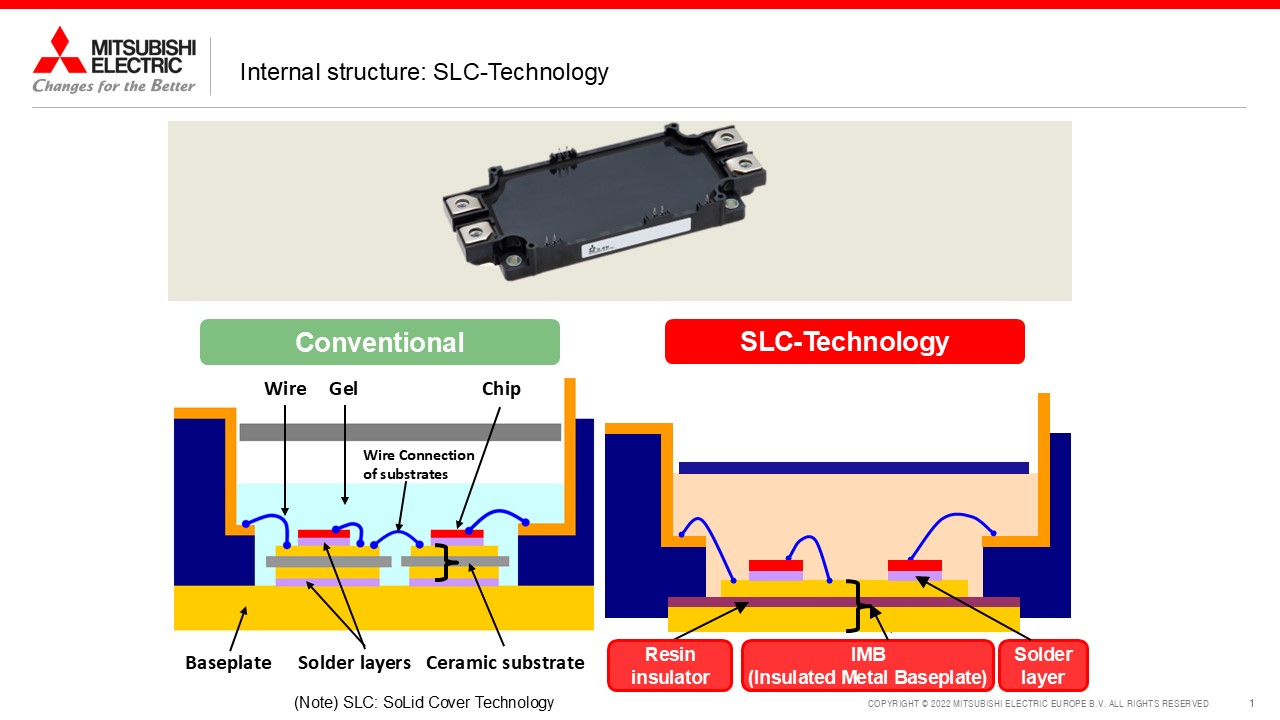

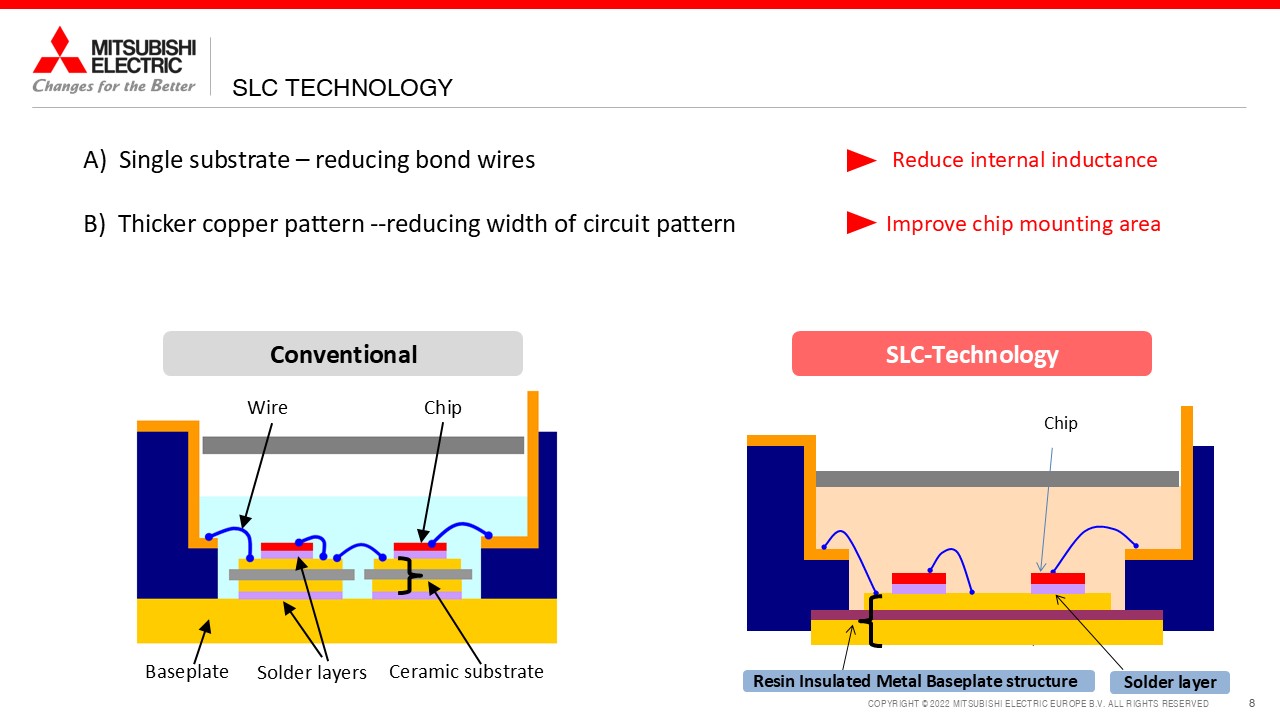

High Reliability by improved thermal cycle capability with SLC-Technology
Pre applied PC-TIM available
Optional press-fit or solder pin terminals available for optimized assembly processes
High temperature operation with Tvjmax = 175˚C junction temperature at overload events

Attributes

Ratings:

1200 V : 1000 A

Dimensions [mm]:

62 x 137 x 17

Downloads

Articles
Datasheets
- CM1000DX-24T/CM1000DXP-24T
Flyer
- IGBT Modules – NX-Type
Application Notes
Press Releases
- No press releases available for this product.

3D-Model

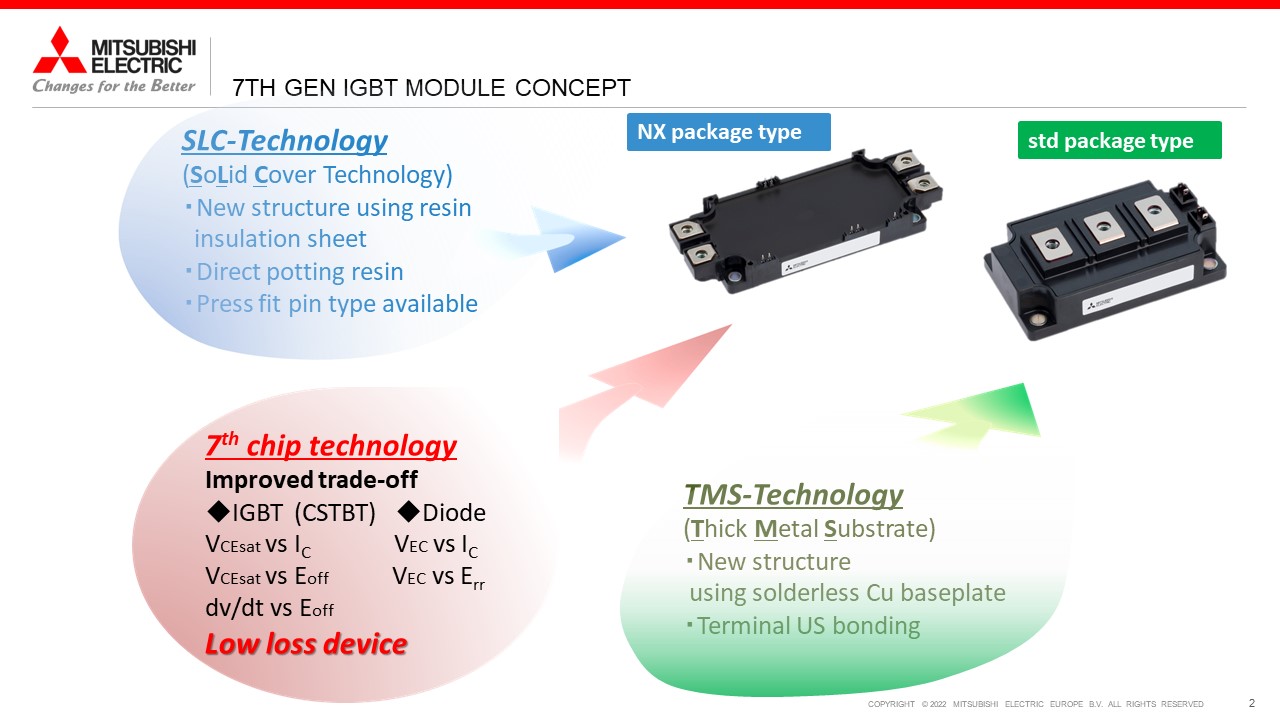

Presentations

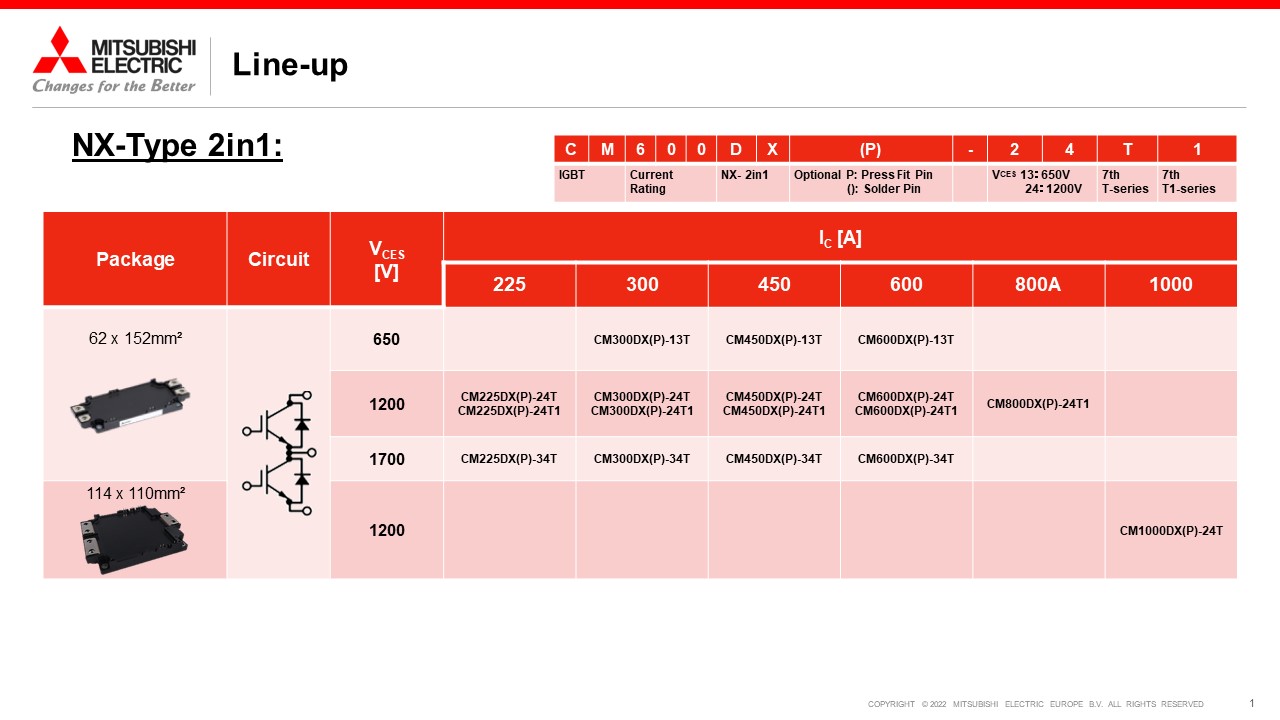

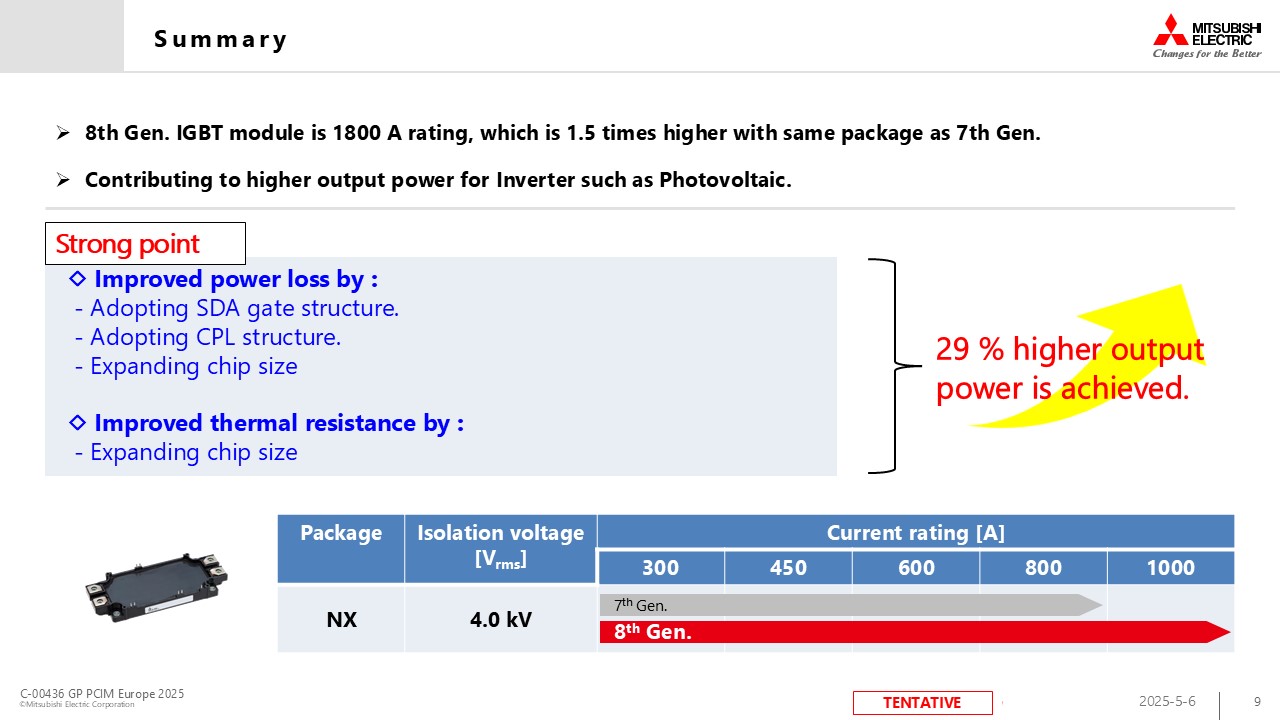

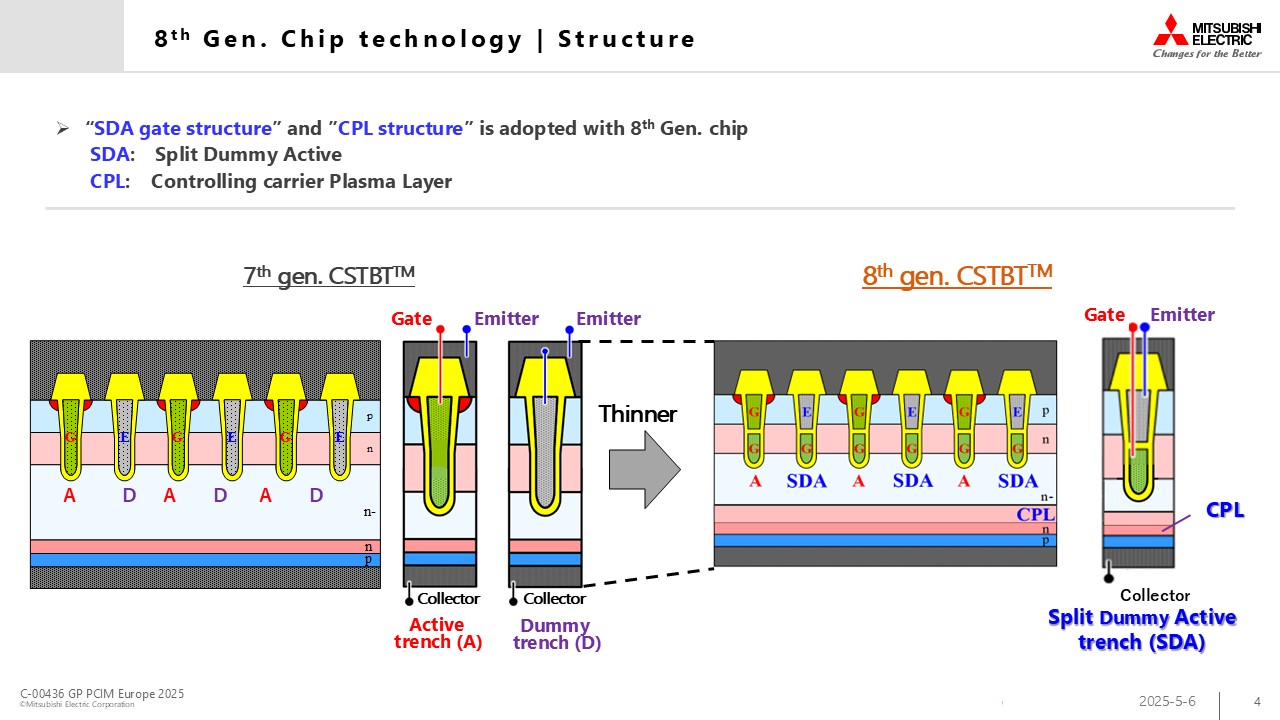

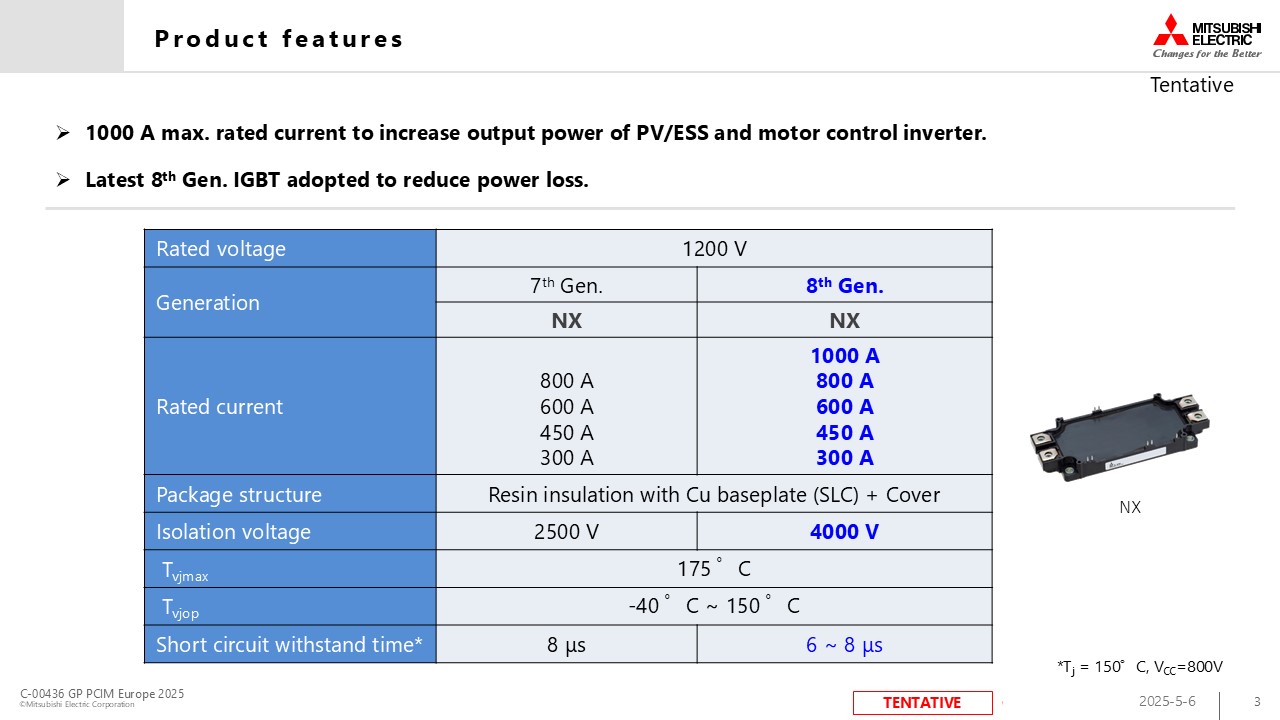

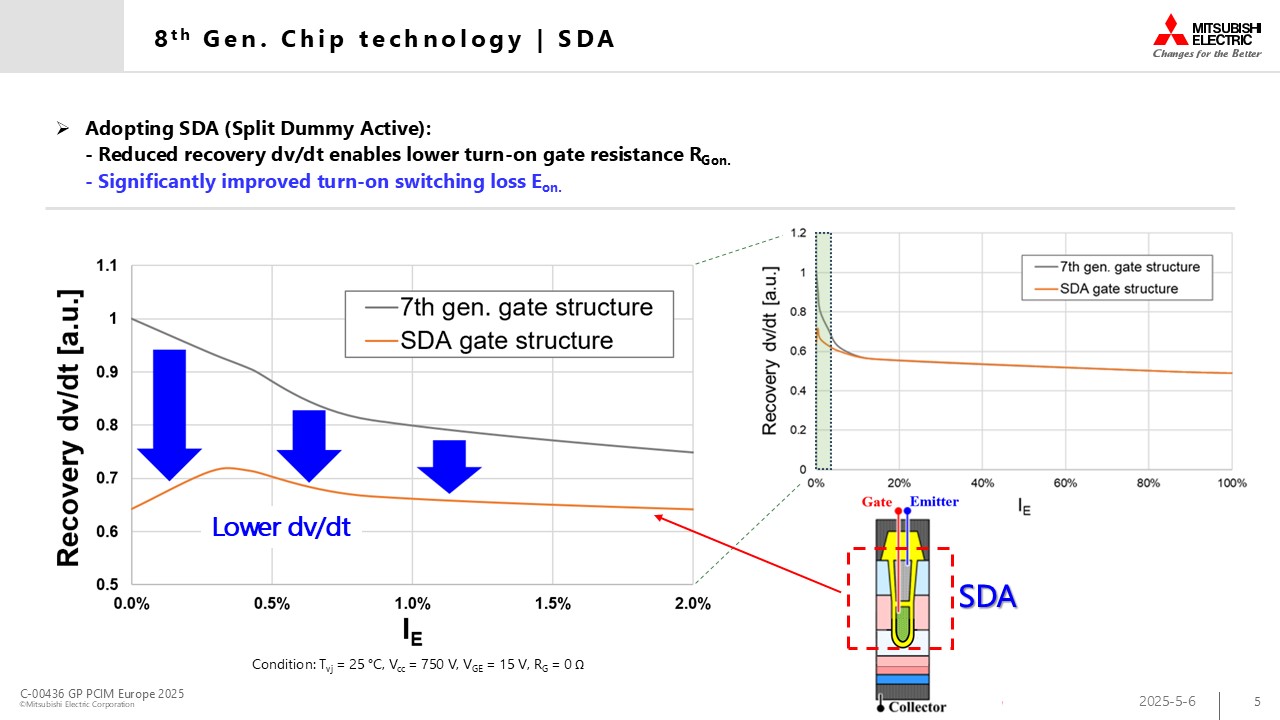

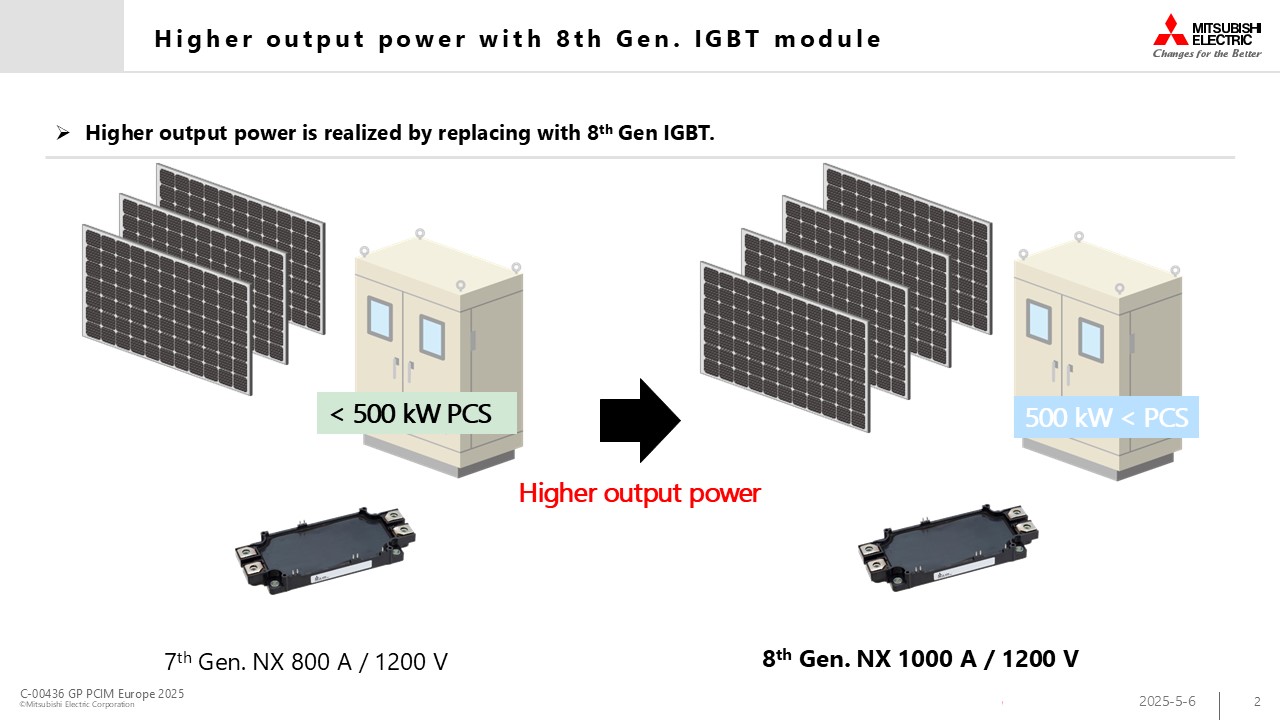

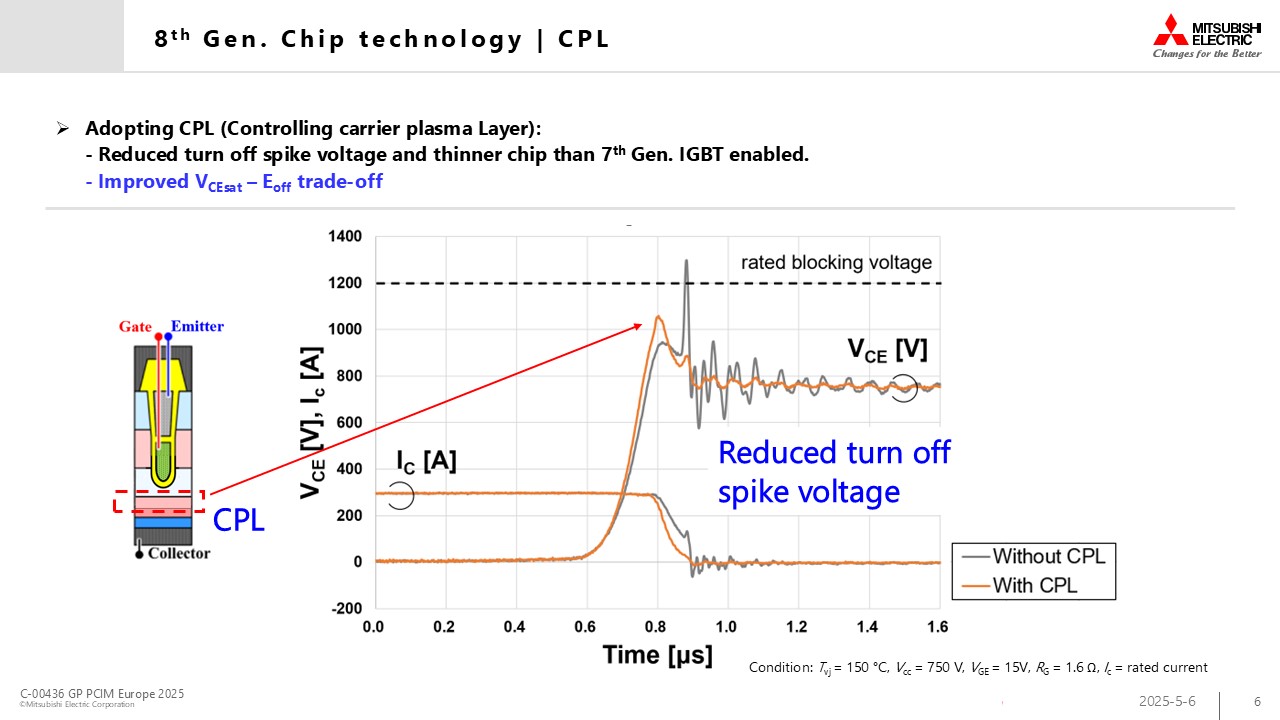

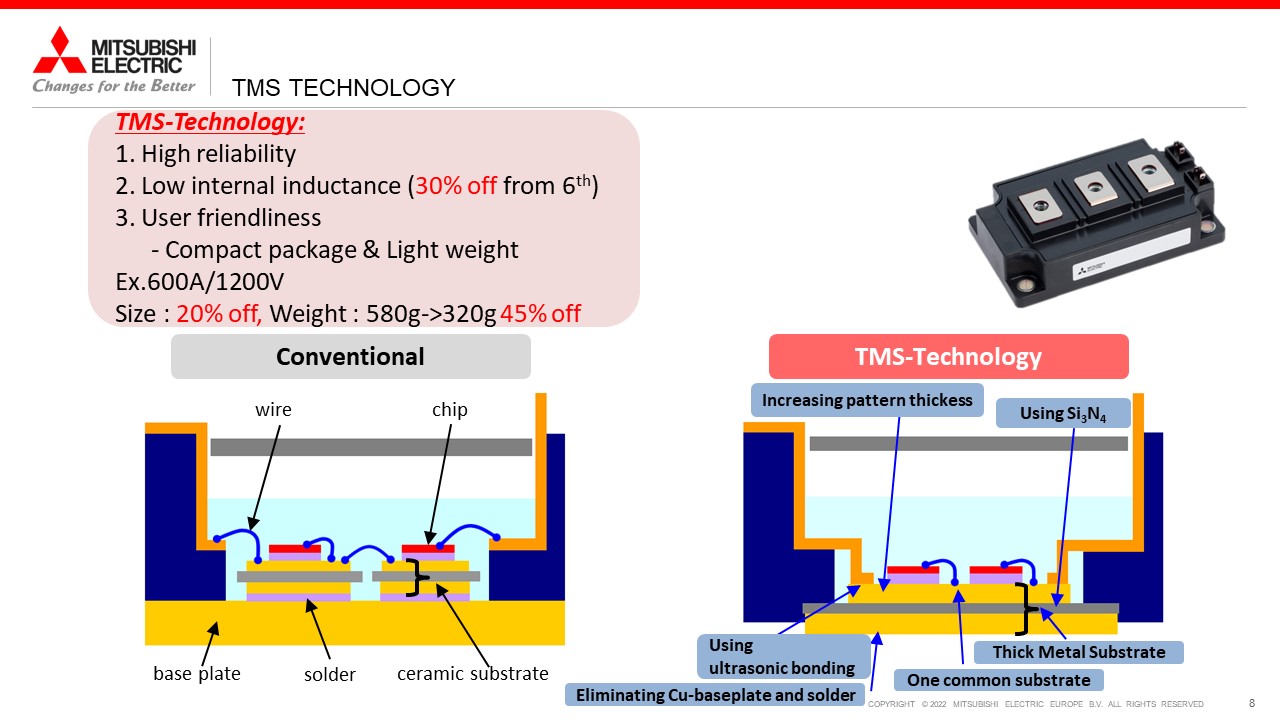

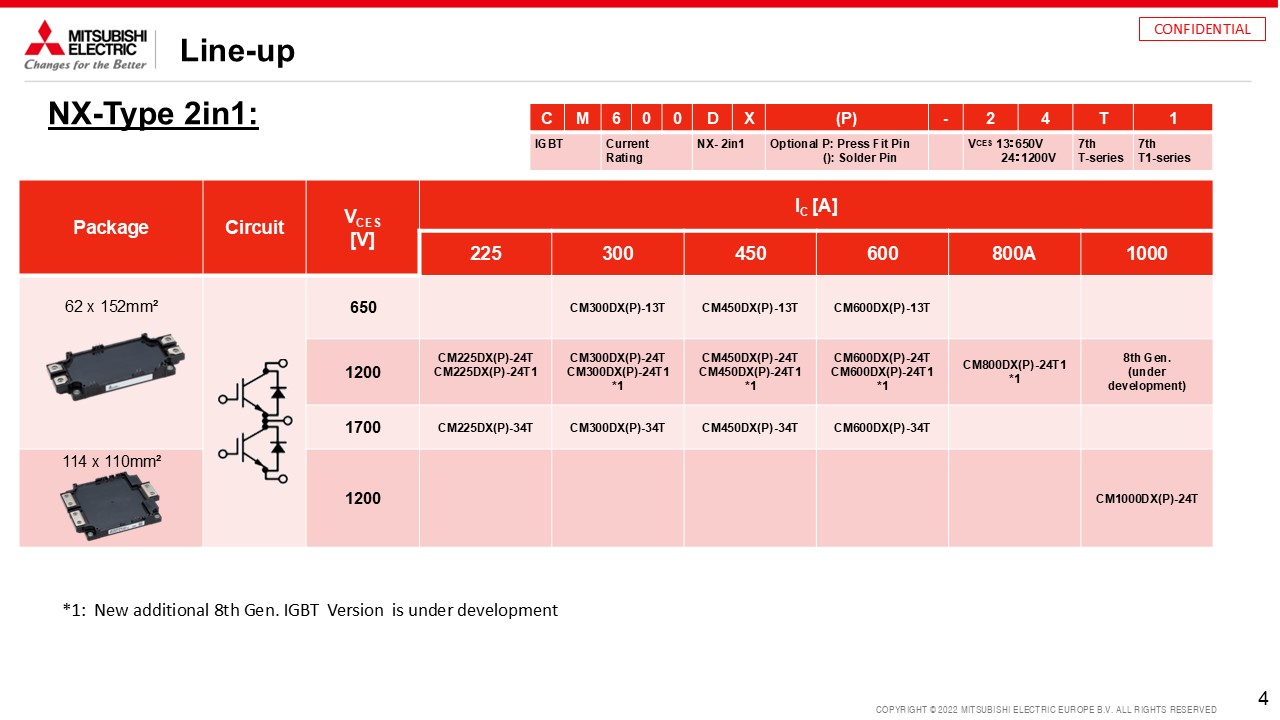

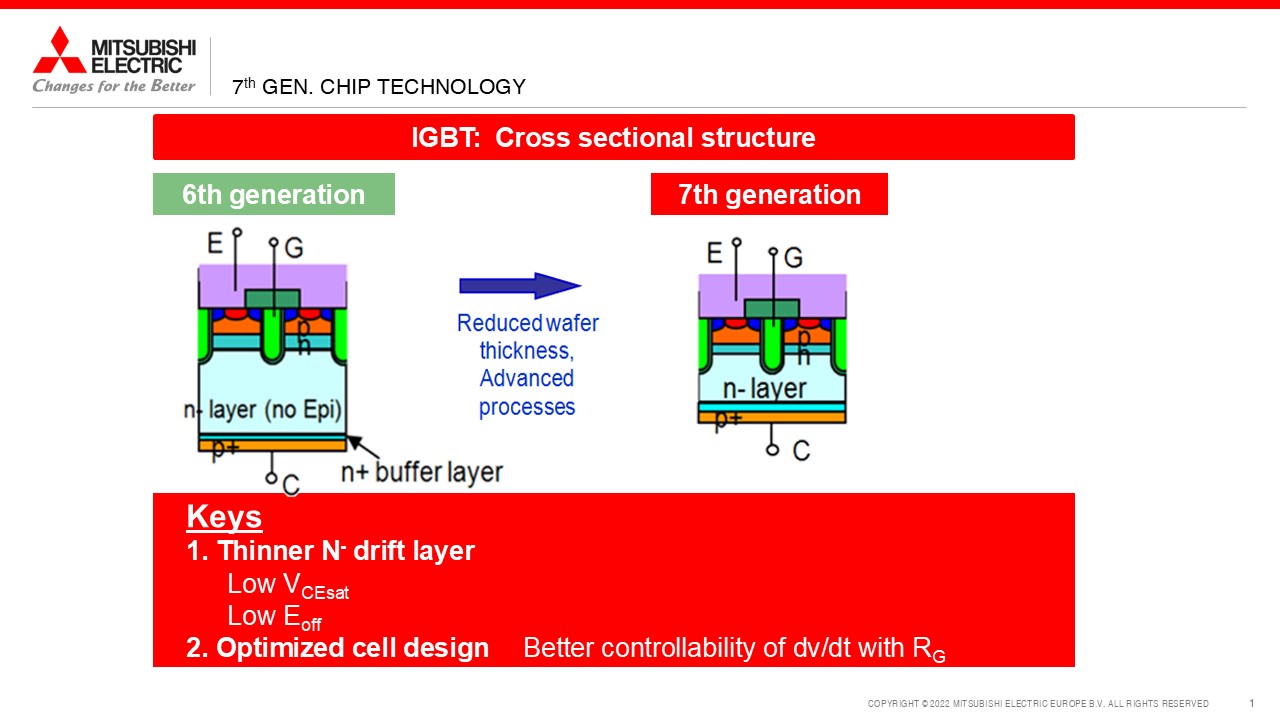

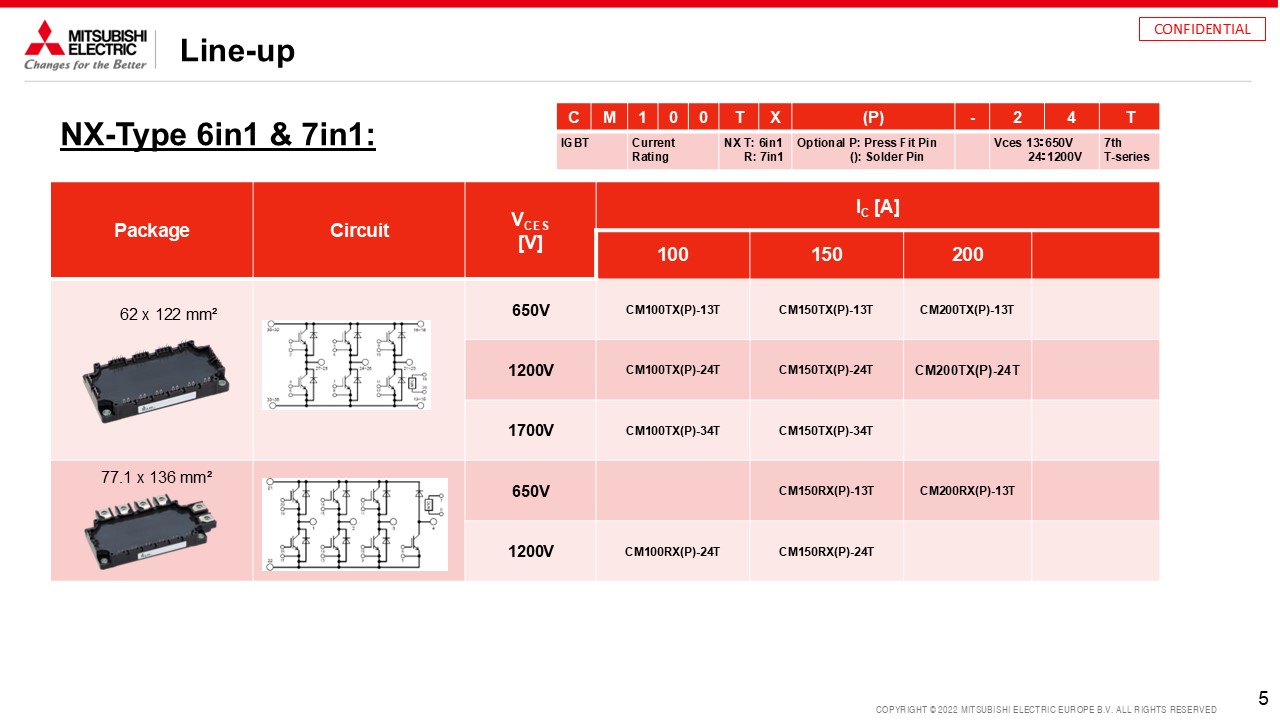

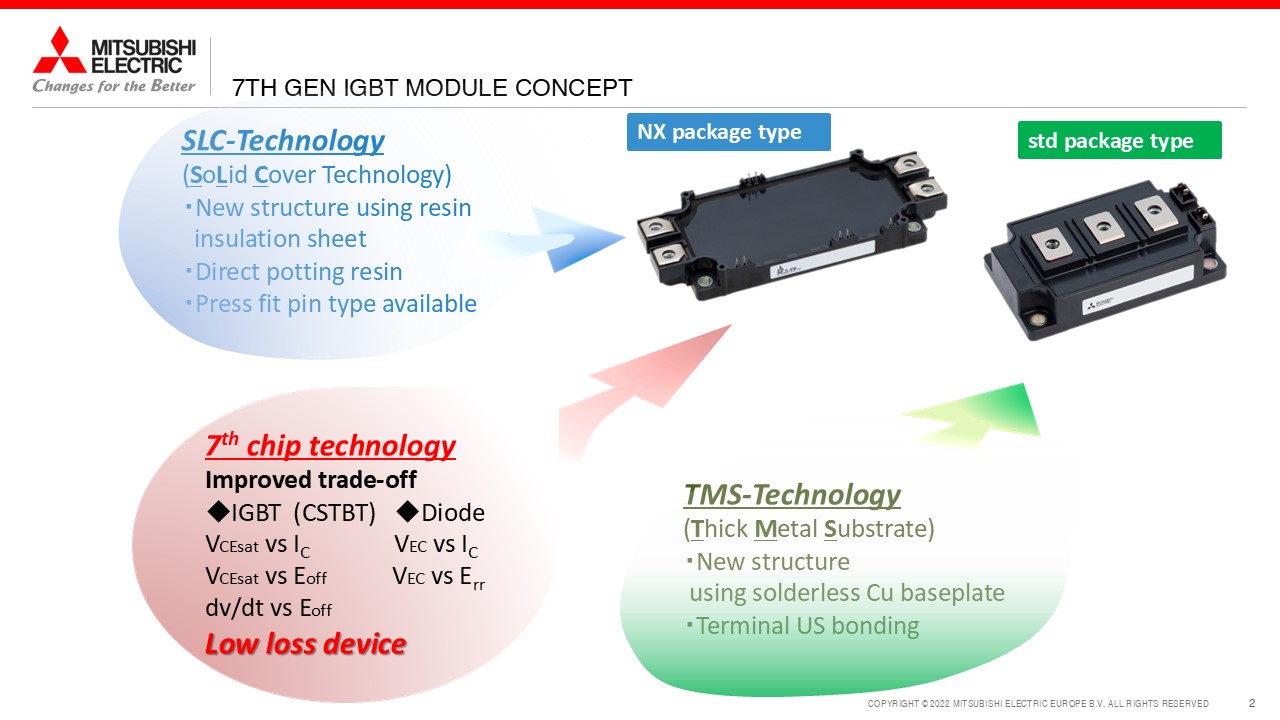

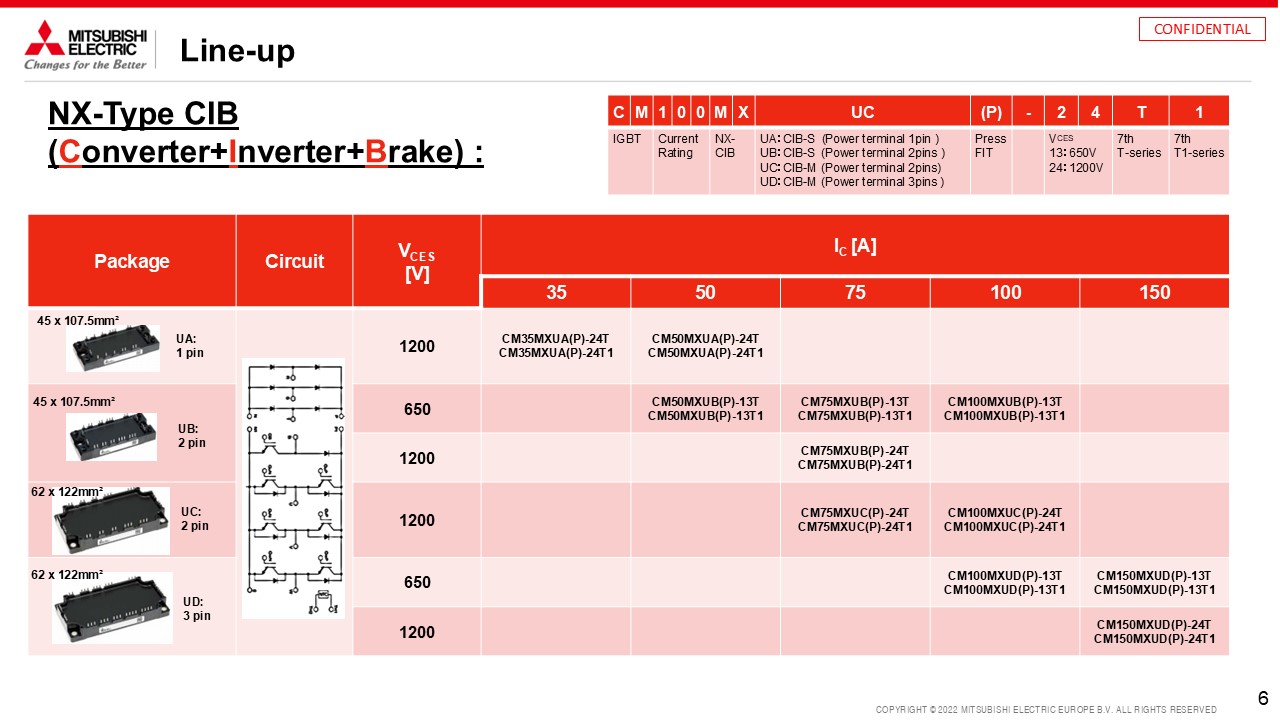

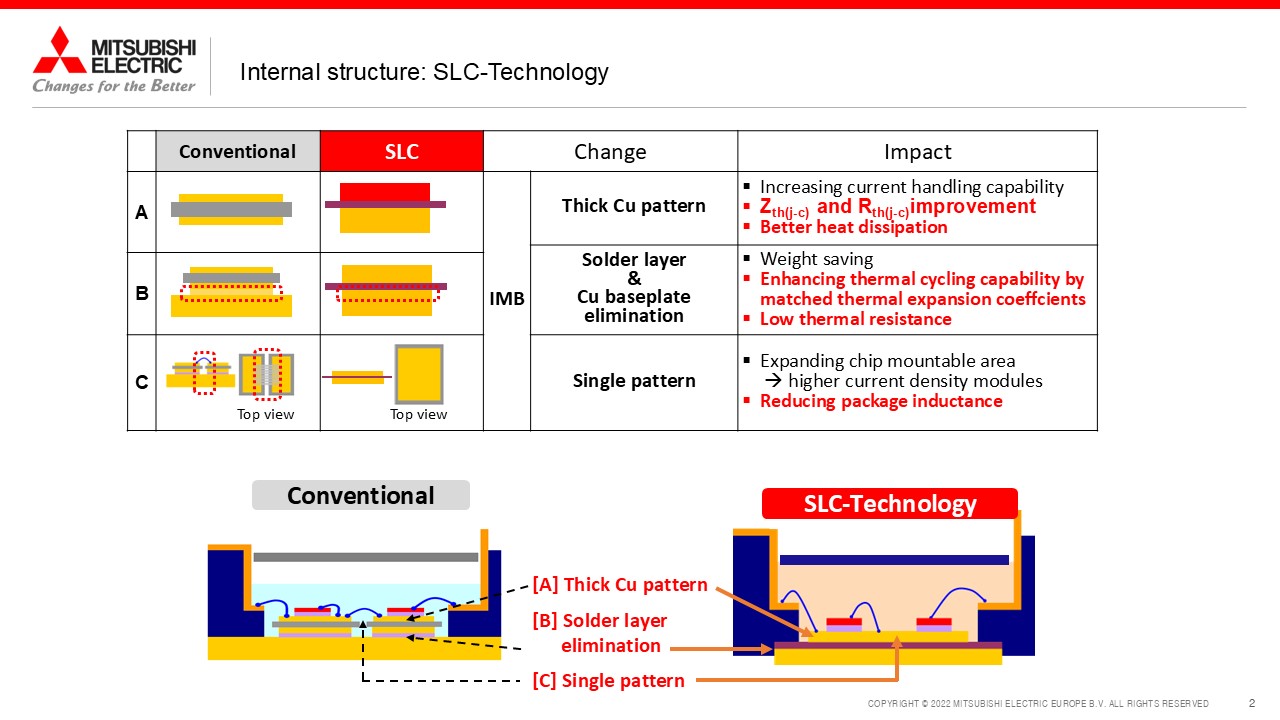

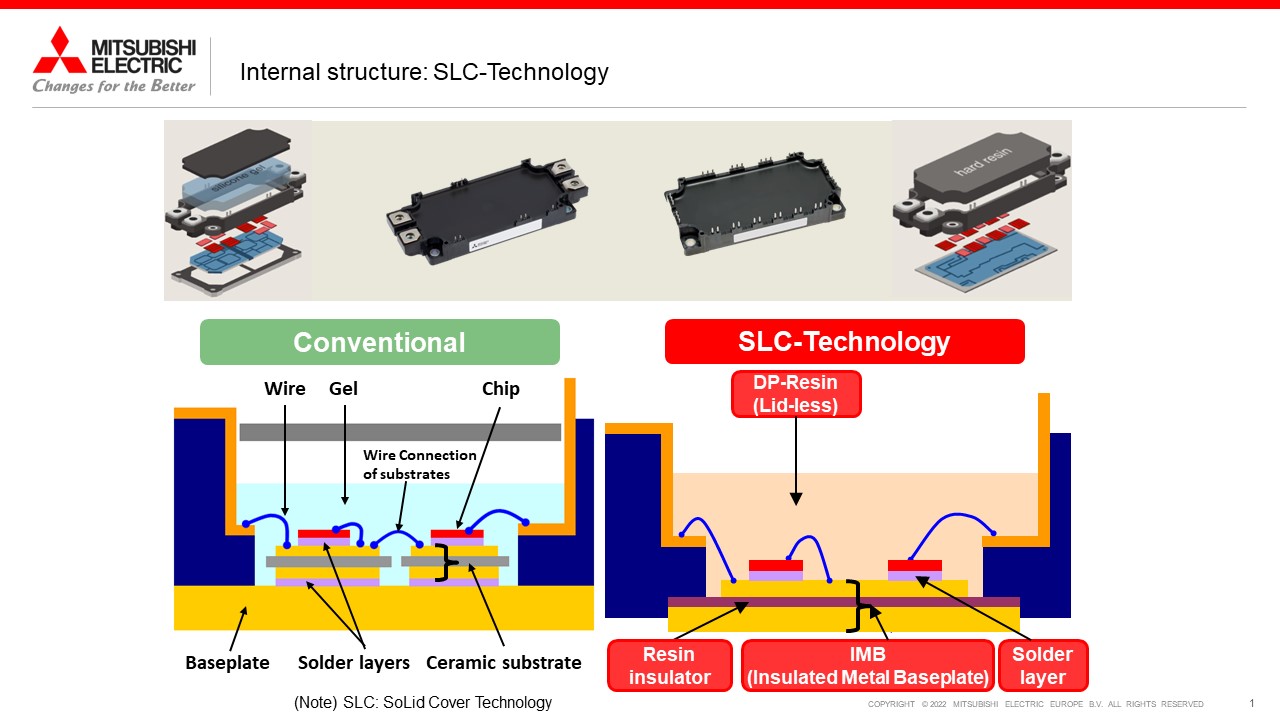

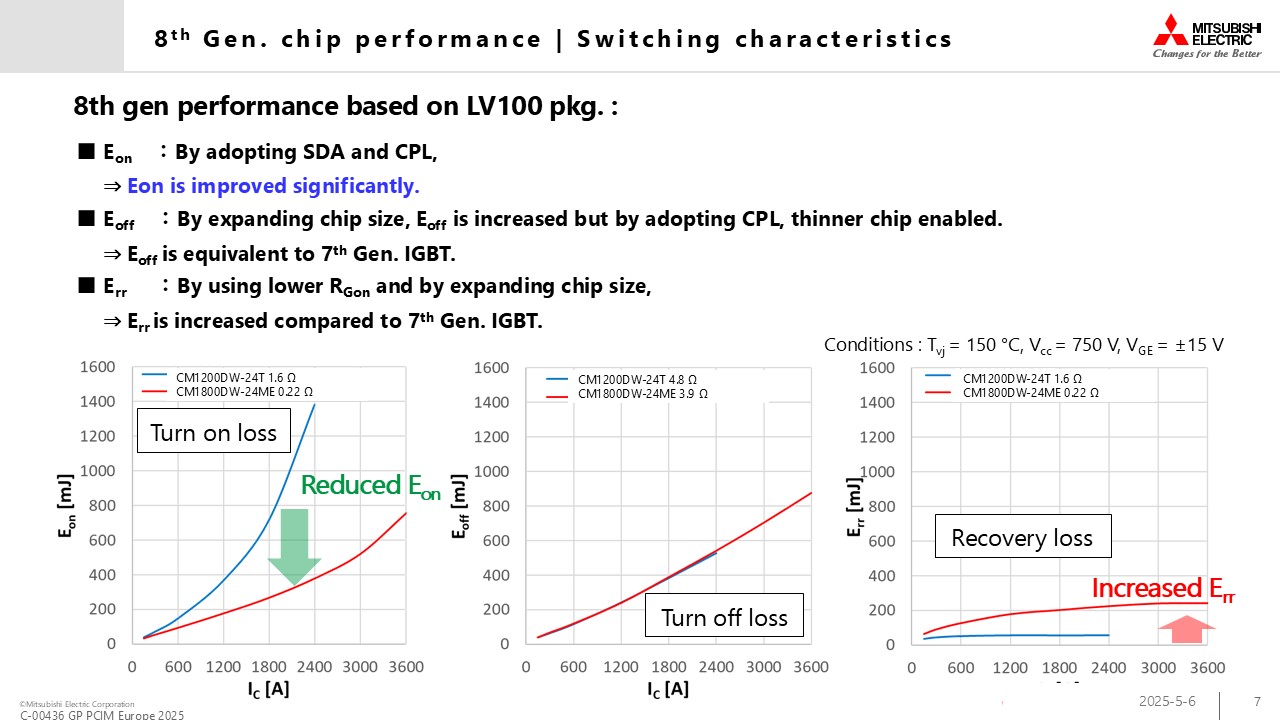

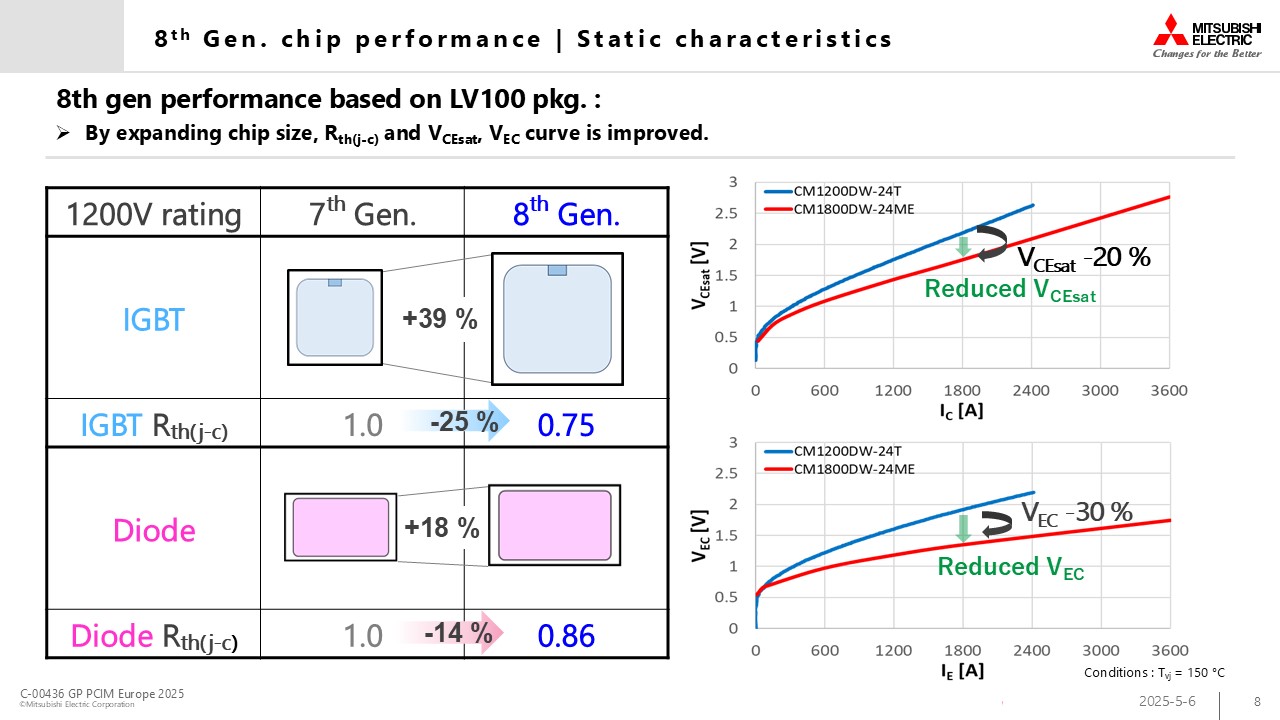

Line-up Chip Technology Internal Structure 7th Gen. NX-type IGBT Modules 8th Gen. NX-type IGBT Modules

Videos

We need your consent to load the Youtube service!

We use a third party service to embed video content that may collect data about your activity.
Please review the details and accept the service to watch this video.

7th gen NX- and std-type IGBT modules: A solution for industrial applications

7th gen NX- and std-type IGBT modules: A solution for industrial applications 7th Generation IGBT Modules NX-Type
