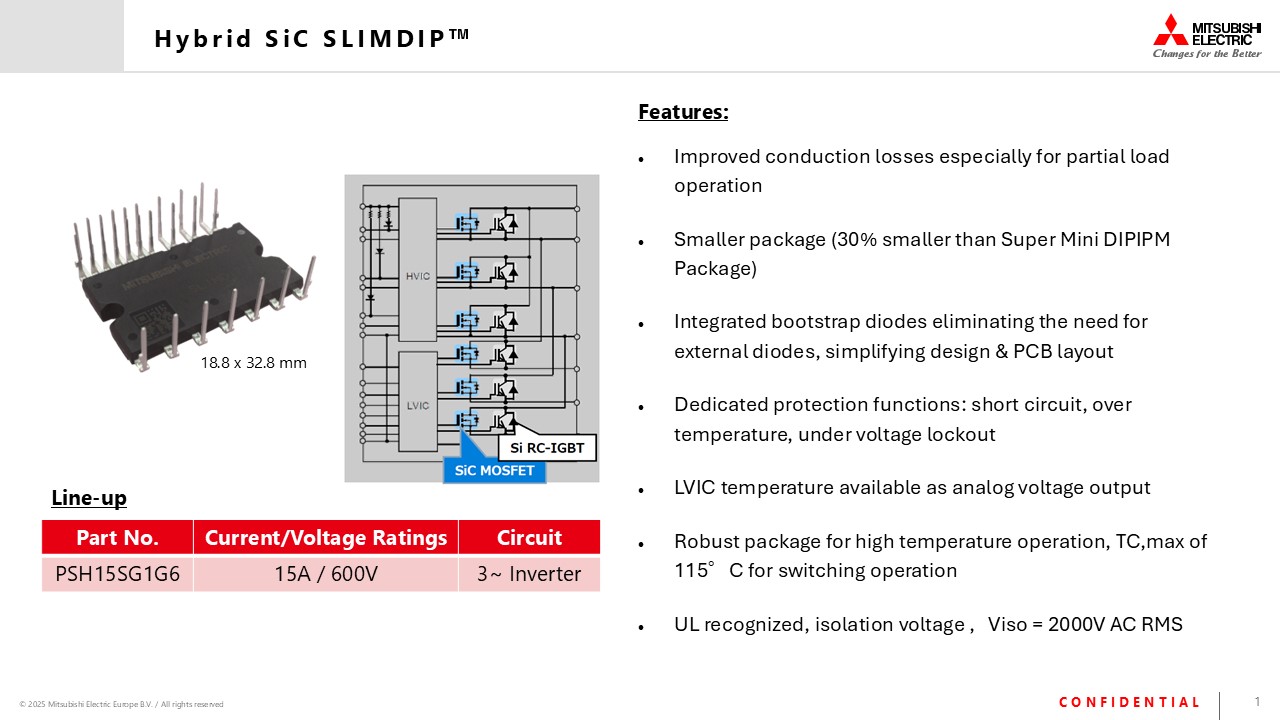

Advantages

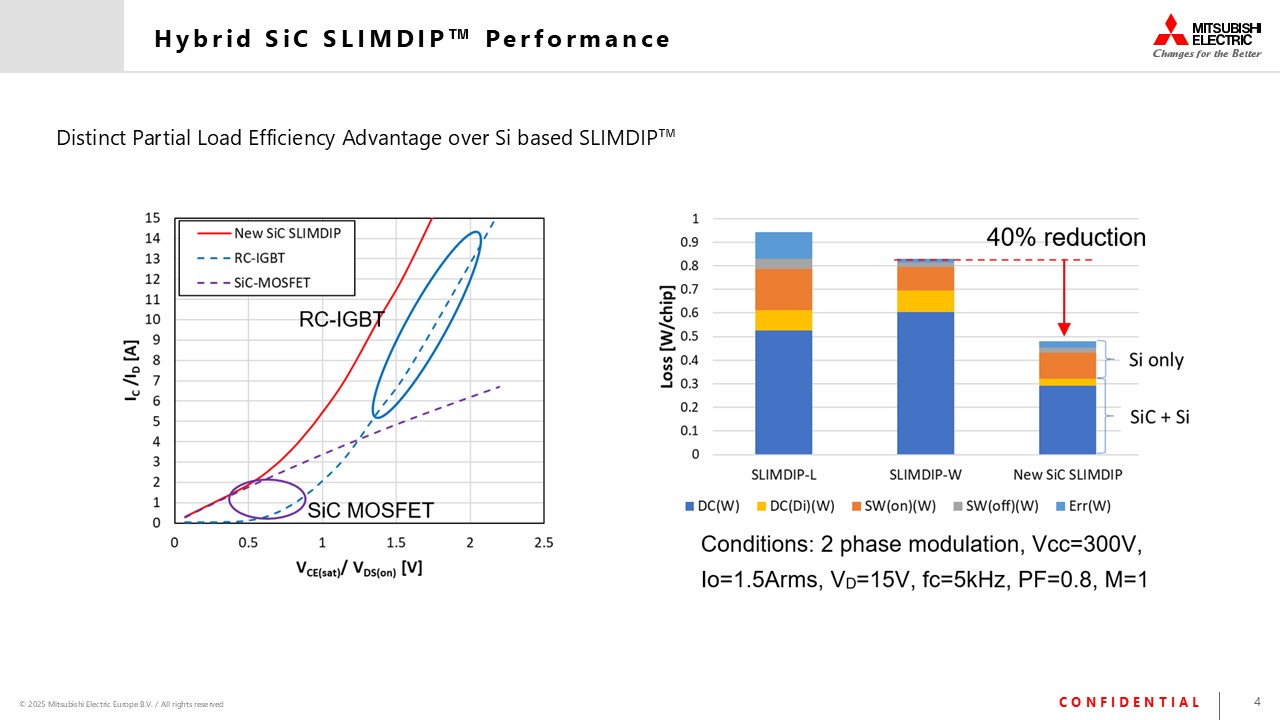

  • Improved conduction losses especially for partial load operation

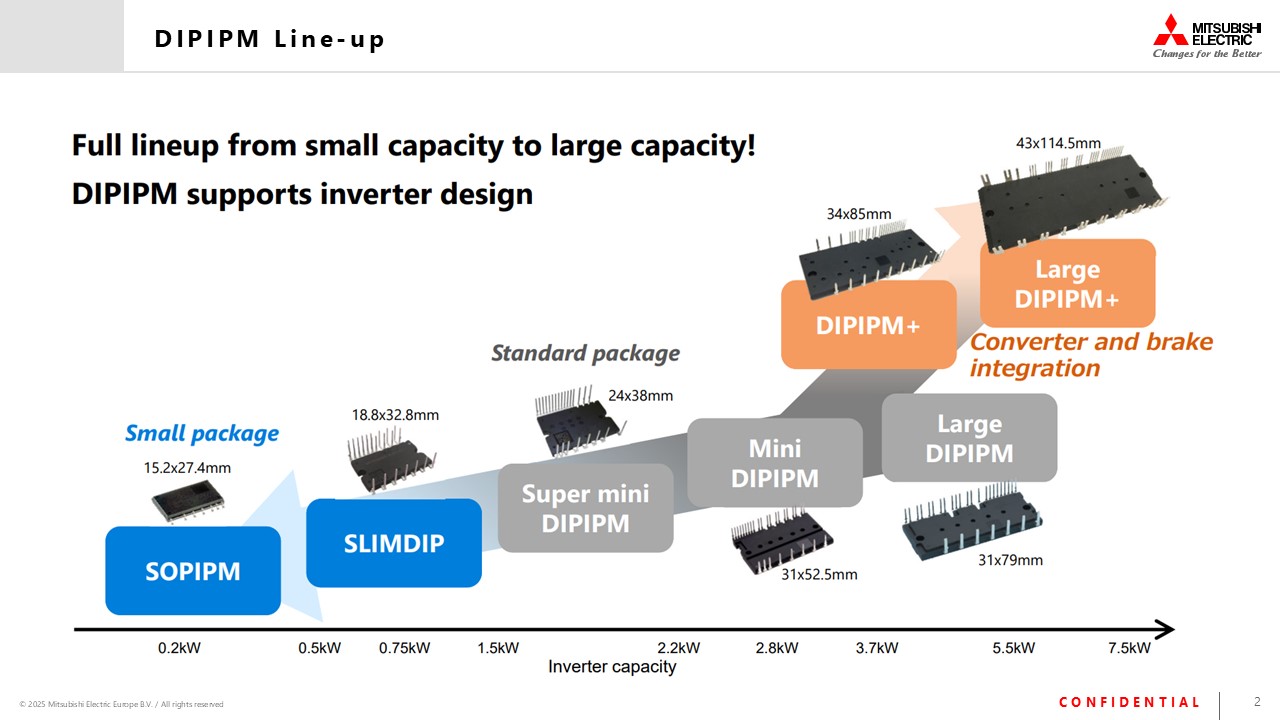

  • Smaller package (30% smaller than Super Mini DIPIPM Package)
  • Integrated bootstrap diodes eliminate the need for external diodes, simplifying design & PCB layout
  • Dedicated protection functions: short circuit, over temperature, under voltage lockout
  • LVIC temperature available as analog voltage output
  • Robust package for high temperature operation, TC,max of 115°C for switching operation
  • UL recognized, isolation voltage, Viso = 2000V AC RMS

Attributes

Ratings:

600 V: 15 A

Dimensions [mm]:

18.8 x 32.8 x 3.6
