Advantages

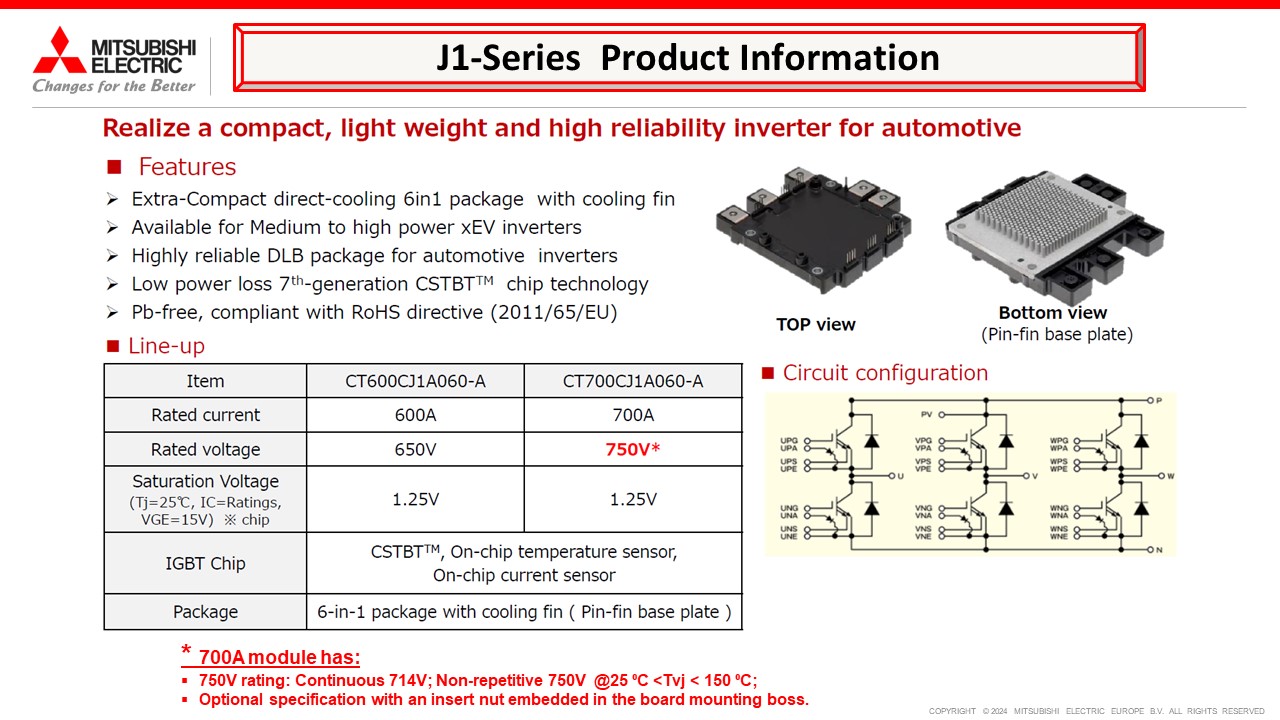

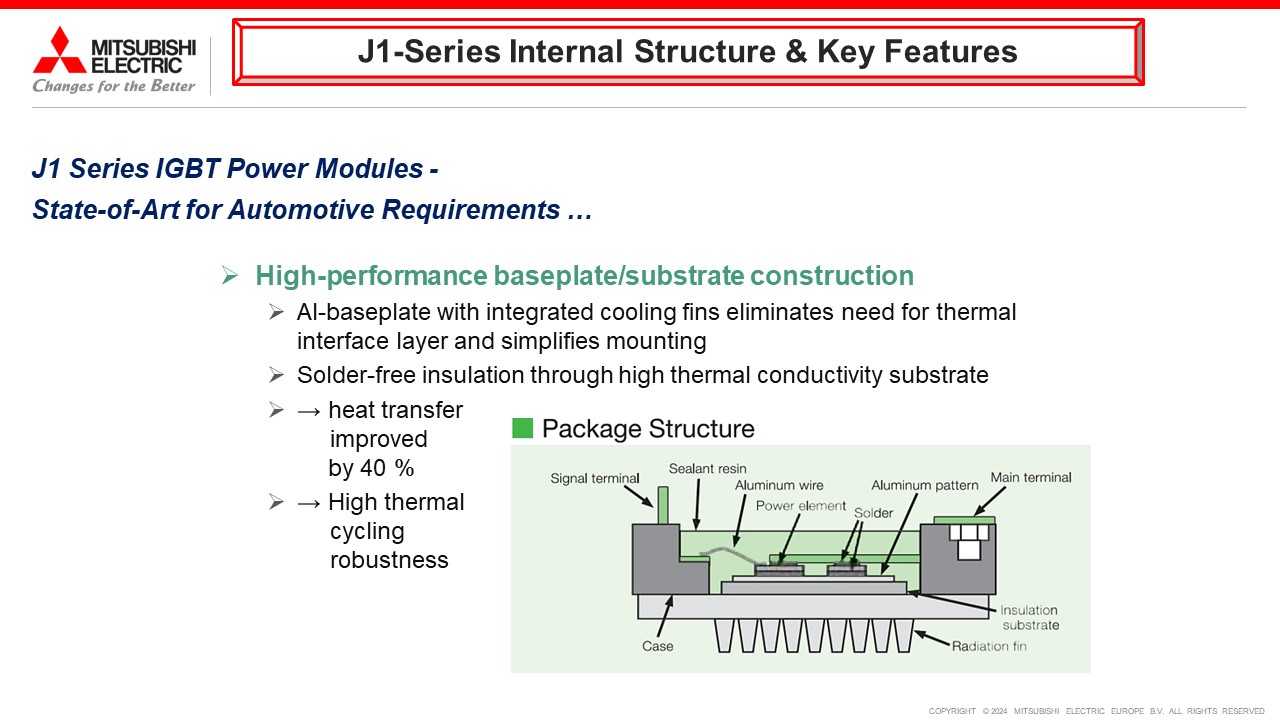

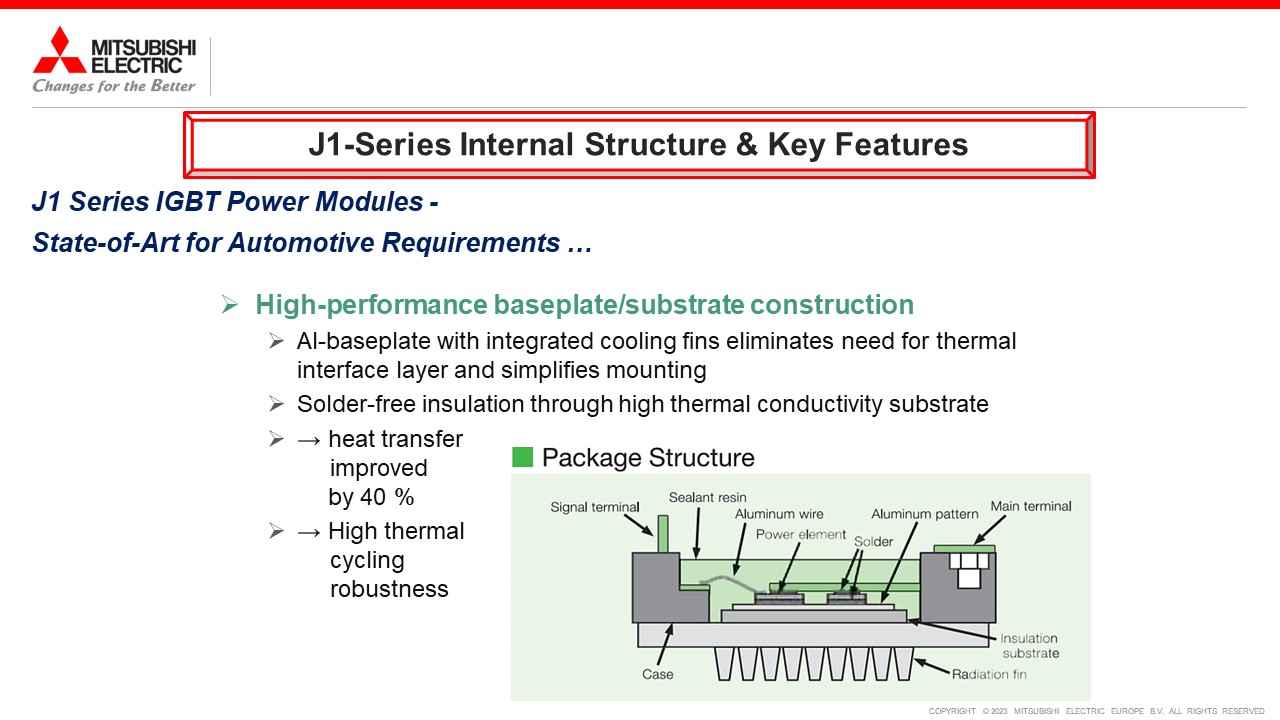

  • Extra-compact, direct-cooling 6-in-1 package with cooling fin

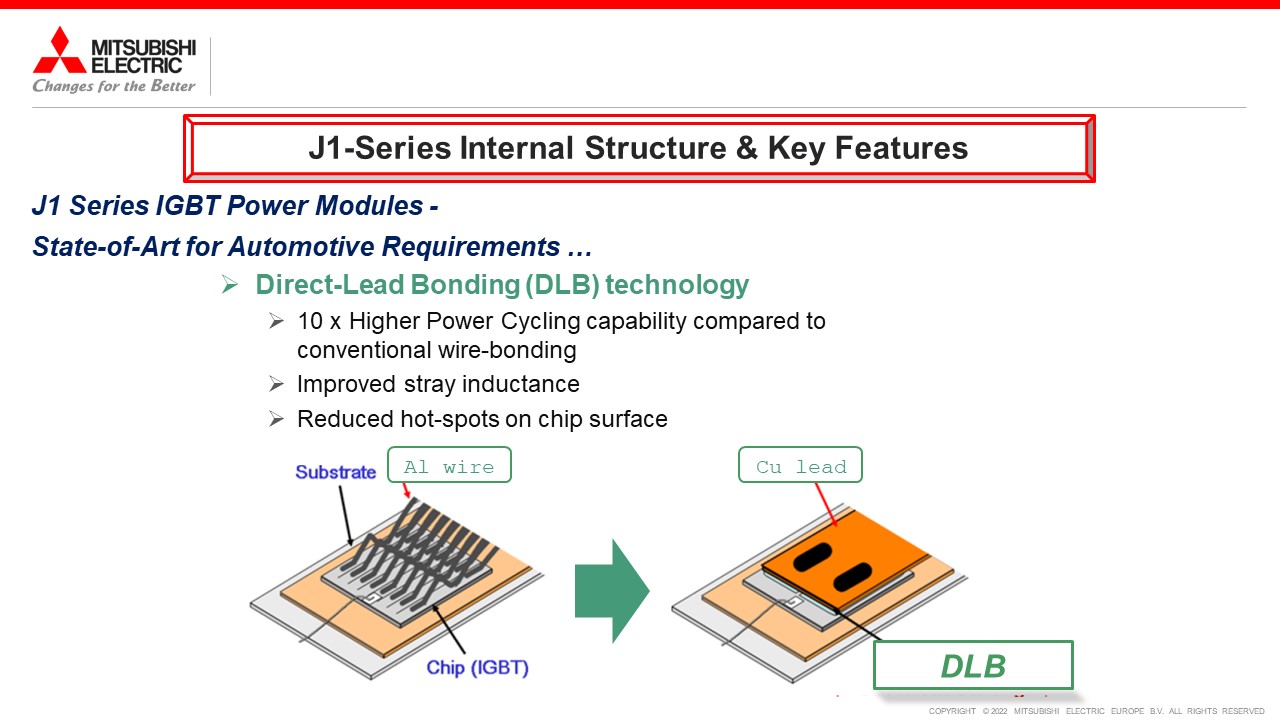

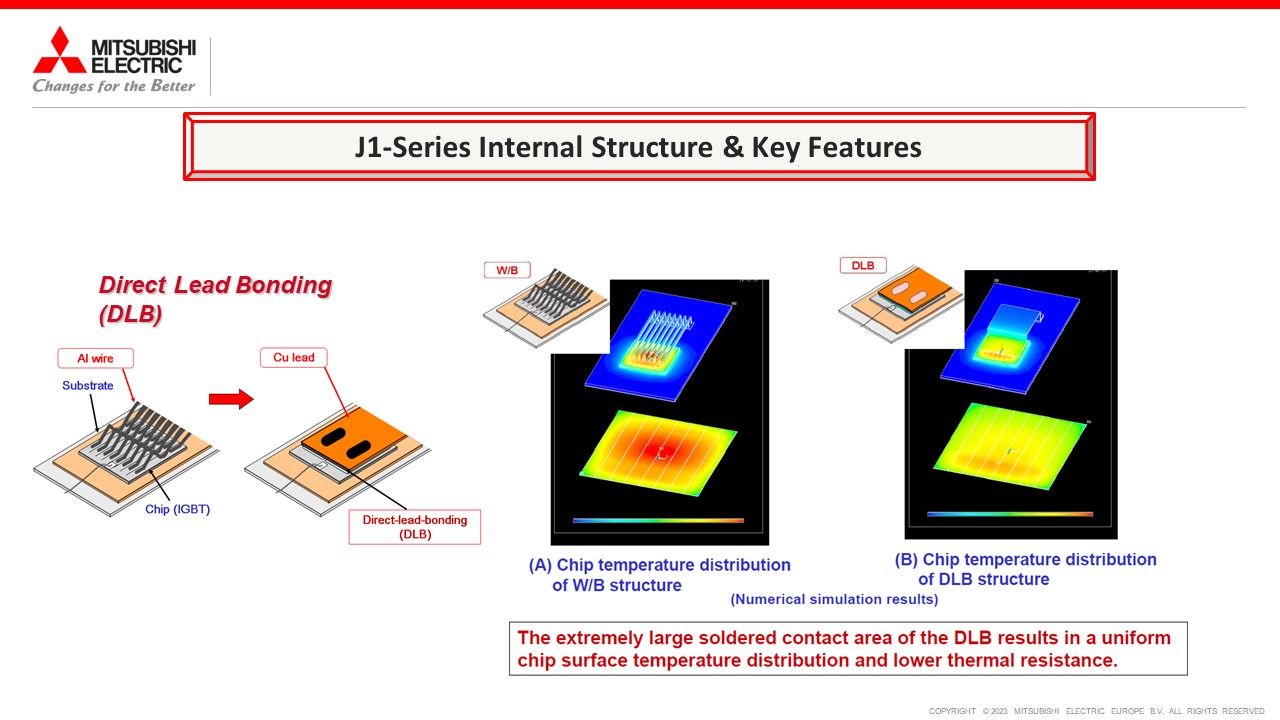

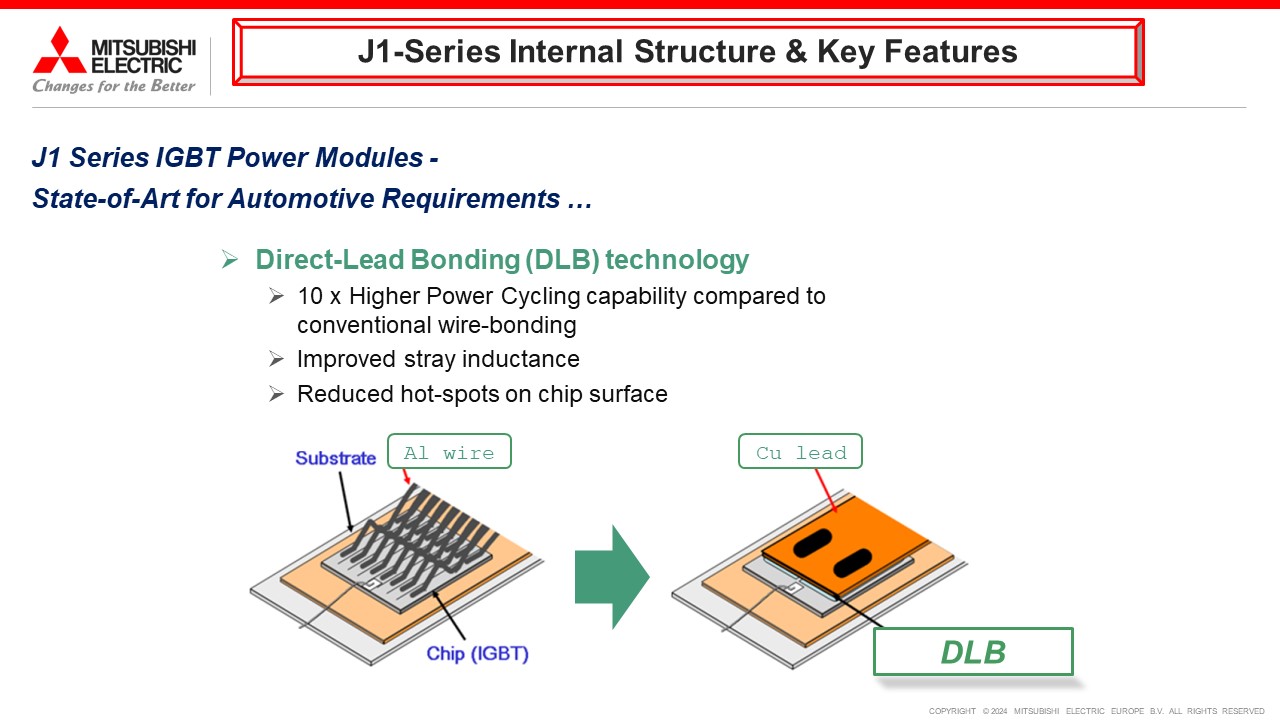

  • High reliability Direct Lead Bonding (DLB) wire bond less package for automotive inverters

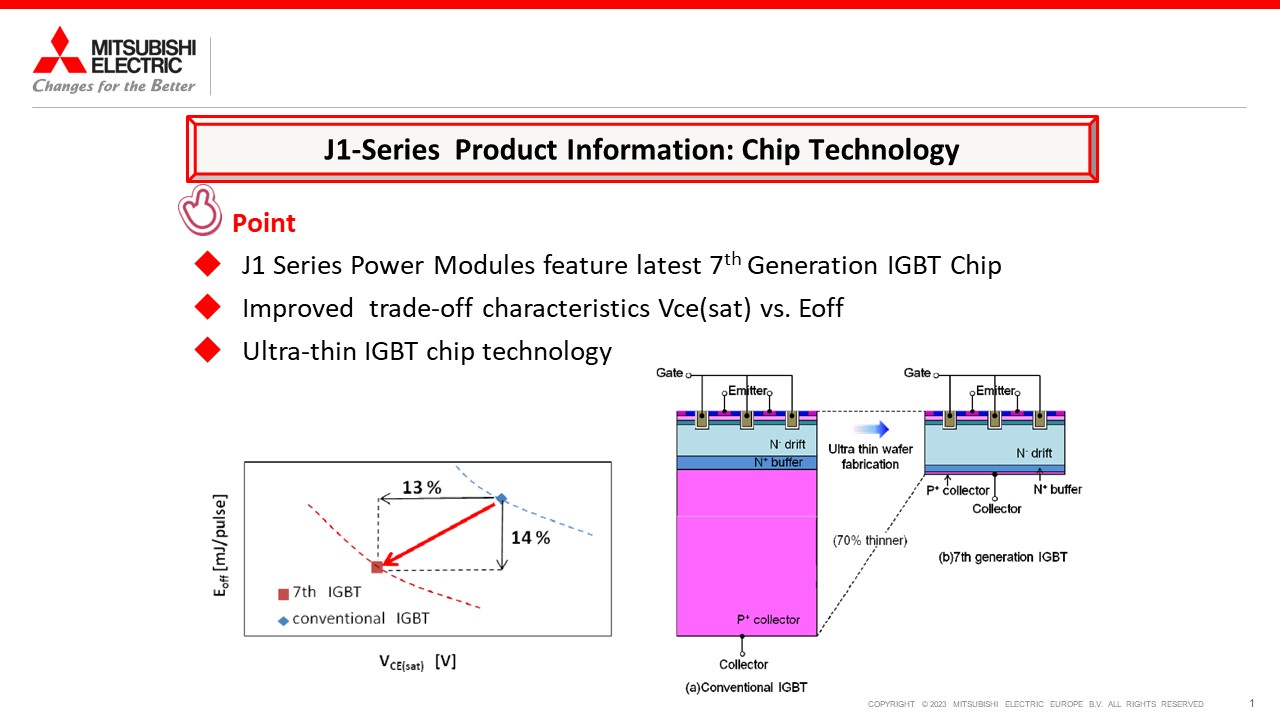

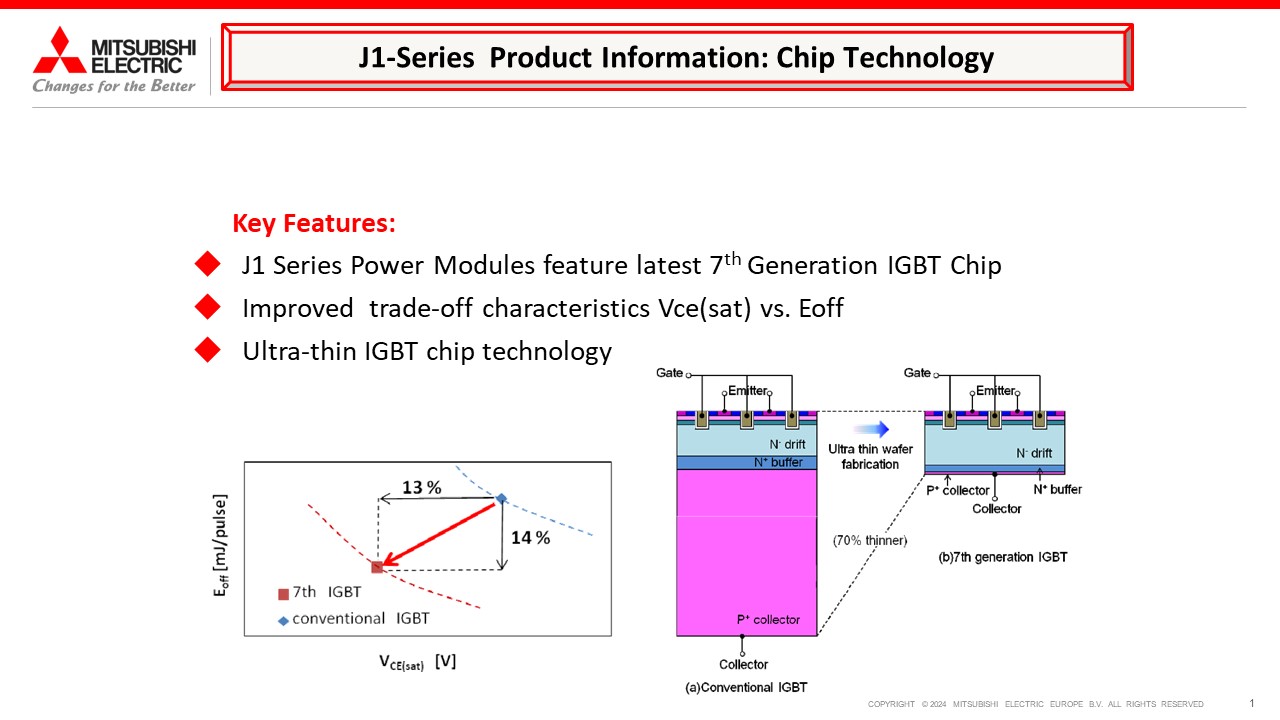

  •  Low power loss 7th-generation IGBT

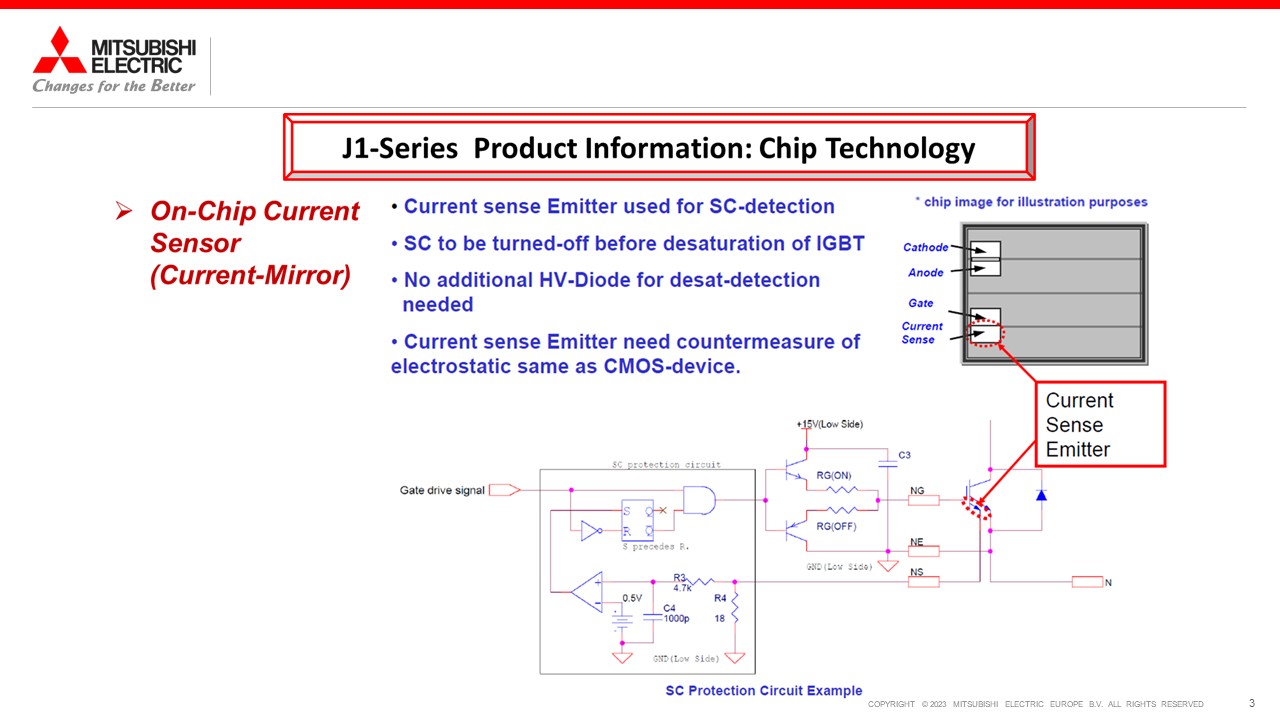

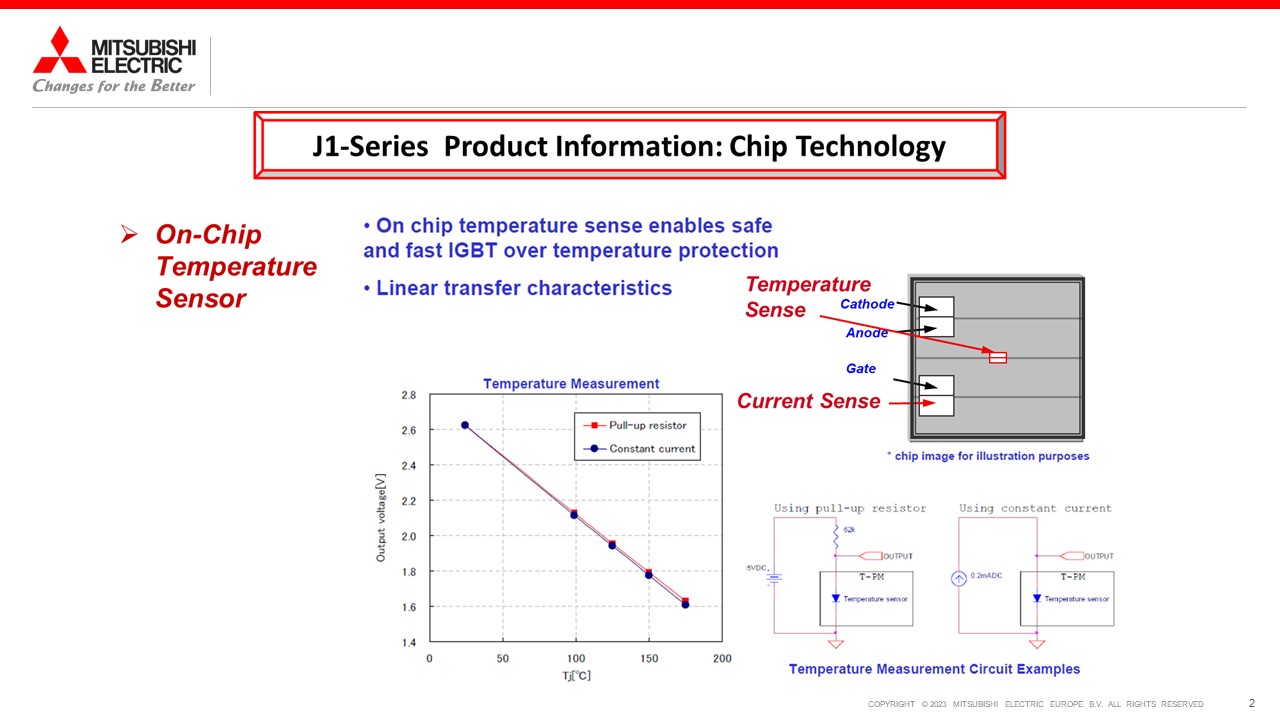

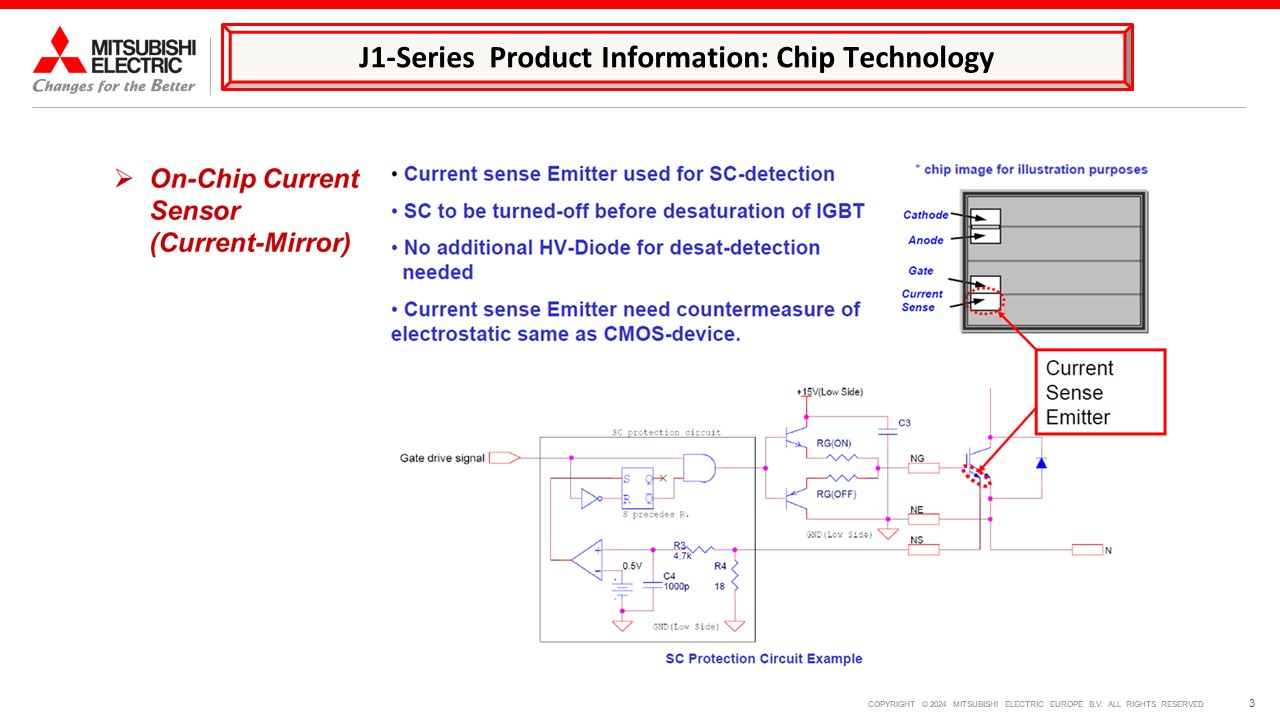

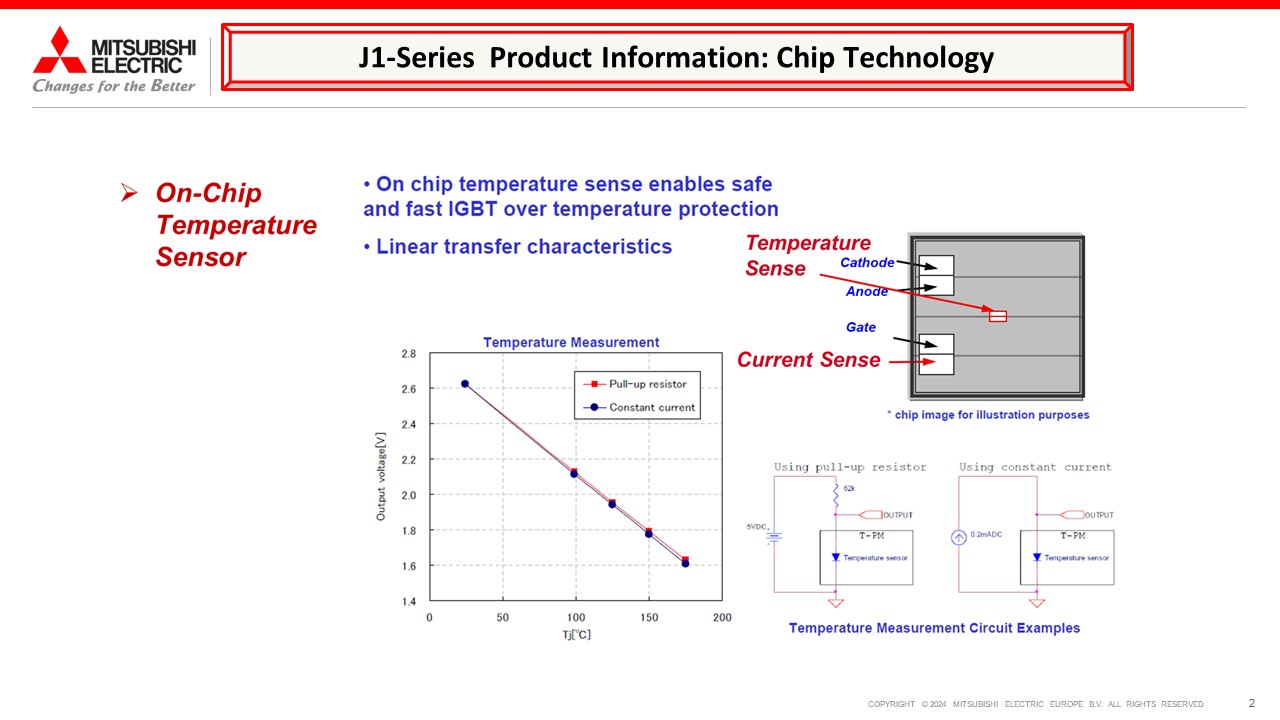

  • Integrated on-chip temperature & current sensors
  • Pb-free structure, compliant with RoHS directive (2011/65/EU)

Attributes

Ratings:

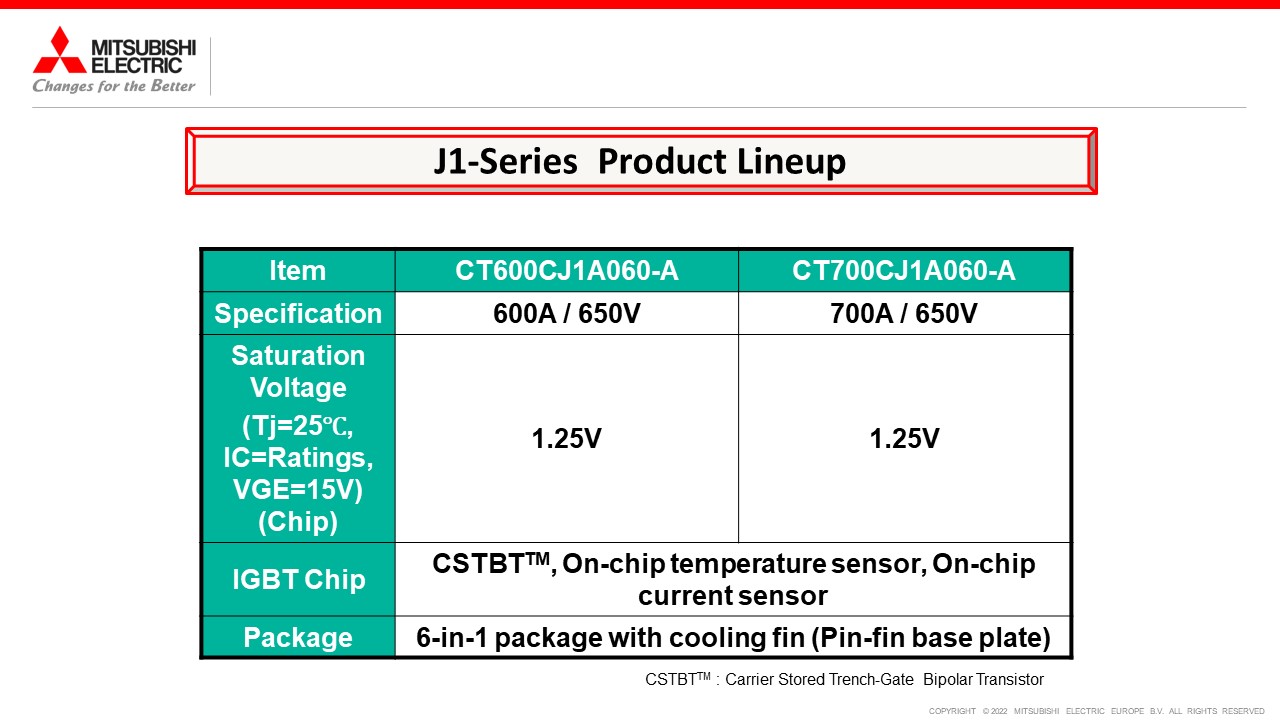

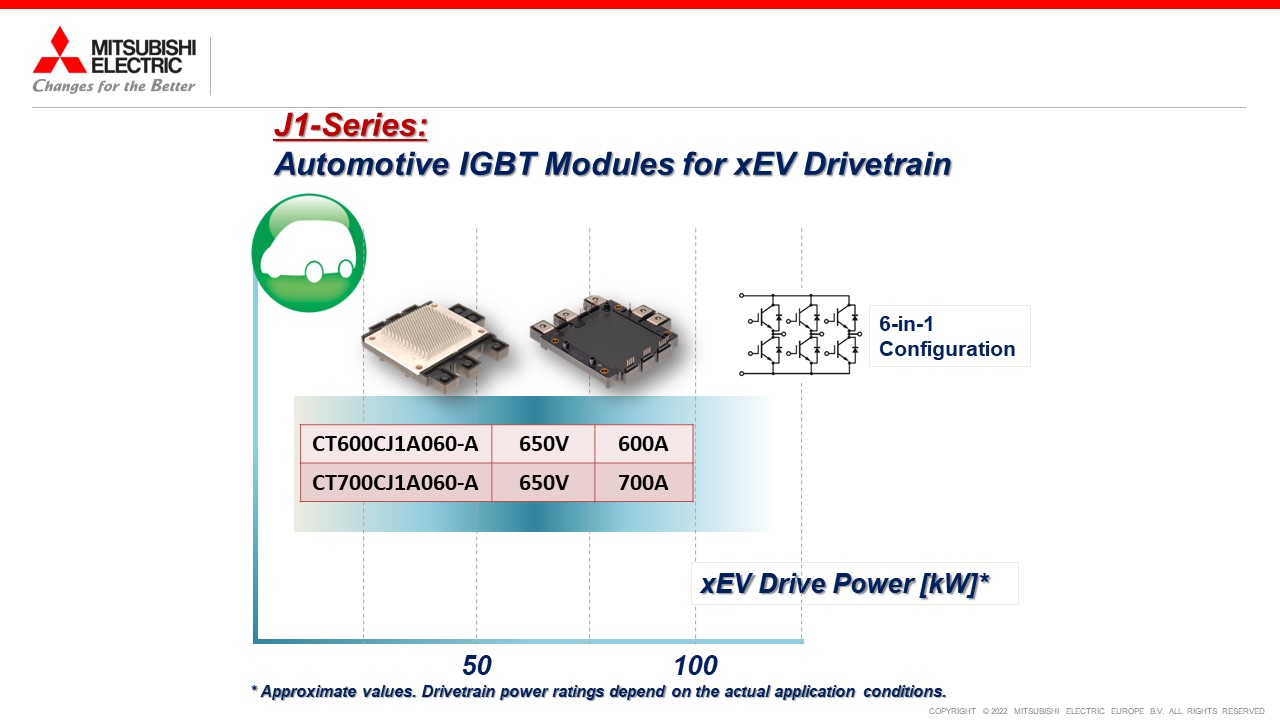

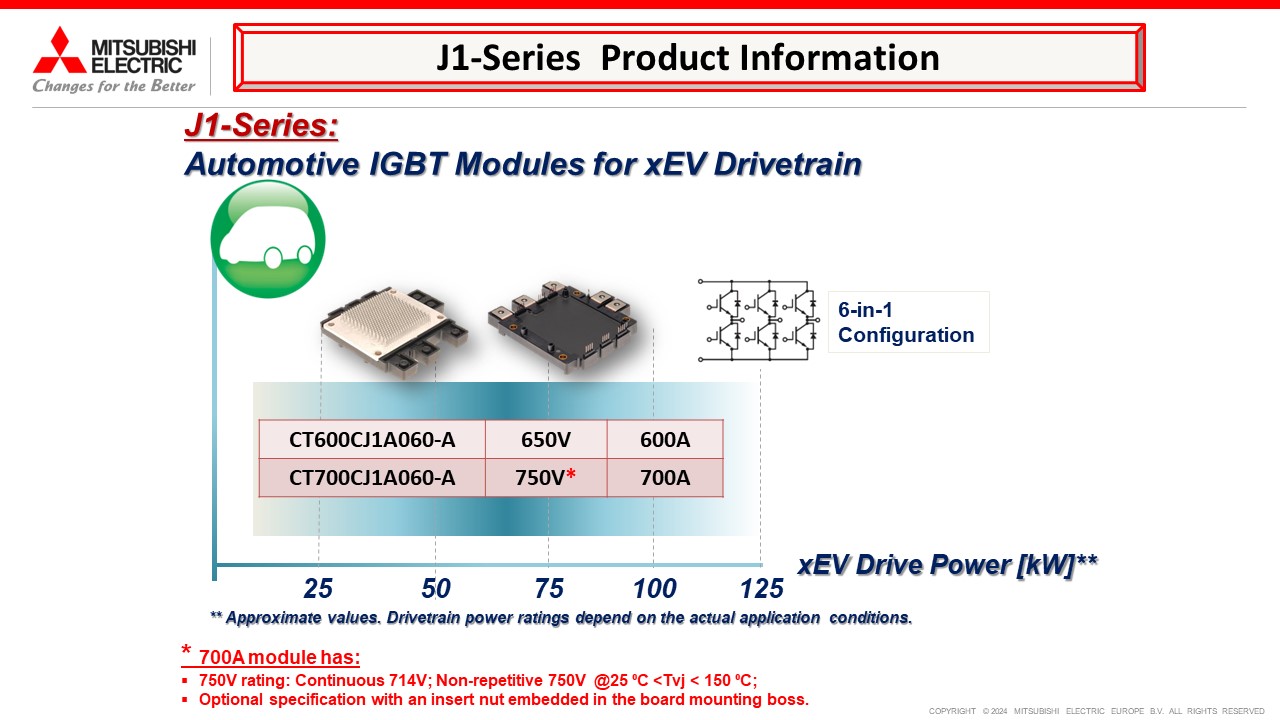

650 V : 600 A , 700A

Dimensions [mm]:

115 x 120 x 18.9

Downloads

3D-Model

Presentations
