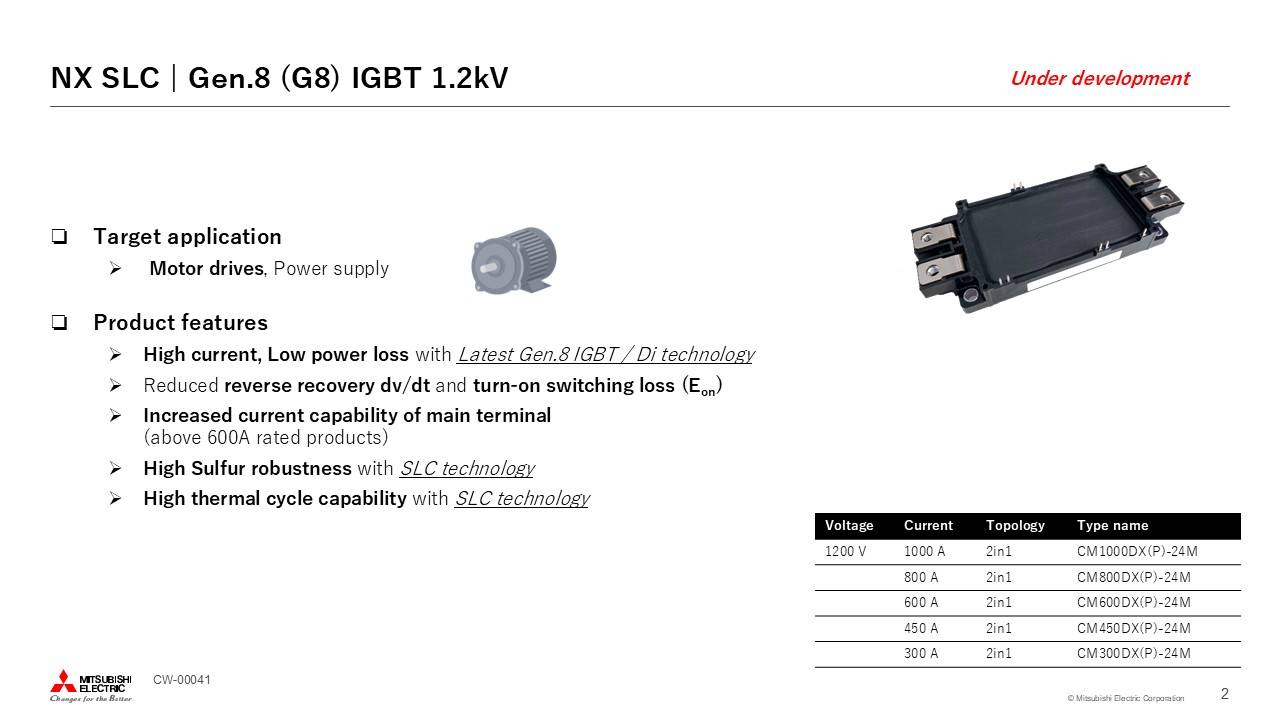

NX 2-in-1 8th Gen. IGBT 1200V

Advantages

• Standardized package allows simplified design and easy replacement

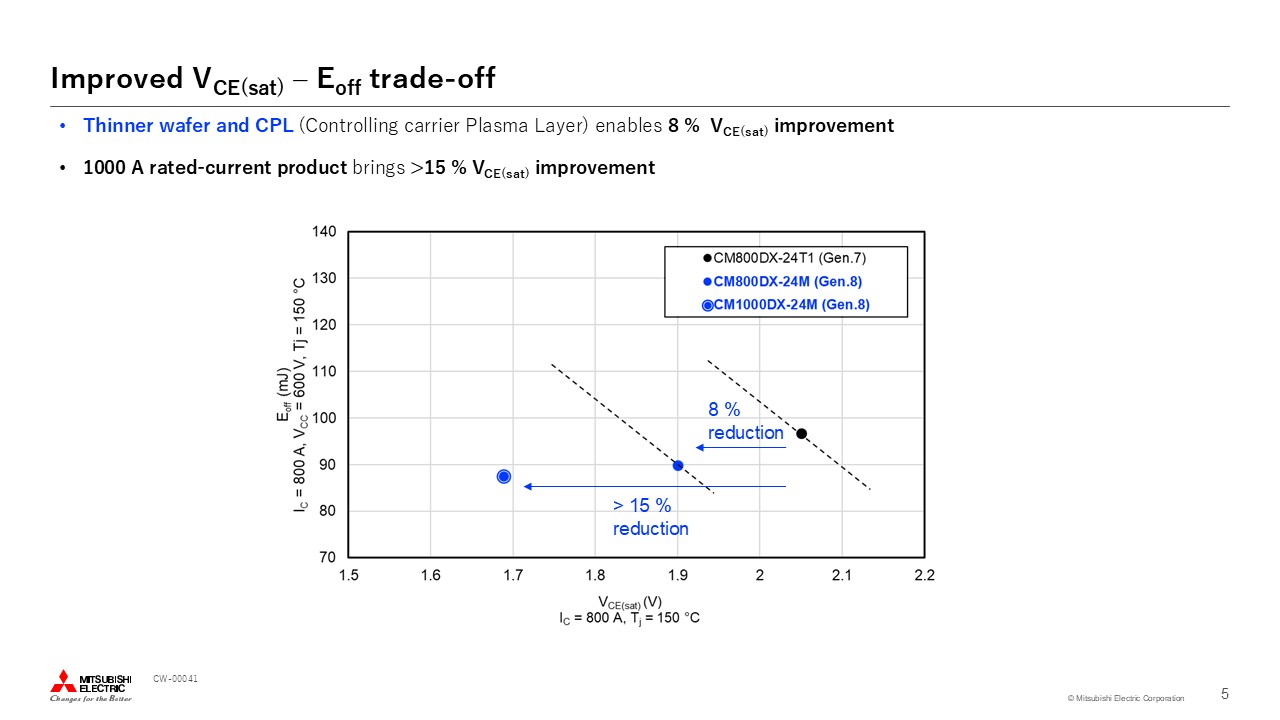

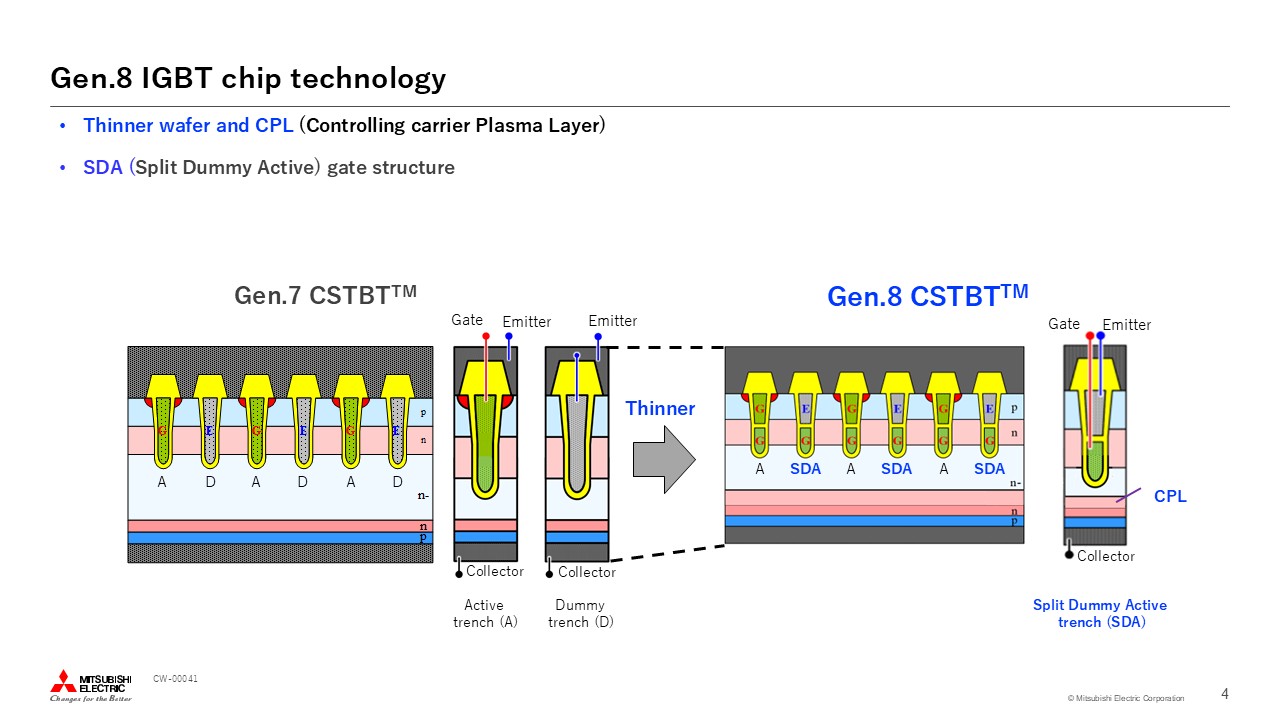

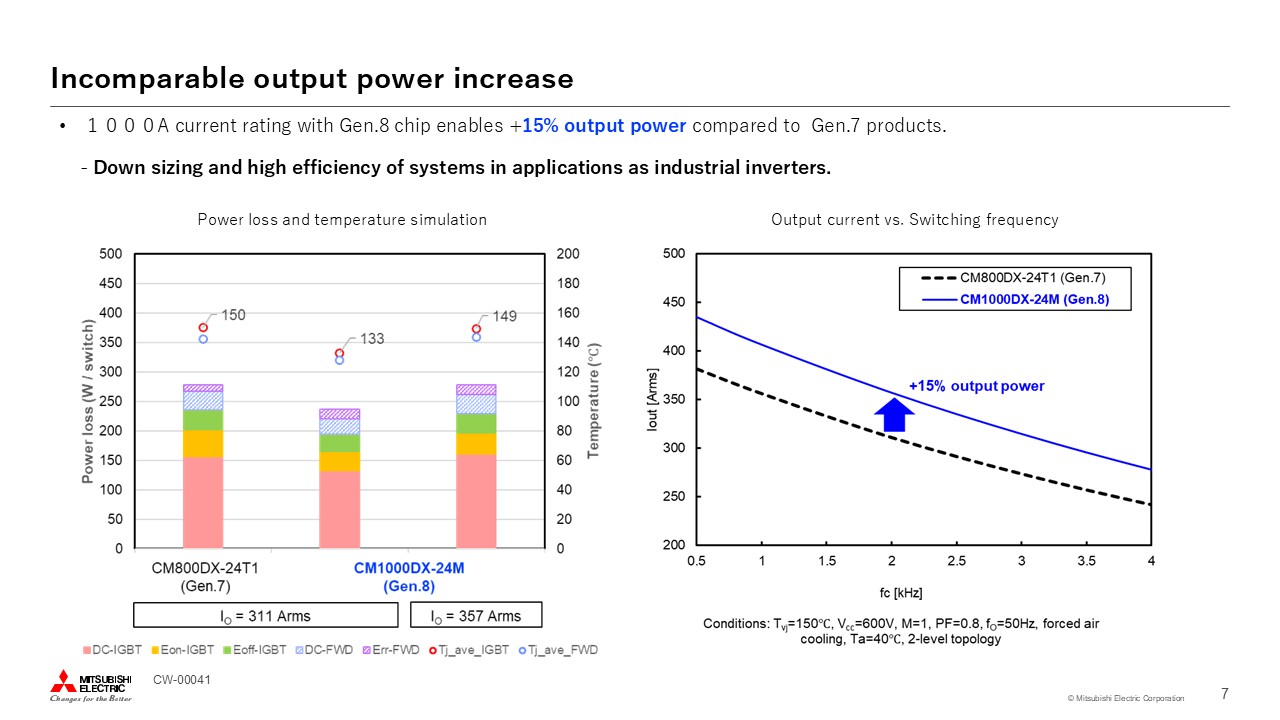

• High current, Low power loss with Latest Gen.8 IGBT / Di technology

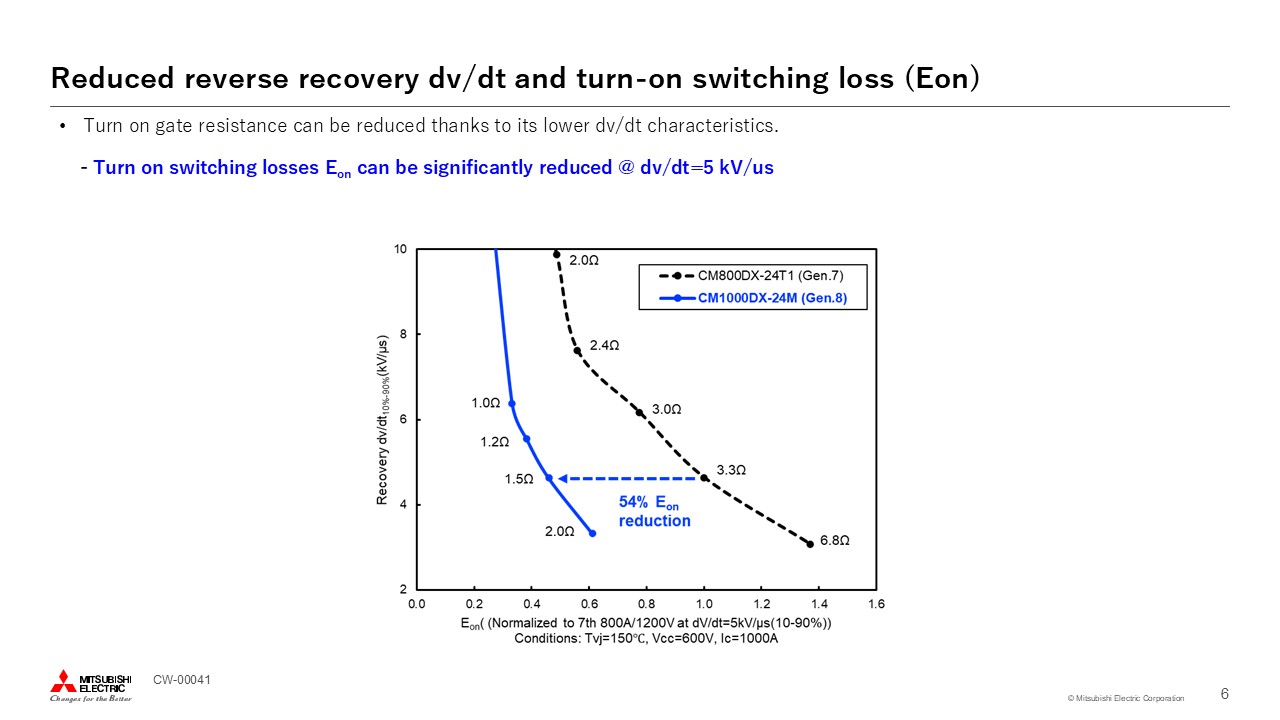

• Reduced reverse recovery dv/dt and turn-on switching loss (E_on)

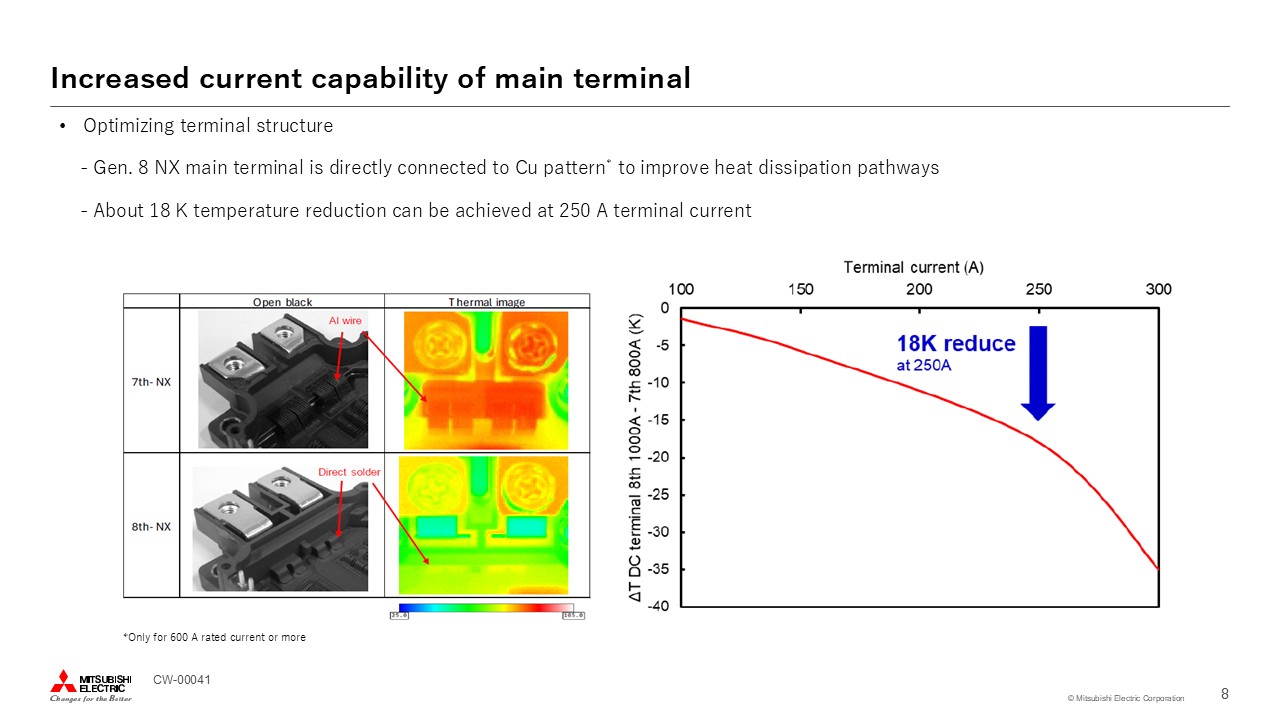

• Increased current capability of main terminal (above 600A rated products)

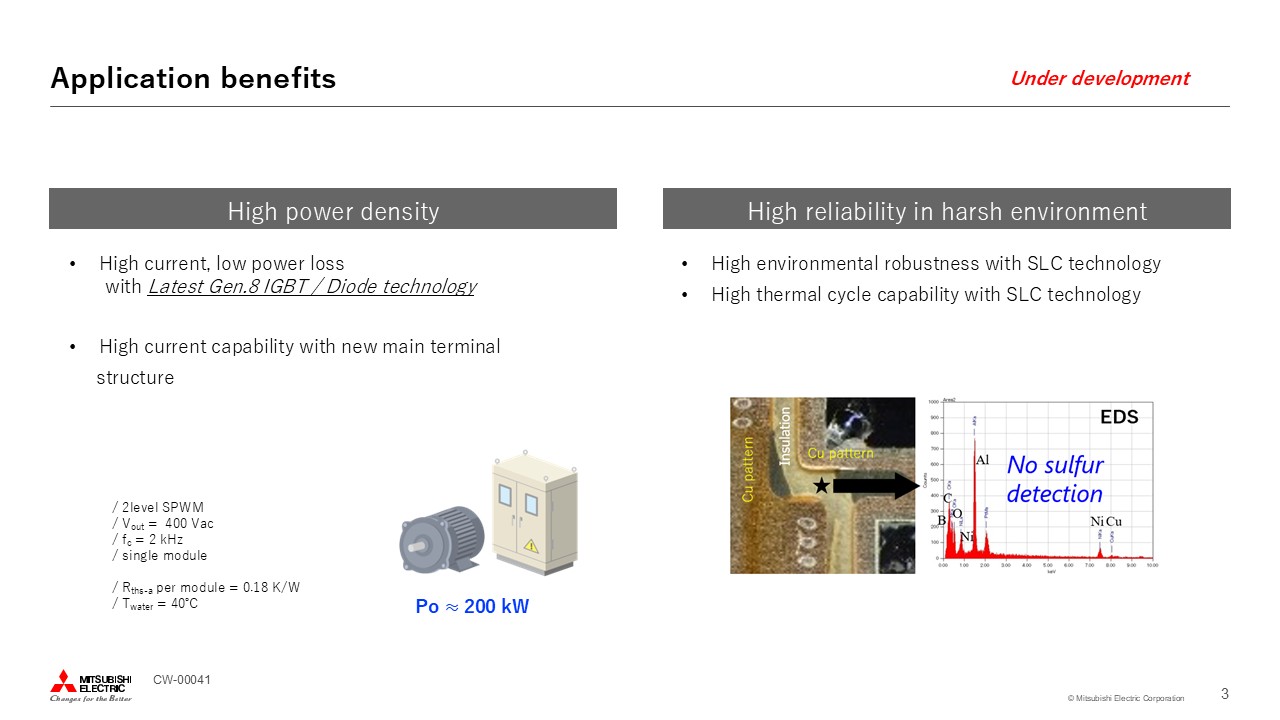

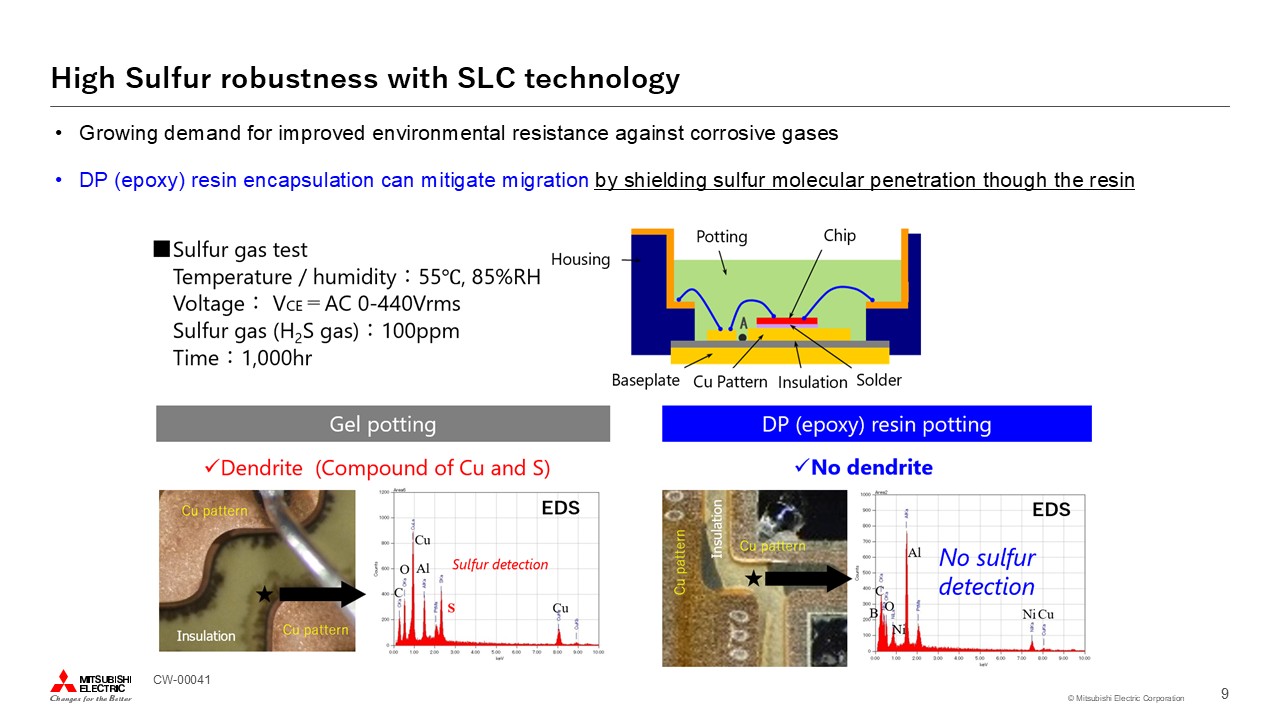

• High Sulfur robustness with SLC technology

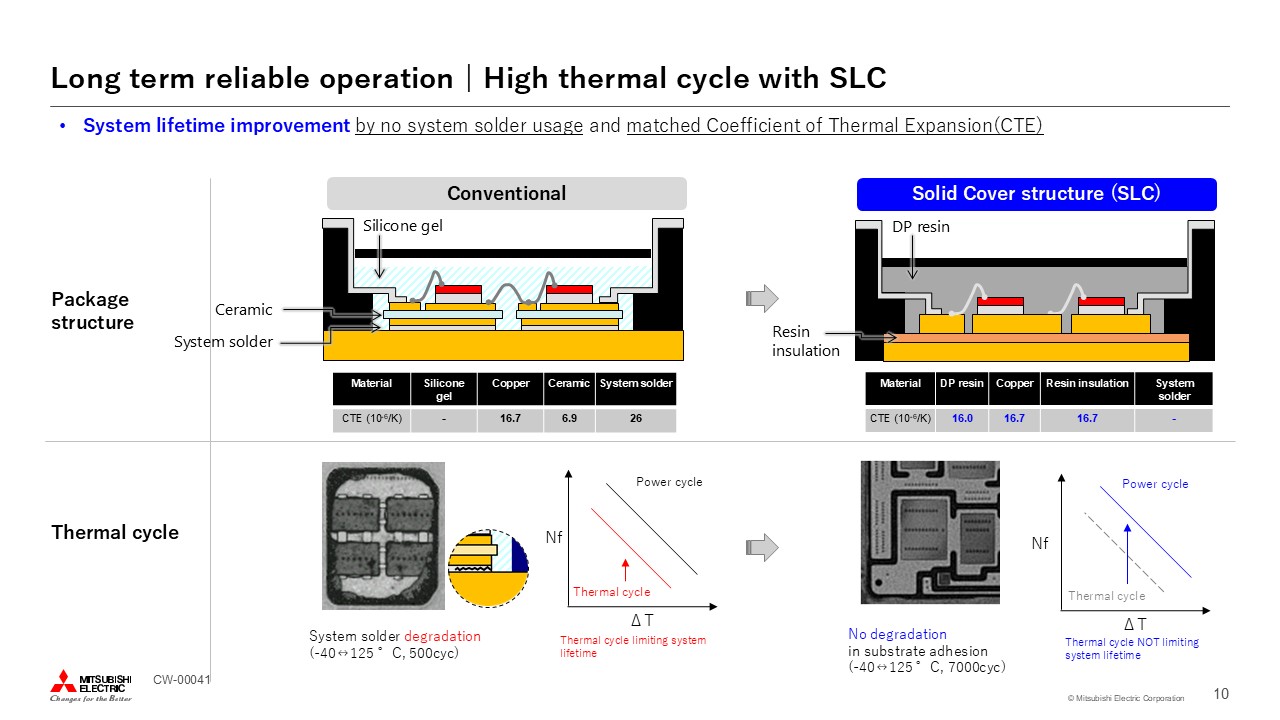

• High thermal cycle capability with SLC technology
• Available with 2.5kV isolation voltage and 4.0kV isolation voltage

Attributes

Viso=2.5 kVrms:
1200 V: 1000 A
1200 V: 800 A
1200 V: 600 A
1200 V: 450 A
1200 V: 300 A

Viso=4.0 kVrms:
1200 V: 1000 A
1200 V: 800 A

152 x 62 x 17
