NX Split-NPC 8th Gen. IGBT 1200V

read more

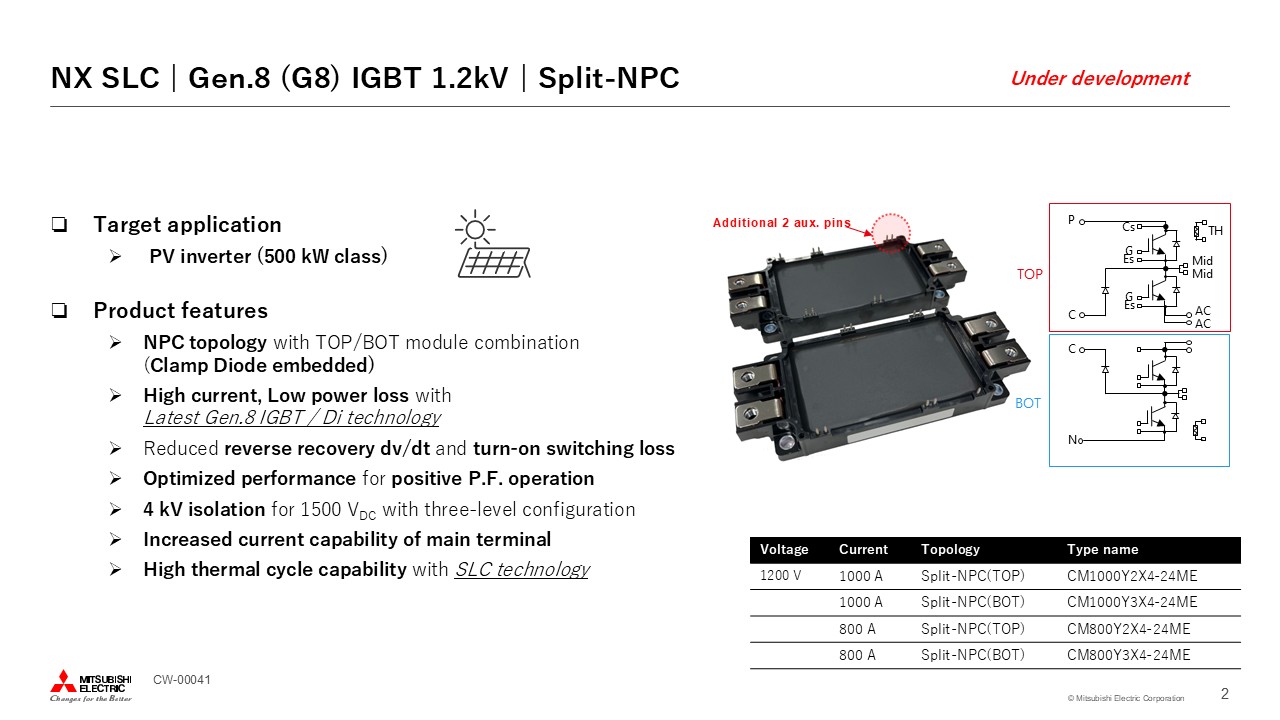

Advantages

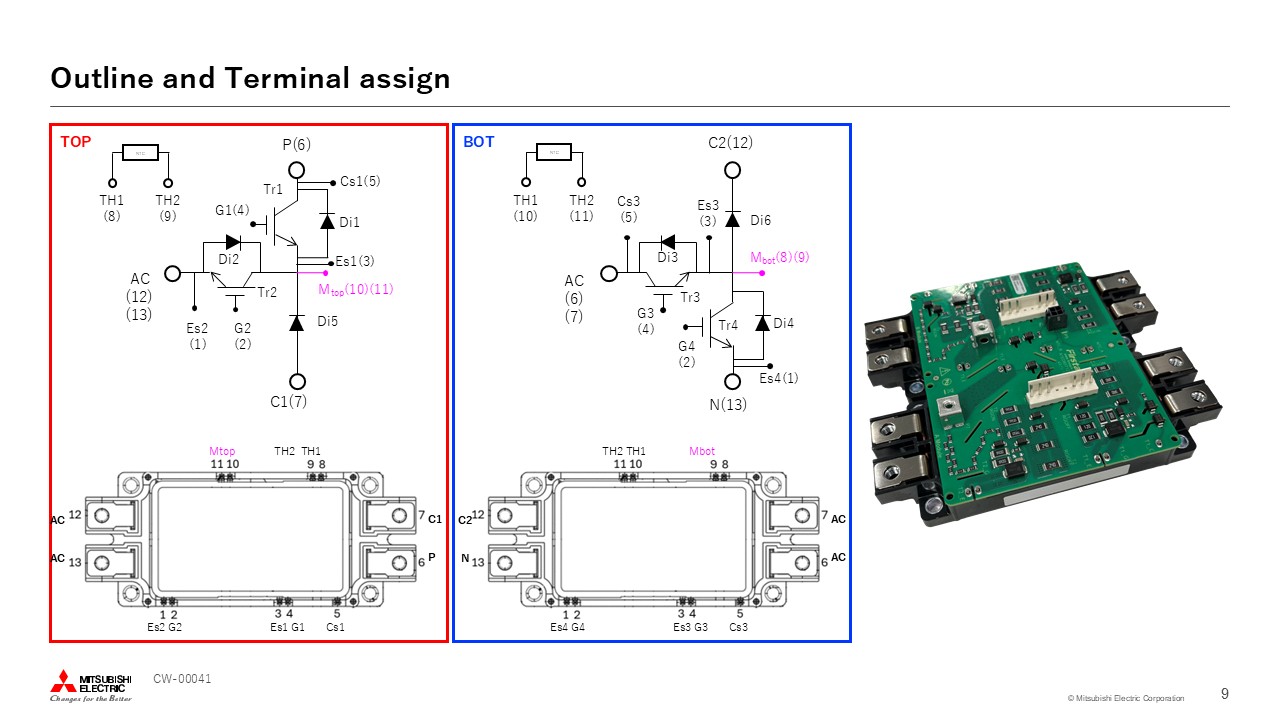

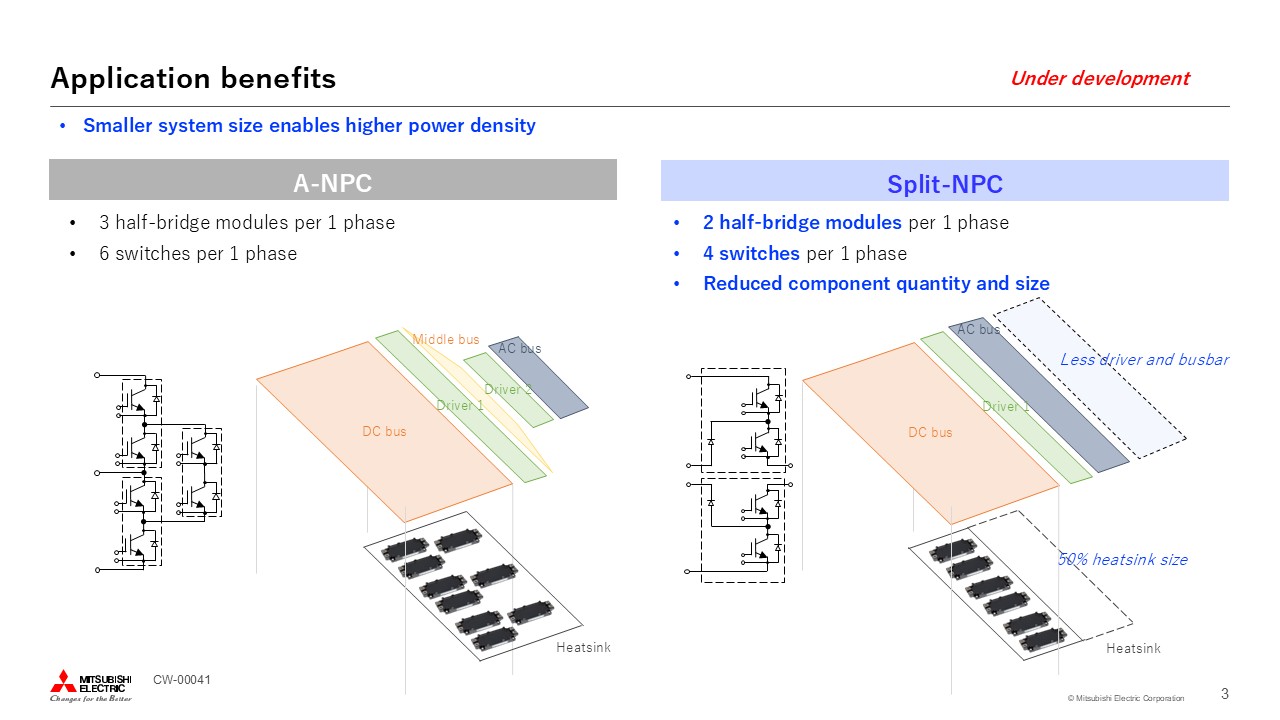

  • NPC topology with TOP/BOT module combination (Clamp Diode embedded)

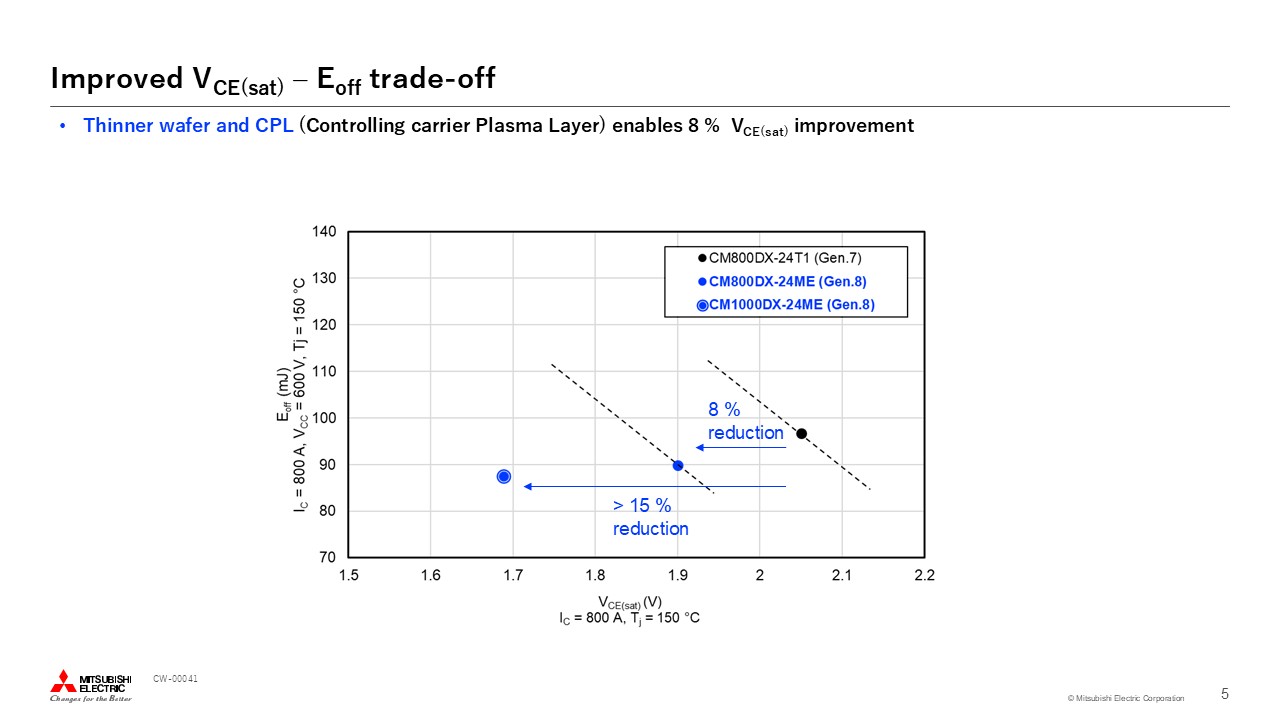

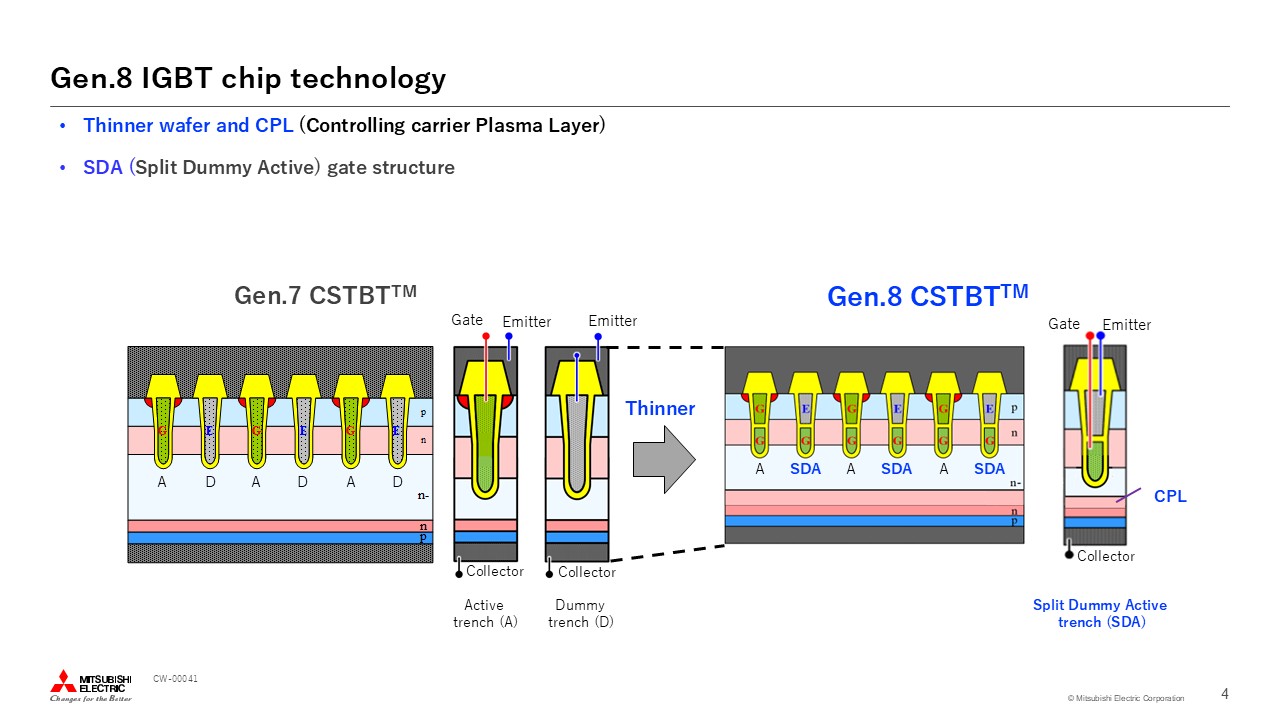

  • High current, Low power loss with Latest Gen.8 IGBT / Di technology

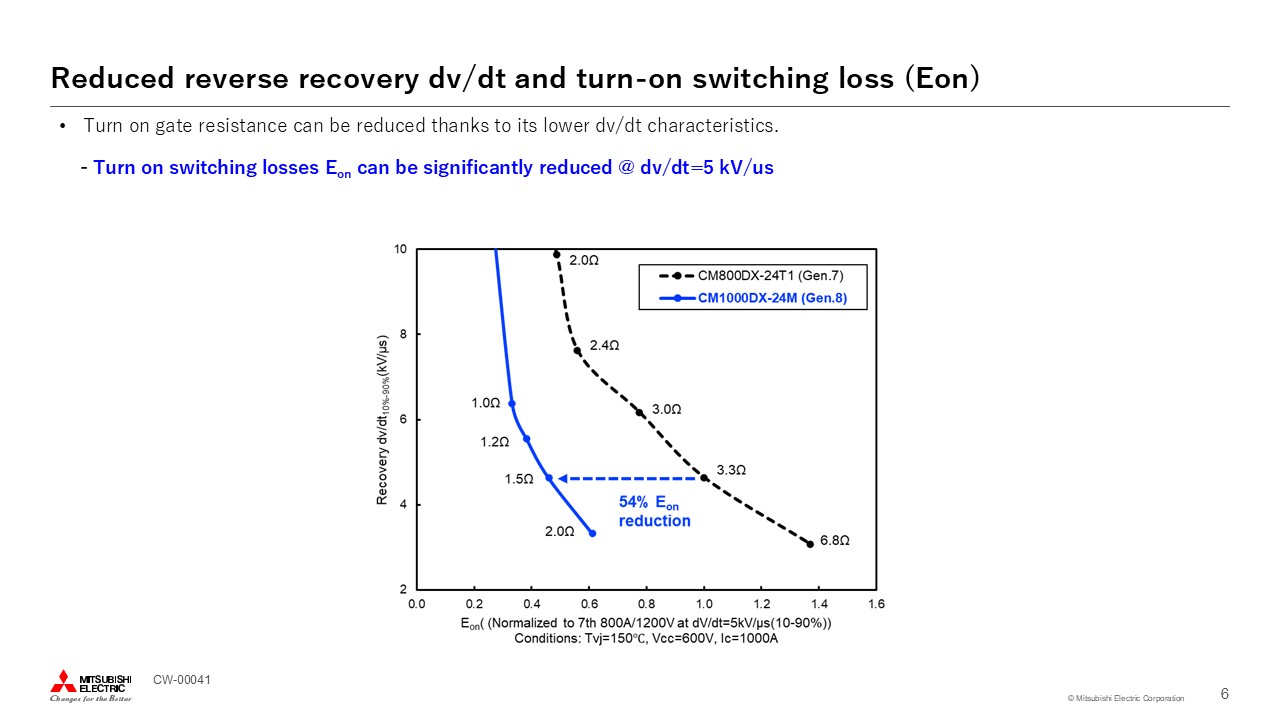

  • Reduced reverse recovery dv/dt and turn-on switching loss
  • Optimized performance for positive P.F. operation
  • 4 kV isolation for 1500 VDC with three-level configuration

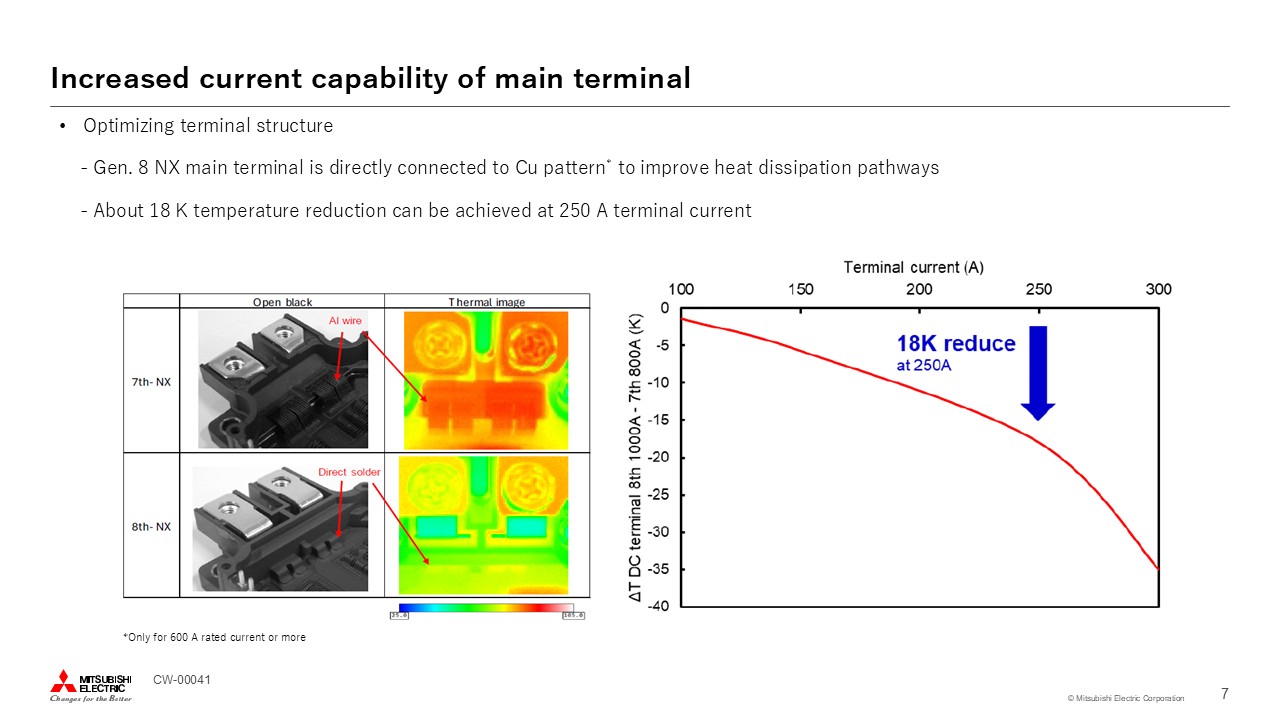

  • Increased current capability of main terminal

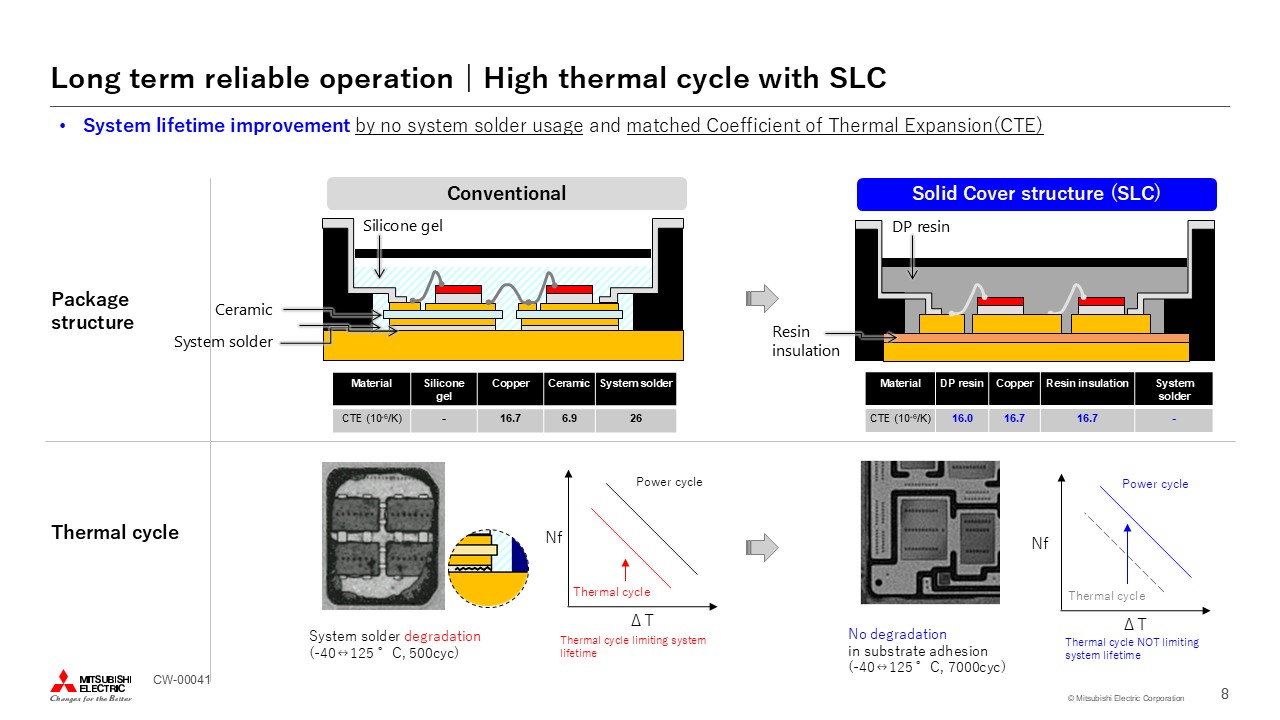

  • High thermal cycle capability with SLC technology

Attributes

Ratings:

1200 V: 1000 A

1200 V: 800 A

Dimensions [mm]:

152 x 62 x 16
