Advantages

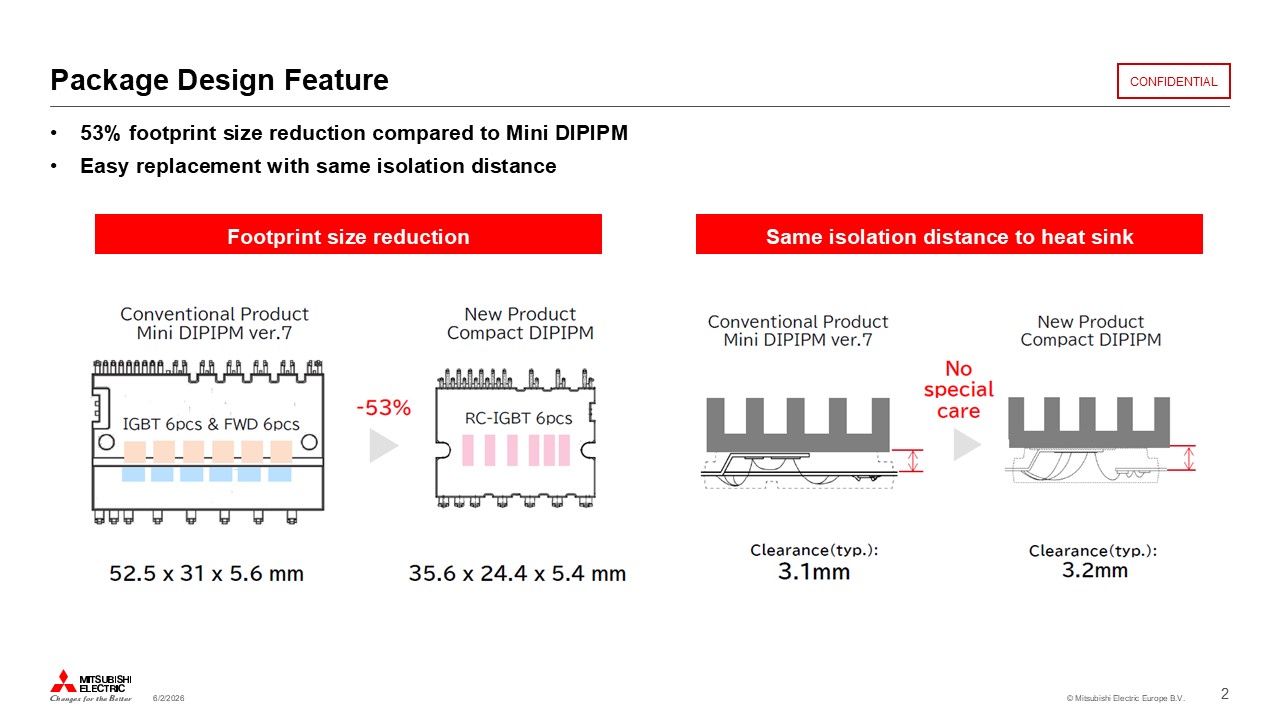

  • Smaller footprint  (43% smaller than Mini DIPIPM)

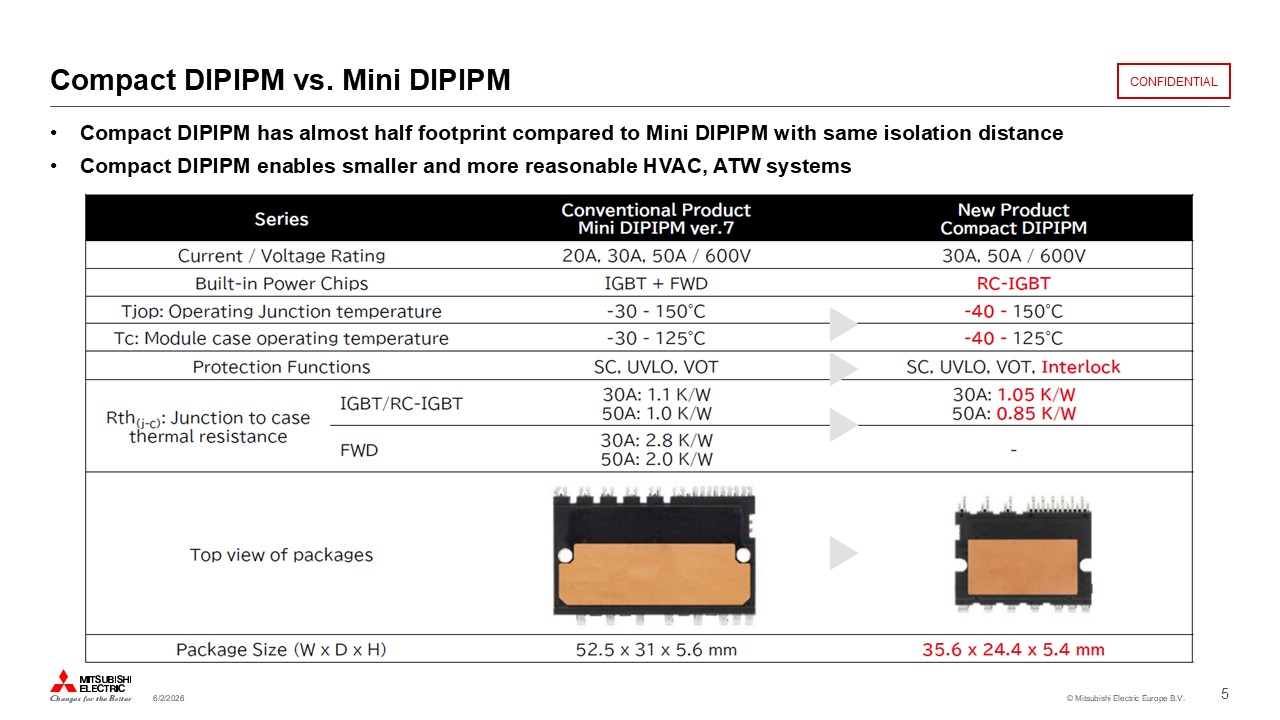

  • Optimized layout compared with that of Mini DIPIPM

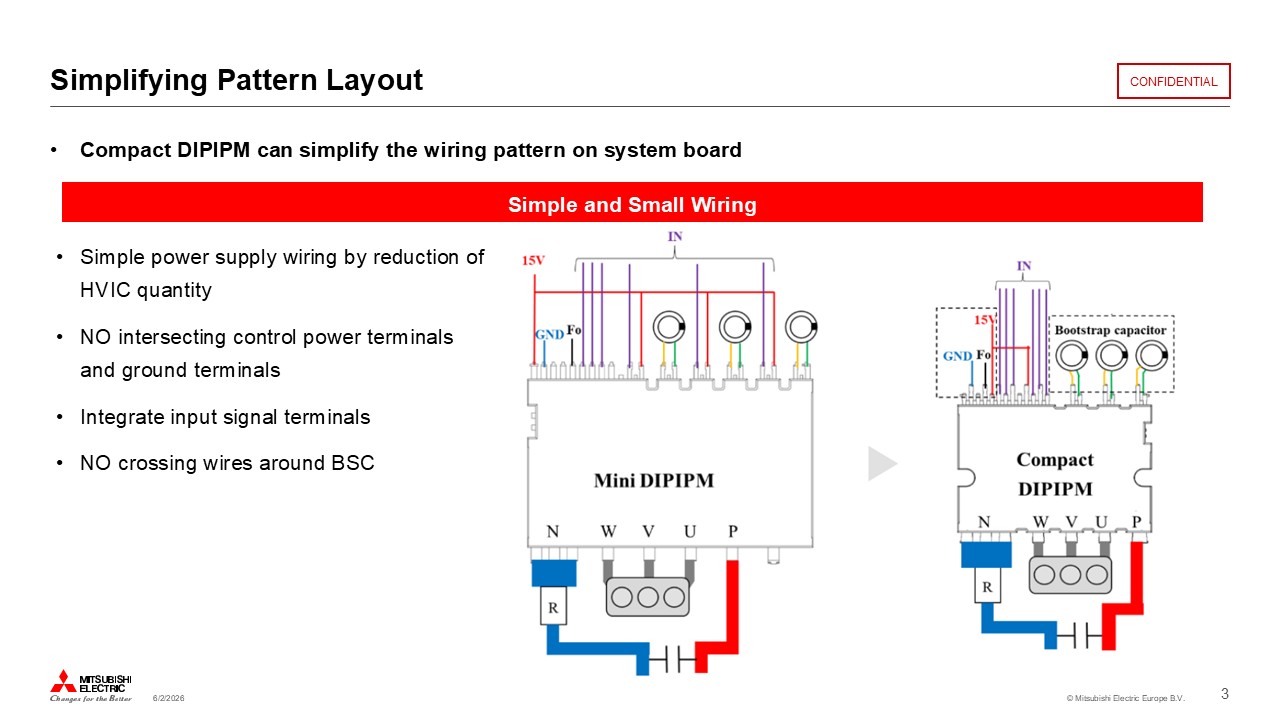

  • Integrated bootstrap diode eliminates the need for external diode, simplifying design & PCB layout

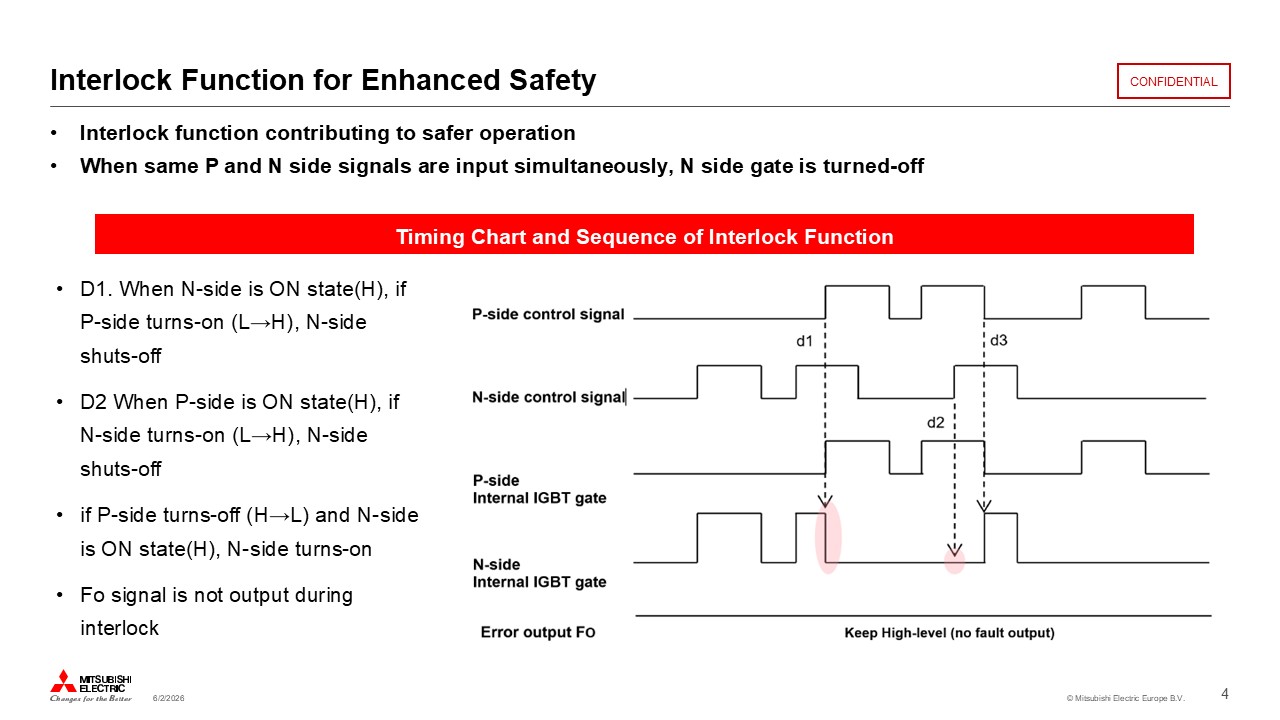

  • Dedicated protection functions: short circuit, under voltage lockout, interlock function
  • Added functionality:  Temperature output function
  • Extended minimum Tcase,min and Tjop,min down to -40deg C
  • UL recognized, isolation voltage , Viso = 2500V AC RMS

Attributes

Ratings:

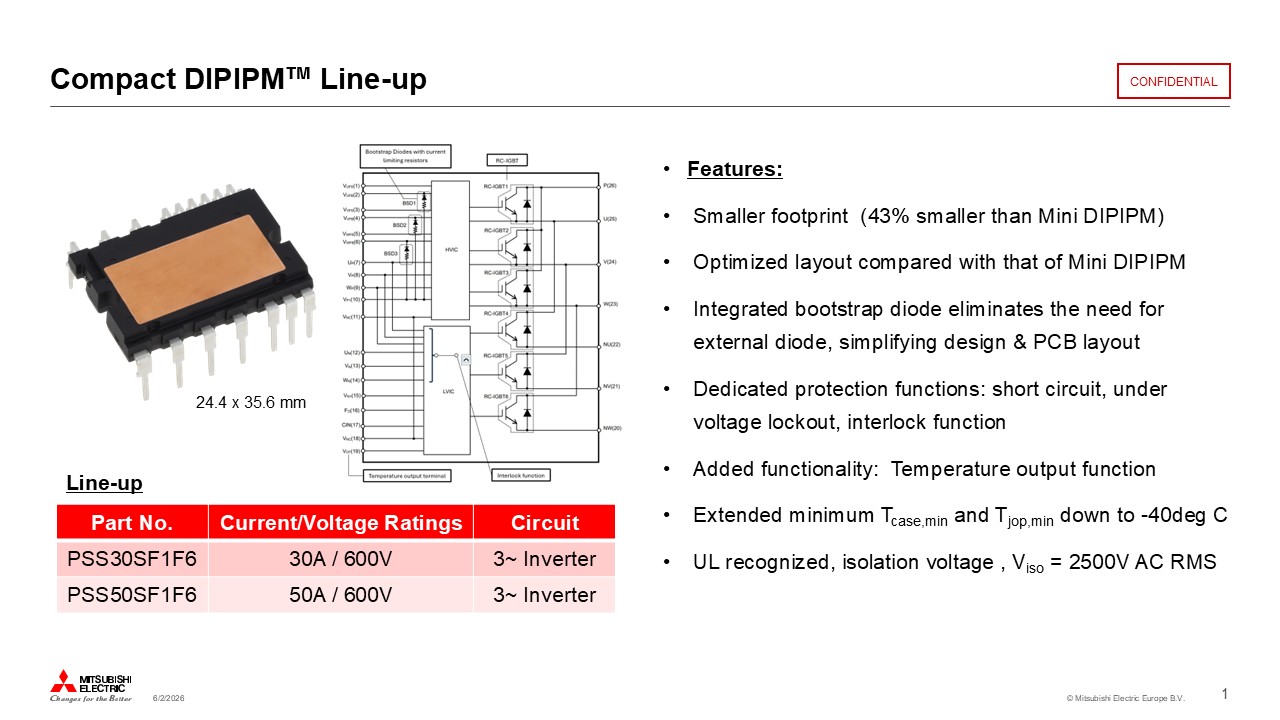

600 V: 30 A, 50 A

Dimensions [mm]:

24.4 x 35.6 x 5.4
