Advantages

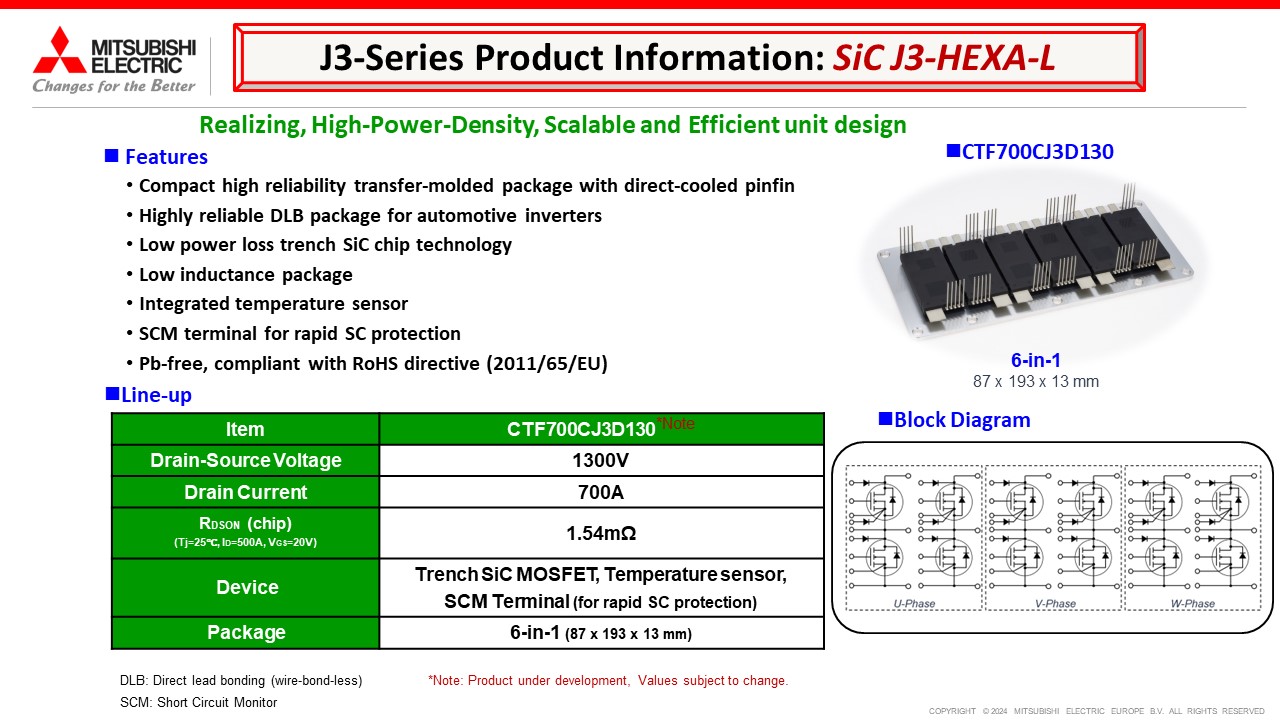

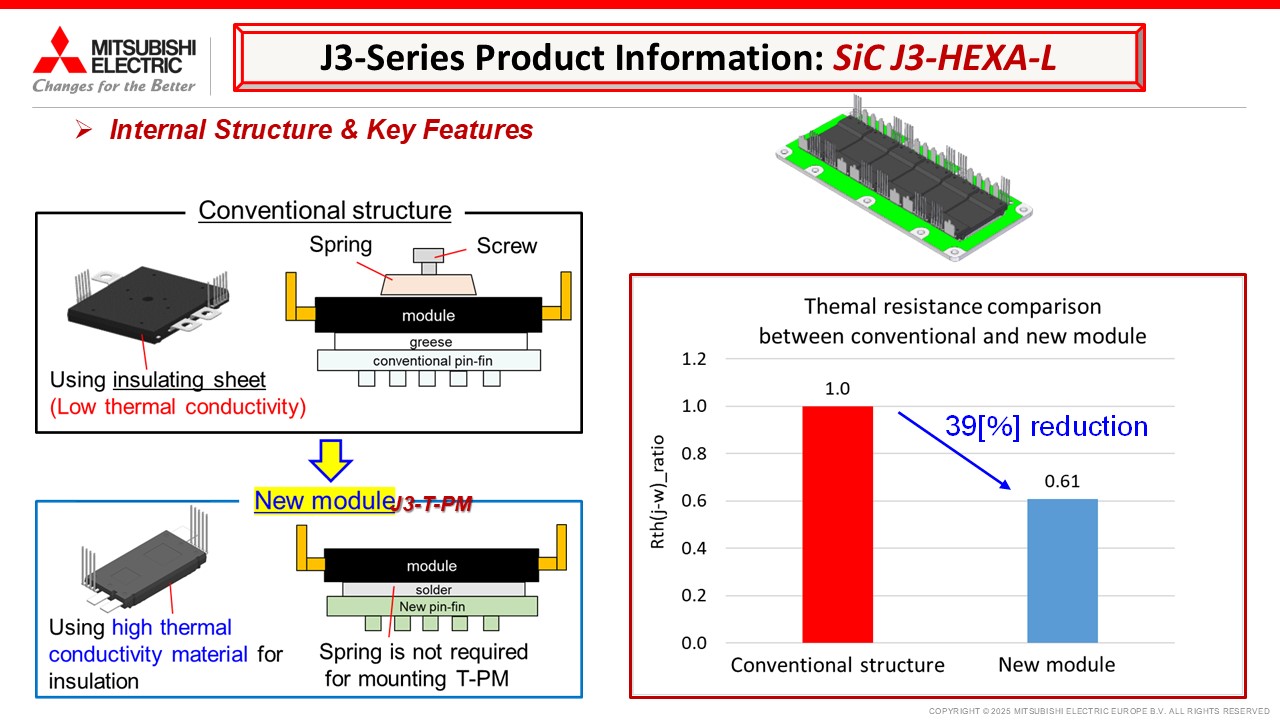

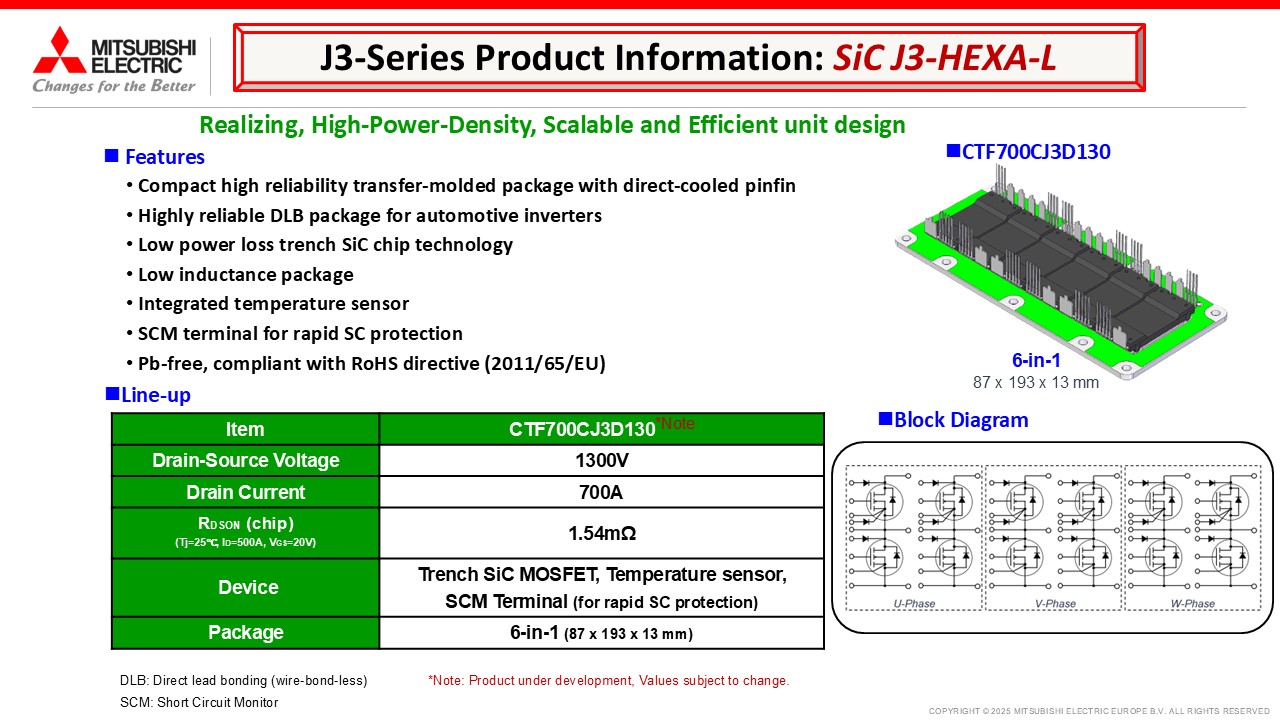

  • Extra-compact, direct-cooled 6-in-1 package with cooling fin

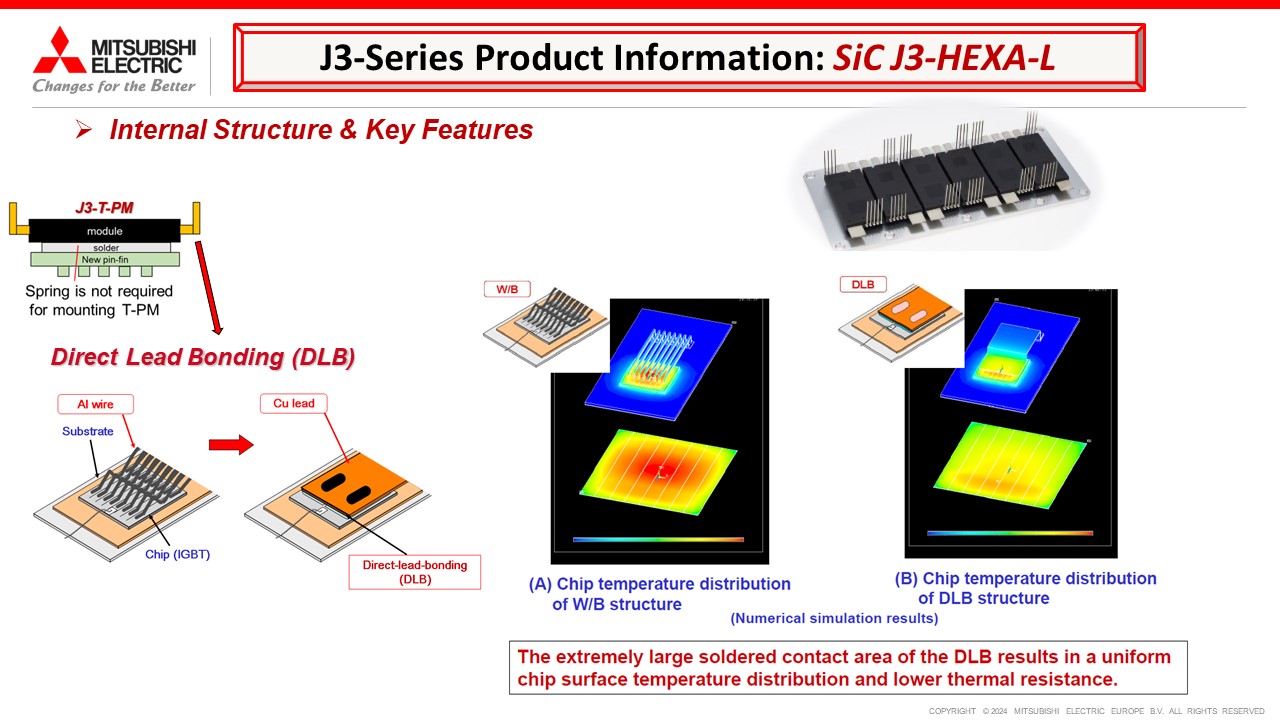

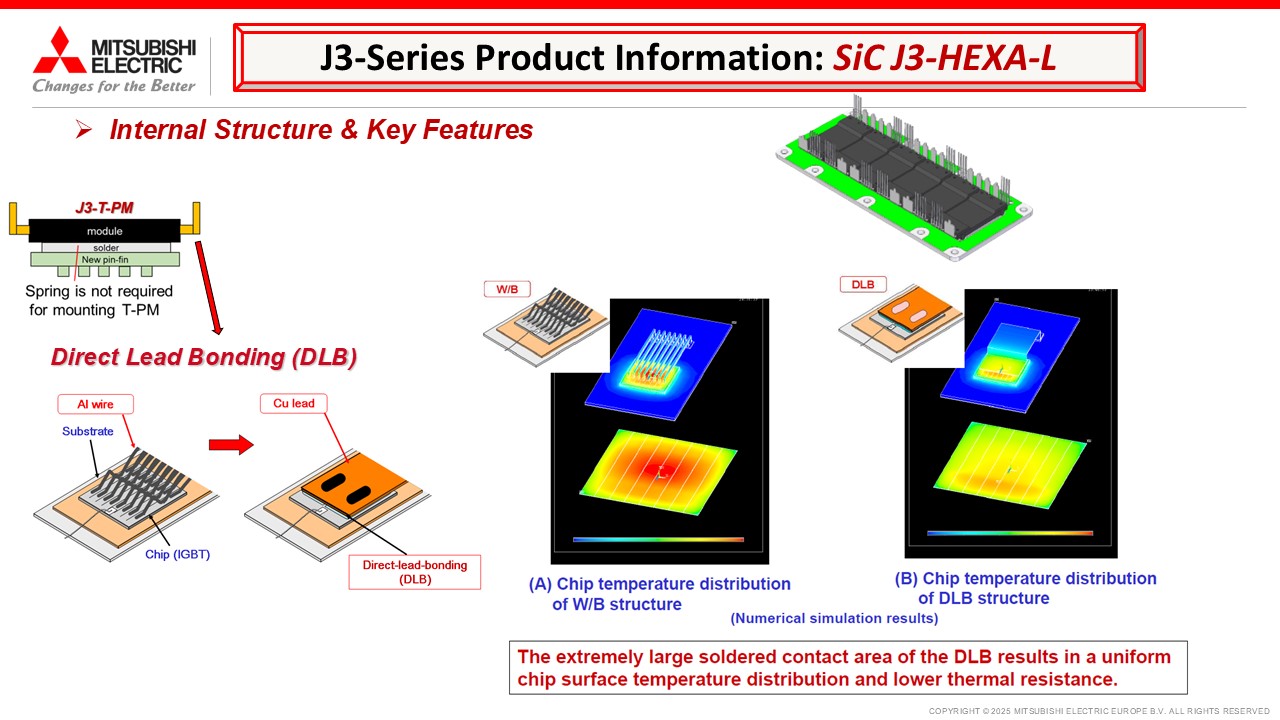

  • High reliability Direct Lead Bonding (DLB) wire bond less package for automotive inverters

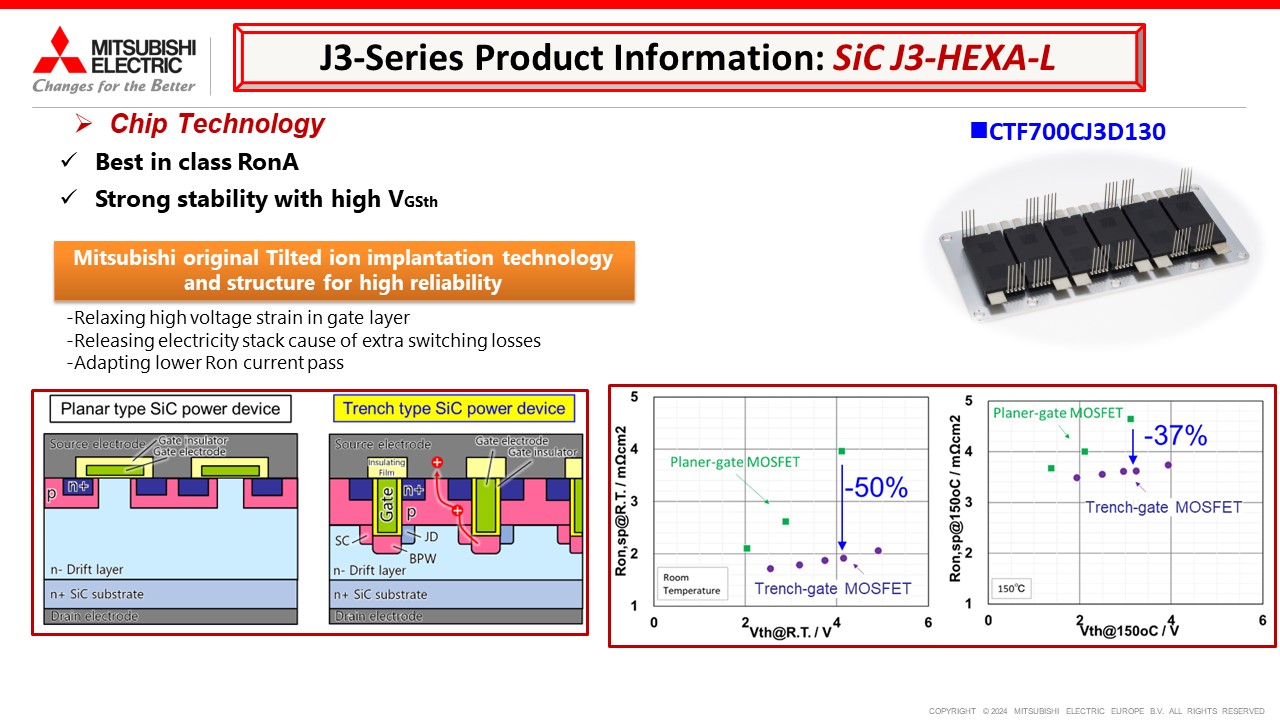

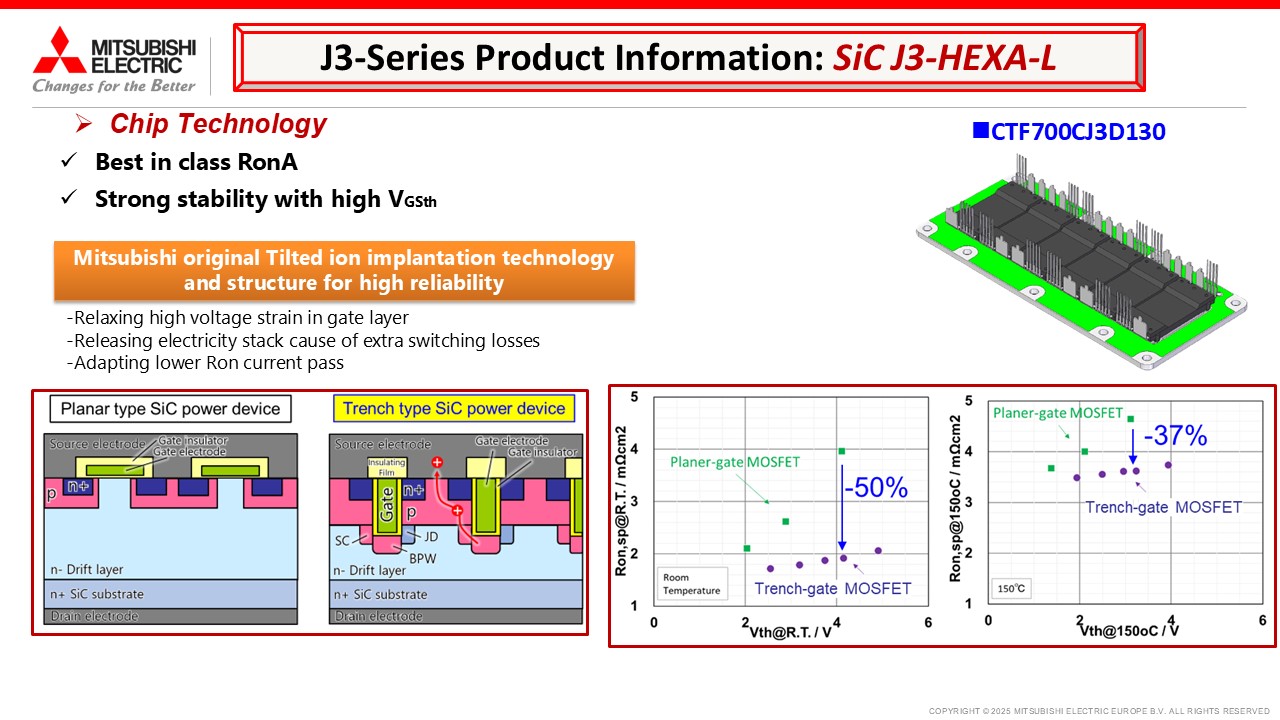

  • Low power loss Trench SiC MOSFET

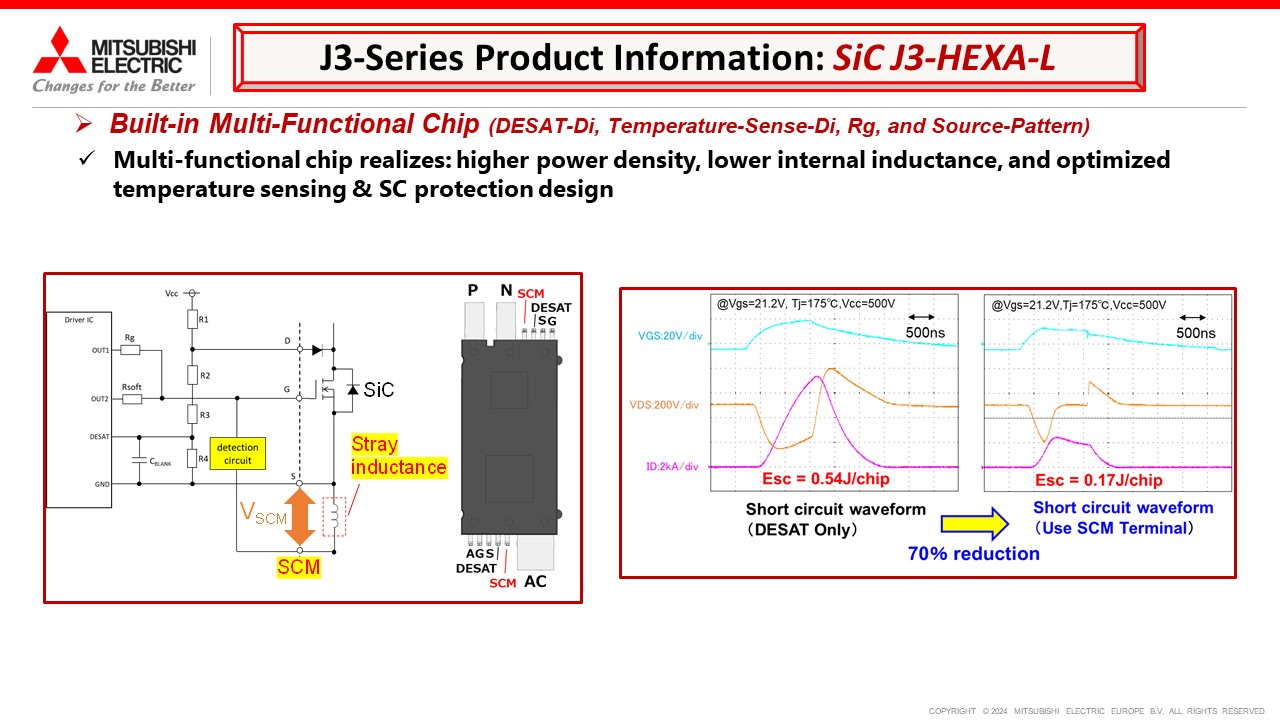

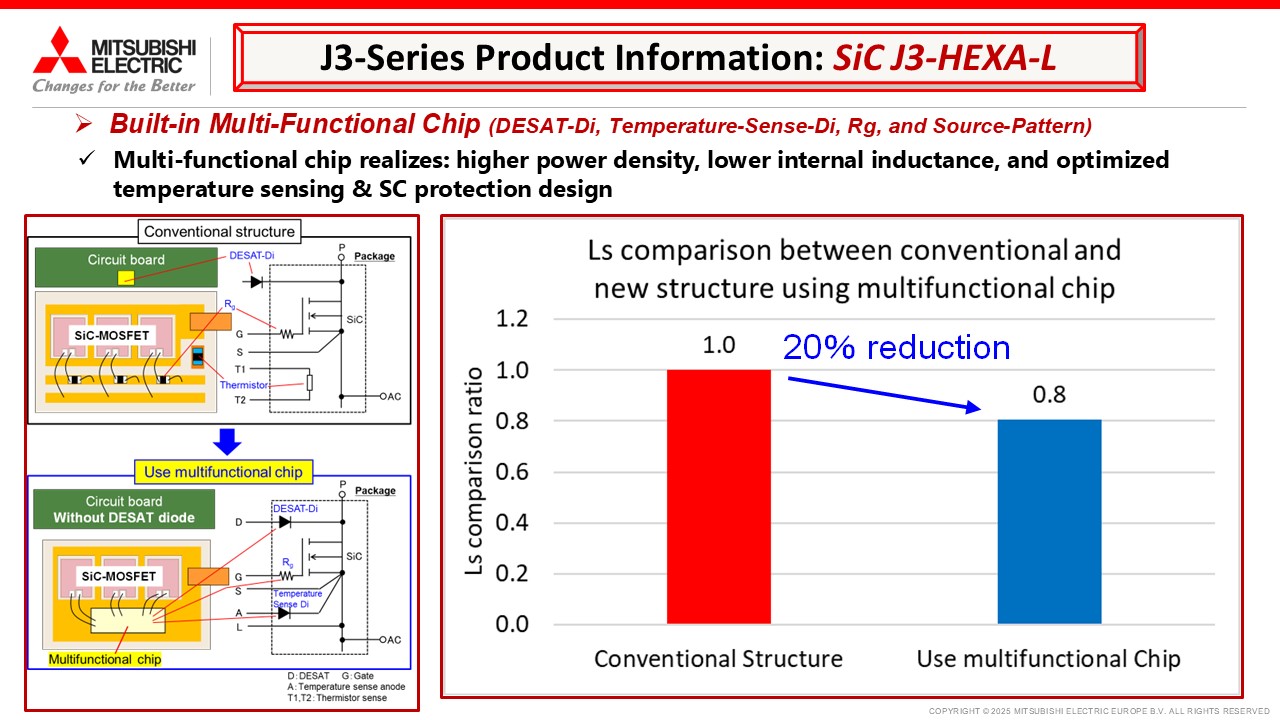

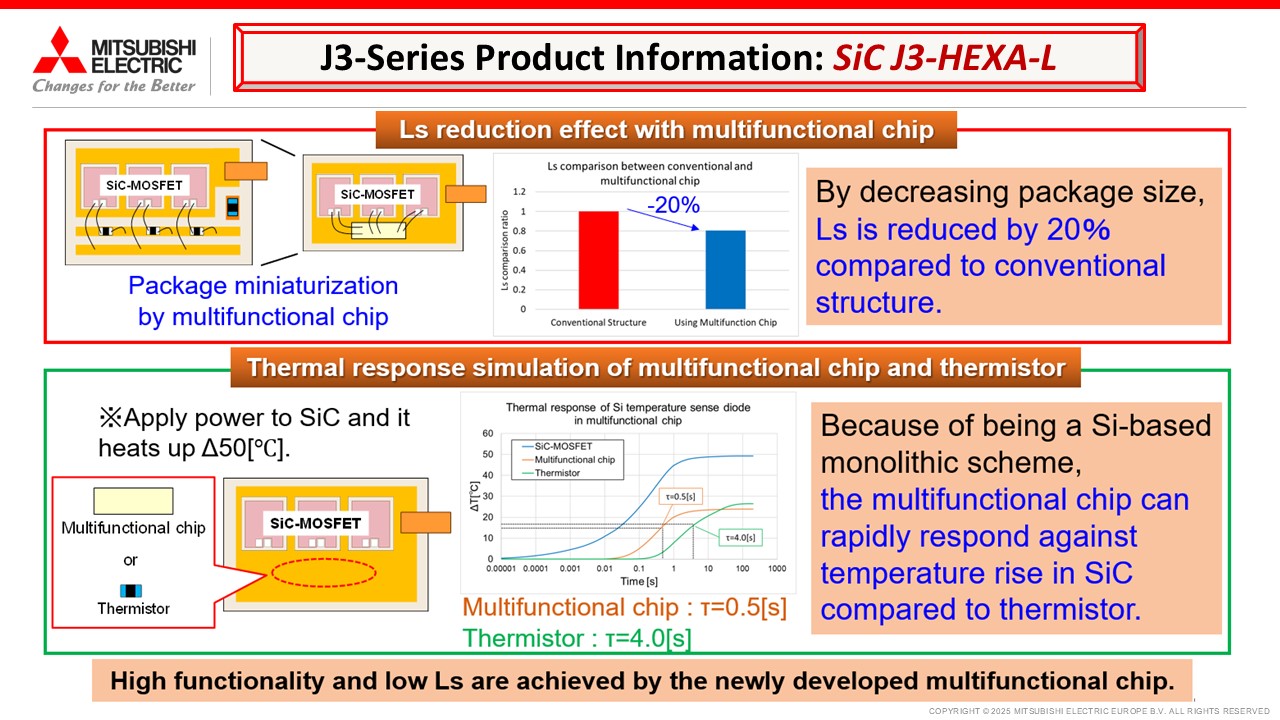

  • Integrated Multi-Function-Chip for temperature-sensing and rapid SC protection
  • Pb-free structure, compliant with RoHS directive (2011/65/EU)

Attributes

Ratings:

1300V: 700A

Dimensions [mm]:

87 x 193 x 13

Downloads

3D-Model

Videos

YouTube Logo

We need your consent to load the Youtube service!

We use a third party service to embed video content that may collect data about your activity.
Please review the details and accept the service to watch this video.

This content is not permitted to load due to trackers that are not disclosed to the visitor.
The website owner needs to setup the site with their CMP to add this content to the list of technologies used.

J3-Series: High Power-Density, High-Reliability, Scalable SiC and Si Power Modules for E-Mobility
