Advantages

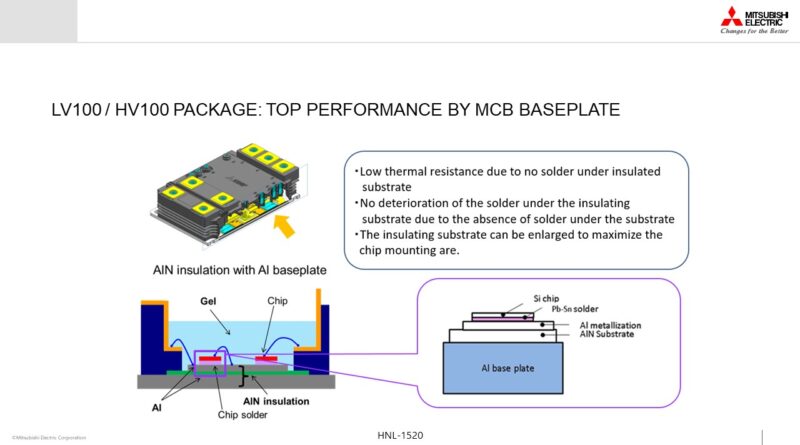

  • Cutting edge MCB baseplate for high reliability and high power density
  • Increased humidity robustness

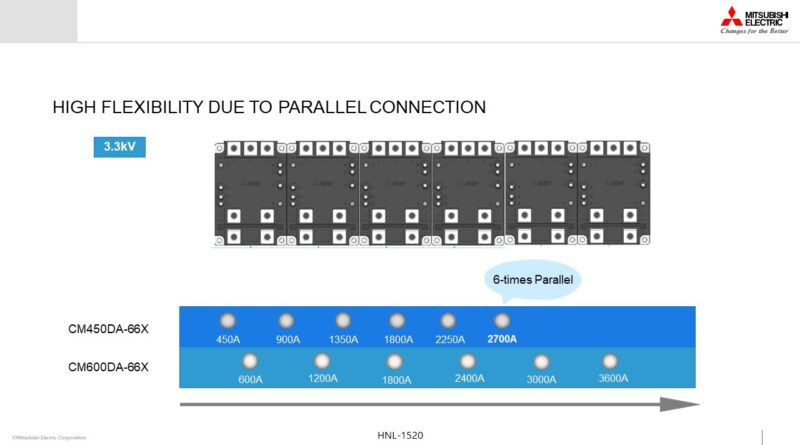

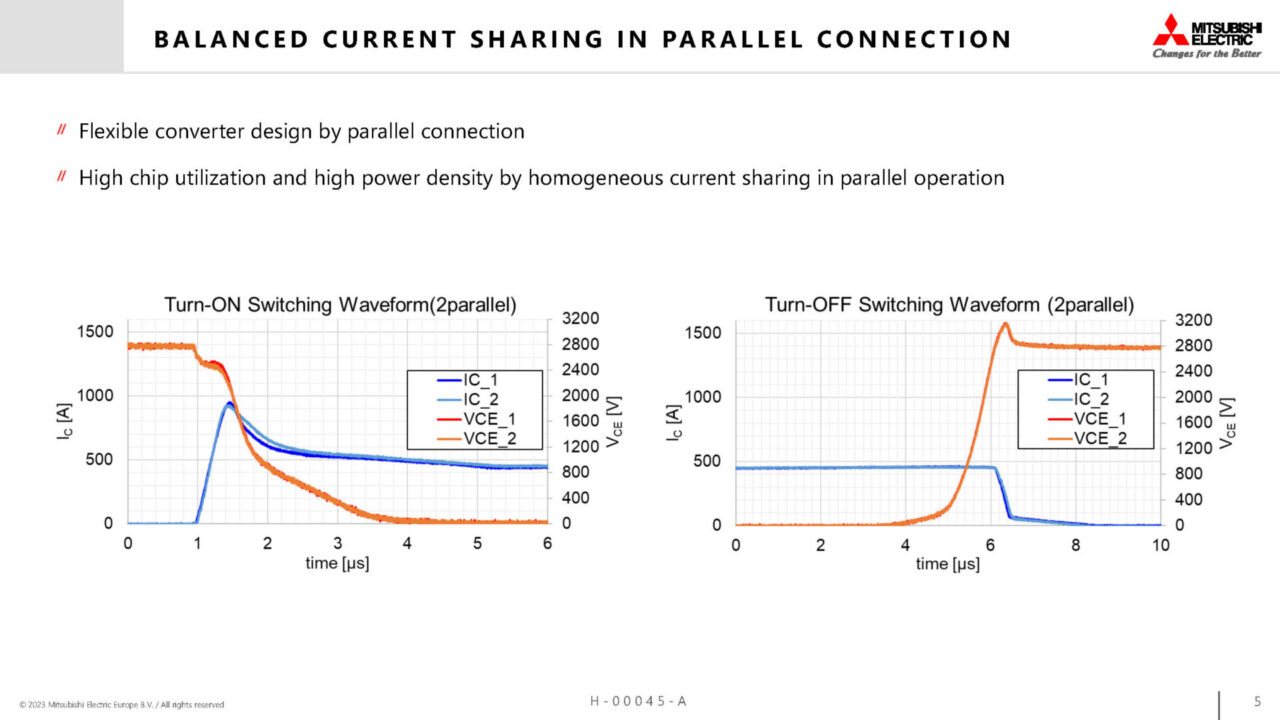

  • High flexibility by easy parallel connection
  • Maximum gate-driver design space with clean auxiliary terminal placement

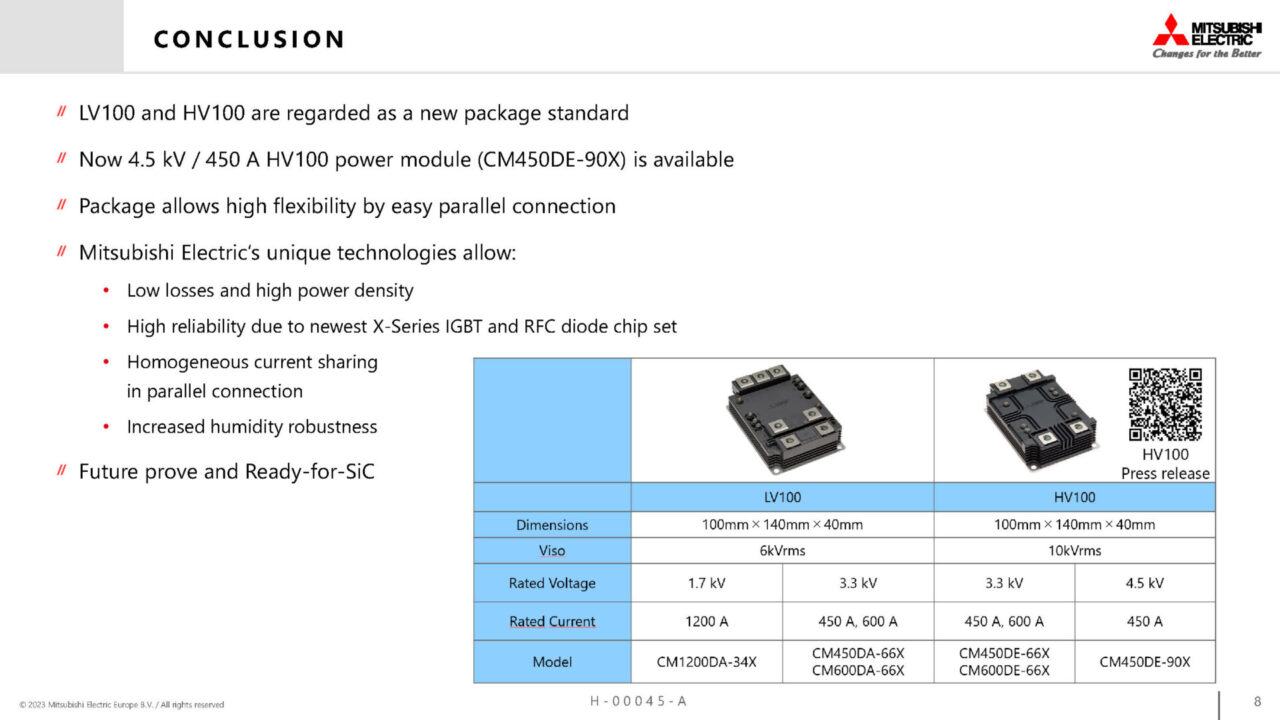

  • Future prove design and Ready-for-SiC

Attributes

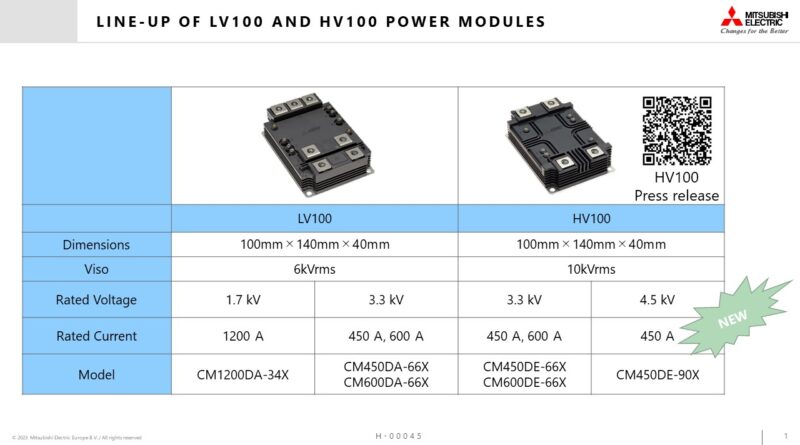

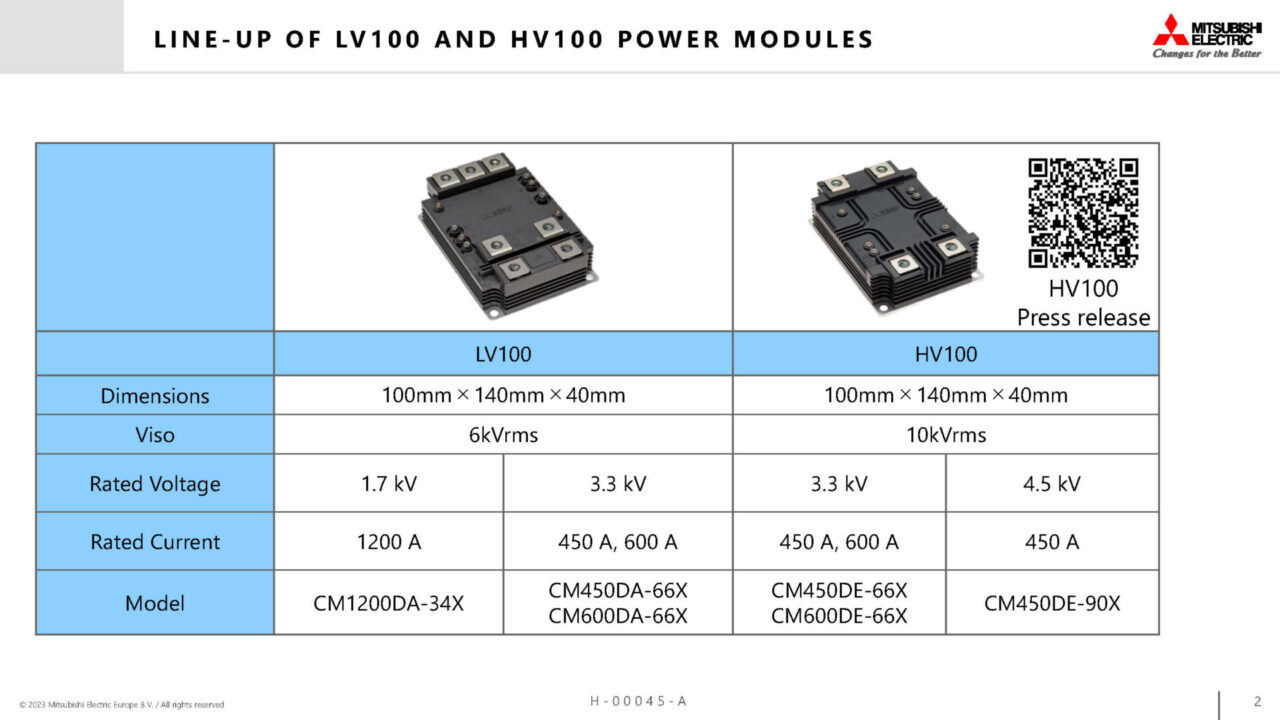

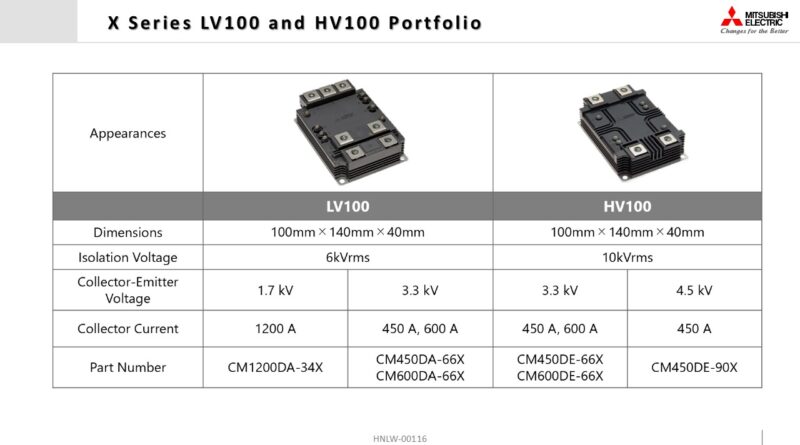

Ratings:

3300 V: 450 A, 600 A
4500 V: 450 A

Dimensions [mm]:

100 x 144 x 40

Downloads

3D-Model

Presentations

Videos

YouTube Logo

We need your consent to load the Youtube service!

We use a third party service to embed video content that may collect data about your activity.
Please review the details and accept the service to watch this video.

Low inductive, future-proof high-voltage LV100 and HV100 dual modules for great flexibility
